QT4-15 automatic making machine concrete block used

  • >=1 Sets
    $13,200.00
Model Number:
QT4-15 automatic making machine concrete block used
Power:
27.6kw
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Building Material Shops, Manufacturing Plant, Construction works , Brick making machinery
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
Egypt, Canada, United States, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Thailand, Malaysia, Australia, Morocco, Kenya, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, South Africa, Nigeria, Uzbekistan
Showroom Location:
Viet Nam, Philippines
Condition:
New
Type:
Hollow Block Making Machine, Paving Block Making Machine, Interlock Block Making Machine, Curbstone Block Machine, Concrete Block Making Machine
Brick Raw Material:
CONCRETE
Processing:
Brick Production Line
Method:
Hydraulic pressure
Automatic:
Yes
Max. Capacity:
4000-30000 pcs/day
Place of Origin:
Shandong, China
Brand Name:
Sancidalo
Voltage:
220V/380V/440V
Dimension(L*W*H):
4300*1850 *2600mm
Certification:
CE/BV/ISO9001
Warranty:
1 Year
After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Key Selling Points:
Famous brand PLC
Brick size:
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 400*200*200 mm, 230*220*115 mm, Customized size
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Marketing Type:
Hot Product 2019
Warranty of core components:
1 Year
Core Components:
PLC, Engine, Motor
Keywords:
making machine concrete block used
Weight:
5.5T
Vibration frequency:
50~70Hz
Molding cycle:
15s
Vibration force:
80KN
Control system:
Hyraulic PLC conctrol
Pallet size:
1010*550*30mm
Products:
hollow,paver.interlock,kerb
Raw material:
concrete,cement,sand,fly ash,lime stone
Block pressure:
10-15Mpa
Supply Ability
Supply Ability:
50 Set/Sets per Month
Packaging & Delivery
Packaging Details
export package or according to the buyers request
Port
Qingdao Port
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 To be negotiated
Video Description
Why Choose Us

QT4-15 automatic brick making machine concrete block used

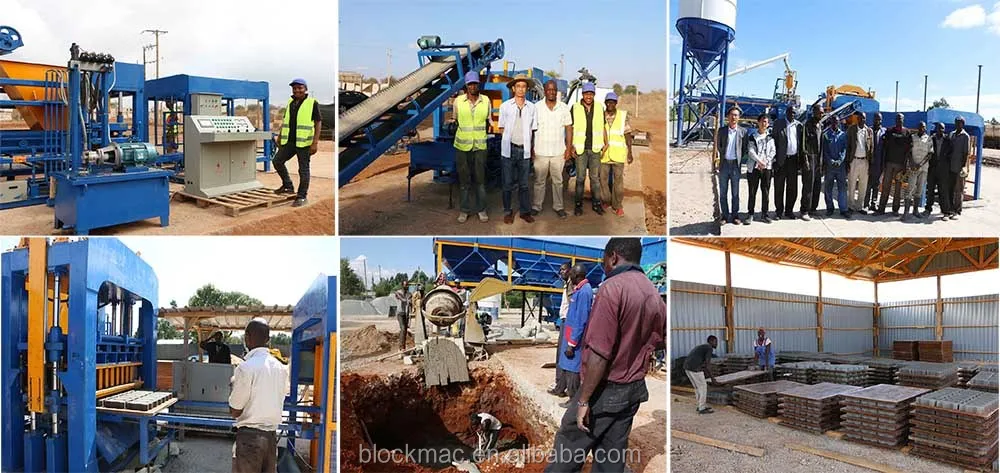

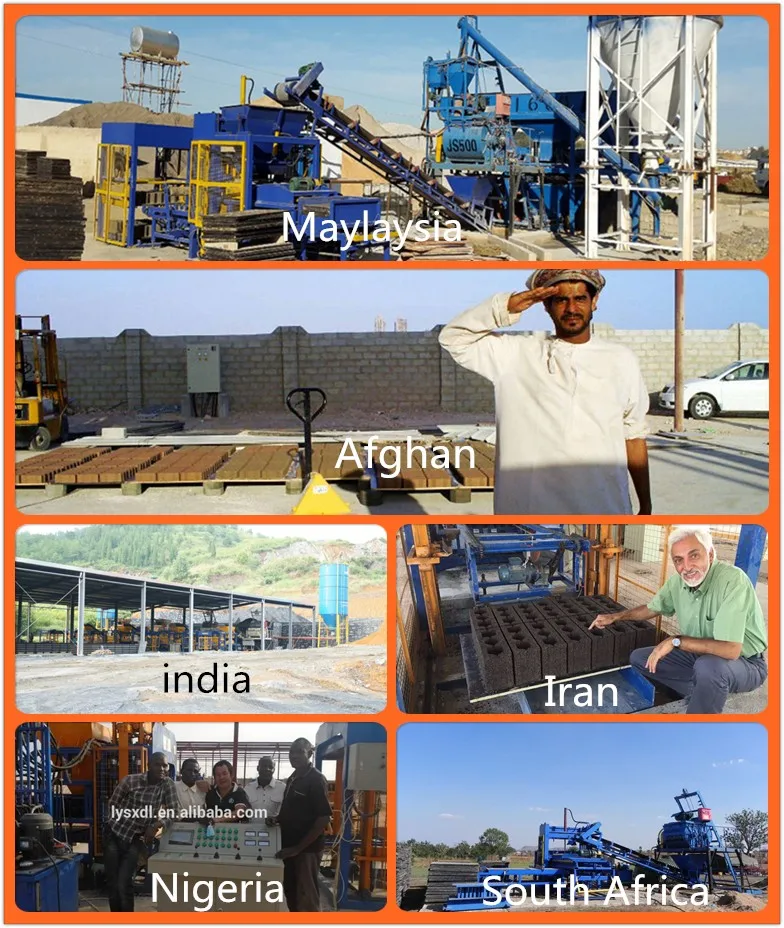

Many Many clients order the cement block making machine from Sancidalo Machinery Company.Get high praise!We can not say by ourself,just check the below case!

Why Choose us?

 Factory with 20 years experience,Famous trademark of China

Passed CE/ISO9001/SGS,supply CO/SASO/PVOC/COC certificate

Manufactuer directly,much competitive price lower more than30% than other company

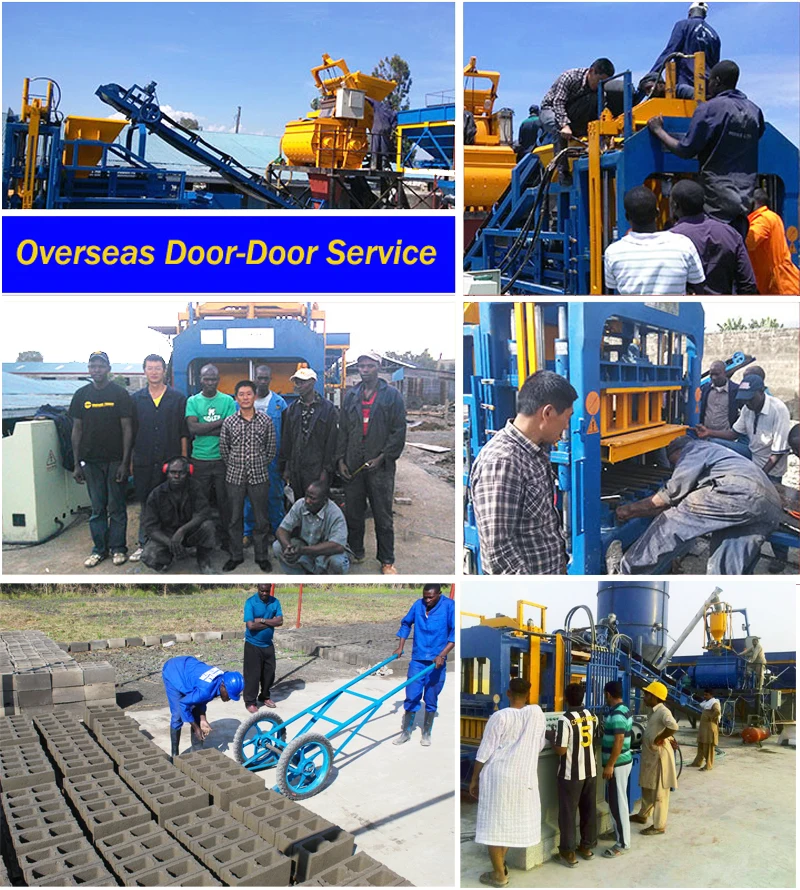

Engineer overseas door-to-door service.24 hours online

All the machine12 months warranty,technical support by free

 We are familiar with market and know your exact needs.

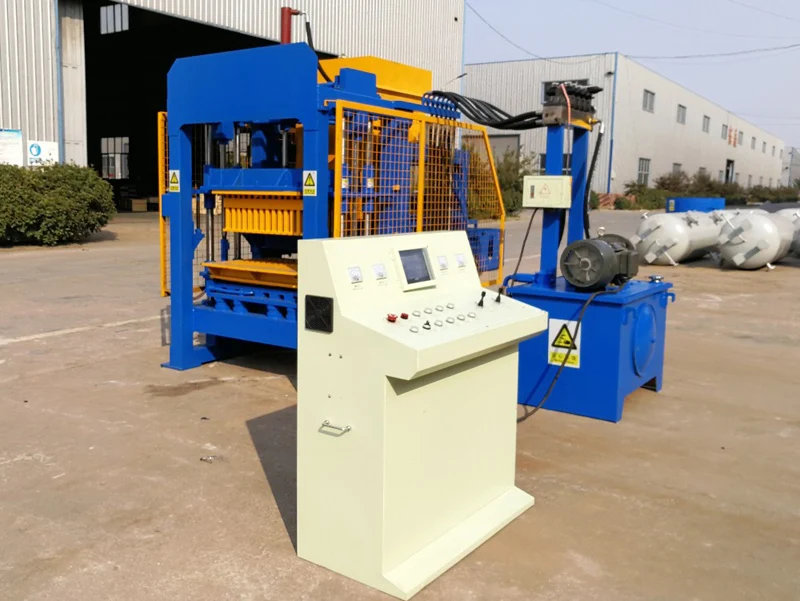

Product Description

Simple Introduction

QT4-15 automatic brick making machine concrete block used,its pressure system become two hydro-cylinder.The lifting speed fast and the pressure function is well.It can easy automatic operate,including PLD800 Batching machine,JS500 Mixer,QT4-15 block machine, Stacker machine and so on.

Specifications of QT4-15 automatic brick making machine concrete block used
Dimension of host machine
4300*1850 *2600mm
Pallet size
1010*550*30mm
Total power
27.5kw
Weight of the host machine
5.5T
Vibration force
80KN
Molding cycle
15-20s
Intensity of pressure
10-15Mpa
Mixer
JS500

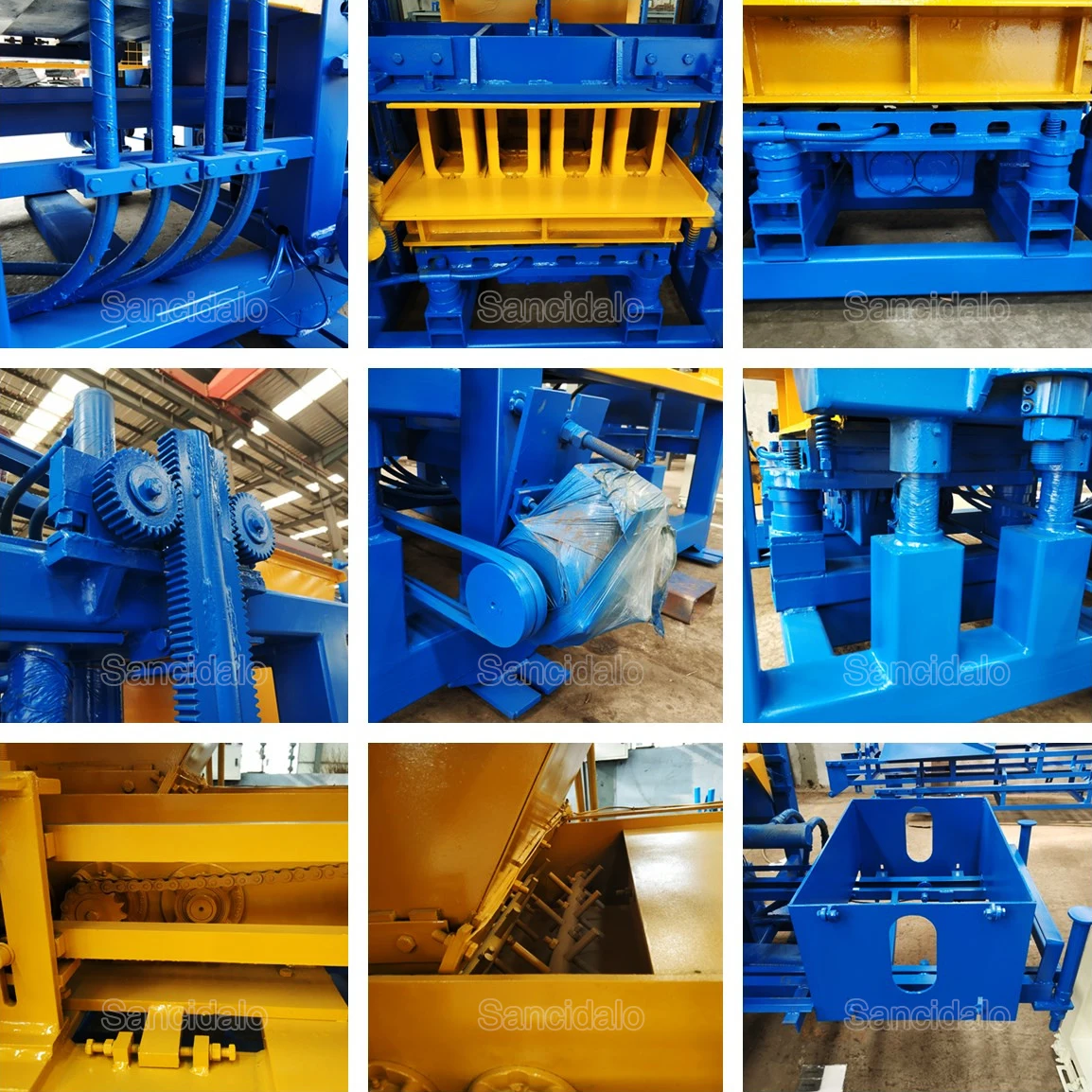

Main Advantages

1) Host machine total 5.5T,every part all use thicken plate, make the machine strong and wear-resisting.

2) Fully automatic ,very easy operated by workers, greatly reduce the labor-cost.


3) Japan Mitsubishi PLC control system, ensure the machine runs extremely smoothly, long serving life. Faults-displaying and the troubles-shooting on the cabinet.


4) Hydraulic system, three-stage pressure control valve are adopted. so the pressure for all actions of the machine can be adjusted automatic.

5) Direct chain transmission, to sure very low noise, and easy to check the fault.


6) Mould vibration and head pressure together, make the brick high strength and density.

7) All the mold are carburizing by heat treatment, can using more than 120,000 times.

Capacity for different size cement hollow and color paver block

(Mould can design as your request)

Size(L*W*H)
QTY/Mould(pcs)
QTY/Hour(pcs)
QTY/8Hour(pcs)
400×250×200mm
3
540
4320
400×200×200mm
4
720
5760
400×150×200mm
6
1080
8640
400×100×200mm
8
1440
11520
230×110×70mm
24
5750
46000
200×100×60mm
16
2880
23040
200×163×60mm
8
1440
11520

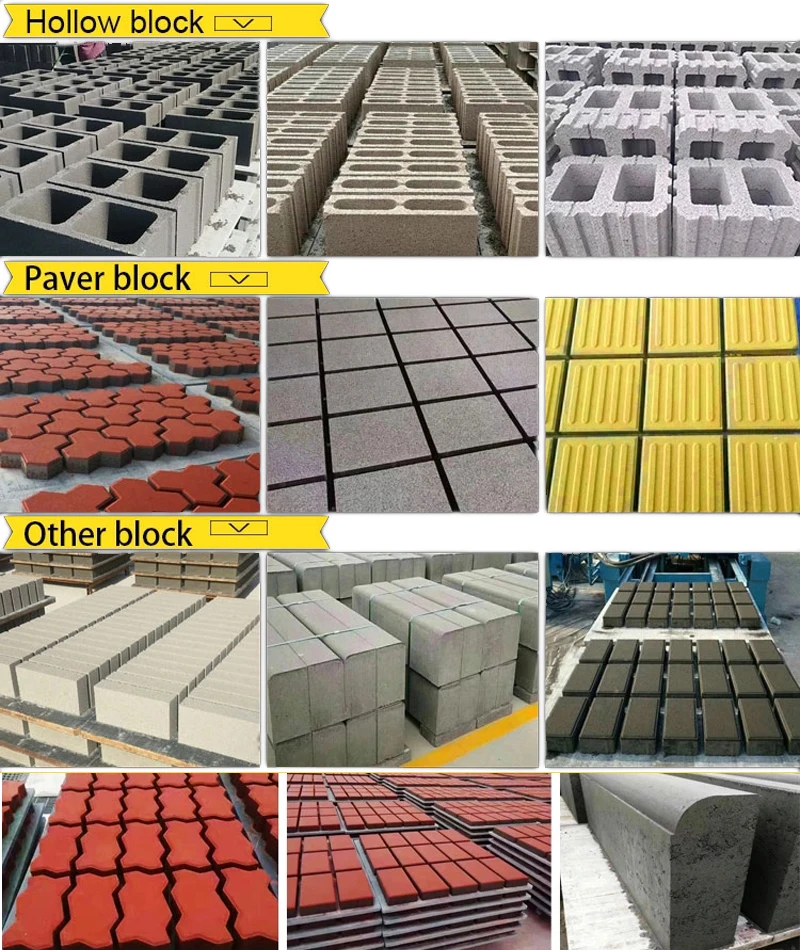

Blocks Products

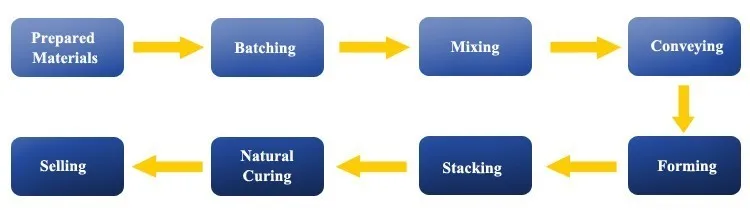

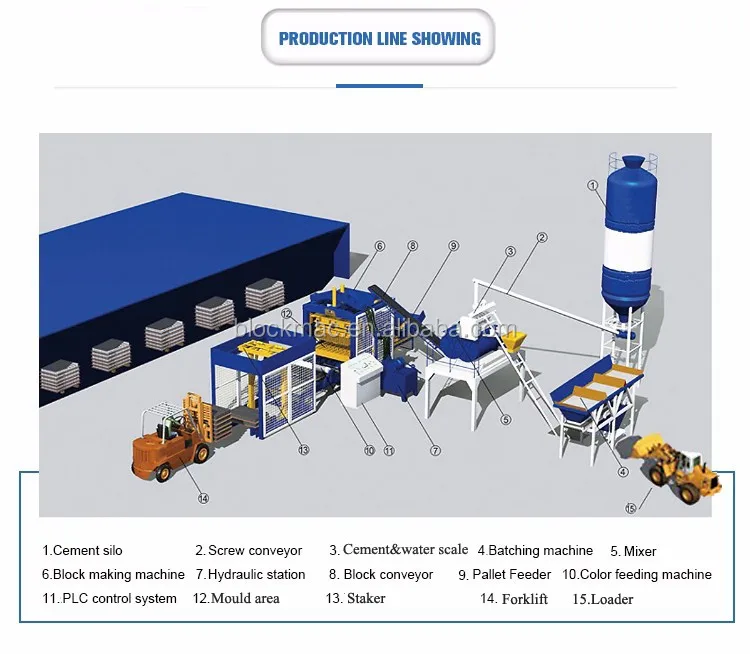

Full Production line

The production line is fully automatic,controled by Mitsubishi PLC, very very easy operate! This type can save 50% labor cost at least!

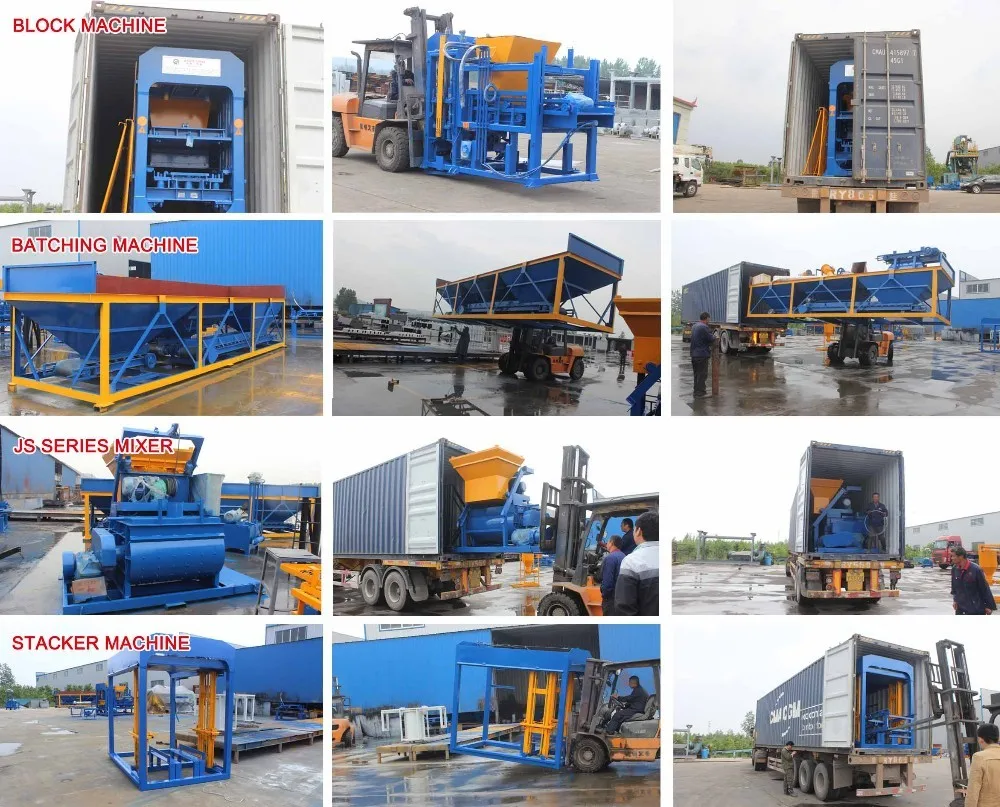

Packing & Delivery

1. Shipping marks: N/M
2. Packing: Nude
3. Terms of payment: 30% prepayment by T/T,the balance before delivery.Or by L/C.
4. Delivery period: 15-20 days after receipt of the prepayment.
5. Terms of delivery: From our factory to your discharge port,shippment subject to actual price.
6. Guarantee: A warranty period for the Machine is 12 months from the date of delivery.

Our Service
Service for you:
1. Accept user consultation, confirm the scale of operation and program.
2. Our company is able to serve you professionally,we will supply the design latout and meet your special needs.

3. High quality products,in-time shipment and 24hours online after-sales service will be guaranteed.
4. Free installation, debugging and training the relating work .

5. Strict performance of the three services, technical consulting and make the technical review timely.To provide users with more additional value.

Send Inquiry Now! You can get:


Customized production, Customized service, Customized factory design,Customized marketing support &Amazing price!

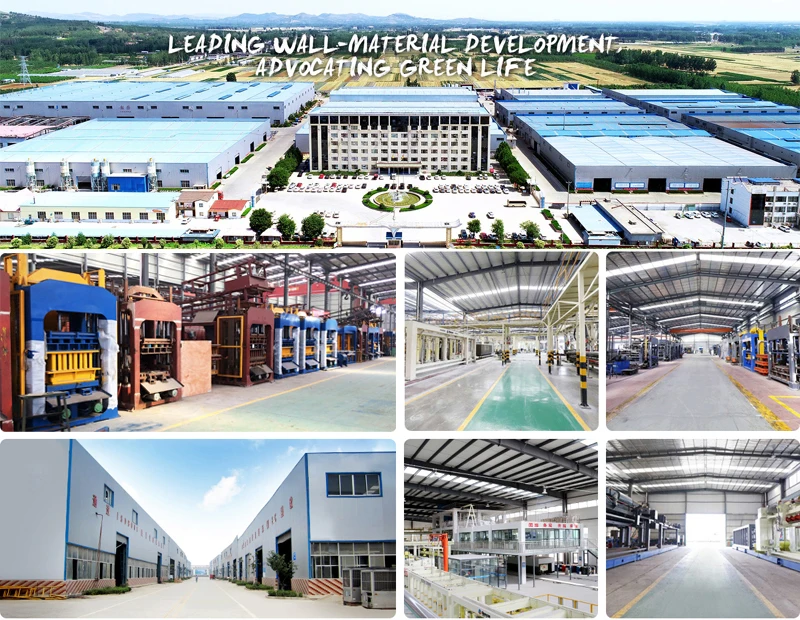

Our Company

Sancidalo Machinery Co.,Ltd

is located in Shandong, China. Is devoted to sales of various brick machine,AAC block production line,colored stone coated roof tile production line.All the products have passed CE and ISO9001 certificate and been widely used in construction field.


Sancidalo has more than 10 years experience in foreign trade.We have established long-time and stable relationships of win-win with customers from US,Europe,Africa,and South East Asia counties etc.

1994
Sancidalo brick machine factory was set up.

2000
Sancidalo fully automatic block production line was put into the market.
2010
China famous trademark was approved.
2011
Sancidalo Import & Export Co., Ltd was set up.
2013
Technical cooperation with German company.
2016
Technical support and cooperation with former Nigerian Amb. In R.P.C.
