QT4-16 concrete brick making machines/concrete pavement paving/concrete block making machine

FOB Reference Price:Get Latest Price
$10,000.00 - $20,000.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
QT4-16
Power:
17kw
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets)
Color (Min. Order: 1 Sets)
Voltage (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 year
Brick Raw Material:
Concrete
Capacity:
5760-8000 pieces/8hour
Type:
Hollow Block Making Machine
Certification:
ISO9001/CE
After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Engineers available to service machinery overseas
Place of Origin:
Shandong, China
Brand Name:
HF
Voltage:
220v-440v
Automatic:
Yes
Processing:
Brick Molding Machine
Method:
Hydraulic Pressure
Condition:
New
Dimension(L*W*H):
3000*1600*2600mm
Applicable Industries:
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works , Block machine
Key Selling Points:
Easy to Operate
Cycle:
16S
Pallet size:
900*550mm
Name:
Cement Block Making Machine
Color:
Optional
Raw material:
concrete
Model:
one for free
Mixer model:
JQ500
Supply Ability
Supply Ability:
100000 Set/Sets per Year
Packaging & Delivery
Packaging Details
nude or wooden box
Port
Qingdao,China
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Video Description
Product Details

Introduction:
High quality concrete brick machine QT4-16 hydraulic automatic type is one kind of automatic brick making machine in our company. It is mainly used in building , bridges , roads . Can make solid brick , hollow brick by changing the molds . Very popular in the country which need for construction .The machine's price was also very suitable in this area.
1) Strong structure, easy in installation and maintain.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatication and intellectualization
5) Apply Famous brand PLC and motors to ensure machine durability

Product line deatils
Name
Mixer
Model
JQ500
Input Capacity
800L
Output Capacity
500L
Weight
1480kg
Power
11kw

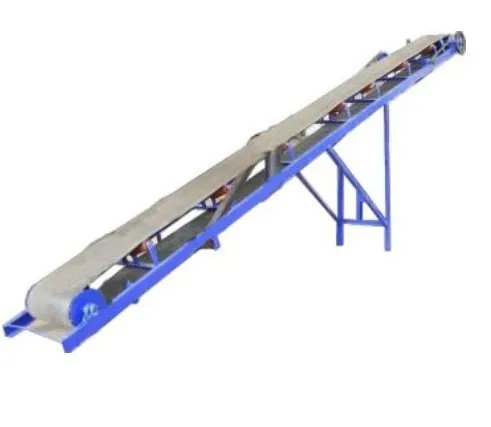

Name
Conveyor Belt
Length
8m
Weight
350kg
Power
2.2kw
Application
Transport the consrete from Mixer to Block machine

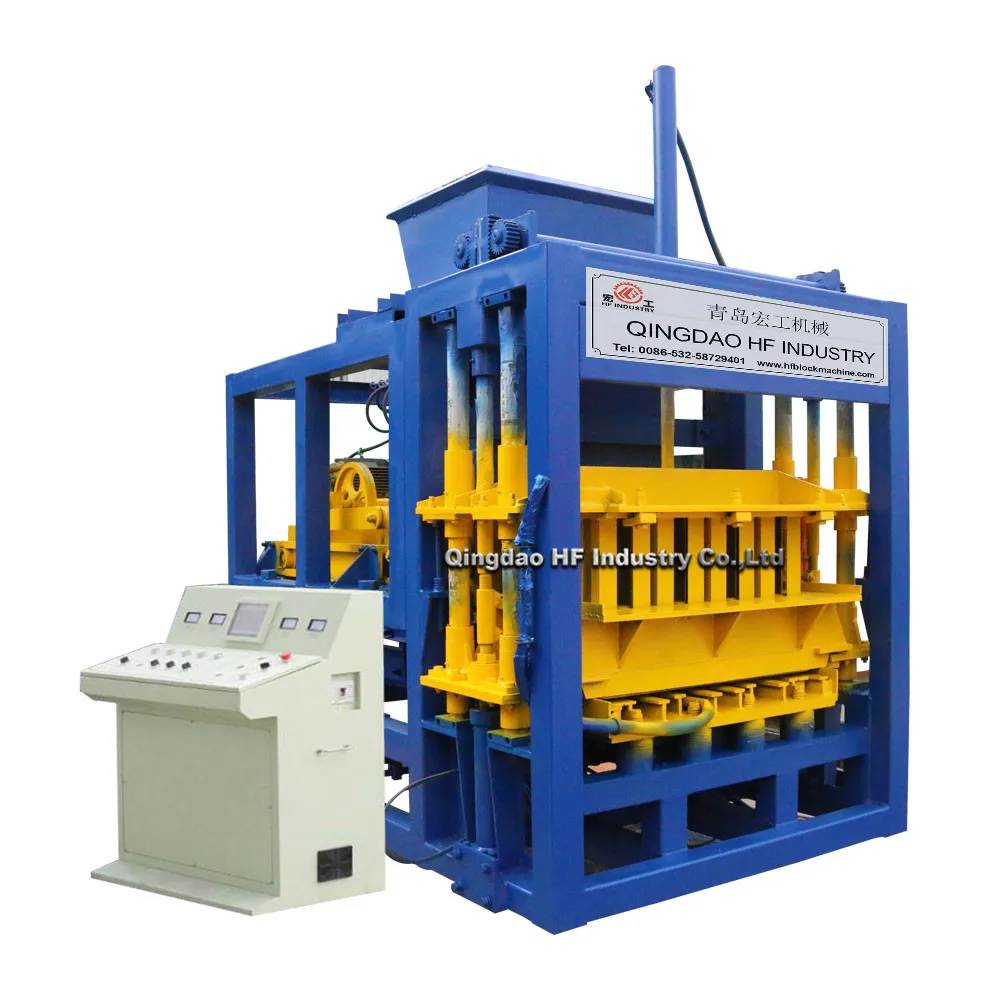

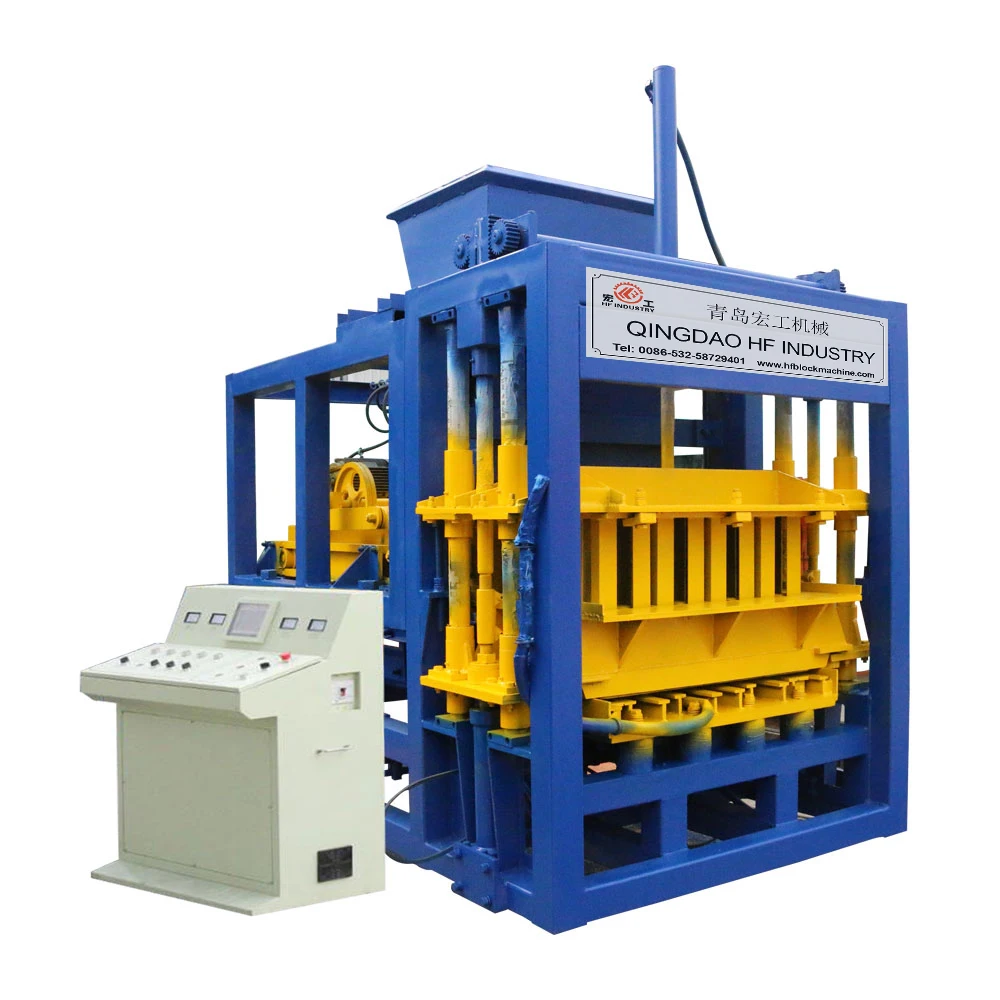

Name
QT4-16 block machine
Hydraulic pressure
16Mpa
Cycle time
15-20s
Power
20kw
Weight
5500kg
Pallet size
900*550mm
Machine size
2150*1950*2810mm

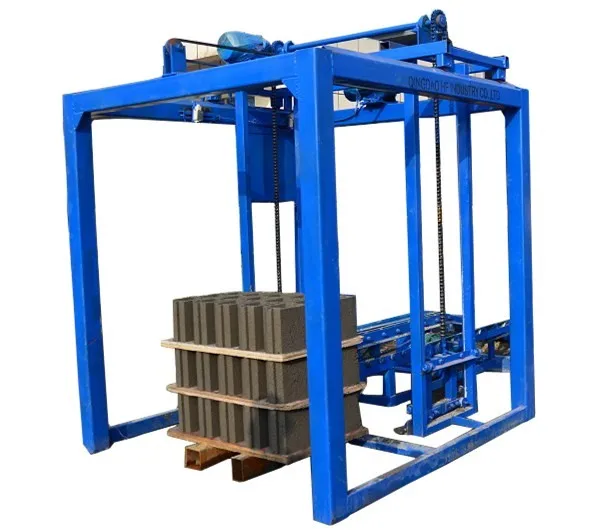

Name
Stacker
Weight
340kg
Power
3kw
Size
1900*1700*1350mm
Application
Stack the finished blocks four layers, then remove them
Machine advantages
Product Parameters
Block Name
Block Size
Qty/mould
Qty/8hours
Hollow block
400*200*200mm
4pcs
5760-7680pcs
Hollow block
400*150*200mm
5pcs
7200-9600pcs
Hollow block
400*100*200mm
7pcs
10080-13440pcs
Solid block
240*115*53mm
24pcs
34560-46080pcs
Zigzag paver
225*112.5*60mm
12pcs
13824-23040pcs
Quad paver
200*100*60mm
14pcs
16080-26880pcs

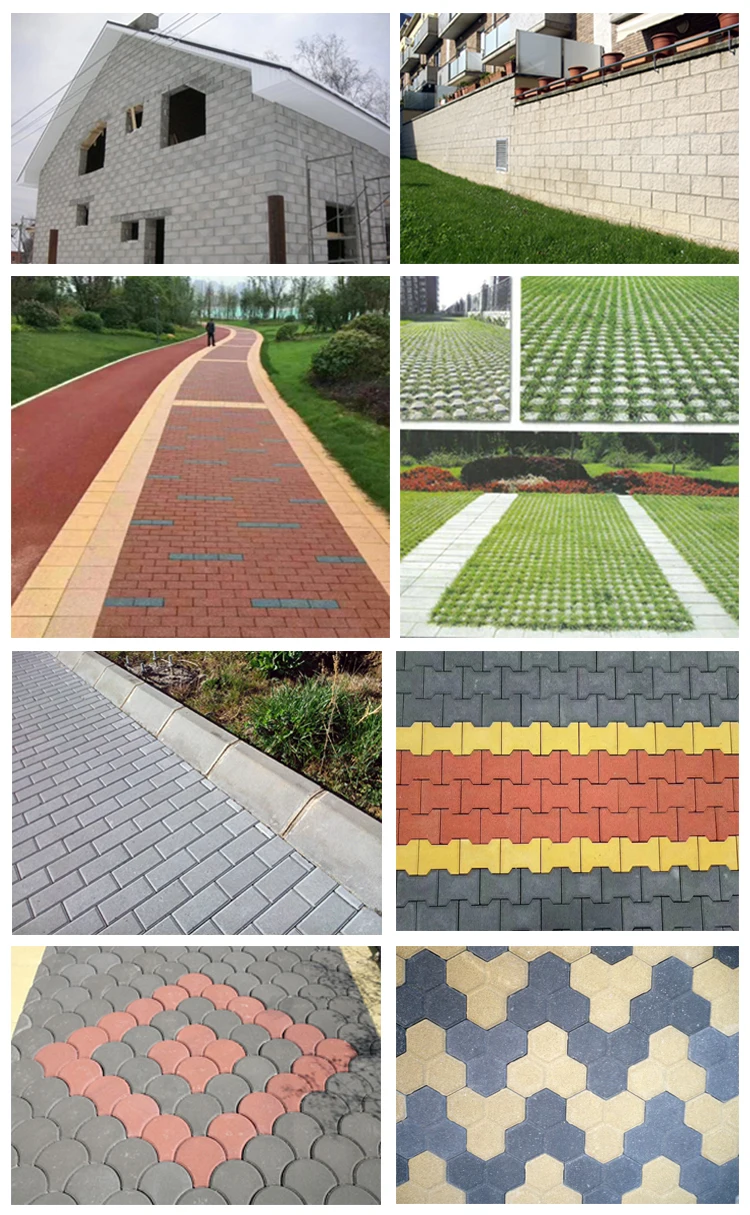

Customer show
Company information

QINGDAO HF INDUSTRY CO.,LTD is the professional manufacturer and exporter for block machine technology. Our company is located in Qingdao city Shandong Province and our factory has three manufacturing bases that cover an area of 500 acres and a plant construction area of 100,000 square meters. We are always developing advanced products to international standards to meet consumer demands.We had exported to more than 116 countries from the Philippines, Russia, Egypt, South Africa, Ghana, Oman, India, Armenia, Israel, Chile etc. and have an exceptional high reputation from our customers.
We cooperate with SIEMENS for Motors and PLC intelligent control system, Schneider electrical equipment and YUKEN for the hydraulic operations to insure our machines have the highest quality standrads with a stable working status.We have more than 50 technician to ensure superior installations and after sale service to assist customer to install the machine and perfrom the proper training abroad.
We warmly welcome customers from all over the world come to visit our factory and discuss long term cooperation.
