QT6-15 Automatic Hollow Block /Paving block /Solid Block Making Machine Manufacturer

  • >=1 Sets
    $23,000.00
Model Number:
QT6-15 block machine
Power:
28.75kw
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 35 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
block size (Min. Order: 1 Sets)

More

block color (Min. Order: 1 Sets)
machine color (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets) Less
Samples:
$23,000.00 /Set | 1 Set (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, farms, restaurant, HOME USE, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company, block making machine
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
Egypt, canada, turkey, UNITED KINGDOM, United States, ITALY, france, GERMANY, VIET NAM, philippines, brazil, peru, SAUDI ARABIA, indonesia, pakistan, INDIA, Mexico, RUSSIA, spain, Thailand, japan, malaysia, Australia, Morocco, kenya, argentina, South Korea, CHILE, UAE, Colombia, algeria, Sri Lanka, Romania, BANGLADESH, south africa, UKRAINE, NIGERIA
Showroom Location:
Egypt, canada, turkey, UNITED KINGDOM, United States, ITALY, france, GERMANY, VIET NAM, philippines, brazil, peru, SAUDI ARABIA, indonesia, pakistan, INDIA, Mexico, RUSSIA, spain, Thailand, Morocco, kenya, argentina, South Korea, CHILE, UAE, Colombia, algeria, Sri Lanka, Romania, BANGLADESH, south africa, UKRAINE, NIGERIA, japan, malaysia, Australia
Condition:
New
Type:
Hollow Block Making Machine, Paving Block Making Machine, Interlock Block Making Machine, Curbstone Block Machine
Brick Raw Material:
CONCRETE
Processing:
Brick Molding Machine
Method:
Hydraulic Pressure
Automatic:
YES, Yes
Capacity:
2000pcs/8hours
Place of Origin:
China
Brand Name:
HF
Voltage:
220-440V
Dimension(L*W*H):
7100*1500*3000
Certification:
ISO9001/CE
Warranty:
5 years
After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Engineers available to service machinery overseas
Key Selling Points:
Automatic
Brick size:
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 400*200*200 mm, 230*220*115 mm
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Marketing Type:
Hot Product 2019
Warranty of core components:
1 YEAR
Core Components:
PLC, PRESSURE VESSEL, engine, GEAR, MOTOR, pump, Bearing, Gearbox
Color:
Blue or optional
Host machine weight:
6200kg
Pallet size:
900*680
Cycle time:
15-25s
Rated Pressure:
16Mpa
Vibration form:
Platform vibration
Origin:
China
Product Certification certification
CE Certified.
Valid from 2020-05-14 until 2025-05-13
Supply Ability
Supply Ability:
35 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden or according buyer's requirement
Port
Qingdao Port
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 35 To be negotiated
Video Description
Product Description

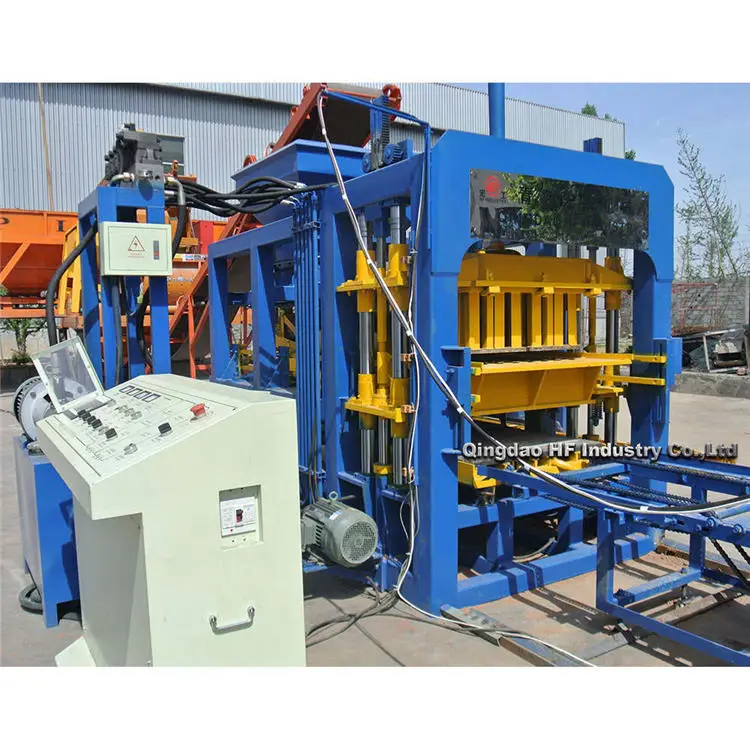

QT6-15 solid block making machinery full automatic is one machine with multifunction. Changing molds can produce various kinds of specification porous bricks, standard bricks, hollow bricks, with a double material-feeding machine can produce all kinds of the colored road bricks, grassland bricks, and slope protection bricks etc.

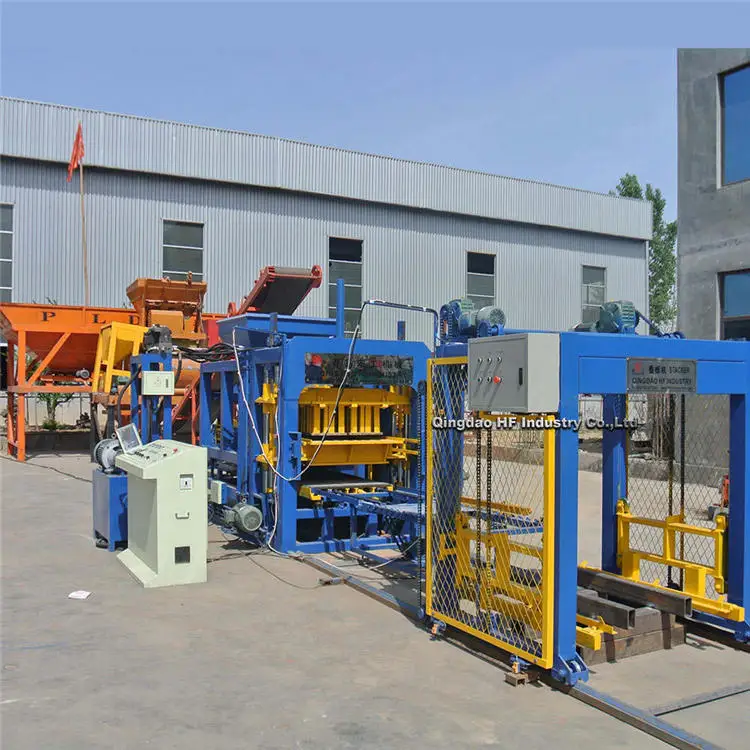

Production Line
Batching machine
PLD800
PLD1200
Weighing hopper volume
800L
1200L
Storing hopper volume
2x4m3
3x4m3
Productivity
48m3/h
72m3/h
Total weight
2000kg
2200kg
Outline dimension
5400x1800
x3010mm
8600x2000
x2900mm

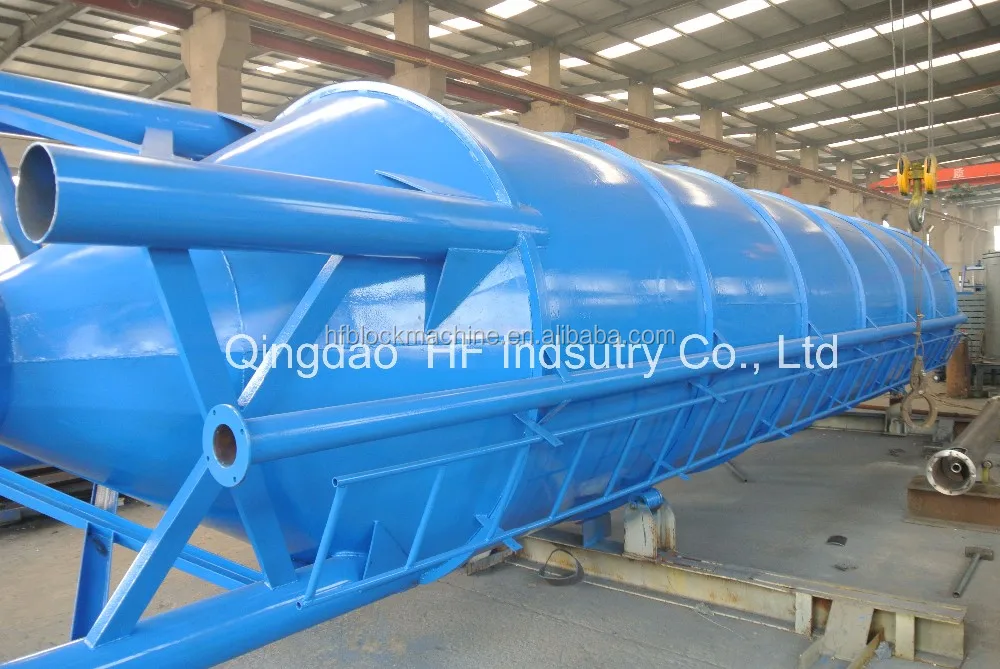

Cement Silo
50T
100T
Tank Diameter(M)
2.6
3
Tank Body Height(M)
5.4
8
Tank Total Height(M)
12
13
Concrete Mixer
Input Capacity
800L
Output Capacity
500L
Productivity
≥25m 3 /h
Power
24.75KW
Dimension(LxWxH)
3050X2300X2600mm
Weight
4000kg

Block Molding Machine
Forming cycle
15-25s
Host machine
28.75kw
Pallet size
900x680mm
Host machine weight
6200kg
Overall dimension
7100x1500x3000mm
Raw Materials:
crushed stone, sand, cement, dust and coal fly ash, cinder,  and other industrial wastes

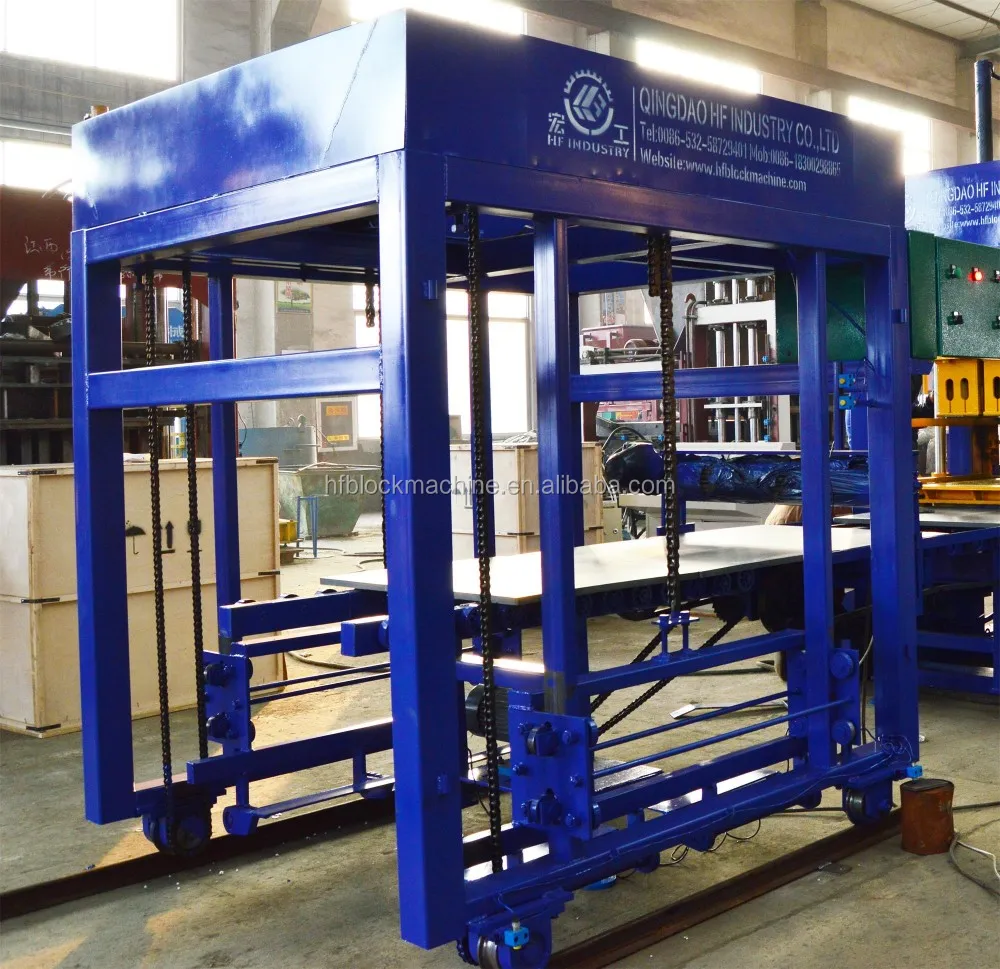

Automatic Stacker

A blocks stacker is needed to stack the pallets for several layers and use the forklift to transport to the curing area.



Use the stacker can save labor cost and increase the working efficiency for the block machine.

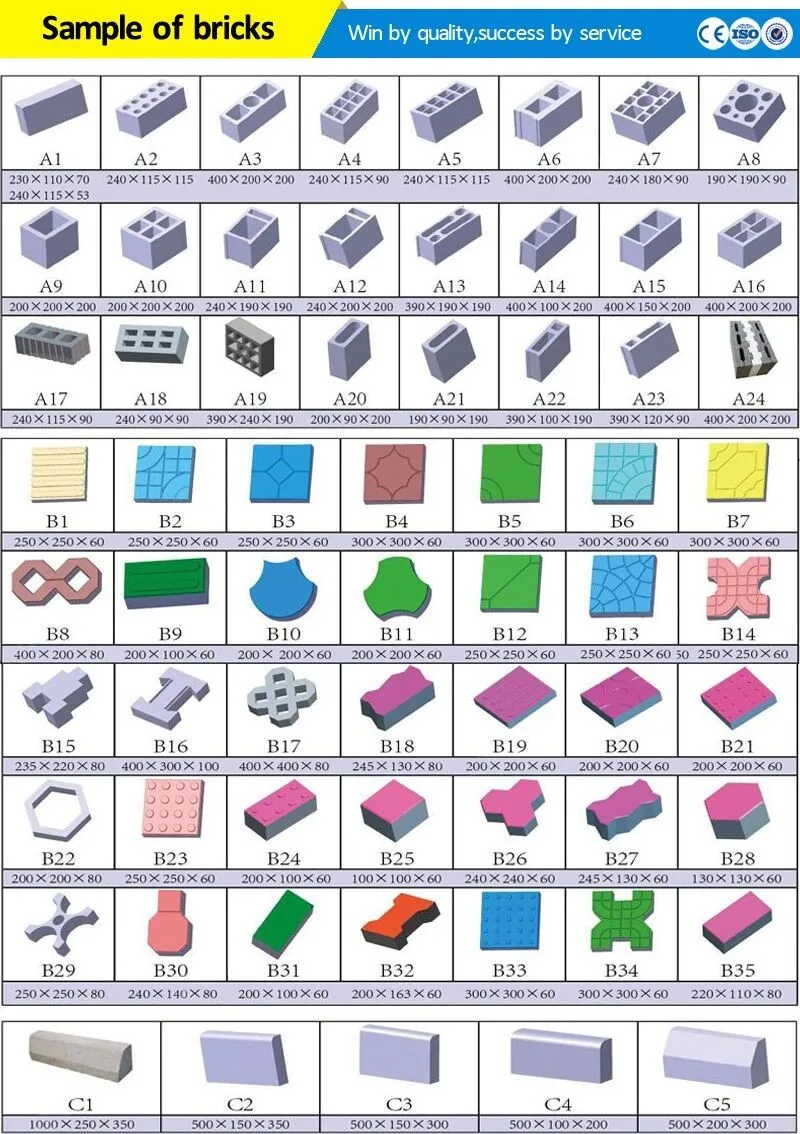

Block Output

QT6-15 full automatic solid block making machinery
The material can be fly ash, slag, gangue or the others industrial waste, river sand, gravel, cement etc. Makes different sizes of hollow blocks, porous blocks, curbstone, pavement blocks.If add color machine, it can make layering blocks.

Our Service

1) Send the technicians to carry out the installation and debugging of equipment for the foreign users with compensation.Countries or regions with unstable political situation or in the throes of wartime are not included in our plan.
2) Train the users to command the equipment and guide them for safe production.
3) Explain the routine maintenance of equipment carefully and remove common faults.
4) We are responsible for all the repairs that caused by our quality problems within one year’s warranty. (We will provide one set of spare parts/wear & tear parts free of charge with shipment.)
5) For some countries whose visas are difficult obtained, customers can also send their technicians to our company to receive free guidance and training.
6) Accept suggestions for improvement put forward by customers an earnest way. In accordance with changes of the market, provide the products and services to meet the user’s needs and create value for them.
7) We will make every effort to solve your problems, and your success will add new glory to us.

Our Company
FAQ

1.What kind of bricks this machine can produce?
A: QTY6-15 solid block making machinery full automatic can produce all size of concrete bricks, such as hollow bricks, porous bricks, pavers, curbstones.

2.How many molds do you offer?
A:We offer one mold for free. You can buy extra molds to make different blocks, all block design can be customized.

3.What about the warranty?
A:12 months from the date of delivery

4.What's the payment item?
A:30% deposit prepaid after signing the contract, the rest should be paid before delivery.
We also support Alibaba Trade Assurance.

If you are interested in this machine, contact me now ↓ ↓ ↓
