QTF4-15C automatic uganda wooden pallet hollow concrete hourdis cement brick/blocks making maker machine

FOB Reference Price:Get Latest Price
$5,000.00 - $18,690.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
QTF4-15C
Power:
21.8KW
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 yerar
Brick Raw Material:
Fly Ash/concrete/cement
Capacity:
4320~40320 pcs/day
Type:
Hollow Block Making Machine
Certification:
CE ISO9001
After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Applicable Industries:
Building Material Shops, Manufacturing Plant, Construction works
Condition:
New
Processing:
Brick Molding Machine
Method:
electric
Automatic:
Yes
Place of Origin:
Shandong, China (Mainland)
Brand Name:
FULANG MACHINE
Voltage:
According to local voltage
Dimension(L*W*H):
4000x1800x2800mm
Motor:
21.8 KW with the brakes, the price is a little higher
Raw material:
concrete, cement, fly ash, etc.
Product size:
4000x1800x2800mm
Operator:
2-3 person
Vibration force:
40-50KN
name:
hollow block maker
Pallet size:
1010*550*25mm
Machine weight:
5.51T
shaping cycle:
10S
Host machine power:
21.8KW
Supply Ability
Supply Ability:
50 Set/Sets per Month small concrete blocks making machine
Packaging & Delivery
Packaging Details
MDF wood carton package or as customer's request for QTF4-15C
Port
Qingdao

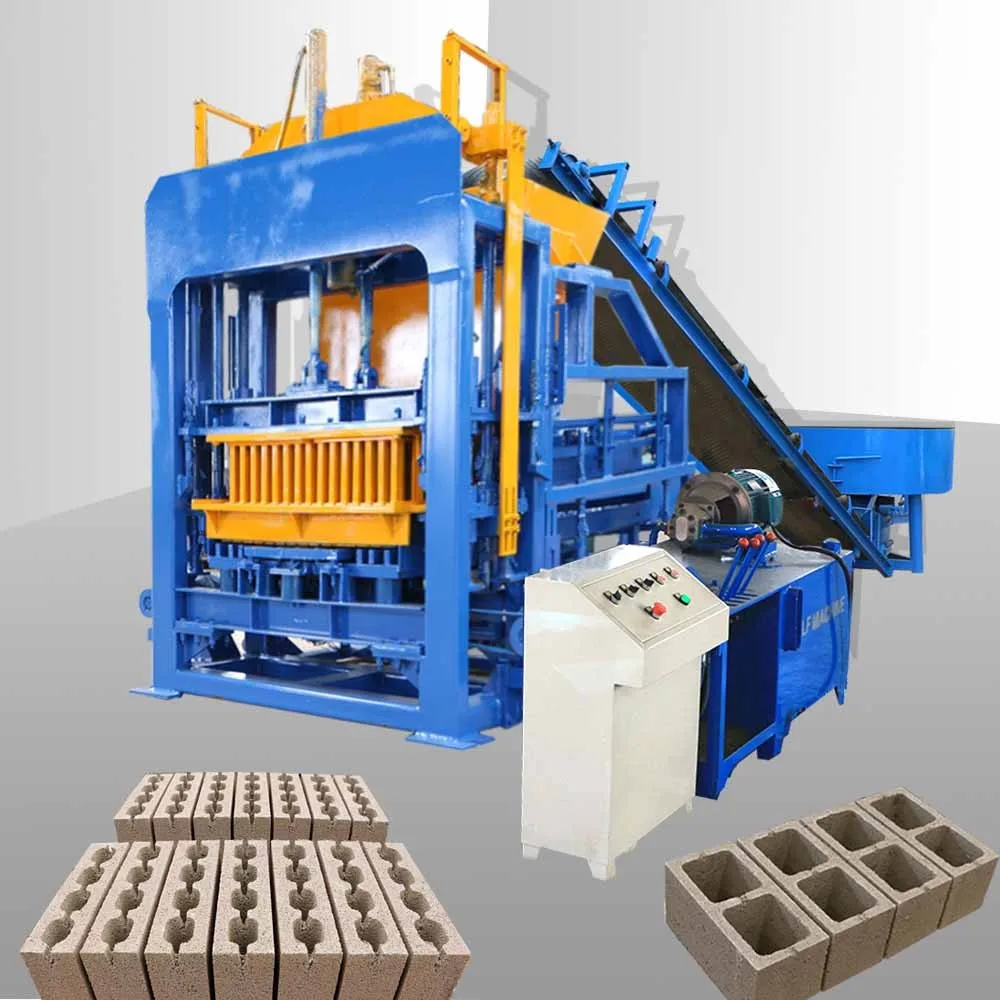

Machine Description

1. Multifunction

Fully automated paver block brick making machine can produce different hollow blocks, solid blocks, pavers and curbstone by changing moulds.
2. Advanced Technology

Hydraulic pressure molding technology is adopted by this machine, so the block machine has more stable and higher-efficiency working status. So the blocks produced by this machine is strong and smooth.
3. High quality mould

The moulds adopt precise wire cutting technology and carburizing treatment technology to prolong service life, elaborate process and rigorous testing ensure that the mold has the best quality.
4. Large capacity

The efficient production line ensured the high output of the machine, it can produce 4320~23040 pieces blocks per day according to block size.

Technical Parameters
Dimension of host machine
4000x1800x2800mm
Power of host machine
21.8KW
Weight of host machine
5.51T
Vibration force
40~50KN
Molding area
1016x600mm
Mixer model
JS500
Water consumption
5~6T/Day
Pallet size
1010x550x25mm
Production Capacity
Size(LxWxH)
Pcs/Mould
Pcs/Hr
Pcs/8Hr
400x100x200mm
8
1440-1680
11520-13440
400x150x200mm
6
1080-1260
8640-10080
400x200x200mm
4
720-840
5760-6720
400x250x200mm
3
540-630
4320-5040
230x110x70mm
24
4320-5040
34560-40320
Paver:200x100x60mm
16
2880
23040
Paver:200x163x60mm
8
1440
11520

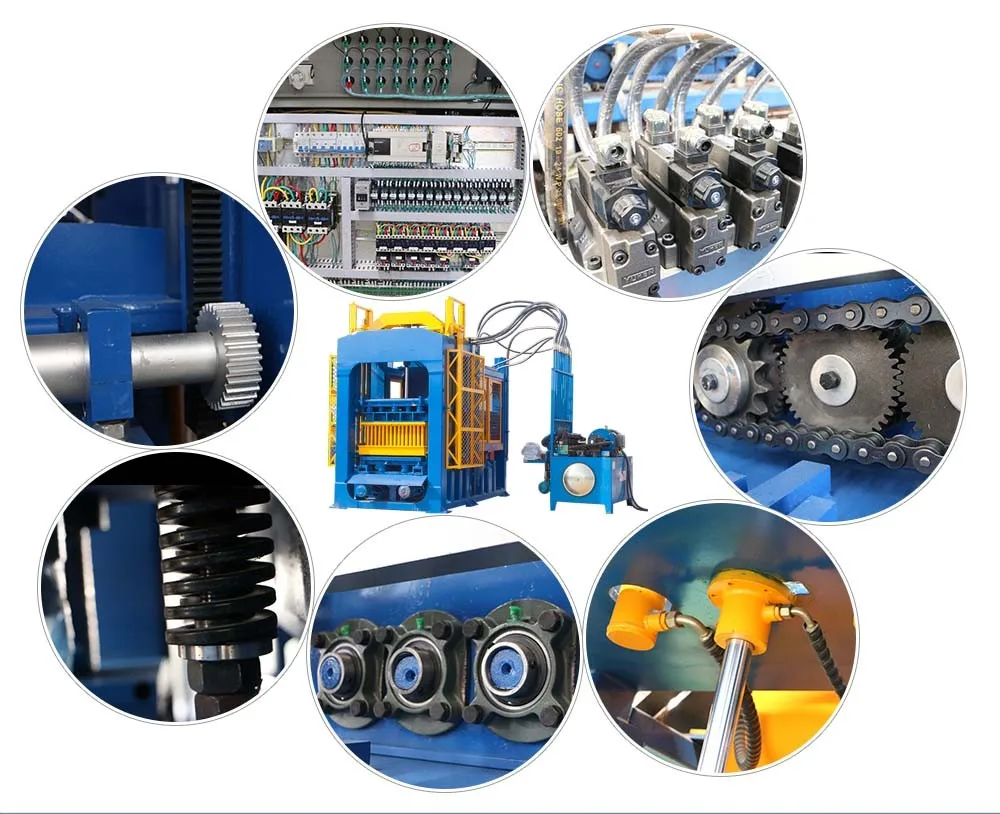

Machine Details


Advanced technology

Hydraulic pressure technology and vibration moulding technology adopted to assure the bricks produced have better quality, larger density and higher strength.

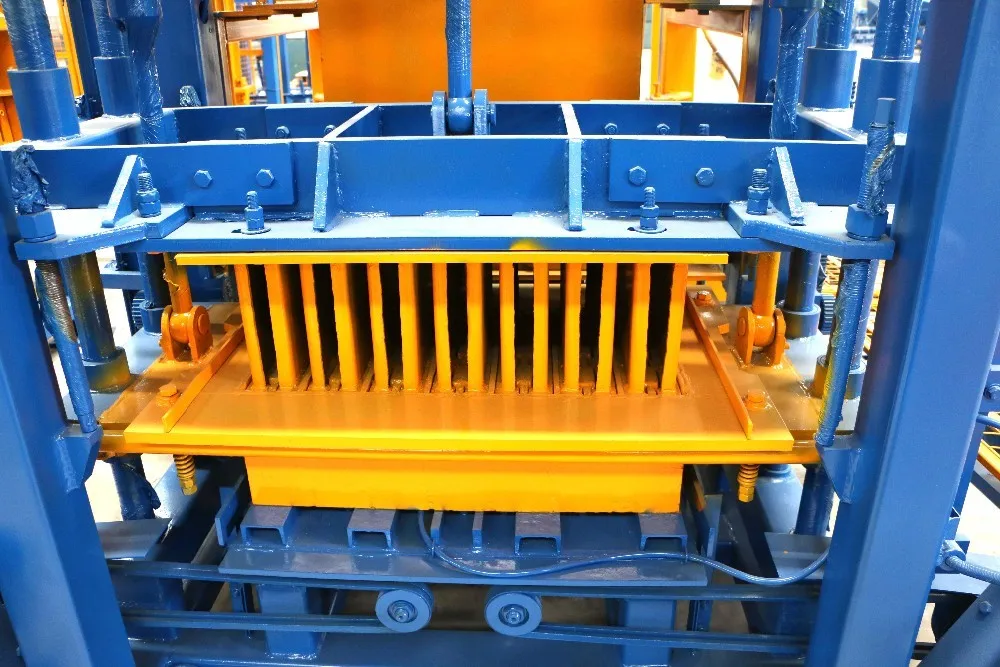

Mould

The brick moulds are made of 16# manganese steel. Besides the good raw material, precise line cutting technology and 900℃ carburizing heat treatment technology are all adopted in the process of the brick mould production. So the brick moulds have better performance and longer service time.

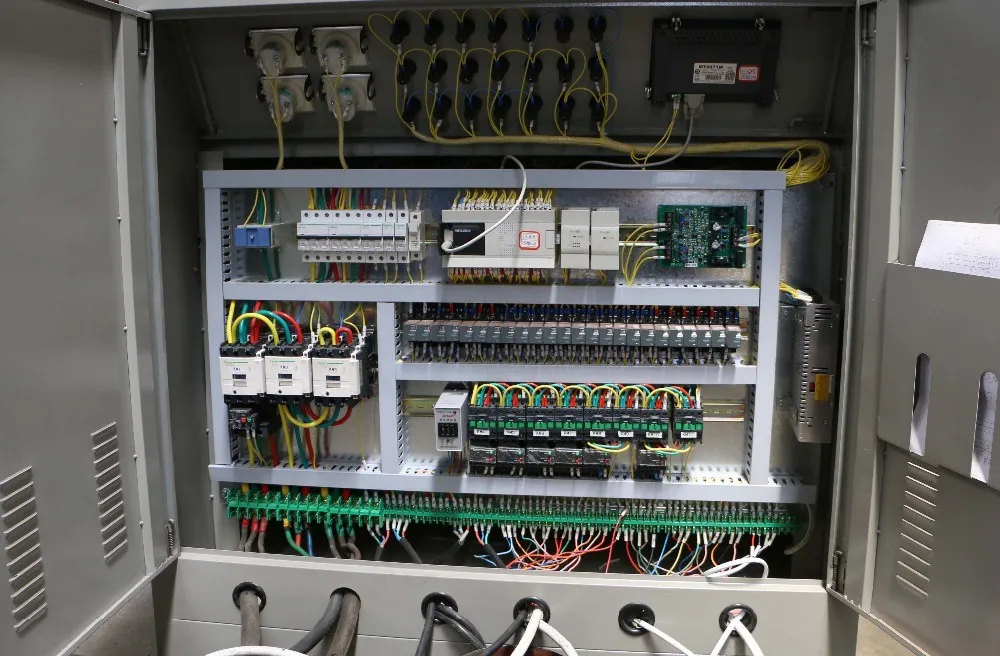

Control box

Select original Mitsubishi PLC control system and Japan Omoron or France Schneider switches to assure stable and high-efficiency working status of the machine.

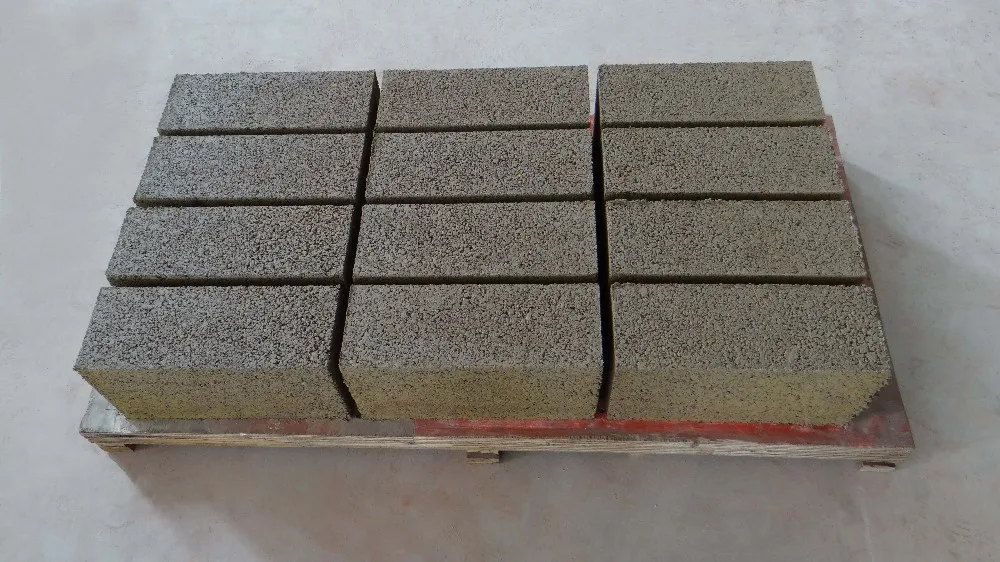

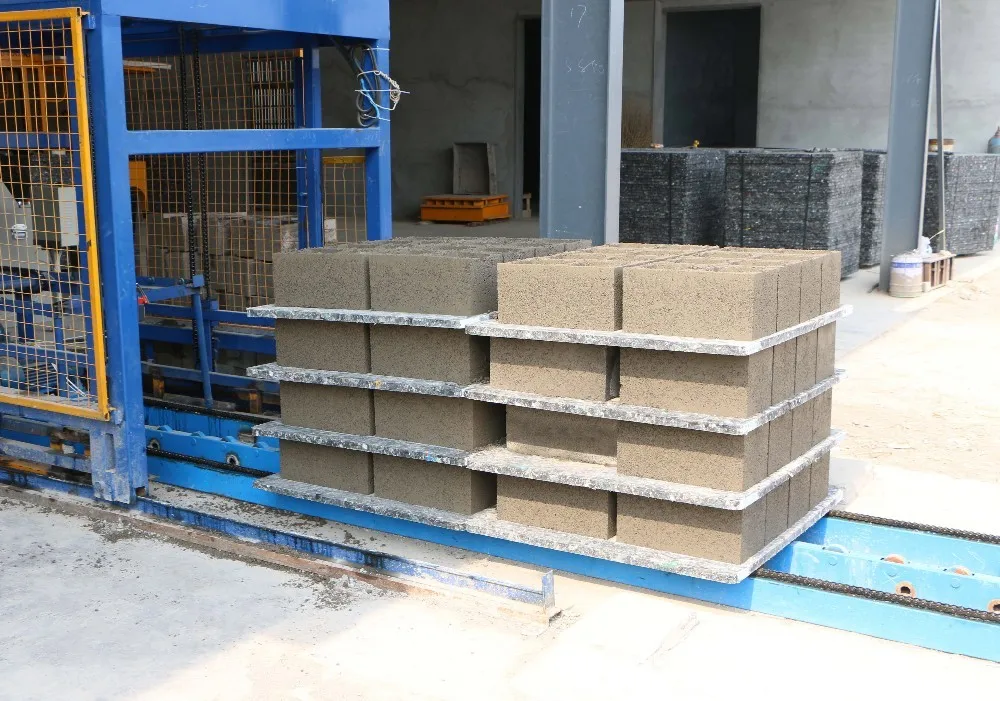

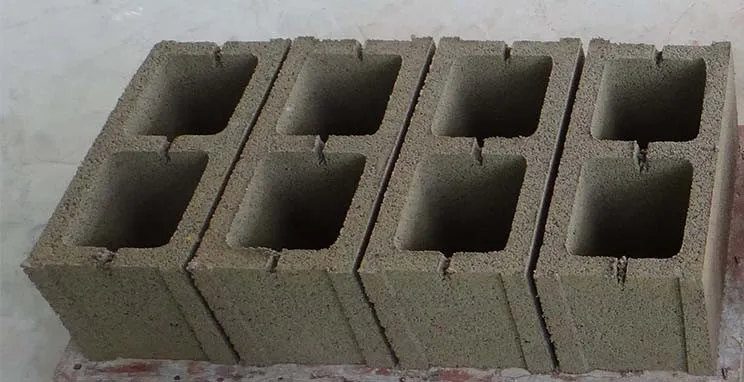

Product Samples

Fully automated paver block brick making machine can produce various different concrete hollow blocks, solid blocks and paving blocks by changing molds. The following bricks are common brick types. Also we can customize brick moulds for you on base of your specific requirements.

Packing and Install

We will package the products according to the size, shape and your specific requirements, and deliver the machine to you in the best and the fastest way.

Our Company

Fulang Machine Machine is a Chinese dedicated machinery for construction blocks and panels.Our company offers complete production lines for premium building components such as the autoclaved sand-lime brick,autoclaved aerated concrete block,and autoclaved aerated concrete /autolaved concrete panel,various types of pressure vessels and block-making machines more than 60 varieties.By chosing FULANG,customers can enjoy professional benefits with our dedicated services for design,installation,layout planning,technology transfer,and production guidance.

Till now,about 1200 customers have visited our factory.Also we have engineers staying abroad to help you install machines and training your workers at your side.

FAQ and Our service

☎ The FAQ

☛1.Q: What kind of payment terms do we accept?
A:T/T and L/C are common for us. Other ways are ok by negotiation.


☛2.Q:How about your Production time ?
A: Normally 20-25 days after your deposit.

☛3.Q: Can I visit your factory?
A: Yes. Many domestic and international customers visit our factory every year.

☛4.Q: Do you provide after-sale service?
A: Yes. We have a professional after-sale service team to promptly and thoroughly solve your problems.

Our Service

★Pre-Sales
1.Perfect 7*24 hours inquiry and professional consulting services.
2.Visit our factory anytime.

★Sale
1.Update the production schedule in time.
2.Quality supervision.
3.Production acceptance.
4.Shipping on time.


★After-Sales
1.Warranty period :1 YEAR after acceptance, during this period we will offer free spare parts if they are broken.
2.Training how to install and use machine.
3.Engineers available to service overseas.
4.Skill support the whole using life.
