QVR PVC insulated road low-voltage wire passes JB/T 8139-1999 flame test for vehicles

FOB Reference Price:Get Latest Price
$0.05 - $0.60 / Meter | 3050 Meter/Meters (Min. Order)
Lead Time:
Quantity(Meters) 1 - 100000 100001 - 500000 500001 - 1000000 >1000000
Est. Time(days) 15 20 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
DIANHANG
Model Number:
QVR automotive wire
Type:
Insulated
Application:
Heating
Conductor Material:
Copper
Conductor Type:
Solid
Insulation Material:
PVC
Product name:
QVR automotive electrical wire
Rated temperature:
80'C
Reference standard:
JB/T 8139-1999
Color:
Optional
Certification:
ROHS/REACH/UL/SGS/ISO9001:2016
Packing:
Roll 305m/Roll ,610m/roll
Material:
Tin plated copper wire,99.995% Pure Copper
MOQ:
6100M
Insulation:
PVC
Sample:
Customized
Supply Ability
Supply Ability:
100000 Kilometer/Kilometers per Year
Packaging & Delivery
Packaging Details
According to different OD, there will be different standarded packing length as 610m/Roll, 305m/Roll, 100m/Roll,1830m/Spool,3660m/Spool. Usually, wire diameters above 1.0 are rolled and axles below 1.0 are rolled.
Port
shanghai
Lead Time :
Quantity(Meters) 1 - 100000 100001 - 500000 500001 - 1000000 >1000000
Est. Time(days) 15 20 30 To be negotiated
Video Description
Product Description

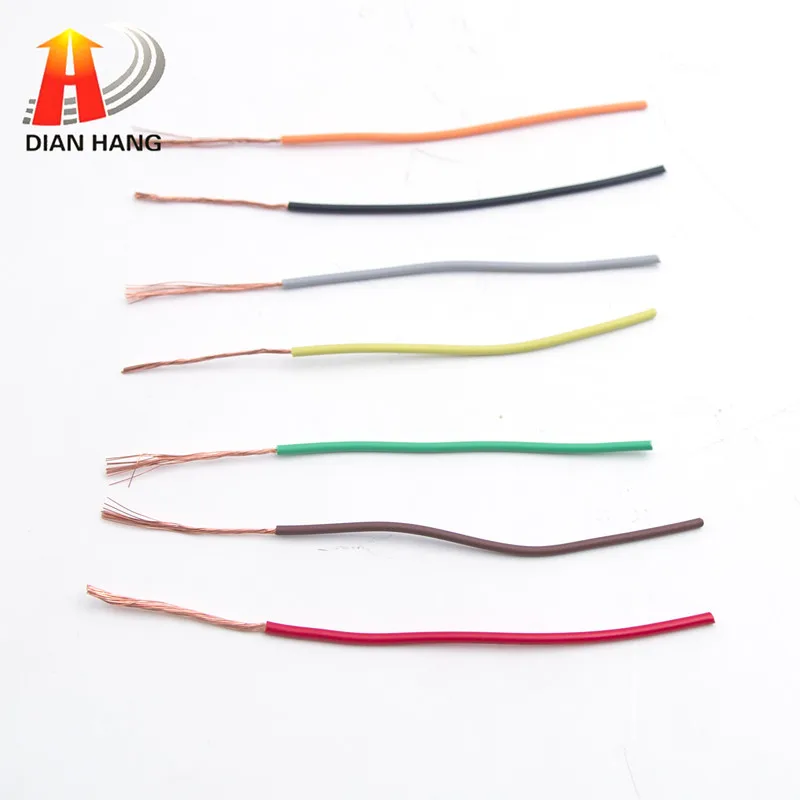

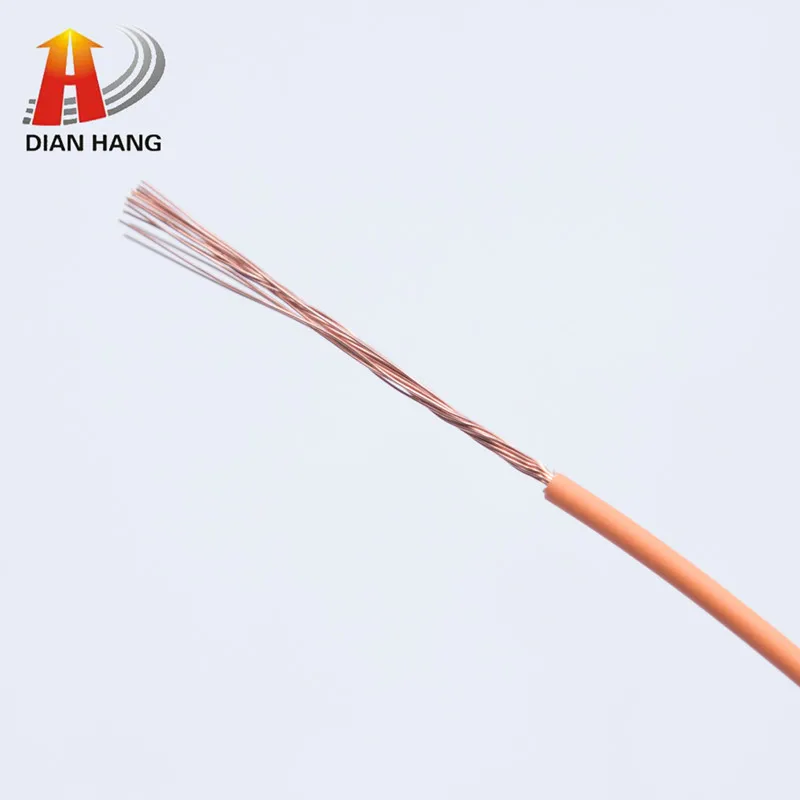

QVR PVC insulated road low-voltage wire passes JB/T 8139-1999 flame test for vehicles

Rated temperature:80

Reference standard: JB/T 8139-1999

Solid or stranded, tinned or bare copper conductor 0.2-10

PVC insulation, comply with ROHS, REACH environmental standard

Passes JB/T 8139-1999 flame test

Uniform insulation thickness to ensure easy stripping and cutting

Application:

For vehicle internal wiring of appliance

Product Type

               Conductor

Insulation

Max.cond.

Resistance

(Dielectric Strength)

QVR

AWG

(mm2)

Construction

  (No./mm)

    OD

   (mm)

Thickness

    (mm)

   OD

  (mm)

(Ω/Km,20,Dc)



(Vac,1min)



0.2

12/0.150

0.60

0.33

1.25

95.0

1000

0.3

16/0.150

0.69

0.33

1.35

71.2

1000

0.4

23/0.15

0.83

0.34

1.50

49.6

1000

0.5

16/0.20

0.92

0.64

2.20

40.1

1000

0.75

24/0.20

1.13

0.69

2.50

26.7

1000

1.0

32/0.20

1.31

0.65

2.60

20.0

1000

1.5

30/0.254

1.58

0.64

2.85

13.7

1000

2.5

49/0.254

2.02

0.74

3.50

8.21

1000

4

56/0.30

2.59

0.91

4.40

5.09

1000

6

84/0.30

3.17

0.87

4.90

3.39

1000

1084/0.404.231.046.301.951000

XLPE2XLPE3xlpeqc5
