Overview
Quick Details
- Chipset:
-
QCA9531, QCA9531
- Model Number:
-
ZP3000
- Application:
-

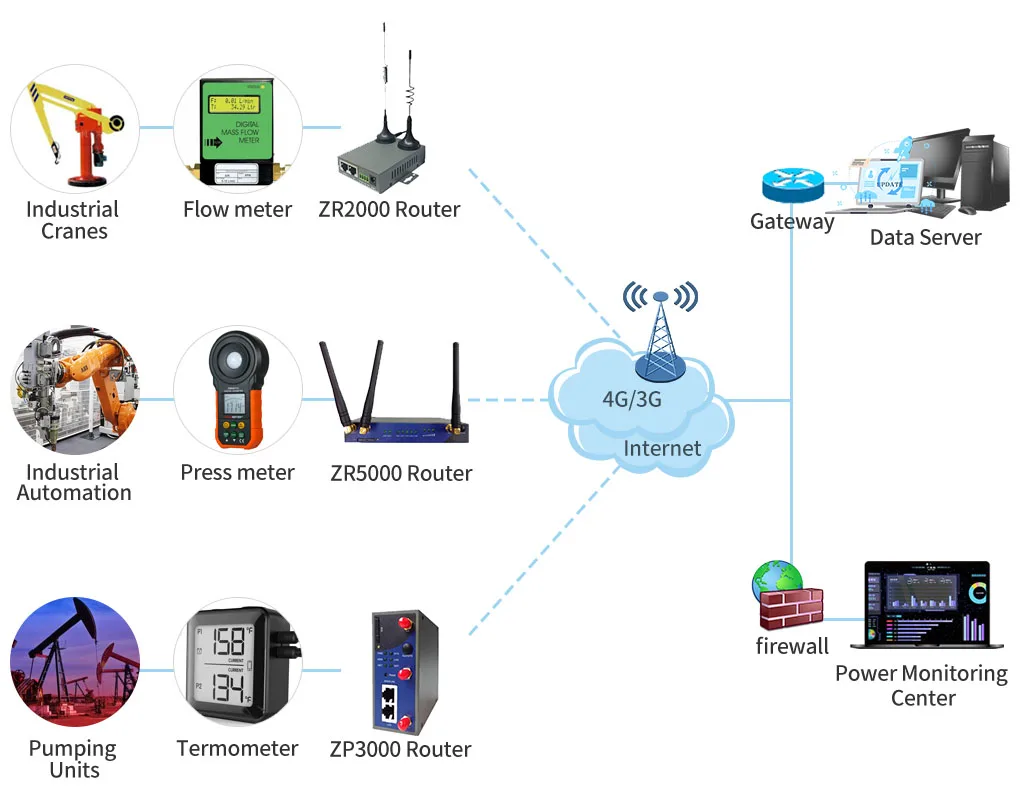

ATM,Vending Machine,Bus WiFi,Oil field,IoT,M2M, ATM,Vending Machine,Bus WiFi,Oil field,IoT,M2M
- Place of Origin:
-
China
- Interface:
-
1 SIM Card Slot, 2 Ethernet RJ45, 1Serial RS232/485
- Network:
-
4G LTE+3G(HSPA+/HSPA/UMTS/CDMA)
- Antenna:
-
2*3 DBi External Antenna
- Keywords:
-
industrial 4g modem router
- System:
-
Openwrt System
- Wireless Speed:
-
2.4GHz 150/300Mbps
- SIM card slot:
-
1 Sim Slot 4G LTE Router
- Protocol:
-
ICMP, TCP, UDP, Telnet, SSH, FTP, HTTP, HTTPS
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 23X15X12 cm
- Single gross weight:
- 0.800 kg
- Package Type:
- 1 x ZR3000W 4G Cellular Router, 1 x Quick Guide, 1 x 3dBi 3G/4G Antenna (SMA), 1 x 3dBi WiFi Antenna (Optional), 1 x 1m Ethernet cable, 1 x 12V/1A Power Adapter
- Picture Example:
-
- Lead Time :
-
Quantity(Pieces) 1 - 100 >100 Est. Time(days) 7 To be negotiated
ZR3000 is highly reliable and secure LTE router for professional applications. Router delivers high performance, mission-critical cellular communication.
ZR3000 is equipped with connectivity redundancy through Cellular, Wan and WiFi failover. External antenna connectors and Din rail mount slot make it possible to attach desired antennas and to easily find the best signal location in industrial environment.
Model | Qixiang ZR3000W |
Product Name | M2M industrial 4G Router with Serial Ethernet Sim Slot Din Rail Mount Kit |
WiFi | Chipset: QCA9531 Standard: IEEE802.11b/g/n, Frequency 2.4GHz Speed up to 150Mbps/300Mbps |
Support Area | Support Cellular Frequency Bands of your shipping address' country |
Cellular | Module: EC25/SLM750 Frequency Band: Global bands,customized. FDD-LTE,TDD-LTE,HSPA,UMTS,WCDMA,EVDO,GSM,GPRS,etc |
Interface | 1×10/100 Mbps WAN + 1×10/100 Mbps LAN, Ethernet RJ45 1×Serial Port (RS232/RS485) 1×DC Power Connector 1×Reset Button 2×External Antennas 1×Sim Card Slot |
Storage | Flash/RAM: 128Mb/1024Mb (16MB/128MB) |
Power Supply | DC 12V/1.5A (7.5V-32V) |
System | LEDE Linux/openWRT |
About Order
For Ready to Ship Order:
1. The default product support "4G+Ethernet+WiFi", and it adopt Cellular Frequency Bands of your shipping address' country.
2. This router provide a serial port(use for serial data transfer, if you don't need it, please select RS232), please select RS232 or RS485 in the "Model Number".
3. If you have special request, please leave a message or contact us.
Area | Frequency Bands |
Europe、Middle East、Africa、Korea、Thailand、Southeast Asia | TDD-LTE:B38/B40/B41 (2600/2300/2500MHz) FDD-LTE:B1/B3/B5/B7/B8/B20 (2100/1800/850/2600/900/800MHz) UTMS:B1/B5/B8(2100/850/900MHz) GSM:B3/B8 (1800/900MHz) |
Australia、New Zealand 、Latin America 、Taiwan | TDD-LTE:B40 (2300MHz) FDD-LTE:B1/B2/B3/B4/B5/B7/B8/B28 (2100/1900/1800/1700/850/2600/900/700MHz) UTMS:B1/B2/B5/B8 (2100/1900/850/900MHz) GSM:B2/B3/B5/B8 (1900/1800/850/900MHz) |
North America | LTE FDD：B2/4/5/12/13/17/25/26 (1900/1700/850/700/1900MHz) TD-LTE：B41 (2500MHz) UTMS：B2/4/5 (1900/1700/850MHz) EVDO：BCO/1(800/1900MHz) GSM：850/1900 |
Customize | Contact Sales person to customize your request cellular frequency bands |
Industrial Grade Design, high-performance
Adopt industrial grade high speed 4G wireless communication module and industrial 32 bits CPU, high EMC level, wide operating temperature range, serial interface RS232/485, VPN function. Adapting to high and low temperature, moisture-proof and lightening protection, able to work stably in harsh environment.
Easy Installation
Qixiang router provide desktop and din rail mount installation, it is able to build a security, stable and reliable network of terminals from everywhere. Adopt wired/WiFi/4G network connection, make it non-restricted by wired network, easy to deployment with time and cost efficiency, providing technical guarantee of data wireless communication transmission.
Stable work for 7 * 24 hours in harsh environmen
Qixiang router with strong WDT, self-recovery, schedule reboot function, keeping always online. Adapting to high and low temperature, moisture-proof and lightening protection, able to work stably in harsh environment. High level of EMC anti-interference design, work in strong electromagnetic interference environment.
Secure solutions, data transmission meet financial requirement
Qixiang industrial 4G wireless router supports APN/VPDN, IPSEC, PPTP, L2TP, GRE, OPENVPN, N2N etc., Make sure the security and accuracy of data transmission and management.
FEATURE
Industrial Grade Design | √ High-performance industrial wireless module √ High-performance industrial 32-bit processor √ Support low-consumption mode, including sleep mode, scheduled online/offline mode √ Metal housing, excellent heat dissipation, IP41 protection √ Desktop or Din Rail mount √ Wide voltage:7.5V~32V DC(Max36V) |
Stable and Reliable | √ Hardware and Software WDT and multi-link detection make it self-recovery from unexpected failure and guarantee reliable communication √ Port ESD protection, avoid Static Electricity Shock √ VPN protocols: PPTP, L2TP, IPSec, OPENVPN, N2N, GRE √ Always keep online, reboot automatically if disconnected to ensure continual connection |
Network | √ Full bands 4G LTE, compatible with 3G/2G WCDMA GPRS, EDGE √ Port flux detection, Link real-time monitoring√ Support APN and VPDN private network access √ Serial port offer Data Transfer Unit(DUT) function and support Modbus protocol √ Support multi online trigger ways, including ring, SMS, or data trigger √ Support QOS, UPnP protocol, Port forwarding, UDP broadcast relay |
Function | √ RS232/RS485 serial port offer DTU function, support wireless transparent transmission and Modbus RTU/TCP protocol √ Failover, Backup and Load balance between WAN and Cellular network √ Support DHCP, DDNS, Firewall, NAT, and DMZ host √ Support SNMP, ICMP, TCP, UDP, Telnet, SSH, FTP, HTTP, HTTPS protocol √ Support scheduled reboot √ Cloud-Based IoT Platform, online monitoring, remote parameter configuration, backup, reboot, log query, upgrade √ Optional GPS positioning, Optional WiFi advertising |
SPECIFICATION
Network | |
Cellular | Full bands support FDD LTE:50/150Mbps|HSPA:5.76/21Mbps| EVDO:1.8/3.1Mbps |
Wi-Fi | IEEE802.11b/g/n, Max up to 150Mbps; Encryption of WEP, WEP, WPA, WPA2, Optional WPS. |
Interface | |
LAN | 1×Ethernet interface(RJ45), Auto MDI/MDIX, built-in ESD |
WAN | 1×Ethernet interface(RJ45), Auto MDI/MDIX, built-in ESD, WAN can be converted to LAN |
Serial Port | 1×RS232(optional RS485)port |
LED Indicators | "PWR"," LAN", "WAN", "NET", "SYS", "WiFi" |
Antenna Interface | 4 standard SMA antenna interface (WIFI/GPS and 3G/4G), 50ΩSMA, WiFi and GPS is optional |
SIM/UIM slot | 1×SIM/UIM card mounting plate to protect falling. 1.8V/3V automatic detection |
Power Input | 7.5V-32V(standard DC12V/1A), built-in power transient overvoltage protection |
Reset Button | Reset configuration parameter to default values |
Power Supply | |
Standard power | DC 12V/1A |
Physic | |
CPU | 560MHz |
Flash/RAM | 128Mb/1024Mb |
Shell | metal plate shell |
Dimension | 102×100×41mm |
Weigh | About 355g |
Environmental | |
Operating Temperature | -30 to 75°C |
Storage Temperature | -40 to 85°C |
Relative Humidity | < 95% no coagulation |
Approval | CCC,CE |

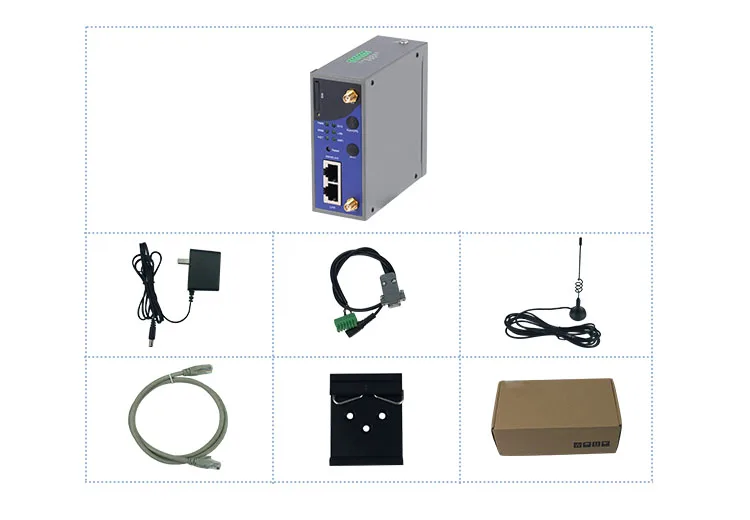

PACKING LIST
