Quad Bike ATV 500cc Cuatrimoto 4x4

FOB Reference Price:Get Latest Price
$3,000.00 - $4,000.00 / Unit | 1 Unit/Units (Min. Order)
Model Number:
Lead Time:
Quantity(Units) 1 - 25 26 - 50 51 - 100 >100
Est. Time(days) 25 35 45 Negotiable
Report Suspicious Activity
Quick Details
Gas / Diesel
Transmission System:
Shaft Drive
Engine Type:
Transmission Type:
Brand Name:
Place of Origin:
Zhejiang, China
Product name:
ATV 500cc 4x4
Water Cooled
Starting system:
Electric Start
Engine Displacement:
Automatic CVT
Max power:
24kW (32.2hp)/6300rpm
Front & Rear tire siz:
25 x 8-12 / 25 x 10-12
OEM service:
Fuel tank capacity:
Supply Ability
Supply Ability:
2000 Unit/Units per Month
Packaging & Delivery
Packaging Details
Standard Export Packing with Steel Frame and Strong Carton
Lead Time :
Quantity(Units) 1 - 25 26 - 50 51 - 100 >100
Est. Time(days) 25 35 45 To be negotiated
Product Description


Engine Type: 500cc Water Cooled, Four Stroke, single Cylinder, 4 Valve
Bore x Stroke: 92 x 75mm
Max Power: 24kW (32.2hp)/6300rpm
Max Torque: 40Nm/4800rpm
Compression Ratio: 10.2:1
Carburetion: CVK KE1 H1N 75NA, Single Chamber
Ignition: CDI
Starting System: Electric and Pull Start
Fuel Capacity: 10.5L
Max Speed: 76km/h
Transmission: Belt CVT Full Auto with H, L, N, R Manual gear shifting
Brakes: 4 Wheel Disk Brakes
Drive Train: 2WD/4WD adjustable by push button, rear wheels always lock, no differential, shaft drive
Suspension/front: Independent double wishbone
Suspension/rear: Independent double wishbone
Brake/front: Dual hydraulic disc, twin pistons
Brake/rear: Hydraulic disc, self-adjust packing system, shaft mounted
Tires/front: AT25 x 8-12
Tires/rear: AT25 x 10-12


L x W x H: 2,250 x 1,150 x 1,200mm
Wheelbase: 1,460mm
Turning radius: 3,600mm
Ground clearance: 230mm

Container: 8 unit/20'GP, 20 unit/40'GP, 27 unit/40'HQ

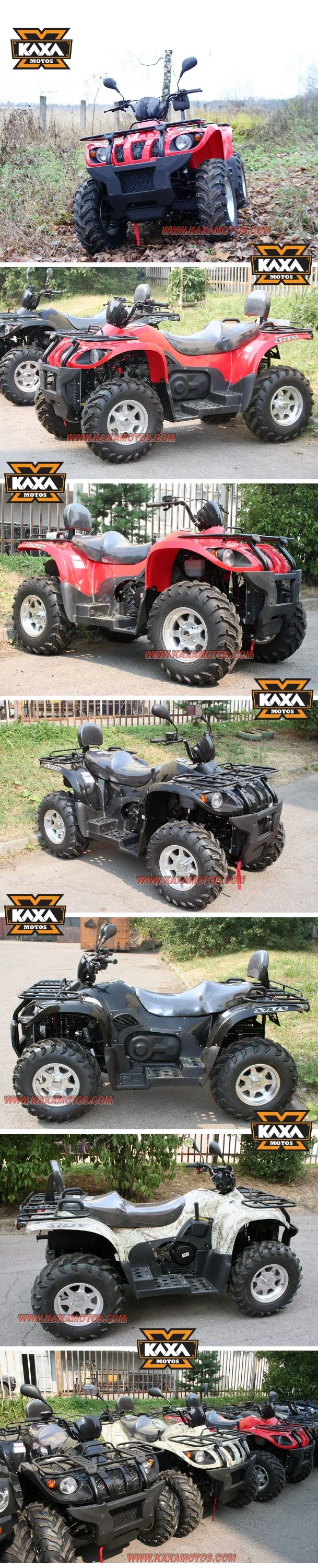

Detailed Images
Other Hot Products


                       KXA-R18 TRIKE SCOOTER 200CC

   KXB-18 OFF ROAD BUGGY 1100CC 4X4 with EEC

                 KXU-18 UTV SIDE BY SIDE 800CC 4X4

           KXP-D22 MOTOCROSS BIKE 250CC


                     KXA-23 ATV 800CC 4X4 with T3

                       KXA-31 ATV 300CC 4X4 with EPA

                 KXE-20 GOLF CRUISER 1000W

                KXE-06 CITYCOCO SCOOTER 1000W

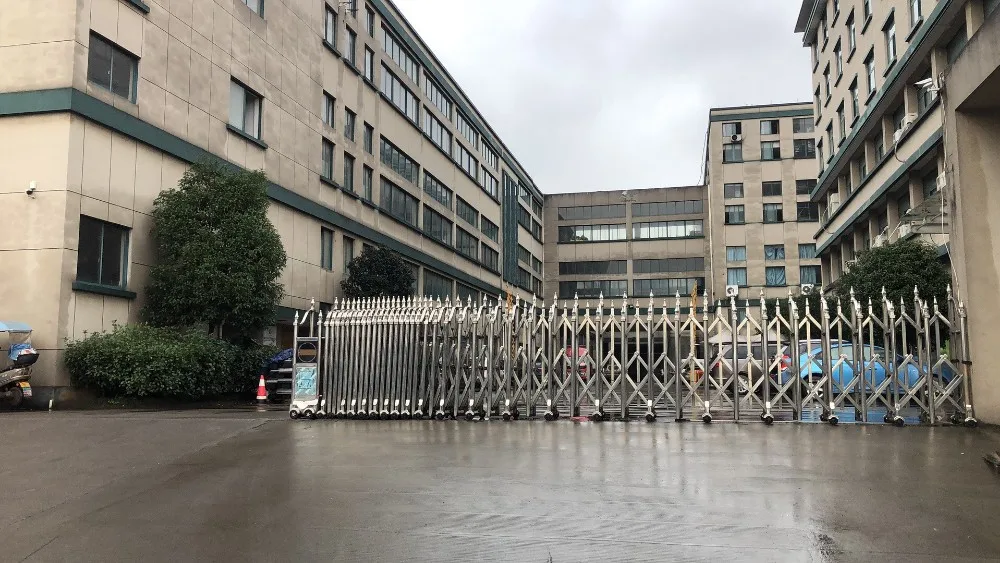

Our Company

    Founded in 1998, We are a professional manufacturer for ATV, UTV, Off Road Motorcycle,

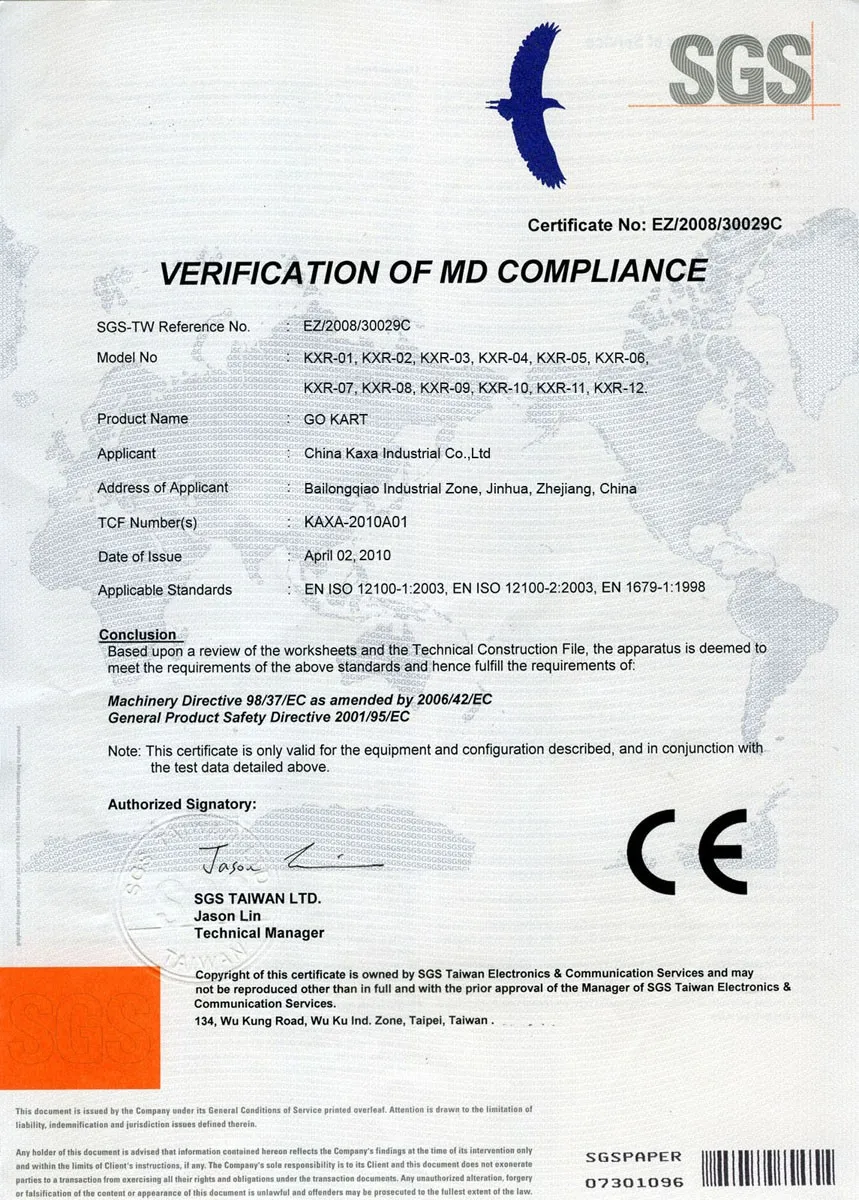

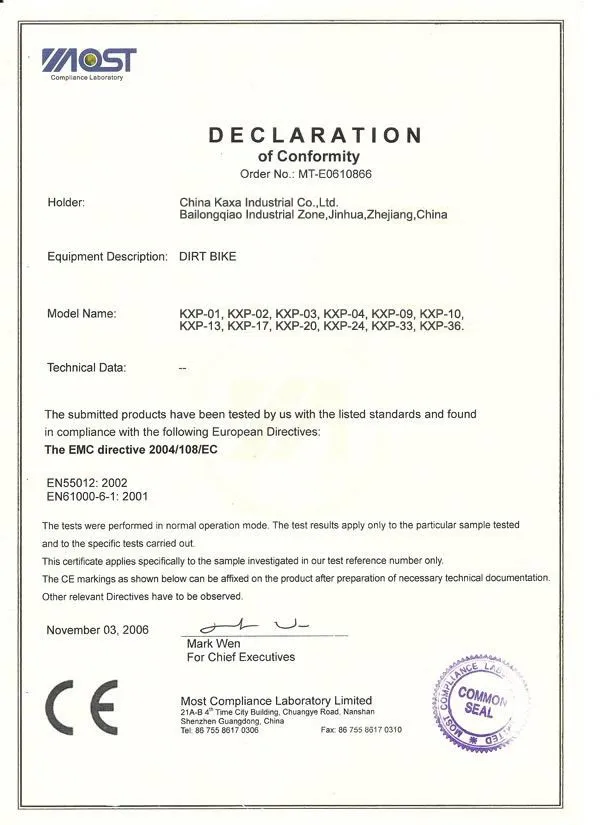

Dune Buggy, Go Kart and E-skateboard in China, all of our products has CE certificate,

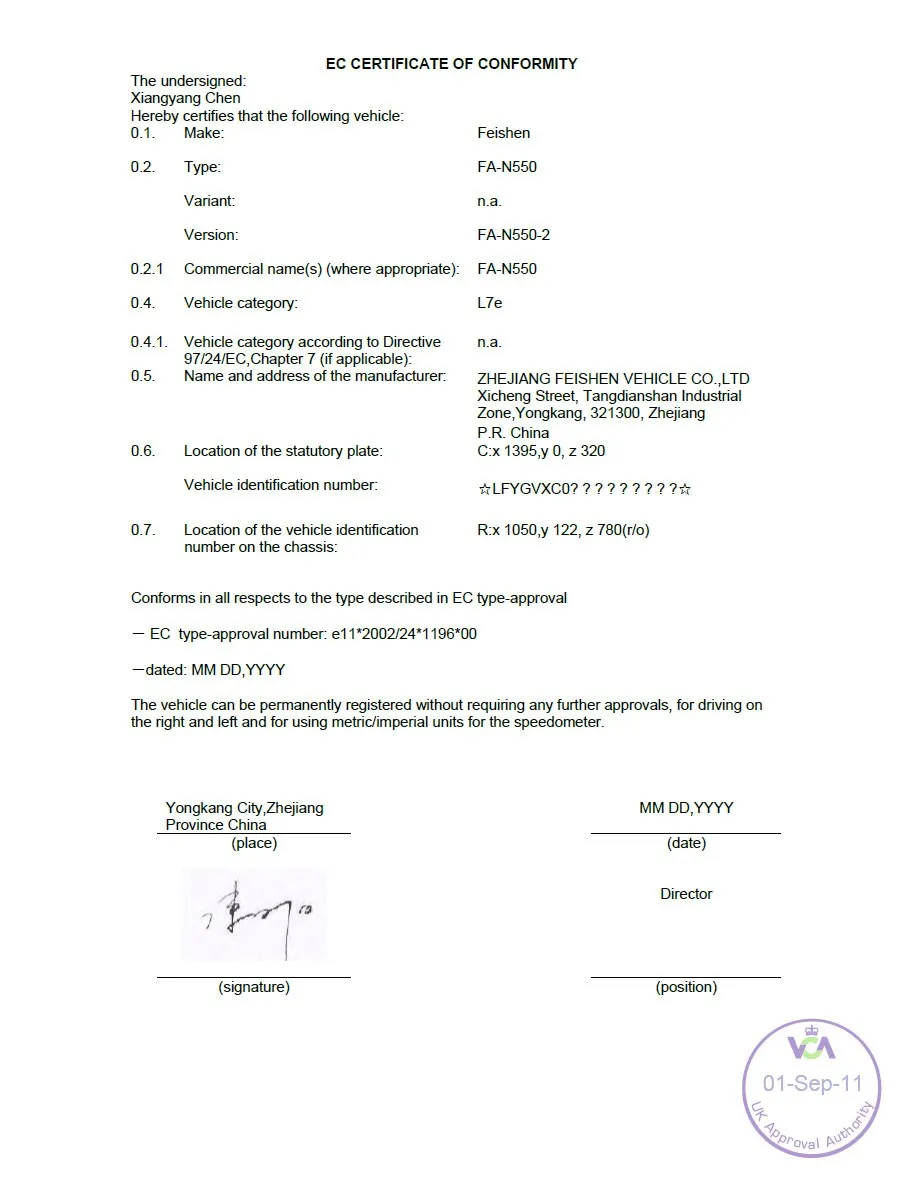

most of vehicles have EEC/COC approved for street road legal use in Europe, some ATV

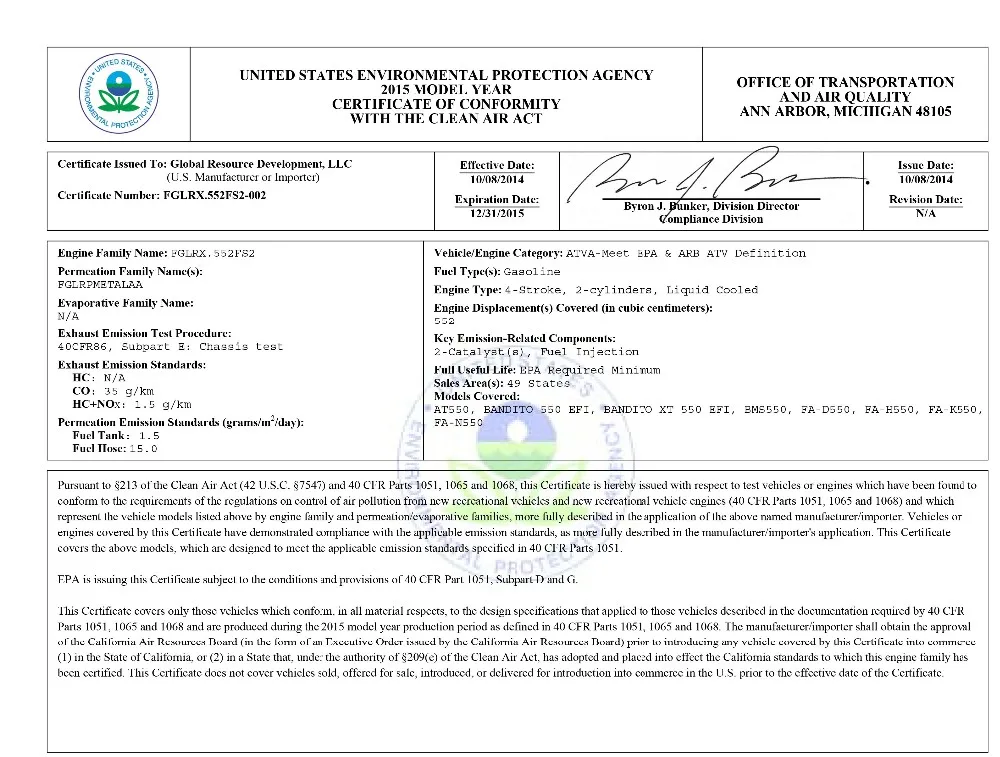

and UTV has EPA approved for USA and Canada.

20 years, we always adhere to the quality first, customer satisfaction for the purpose.
Our strength has won the trust of our customers,
our products are sold to Europe, South America, Australia,
the Middle East and other parts of the world.
But we still need to work hard.

In the future, we hope to bring clients a better experience and service.

Our main products as follows,
All Terrain Vehicle (ATV & Quad Bike, Trike ATV): 49cc, 50cc, 70cc, 90cc, 110cc, 125cc,
150cc, 200cc, 250cc, 300cc 4x4, 400cc 4x4, 500cc 4x4, 550cc 4x4, 800cc 4x4 and 900cc 4x4.

Dirt Bike (Off Road Motorcycle, Pit Bike & Motocross Bike): 49cc, 50cc, 70cc, 90cc, 110cc,
125cc, 140cc, 150cc, 160cc, 200cc, 250cc and 450cc.

Dune Buggy (Sand Buggy & Beach Buggy): 50cc, 70cc, 90cc, 110cc, 125cc, 150cc, 200cc, 250cc,
300cc, 500cc 4x4, 800cc 4x4, 1100cc 4x4 and 1500cc 4x4.

Racing Go Kart (Racing Karting): 90cc, 110cc, 125cc, 150cc, 200cc, 270cc and 390cc.

Utility Vehicle (Gasoline and Electric Power): 150cc, 200cc, 250cc, 300cc, 500cc 4x4, 600cc
4x4, 800cc 4x4 and 5kW 4x4.

Electric Skateboard: 150w, 250w, 280w, 400w, 500w, 600w, 700w, 800w, 900w, 1000w, 1300w & 3600w.

Packing & Delivery

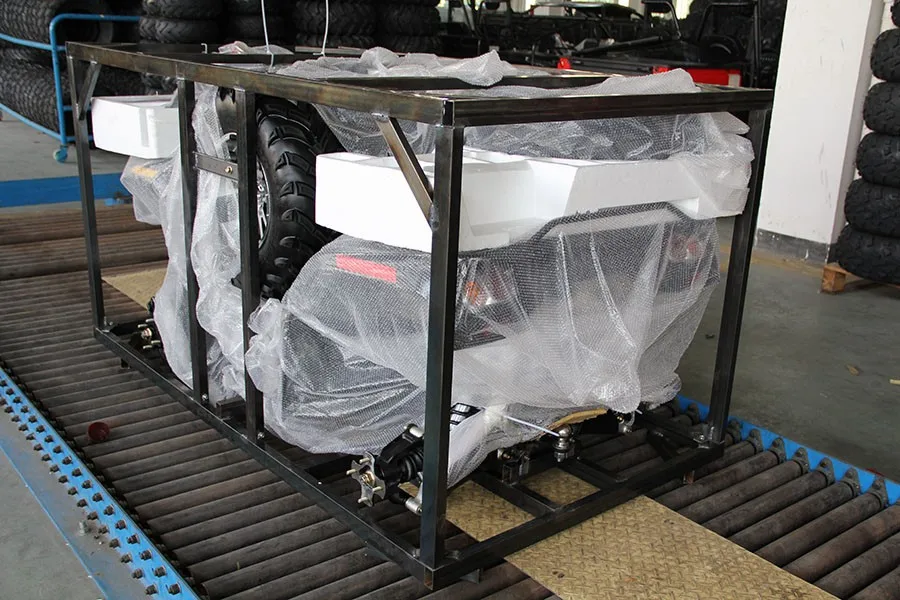

Inside Safety Package with Steel Rack

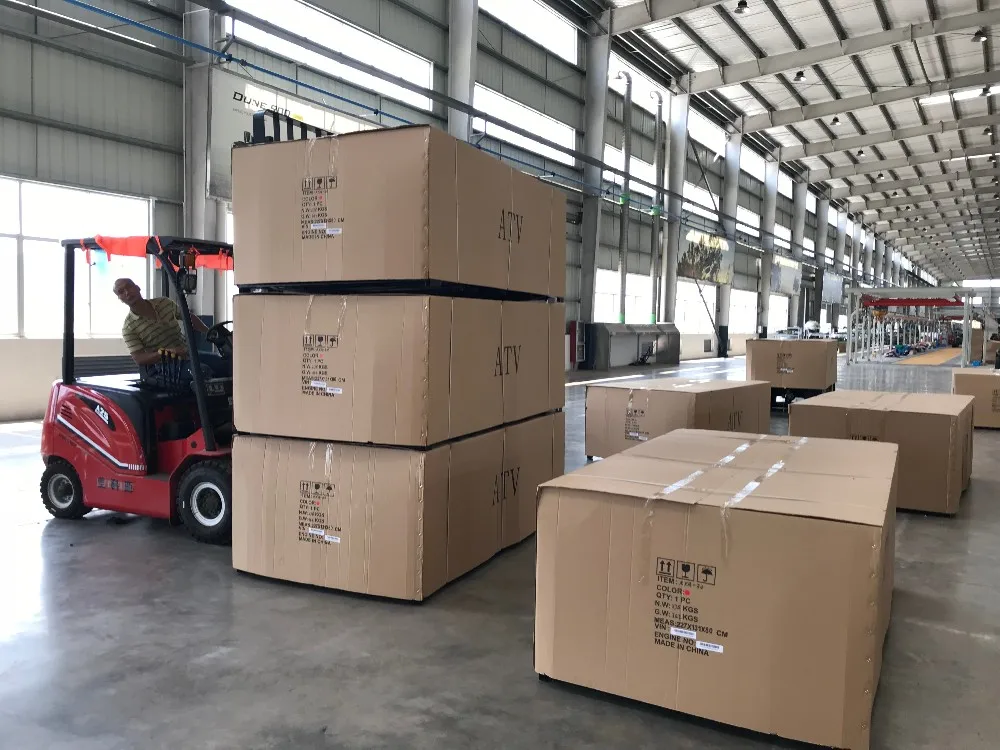

Outside with Stronger Carton

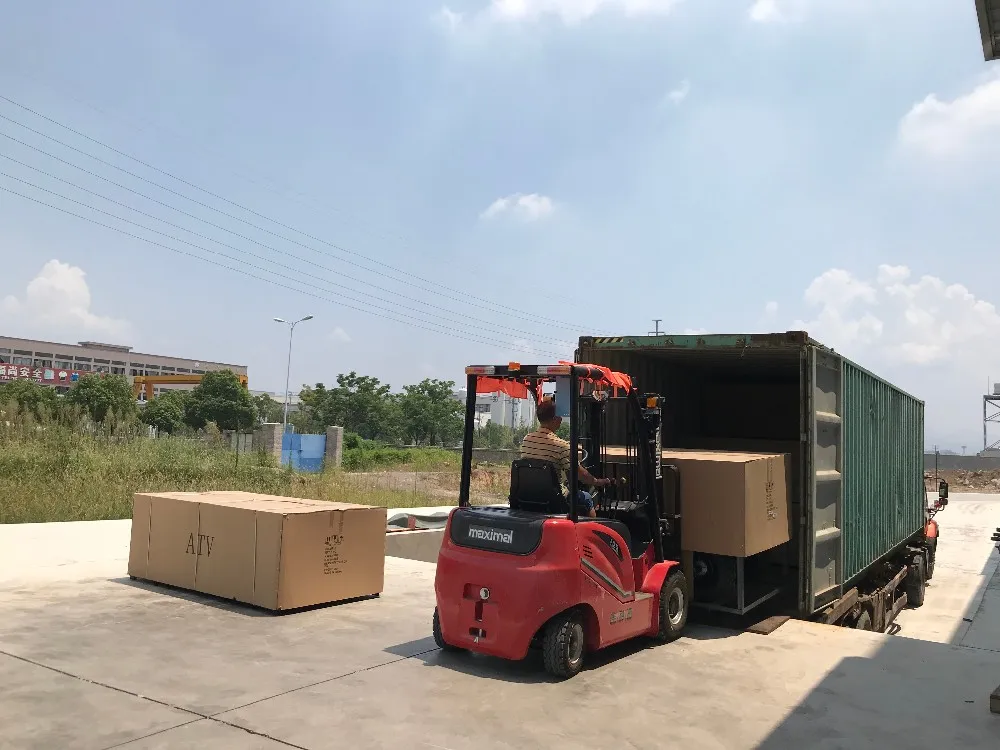

Loading the Container
Our Service

1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the
goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer
the solve way for you.


Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.

Q3. What is your terms of delivery?

Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.

Contact Us:

Kaxa Motos

Tel No.: 0086-579-82667969
Fax No.: 0086-579-82667929

WhatsApp & Wechat: +86 186 0689 6766

Website: www.kaxamotos.com
