Quick Change Steel C Purlin Machine Line For C50-200 Profile

  • >=1 Sets
    $32,980.00
Power(W):
11KW+4KW
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 45 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Samples:
$32,980.00 /Set | 1 Set (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, farms, restaurant, HOME USE, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company, cold roll forming machine
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
United States, VIET NAM, philippines, indonesia, INDIA, Australia
Showroom Location:
United States, VIET NAM, philippines, indonesia, INDIA, Australia
Condition:
New
Type:
Tile Forming Machine
Tile Type:
STEEL
Use:
ROOF
Production Capacity:
18m/min
Place of Origin:
Xiamen, China
Brand Name:
BMS
Voltage:
AC 3-318V/415V/440V
Dimension(L*W*H):
1100*160*180
Weight:
10 Tons
Certification:
CE
Warranty:
2 years
After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Key Selling Points:
long service life
Raw material:
Galvanized Sheet, hot roll steel(CRC), cold roll steel(HRC)
Control system:
PLC control (imported Brand)
Decoiler:
Manual/ Hydraulic
Roller material:
Gcr15 Steel
Housing:
H400
Post cutter:
Cr12
Side wall thickness:
18mm
Material thickness:
0.8-2.0mm
Shaft material:
45#
Forming speed:
18m/min
Product Certification certification
CE Certified.
Packaging & Delivery
Packaging Details
Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.
Port
Xiamen port, China
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 45 To be negotiated
Video Description
Product Description

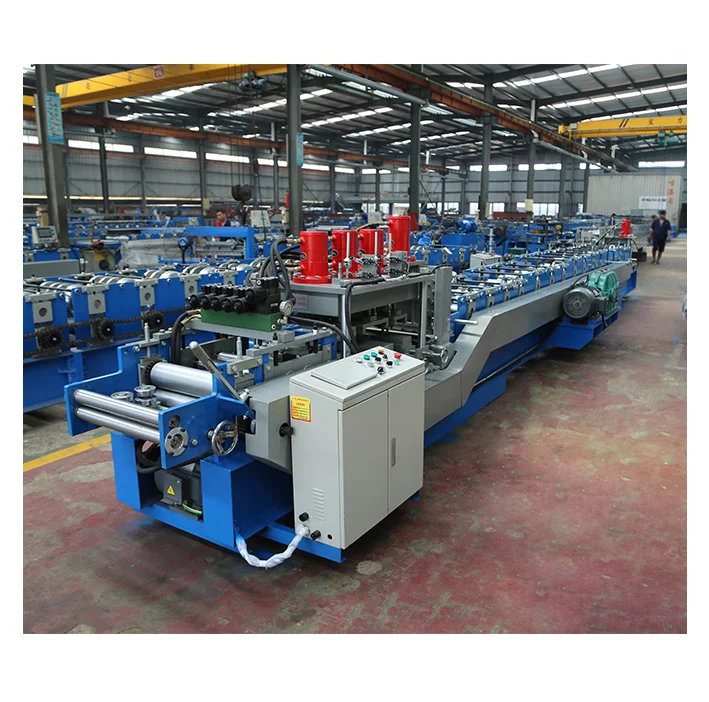

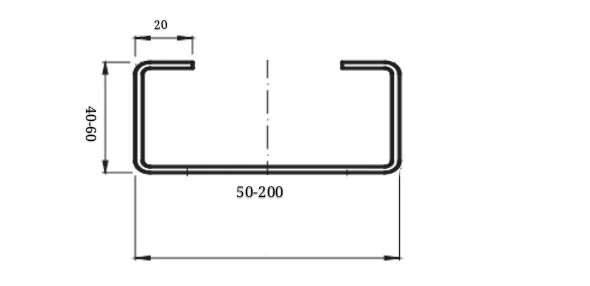

Quick Change Steel C Purlin Machine Line For C50-200 Profile

1.Main features of auto quick change C purlin roll forming machine line

The advantages of auto quick change C purlin roll forming machine are as follows:
1. Produce different purlin size without changing rollers or spacers
2.No need changing cutter for different size.
3.Easy operation, low maintenance cost
4. Infinite sizing(any size within machine range), help to save materail
5. Optional Punch hole at any position of web side and flange side.

Detailed Images of C shaped steel forming machine

Machine Parts
1) C purlin machine punching system
Brand: BMS Original: China
With 3 cylinders(one cylinder for single hole and 2 cylinders for dual-hole)

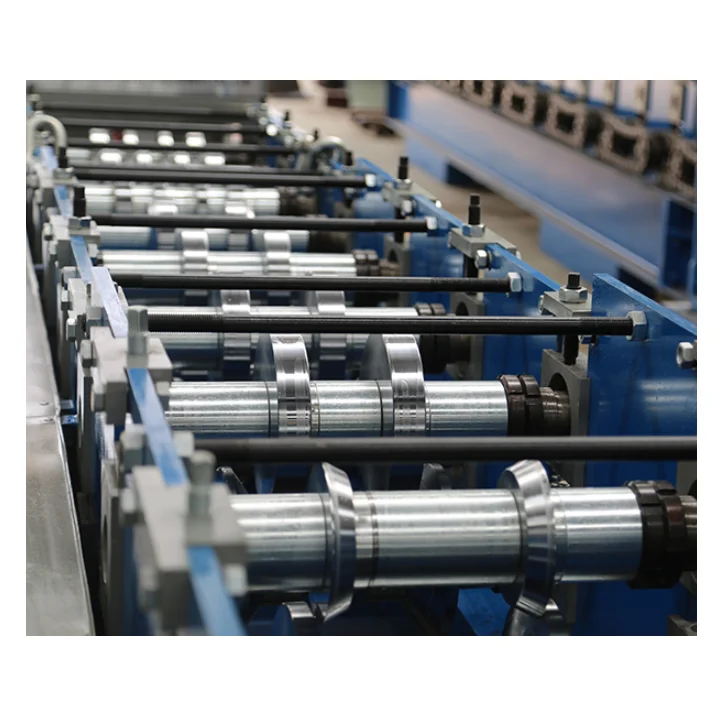

2) C purlin machine rollers

Brand: BMS Original: China
Rollers manufactured from high quality bearing steel GCr15, CNC lathes, Heat Treatment.
with black treatment or Hard-Chrome Coating for options.
With feeding material guide, body framemade from 400# H type steel by welding

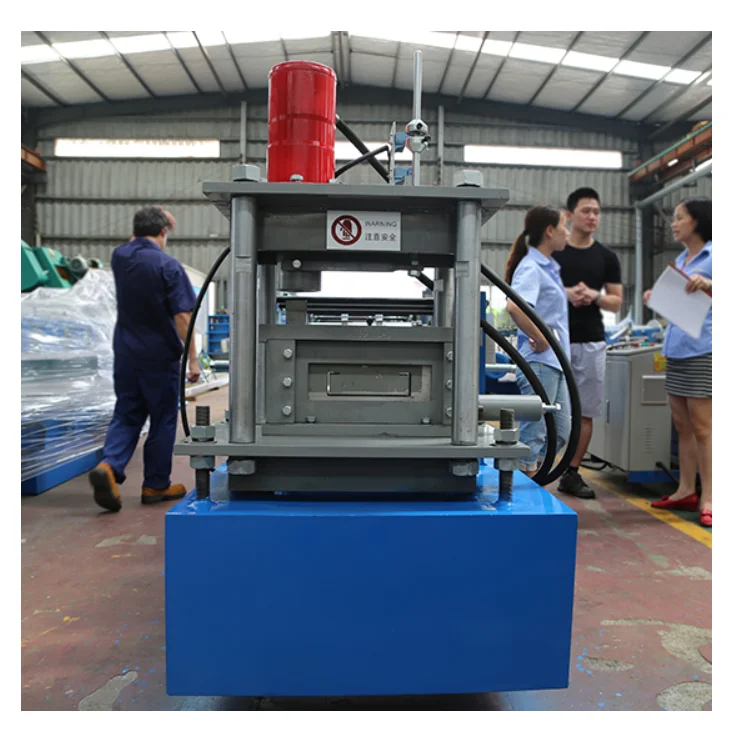

3) C Purlin machine post cutter

Brand: BMS Original: China
No need to change cutter for different size,
made by high quality mold steel Cr12 with heat treatment
Cutter frame made from high quality 30mm steel plate by welding
Pre-punching  stop to punch,
hydraulic motor:4KW, Hydraulic pressure range: 0-16Mpa

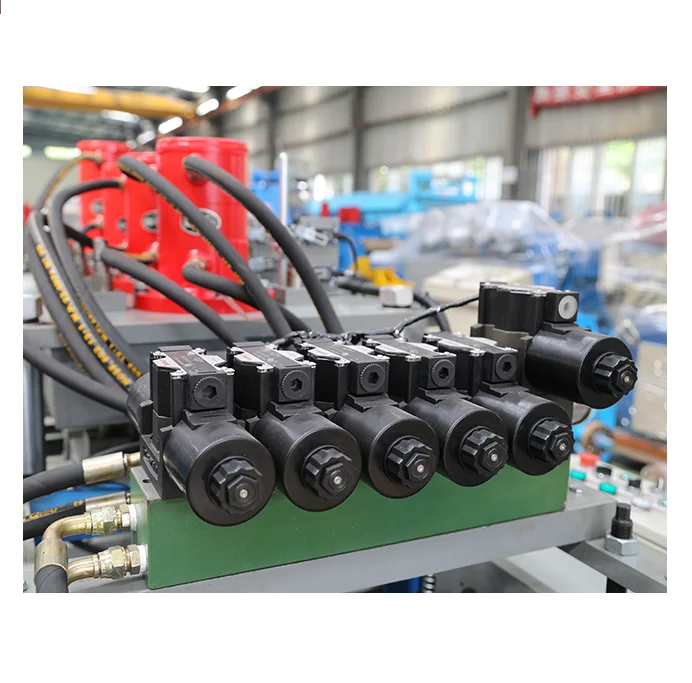

4) C Purlin machine electronic valve

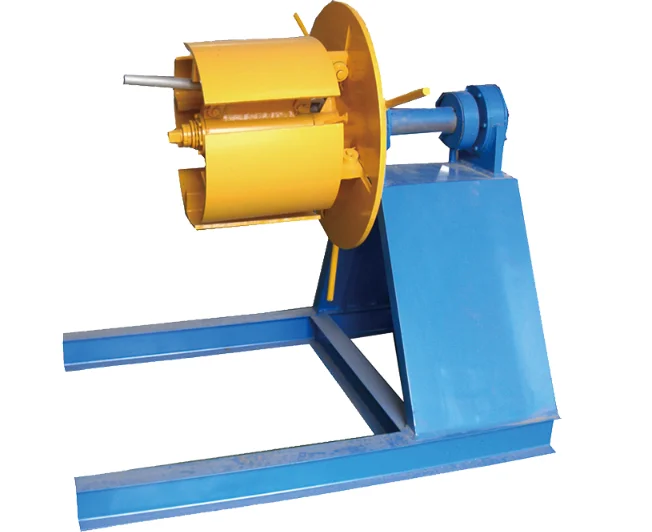

5) C Purlin machine decoiler

Brand: BMS Original: China
Manual Decoiler: one set
Un-powered,manually control steel coil inner bore shrinkage and stop
Max. feeding width: 500mm, coil ID range 470mm±30mm
Capacity: Max. 3Ton
With 3 tons hydraulic decoiler for option
With 3 tons hydraulic decoiler for option

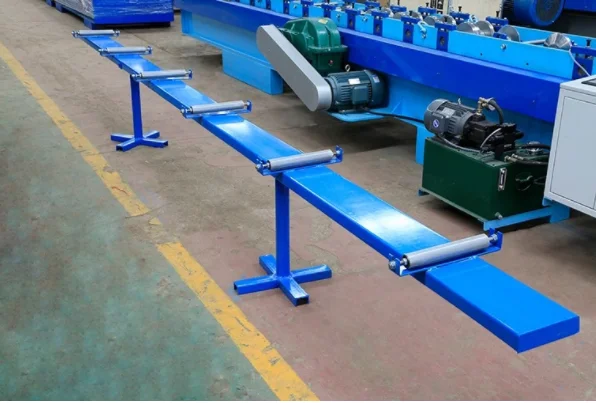

6)C purlin exit rack

Brand: BMS Original: China
Un-powered,one unit

Other detailes of C purlin roll forming machine

Suitable for material with thickness 0.8-2.0mm
Shafts manufactured from 45#,Main shaft diameter=φ75mm,precision machined
Motor driving,Gear chain transmission, 14 rollers to form
Main motor=11KW , Frequency speed control. Forming speed approx.18m/min

PLC Control System (Touch screenbrand:German Schneider Electric/Taiwan WEINVIEW,
Inverter brand:Finland VOCAN/Taiwan DELTA/ALPHA,Encoder brand:Japan Koyo/OMRON)

Combined with: PLC, Inverter, TouchScreen, Encoder, etc
Cut-to-lengthtolerance≤±2 mm
Control Voltage 24V
User's manualin English
After-sale service of c purlin roll forming machine
1. The warranty of c purlin roll forming machine
is two years after the client receives the machine.
Within the two years, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories with extra cost.

Terms of trade

1. Minimum order quantity (MOQ): 1 piece
2. Delivery time: about 45 workdays
3. Port of loading: port of Xiamen
4. Type of payment: by T/T or by L/C
5. Export: Australia, UK, Ireland, Mexico, Brazil ,Israel ,Dubai, Russia ,India, Taiwan, Singapore,
Malaysia ,Thailand, Philippines, Myanmar ,Vietnam, South Africa, Mozambique,
Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
