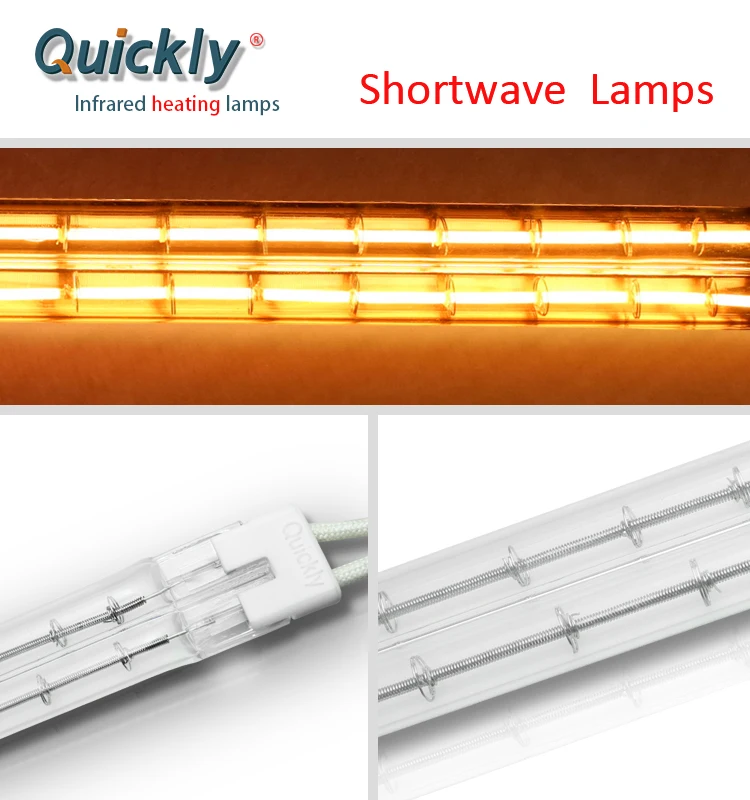

Quickly Twin Tube Short Wave IR Quartz Heating Halogen Infrared Heater Lamp

FOB Reference Price:Get Latest Price
$10.00 - $100.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Anhui, China (Mainland)
Brand Name:
Quickly
Model Number:
KKL-T-W
Color:
half clear half white, half clear half white
Specification:
11*23mm
Material:
quartz glass
Certification:
CE, CE
Voltage:
80v-750v
Type:
KKL-T-W
Application:
Industrial Heating and drying
Warranty:
5000
Wavelength:
0.75-1.4um
Shape:
Tubular
Reaction time:
1-3s
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Wooden case
Port
Shanghai

Quickly  Twin Tube Short Wave IR Quartz Heating Halogen Infrared Heater Lamp

Product Description

Production DescriptionMedium Wave Infrared Heater Lamps
Tube Diameter18*9mm23*11mm33*15mm
Overall Length80-1500mm80-3500mm80-6000mm
Heated Length50-1470mm50-3470mm50-5970mm
Tube Thickness1.2mm1.5mm2.2mm
Max Power40w/cn60w/cn80w/cn
Cnnection Typelead wire at one or two sides
Tube Coatingtransparentgold coatingwhite coating
Voltage80-750v
Cuble Type1.silicone rubber cable     2.teflon lead wire      3.naked nickle wire
Installing PositionHorizontal
All you waned can be found here--customized service
Appliction

Infrared heating is a kind of radiation heating. It spreads by a kind of infrared radiation (light)-- infrared light from material in the form of molecular (atomic) resonance absorption, so as to achieve the purpose of heating. It can be applied in many fields such as the heating process of industry coating, plastic forming, automotive industry, glass making, spinning, solar PV, food baking, drying of printing inks, quick drying of primer and paint on furniture, printed circuit, and so forth.manufacture progress



Company Information

Why Choose US

A. Material

One of the main material for quartz heater lamps is quartz tube, and quartz tube is made up from quartz sand, the tube we use is made by Quartz IOTA - the high purity quartz sand 99.99% Si02, the world’s leading quartz raw material and hydroxy of quartz tube is 1PPM,in this case, our lamps can work at a higher temp like 1000℃.

Another main material of quartz lamp is tungsten filament,which is purchased from XIAMEN HONGLU TUNGSTEN MOLYBDENUM INDUSTRY CO., LTD., one of the world's three largest tungsten wire manufacturers, it helps us to get filament with a longer lifespan and higher efficiency.

Ceramic end base/cap can stand 1800℃ working temperature.

We use different lead cables based on the practiced working temperature, some of them can be used under a higher temperature up to 750℃ for a long time.

B. Professional heating technology and rich experience

The quartz infrared emitter provided by Hefei Quickly Electric Co.,ltd can easily control the emitted wavelength and color temperature by adjusting the lamp’s filament temperature. Our IR lamps have been widely applied into PV solar industry, glass industry, plastic industry, powder coating industry...which helps us to get a rich experience ,knowledge and data to provide better service for our clients.

C. Fast Production

Hefei Quickly 80% workers have a long working years - more than 10 years, they are skillful with lamp production,in this case, we can shorten our production period largely, for instance, we can finish 1000pcs IR lamps with 3 working days.

Quality and Services

Our Infrared heater lamps are under standard in CE & ROHS, we have strict quality control to make sure each IR lamp is perfect!

Our Service:

Sample Service

Some samples are free of charge, buyer shoulder the fright cost.  Contact us for details

Customized Service

1. All of our infrared heater lamps are customized according to your unique practical request, professional technicians do one-to-one service for you and can customize 1pc IR lamp for your quality testing at the beginning.

2. We offer OEM services, we can print your logo on Infrared heating lamps as your requirements.

After-sale Service

Warranty Time of Short wave Infrared heat lamp: 5,000 hours

Warranty Time of Carbon Fiber Infrared heat lamp: 10,000 hours

Warranty Time of Medium wave Infrared heat lamp: 20,000 hours

During the warranty time, any non-man-made quality issue, once confirmed, we will sent the new replacement immediately without any charge.

Packaging & Shipping









FAQ

1.Are you a factory or trading company?

We are a professional factory of Infrared heater lamp.

2.How you do quality control?
A: We have the most professional tech team and experienced workers, from material choosing, production process to final packing ,all are under strictly control to make sure you can sure you can get the qualified quartz infrared emitters.

3.Are you a member of Alibaba Trade Assurance?
A: Glad to tell you that we have joined the Trade Assurance on Alibaba to protect your payment to make sure that we delivery on time and you get the satisfied products.

4.How can I get samples?

A: We are honored to offer you samples.



5.How to protect your rights and interests?

A: You can place orders for quartz heater lamps by Trade Assurance, a new service provided by Alibaba.

They will be the third part to safe guarding your payment before you receive the satisfied IR heat lamps in hands.
