RCP2450 Horizontal Roller Hearth Flat Glass Tempering Furnace

FOB Reference Price:Get Latest Price
US $150,000-200,000 / Set | 1 Set/Sets (Min. Order)
Supply Ability:
15 Set/Sets per Month
Port:
Dalian
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Machine Type:
Glass Tempering Furnace
Production Capacity:
18-20 (load/h)
Place of Origin:
Liaoning, China (Mainland)
Brand Name:
R&C
Model Number:
RC-2450
Voltage:
800KVA
Power(W):
720KW (Heating Power)
Dimension(L*W*H):
23x3.6x2.5m
Weight:
4000kg
Certification:
CE
Warranty:
1 year
After-sales Service Provided:
Engineers available to service machinery overseas
Tempering type:
Flat Glass Tempering Furnace
Heating method:
Radiation + Compressed Air Jet System Type
Max. Loading Dimension:
2440x5000mm
Min. Loading Dimension:
150x300mm
Thickness:
4-19mm
Application:
shower room, garden fence, elevator, furniture
Capacity(㎡/h):
114
Installed Power (KVA):
≥630KVA
Packaging & Delivery
Packaging Details
In containers.To be packed in standard export packing-suitable for long distance ocean.
Delivery Time
Within 90 workdays after receipt of the down payment
Product Description

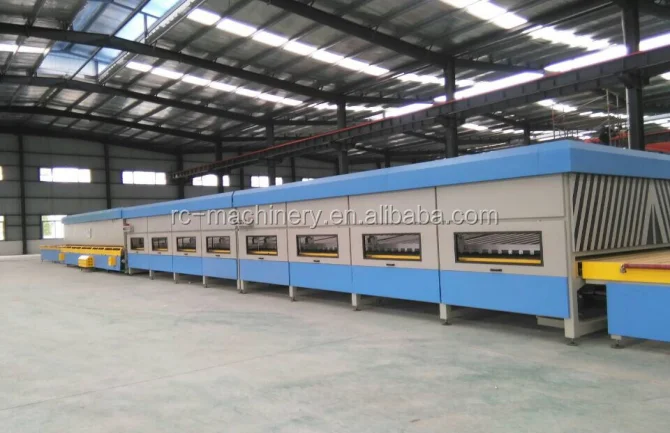

HORIZONTAL ROLLER HEARTH FLAT GLASS TEMPERING FURNACE

Forced convection tempered electric furnace is a new generation of toughened glass furnace. Compared with the domestic and foreign products, the equipment has reasonable processing technology, the system control software is powerful, high reliability, excellent insulating property, low energy consumption, the production of computer automatic control, high production efficiency, especially suitable for deep processing in Low-E glass, coated glass and glass products.

Three Grooved Belt

The driving device of ceramic roller table adopts three groove transmission mode

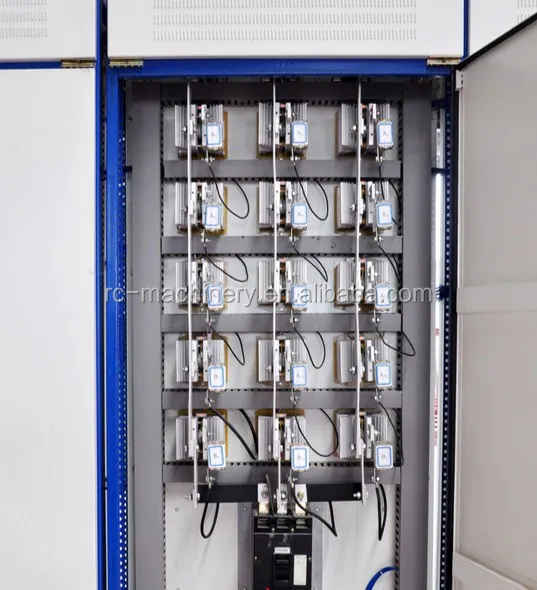

Silicon Control

Silicon control is adopted for
heating control

Electric Heating Element

The electric heating element (electric furnace wire) adopts nickel baking wire"

Basic Parameters

Glass Specification
2450
2430
Requirements for glass substrates
No visible bubbles and inclusions are in accordance with the national standard for float glass. Glass should be chamfered, refined, dried and cleaned
Thickness
4-19mm
4-19mm
Min. Size
150x300mm
150x300mm
Max. Size
2440x5000mm
2000x3000mm
Comprehensive Yield
White glass no less than 99%
White glass no less than 99%




Yield
19-22 m2/h——4mm
16-18 m2/h——5mm
13-15 m2/h——6mm
9-11 m2/h——8mm
7-9 m2/h——10mm
6-7 m2/h——12mm
5-6 m2/h——15mm
3-4 m2/h——19mm

19-22 m2/h——4mm
16-18 m2/h——5mm
13-15 m2/h——6mm
9-11 m2/h——8mm
7-9 m2/h——10mm
6-7 m2/h——12mm
5-6 m2/h——15mm
3-4 m2/h——19mm
Power Consumption
Below 3.5 degrees /m2 - 5mm
Below 3.5 degrees /m2 - 5mm
Glass Quality
Superior to GB
Superior to GB
Device Parameter
2450
2430
Heating Power
720kW
360kW
Fan Power
280KW---4-19mm(subject to design in the end)
185KW(subject to design in the end)
Power of Hot Air Blower
4×4kW(subject to design in the end)
2×4kW(subject to design in the end)
Other
20kW
20kW
Transformer
800KVA
400KVA
Ceramic Roller Table
54 root, diameter 85, roll spacing 120mm

Equipment Size
Length 23m, width 3.6m, height 2.5m
(excluding wind road, wind room)
Length 15m, width 3m, height 2.5m
(excluding wind road, wind room)
Process Details


Loading Table


This section includes composite steel frame, frame, transmission system, photoelectric switch, universal ball lifting platform and so on

Heating Section


The heating section comprises a top lifting mechanism, a heating system, a fast cooling system, a heat balance system, a ceramic roller driving system and a length and temperature detecting system

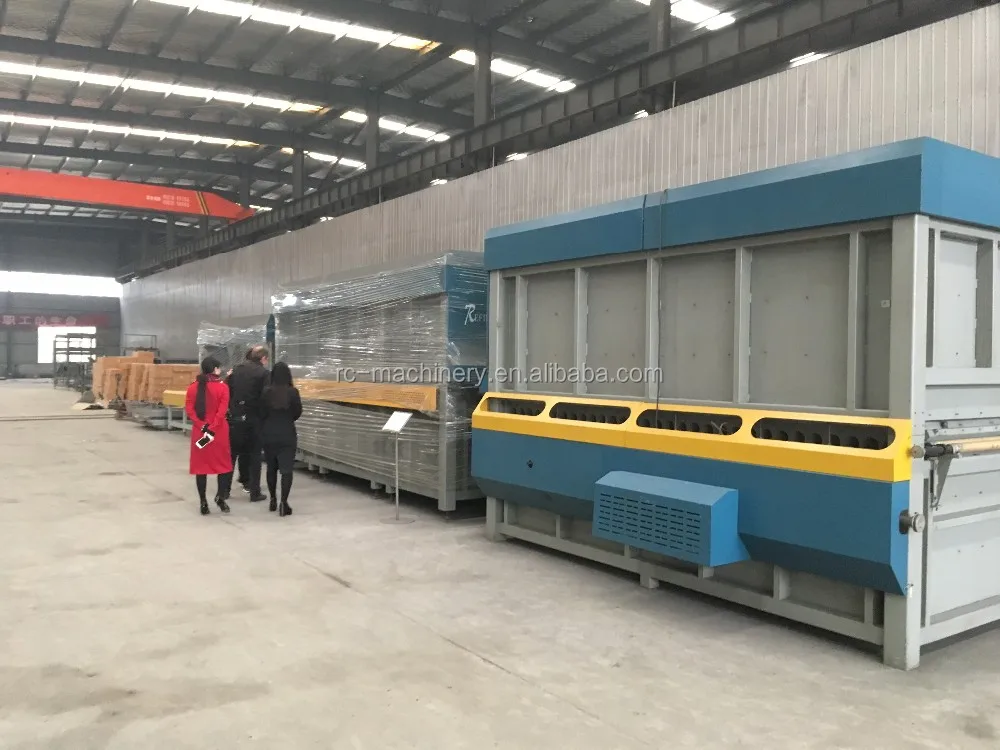

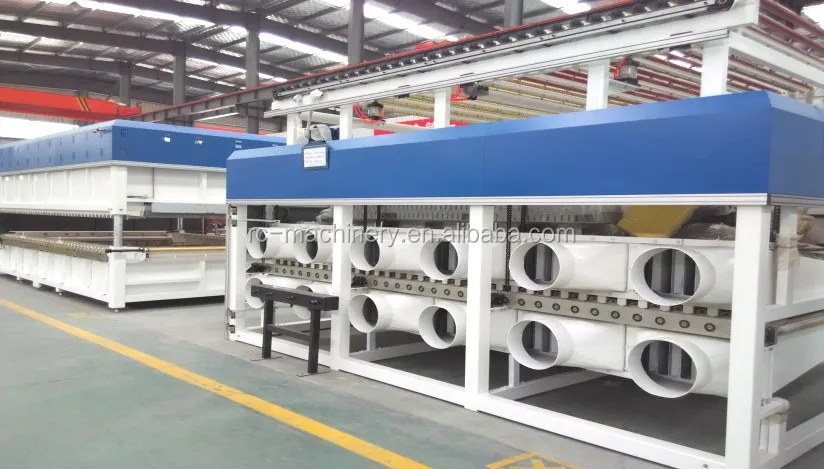

Cooling Section


The flat tempering cooling section comprises a steel structure frame, transmission system, wind gate, wind gate opening and closing mechanism, the upper grid lifting mechanism, flexible air pipe



Control Program


PLC control procedures and industrial computer is used by the German SIEMENS SIEMENS

Related Products

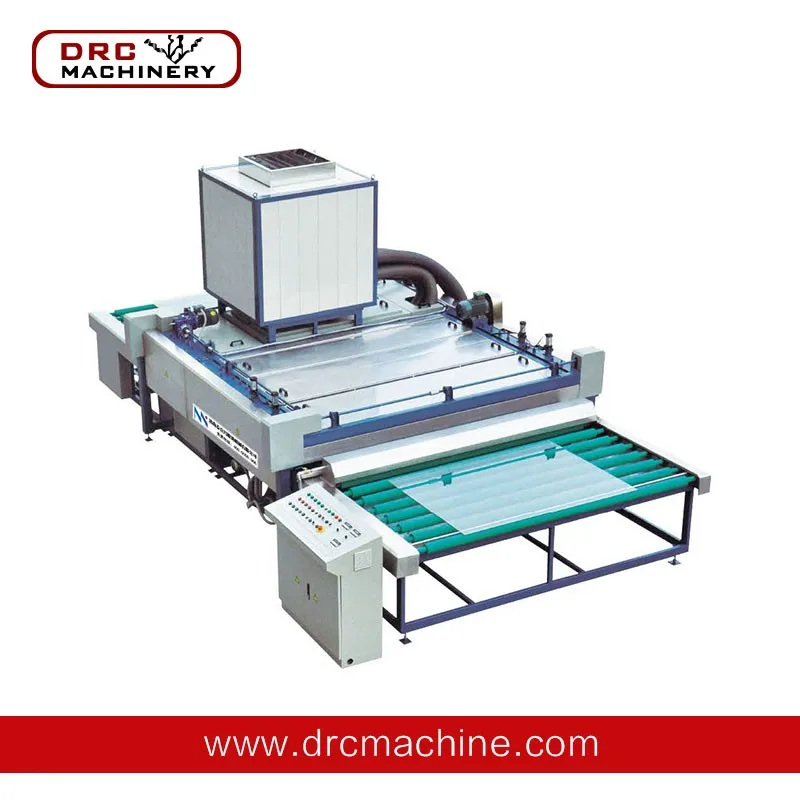

 CNC Glass Cleaning Machine

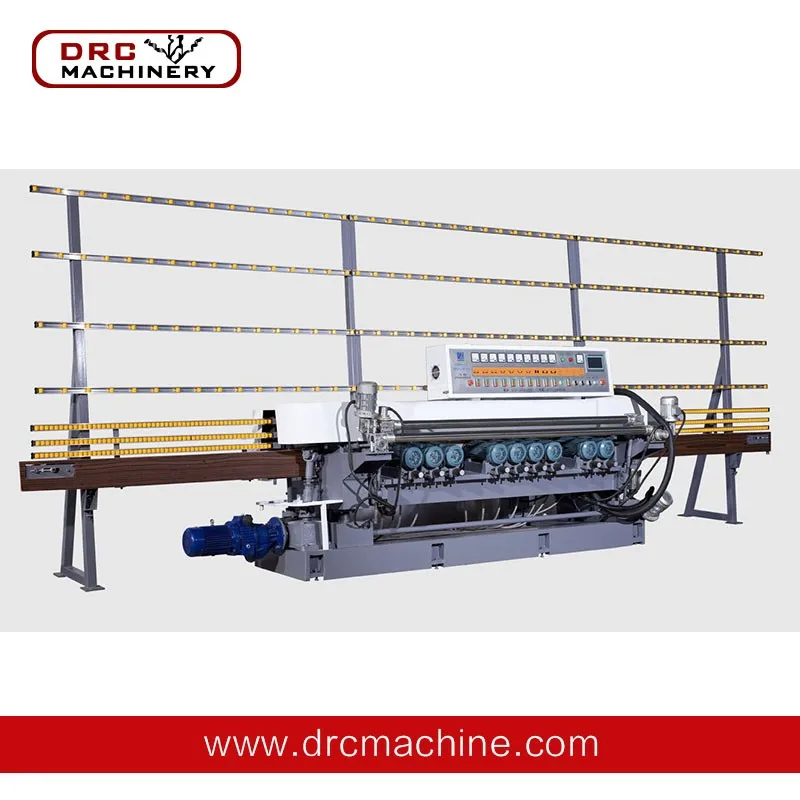

CNC Glass Edging Machine


CNC Glass Drilling Machine


CNC Glass Cutting Machine

Ender User&Delivery
Why Choose Us

DRC is a group company ,which is professional in products and sales of advanced CNC machine tools . Acting full operation of the six machine tool production company's overseas sales.
DRC is located in Dalian, which is one of the largest seaport cities of China.Our products exported to Russia, Dubai, Hungary, Italy, Argentina, the Philippines, India, Iran, more than 50 countries.
DRC has six factories in China, which covers many kinds of mechanical equipment.
Product Range:
◎Special Machine for Pipe Threading ,Valve Milling, End Facing and so on,
◎Boring and Milling Machine
◎Dental Milling Machine
◎Vertical Lathe
◎Machining Center
◎Conventional Lathe,
◎CNC Lathe
◎Glass Tempering Furnace

After-Sale Service
FAQ


1. What is your minimum order quantity and warranty?
MOQ is one set, and warranty is one year.

2.When is the delivery time?
We will delivery it within 90 days after received your payments

3. How to handle the warranty period?
During the warranty period, because of product quality problems, the company is responsible for free maintenance, if need to change parts, we be responsible for free replacement.
If the machine problem is not belonging to our machine quality problems, when the buyer needs us send engineers to give repairing service, we charge the appropriate cost.

4.Can your company send the technical personnel to our company and direct our workers for free?
When the machine arrive the buyer’s installation site, we timely send mechanical and electrical engineers to install according to the buyer's schedule, the buyer undertakes board and lodging of personnel abroad in the process of installation, and also USD100.00 per day per person. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.
