RENKE OEM Precision Material RS485 Water Protection Wind Direction Sensor

  • 1-199 Sets
    $30.70
  • 200-499 Sets
    $29.50
  • >=500 Sets
    $28.00
Quantity:
- + Sets available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Samples: $30.70 /Set, 1 Set (Min. Order): Buy Samples
Contact Supplier
Samples - $30.70 /Set, 1 Set (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
JDRK
Model Number:
RS-FX-N01
Usage:
Speed Sensor
Theory:
Inductance Sensor
Output:
Digital Sensor
Product name:
RENKE Precision Material RS485 Water Protection Wind Direction Sensor
Keywords:
Wind Direction Sensor
Power supply:
10~30V DC
Measuring range:
0-360° or 8 directions
Accuracy:
Operating temperature:
-20℃~+60℃,0%RH~80%RH
Output signal:
4~20mA/0~5V/0~10V/RS485
Warranty:
2 Years
Certificate:
ISO9001 CE ROHS FCC
Material:
ABS

Packaging & Delivery

Selling Units:
Single item
Single package size:
20X20X18 cm
Single gross weight:
0.5 kg
Package Type:

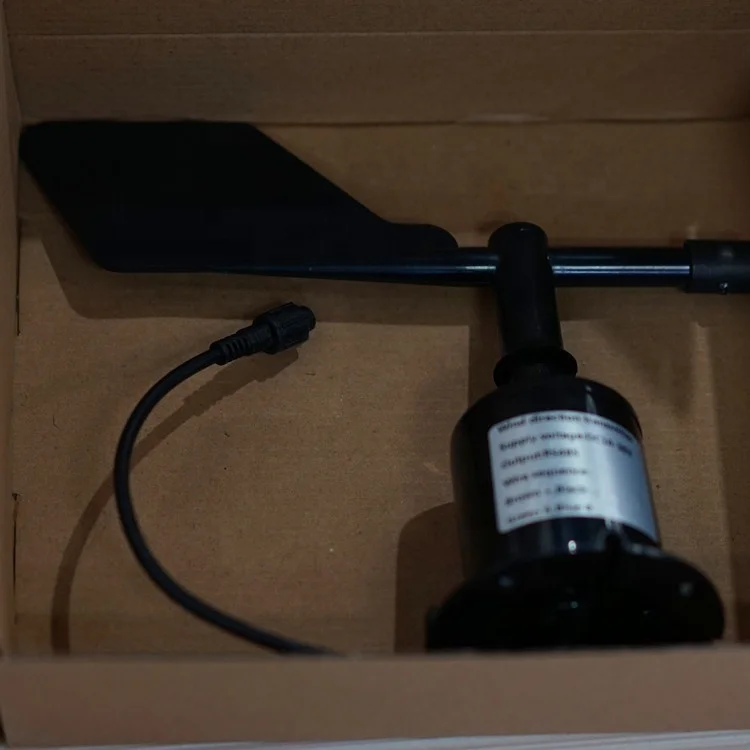

RS485 Wind Direction Sensor: Packaging products using EPE.
Picture Example:
package-img
Lead Time :
Quantity(Set) 1 - 100 >100
Est. Time(days) 7 To be negotiated
Video Description
RENKE OEM Precision Material RS485 Water Protection Wind Direction Sensor
Product Description
Moudle
Wind direction sensor
power supply
10 ~ 30V DC
Measuring range
8 indicate the direction
Working Temp
-20℃~+60℃, 0%RH~80%RH



Parameters
485 (modbus) protocol
Baud Rate: 2400, 4800 (default), 9600
Data bit length: 8
Parity: none
Stop bit length: 1
The default ModBus Address: 1
Support Function code: 03
response speed
≤ 0.5s
Output signal
RS485/Analog
RS-FX-N01 wind direction sensor, compact and lightweight, easy to carry and assembly, a new design concept can effectively obtain
information on wind direction, high-quality aluminum alloy housing, external spray plating process, has good anti-corrosion, anti-
Erosion and other characteristics, to ensure long-term use of the transmitter without rust phenomenon, colleagues with the internal smooth bearing system to ensure the accuracy of information collection.

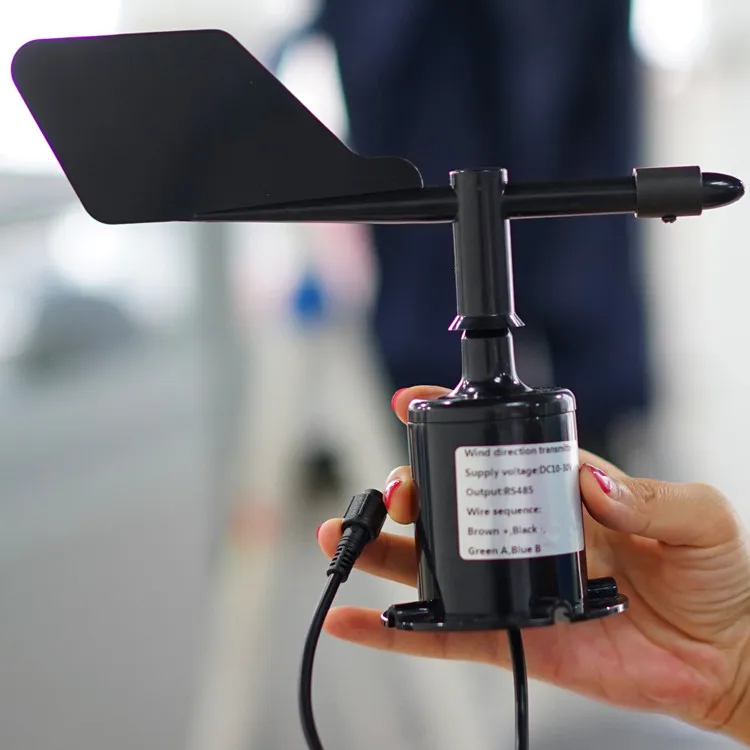

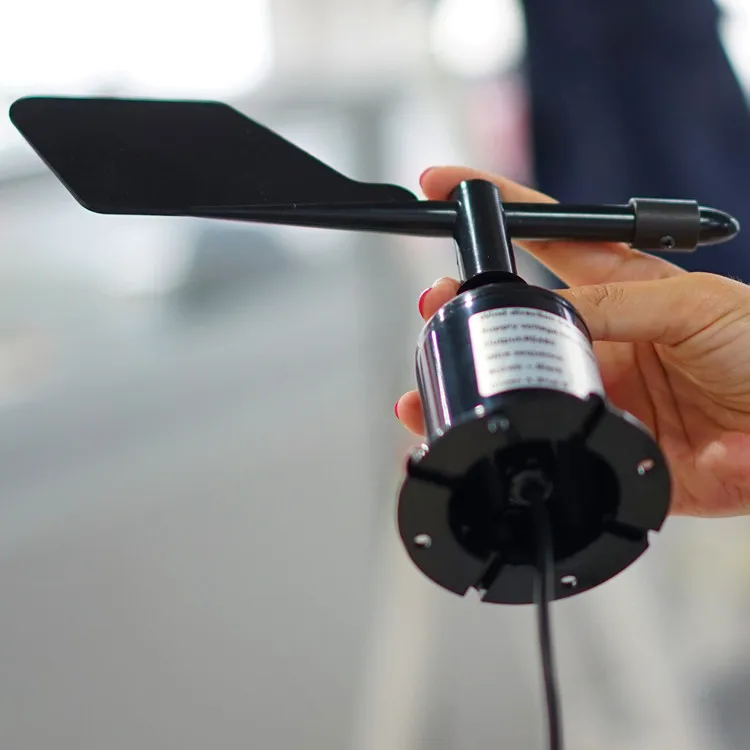

Detailed Images
1.Range: 8 indicating a direction
2.Anti - electromagnetic interference treatment
3.Using high-performance imported bearings, rotating resistance is small, accurate measurement
4.Waterproof case, mechanical strength, high hardness, corrosion resistance, long-term use in outdoor rust
5.Equipment structure and weight have been carefully designed and distributed, the inertia is small, responsive
6.Pulse,Analog or ModBus-RTU standard communication
Electrical Wiring
RS485 OUTPUT
Line  color
RS485 Description
brown
Positive power supply
black
Negative power supply
yellow
485 -A
blue
485 -B
Wide voltage power input 10 ~ 30 V can. Note that the signal line 485 when the terminal A \ B two lines can not be reversed, the address bus between multiple devices must not conflict.
4-20ma, 0-5V, 0-10V OUTPUT
Line color
Description

power supply
brown
Power is positive
black
Negative power supply


Output
Blue
Wind speed signal is positive
Green
Wind speed signal negative
NOTE:  Two types wire methods
             1.Four-wire connection diagram
             2.Three-wire connection diagram
Calculation Method

Wind Speed Sensor

1 Calculation current mode outputs the converted signal Range 0 ~ 30m / s, 4 ~ 20mA output when the output signal is 12mA, the current wind speed is calculated. Winds range span of 30m / s, to express 16mA current signal, 30m / s / 16mA = 1.875m / s / mA, i.e., the current wind speed variations 1mA 1.875m / s. So the measured values can be measured Calcd 12mA-4mA = 8mA.8mA * 1.875m / s / mA = 15m / s, the current wind speed = 15m / s.
2 voltage-converts the output signal calculation Range 0 ~ 30m / s, 0-10V output to an example, when the output signal of 5V, the current wind speed is calculated. Winds range span of 30m / s, with a 10V voltage signal expression, 30m / s / 10V = 3m / s / V, i.e., the voltagecorresponding to the wind speed change by 1V 3m / s. Measurement 5V-0V = 5V. 5V * 3 / m / s / V = 15m / s. The current wind speed is 15m / s.
Related Products
Company Introduction
Shangdong Renke Control Technology Co.,Ltd. is a leading environmental monitoring high technology enterprise in China. Renke is engaged in industrial sensor, communication gateway, industrial data platform, cloud computing service,and measurement control technology solution. We have won good reputation for high quality products and sincere service. Renke insists on the policy that"technology first, exquisite design, customer satisfied" we are careful with every detail. Every drawing has to be considered and revised repeatedly. Every products is the thought of designer.
Packing&Shipping
FAQ
Q: Are you manufacturer?
A: Yes, We are Tranmitter manufacturer and exporter in china over 10 years experience with CE, ROHS, FCC, ISO and 11patents.

Q: Do you offer the OEM service?
A: Yes, we can offer OEM service and design the shell and logo for you.

Q: Do you offer free samples?
A: Sorry , we do not offer free samples. After you bulk order, we will deduct the sample fee from second order.

Q: What payment ways do you accept?
A: You can pay us by T/T , PayPal , and West Union .

Q: What is your delivery time?
A: It is in 3-5 working days since the payment confirmed. If your order is over 3000pcs, we need 10 days.

Q: How is your quality assurance service?
A: 24 months quality guarantee.

Q: Could we make a visit to your factory?
A: Yes, you are welcomed .
