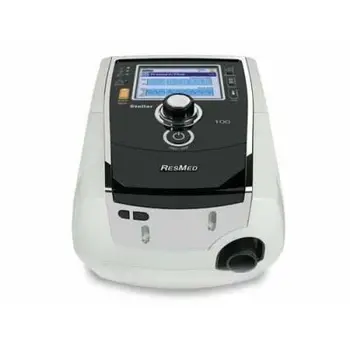

Designed for versatility, the Stellar 100 is a noninvasive ventilator with invasive capabilities. Offering a comprehensive range of therapy modes, Stellar treats a wide range of adult and paediatric patient types with changing respiratory needs. From those who need NIV during their hospital stay to chronic patients at home with conditions, such as COPD, NMD and OHS, Stellar is a versatile system designed with its end-users in mind.
| |
Stellar 100 |
| Modes |
ST (Spontaneous–Timed)
PAC (Pressure Assisted Control)
CPAP (Continuous Positive Airway Pressure)
S (Spontaneous)
T (Timed) |
| Pressure range |
IPAP: 2–40 cm H2O
EPAP: 2–25 cm H2O |
| TiControl™ |
Ti Max 0.3–4 sec
Ti Min 0.1–Ti Max |
| Respiratory Rate |
5–60 bpm |
| Rise Time |
Min, 150–900 msec (approx.) |
| Trigger and Cycle |
Five sensitivity settings |
| Adjustable alarms |
High Leak
Low Minute Ventilation
Low and High Pressure
Low and High Respiratory Rate
Apnoea
Low and High FiO2
Low SpO2
Non-vented mask |
| Standard fixed alarms |
Circuit disconnected
Over pressure
Blocked tube
Internal battery empty |
| Dimensions (LxWxH) |
230 x 170 x 120 mm |
| Weight |
2.1 kg |
| Air filter |
Electrostatic fibre mesh |
| Air outlet |
22 mm taper, compatible with ISO5356–1:2004 |
| Internal battery |
Lithium-ion, 2 hours at EPAP 5, IPAP 15, 20 bpm |
| Power supply |
AC 100–240V 50–60Hz,
2.2A AC 110V 400Hz,
2.2A DC 24V/3A |
| IEC 60601–1 Classification |
Class II (double insulation) Type BF Continuous operation |
| Data solutions |
ResScan
EasyCare Tx software and Tx Link |
