- Place of Origin:
-
Shaanxi, China
- Brand Name:
-
Fullstar
- Model Number:
-
TB3F/4F/5F
- Usage:
-
Double balance mixers
- Phase:
-
Other
- Coil Structure:
-
Customized
- Coil Number:
-
Customized
- Product Name:
-
RF Balun Transformer Flux Coupled Transformer
- SHIPPING WAY:
-
DHL FEDEX UPS EMS TNT
- Package:
-
Carton
- Type:
-
TB3F/4F/5F
- Quality:
-
100% Tested
- Condition:
-
Brand New and Original
- Certification:
-
RoHS
- Application:
-
Electronic Products
- PAYMENT TERMS:
-
T/T/Wire Transfer/Western Union/L/C
- Material:
-
Mn-Zn Ferrite Core, Copper Wire
- Supply Ability:
- 100000 Piece/Pieces per Day
- Packaging Details
- In carton
- Port
- Shanghai/Ningbo/Guangzhou
- Picture Example:
-

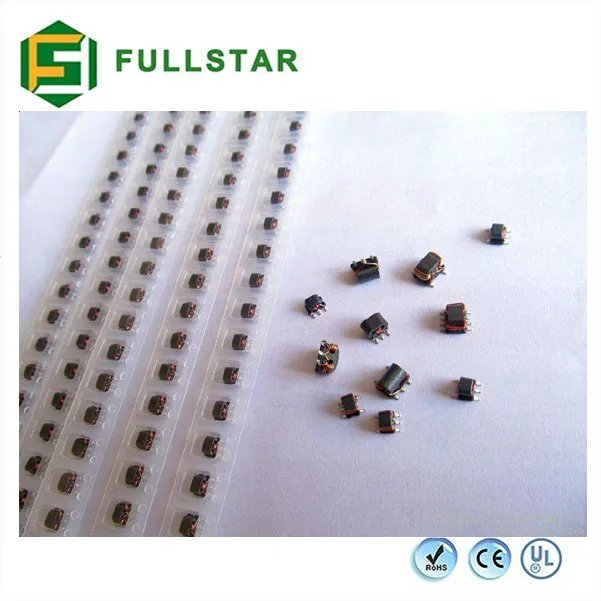

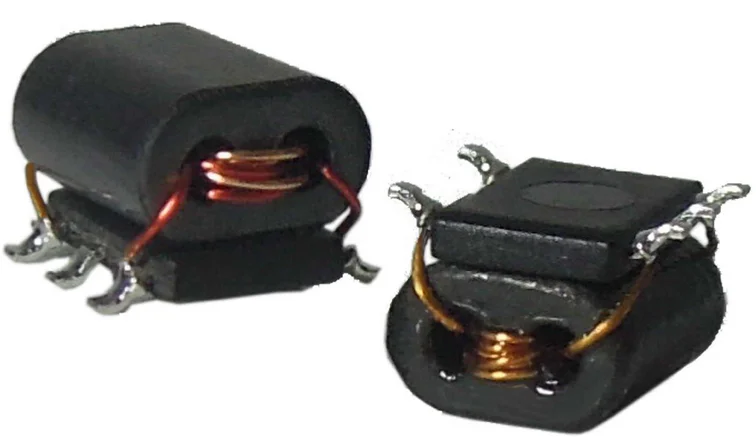

RF Balun Transformer Flux Coupled Transformer
Features:

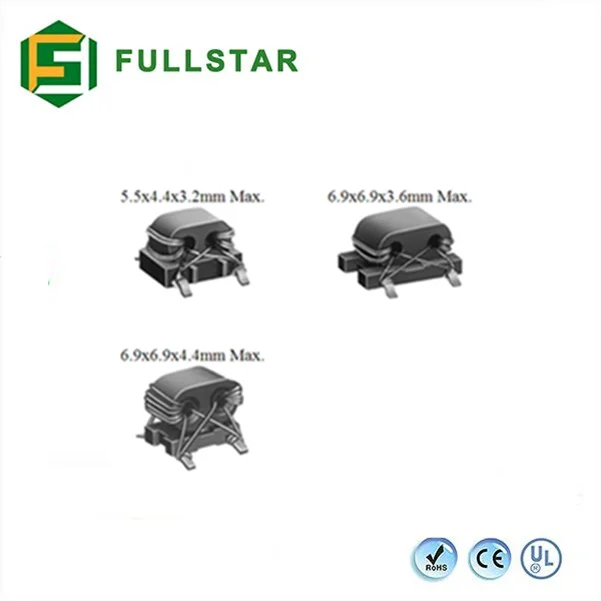

Available in various size, Base pin terminal treated, Low profile SMD balun coil
In surface mounting
Pair wire coil for high stability
Low profile
Common mode dual micro-array
Broadband transmission devices, Impedance transmission
CT Impedance available: 2:1 ,
Characteristic Impedance available: 50Ω
Frequency: 2 to 350MHz ,
RF Power: 2.0W
DC Current: 30mA
Insertion loss: 1.5dB MAX;
Input Return loss: 12.0dB Min
Operating temperature range: -40℃ to +85℃
Storage temperature range: -55 ℃ to +100 ℃
Customized specifications are accepted .
RoHS Certificate
Mterials:
Core: Ni-zn
Wire: QA Enameled copper
Base: customized
Terminal: Tin copper
Adhesive: Epoxy resin
Applications: Double balance mixers, broad band impedance transformers, directional couplers of mixers, matching power combining and splitting ,set-top -box and cable modem.
Common Mode Choke with Base

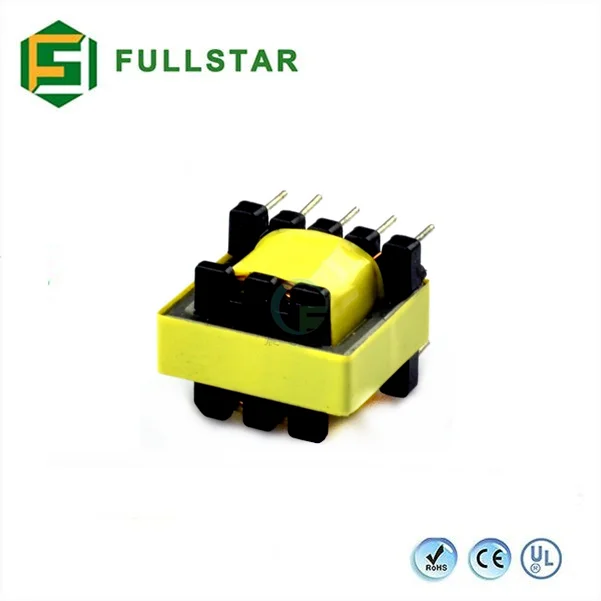

Frequency Transformer EE16

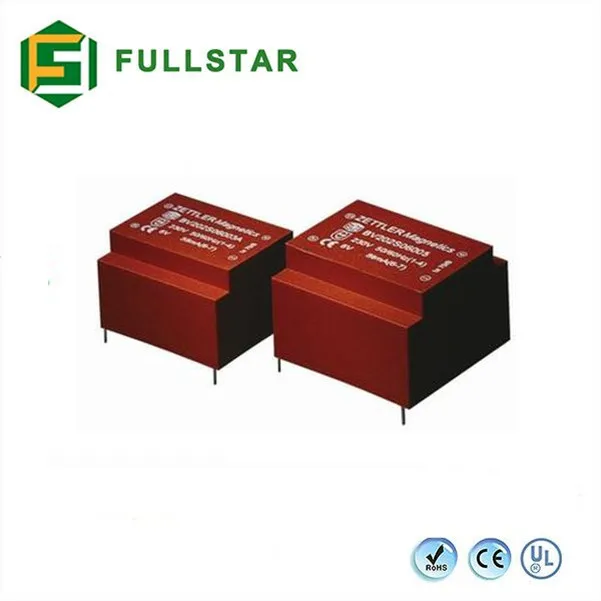

Encapsulated Transformer
Providing quality and standard customer-made electronic and passive components switching transformer and solution products, Fullstar Electronics is a leading switching transformer manufacturer and supplier in China. welcome to wholesale electronics flyback transformer, step-down transformer, high-frequency transformer, audio transformer, SMPS transformer from our factory.
Packing
In Tape and Reel
Delivery
Samples -- in 5 working days
Mass production -- in 4~6 weeks
