RS485 POS CABLE for IBM CASH DRAWER 0.8M, USB2.0 to RS422/RS485 Serial Converter Cable USB-RS485-WE compatible

  • 50-499 Pieces
    $9.98
  • 500-99999998 Pieces
    $8.49
  • >=99999999 Pieces
    $4.98
Cable Length:
1.8m Serial Converter RS-232/RS485
Color:
$
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
13 day(s) after payment received
Customization:
Customized logo (Min. Order: 2000 Pieces)
Customized packaging (Min. Order: 2000 Pieces)

More

Graphic customization (Min. Order: 2000 Pieces) Less
Samples: $15.00 /Piece, 1 Piece (Min. Order): Buy Samples
Contact Supplier
Samples - $15.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
ODM
Model Number:
USB-RS485-WE
Use:
MP3 / MP4 Player, Video Game Player, Camera, Mobile Phone, Computer, Multimedia, for android, Printer, Barcode Scanner, Scanner, CAR, IOS, Tablet, Power Bank, multifunction, Smart Watch, Earphone, rs485 signal cables & data cables
USB Type:
Standard
Type:
USB Cable
Function:
3A Fast Charging
Products Status:
Stock
Connectors:
USB 2.0 Connector, USB 3.0 Connector
Product name:
USB cable FTD-FT232R MAX 485 USB A/M connector assembled
Connector:
USB 2.0 Connector
Cable Length:
6 Foot / 1.8M
Feature:
RS485, RS422 to usb data cable
Keywords:
RS485 Cables for Network and Communication
Color:
Black
Package:
PE Bag
Usage:
Insulation Protection
Compatible:
IPhone 5/5S/5C/6/iPad Mini/air USB Cable
Style:
High Cost Performance

Packaging & Delivery

Selling Units:
Single item
Single package size:
12X10X11 cm
Single gross weight:
0.072 kg
Package Type:
1pcs/PE bag or customized RS-422/485 2x2x20/19 AWG SF/UTP GSW PVC RS485 Communication Cable
Lead Time :
Quantity(Pieces) 1 - 200 >200
Est. Time(days) 13 To be negotiated

RS485 communication cable,telecommunication cable for communication network/

FTDI USB RS485 Adapter Cable RS485 to USB Converter

Product Description

 FTDI USB RS485 CONVERTER CABLE, USB TO RS485 SERIAL WIRE END WIN8 WIN10 ANDROID

  • USB RS485 adapter
  • USB2.0. full speed 12M support
  • FT232 USB RS485 cable, signals compatible with USB-RS485-WE-1800-BT
  • With 2 LEDs for data+, data- transfering
  • Red-VCC(5v),Black-GND,White - Data+, Green - Data-
  • FT232RL + SP485LEEN chip
  • Support Android, Support Win 10, 8,8.1, Win 7, XP, 2000, Linux, Mac OS
  • Integrated 1024 byte EEPROM, support Vendor ID re-write,support Mprog3.5
  • Support FTDI VCP driver and D2XX driver
  • Half duplex, non-isolated
  • 300 ~ 1Mbps baud rate
  • Up to 5km distrance transfering
  • 1.8mtr in length.
  • ABS USB housing, openable for testing
  • 100% double test
  • PE zipper lock bag for each
ProcessorFTDI FT232RL
RS485 InterfaceIncluded screw terminal header / single wires
Fail-safe bias resistorsYes

USB To RS485 Serial Converter Cable

USB interfaceStandard Type A Male
Ports1-port available for RS485
SignalsRS485, 2-wire half duplex: D+, D-, GND
Baud rate300-921.600bps (up to 3kbps by using alising)
TX / RX buffer size256 Byte Transmit Buffer / 128 Byte Receive Buffer
Adjustable USB transfer sizes for TX and RXFrom 64 bytes to 4096 bytes
Adjustable latency timer1 to 255 msec
Adjustable read and write timeouts0 to 10000 msec
Flow ControlNone, Xon/Xoff, Hardware
COM port accessible byIncluded virtual COM port drivers or FTD2XX.DLL
Special featuresCompatible with Modbus RTU/ASCII, BACnet
Supports non-standard baud rates
Automatic Send Control
Electrostatic (ESD) protection600W surge protection, 15KV static electricity protection
Current drawStatic: less than 80mA. Dynamic average: less than 150mA
Interface complianceUSB1.1,2.0,3.0, EIA/TIA RS-232
Working temp-20°C to 60°C

ftdi usb rs485 cable, compatible usb rs485 we 1800 bt

half duplex, non isolated

Standard 10k pull up & down resistor, 120R terminal resistor

usb2.0 standard, full speed 12M support

On-board signals: Data+, Data-, VCC5V, GND

ft232rl chip for USB UART signals, and SP485LEEN for UART to RS485 signals shift

6 core, 26AWG, bare copper, PVC jacket, OD5.0mm

24AWG wire not suitable for RJ45/rj12 etc

  1.8mtr in length

Compatible with ftdi usb-rs485-we-bt signals

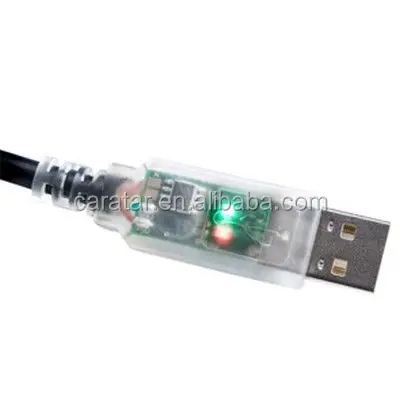

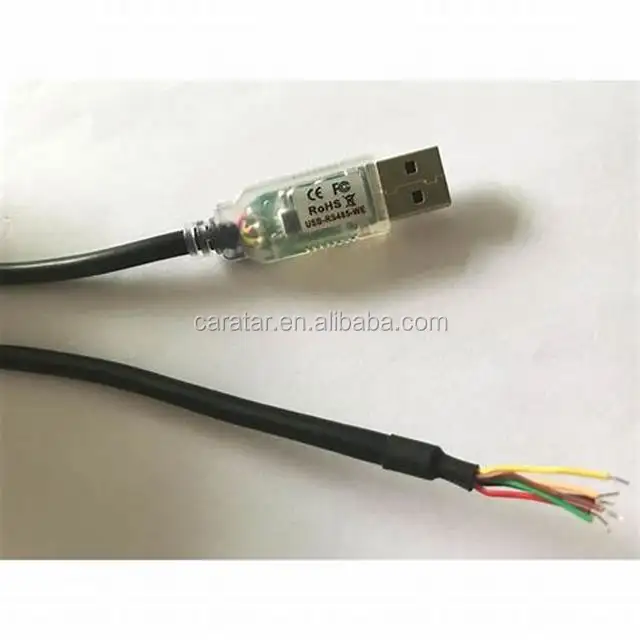

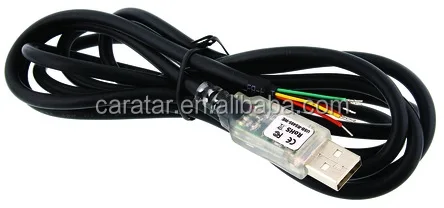

Detailed Images
USB RS485 Cable (38).jpgUSB RS485 Cable (39).jpgUSB RS485 Cable (3).jpgUSB RS485 Cable (5).jpg
Introduction
The USB 2.0 to RS485 Cable provides a simple and easy to connect between the USB and RS485 ports interface. Ideally for PC, thin client or servers to provide instant RS485 ports expansion via USB ports.

USB to RS485 industrial intelligent converter,no power supply needed,plug-and-play
USB485 is a kind of USB to RS485 industrial intelligent converter. It is the best solution for the communication between USB and RS485. Compared with RS232 to RS485 converter, USB to RS485 converter has many advantages.


Product Features
RS-485 interfaces supported.
 RS-485 interface DB PIN connector .
 Maximum RS-485 cable length: 1200m
 Transmission rate 300bps to 1Mbps.
 Maximum number of devides in the RS485
   network:Half Duplex to 32 devices
 Remote wake-up and power supply management supported.
 +/-15KV ESD Protect.
 Direct USB power without external power supply.
 Working environment: -40 deg.C to 85 deg.C, relative humidity 5% to 95%.

 Windows95/98/2000/XP and NT-IMAG supported.

USB RS485 Cable (13).jpgUSB RS485 Cable (22).jpgUSB RS485 Cable (26).jpg
