RUIAN Auto Non Woven Bag Machine NON WOVEN automatic bag making machine

FOB Reference Price:Get Latest Price
$14,500.00 - $22,000.00 / Set | 1 Set/Sets Non woven bag making machine (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Power(W):
15KW
Dimension(L*W*H):
9.6m*2m*2.1m
Weight:
2000KG
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
HUABO
Model Number:
HBL-C
Voltage:
220V
Automatic Grade:
Automatic
Certification:
CE/ISO, CE/ISO
Machine type:
non woven automatic bag making machine
Bag process:
ultrasonic sealing
PLC:
From Taiwan
Automatic:
Full Automatic
Material:
nonwoven fabric
Multifunction:
making all kinds of bags
Speed:
120pcs/min
Quality:
High quality
Operation:
Computer control
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
ONE YEAR
Supply Ability
Supply Ability:
30 Set/Sets per Month
Packaging & Delivery
Packaging Details
in stretch film or wooden case(as per customer's reuqiement)
Port
Ningbo Port ,China
Lead Time :
15 days after deposit

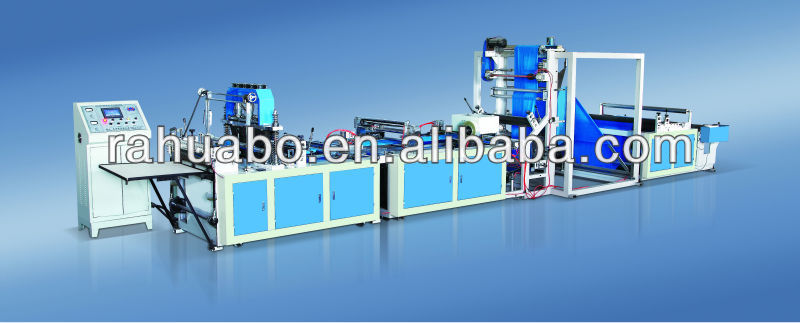

Name: RUIAN Auto Non Woven Bag Machine NON WOVEN automatic bag making machine







HBL-C 600/700/800

Fully automatic non woven box bag making machine







This newest nonwoven bag making machine is improved.



Advantages:



1. The speed is 120pcs/min, faster than old type machine.



2. The machine is higher reliability, reduced a lot of time for installing.



3. Machine was shortened by 1 m to save space.



4. The appearance of machine is become more artistic.





Product introduction:




This machine is suitable for non woven fabric material, can fully automatic make non woven bag products with different bag type and size, as box bag, flat bag, shopping bag, gift bag, clothes bag, handle loop bag, vest bag, shoes bag, drawstring bag and so on.








Features:




1. This machine adopts Taiwan touch screen computer display, PLC computer program which can be edited.
2. Auto meter counting &stopping, could freely setting number.
3. Computer Fixed-length, printing color mark track orientation, Auto-stop when complete.
4. High voltage static processor, Auto constant temperature heating controller.
5. This machine has the function of automatic punching.



6. Unwinding magnetic powder tension control with manual, Auto side-correction control.
7. This machine adopt ultrasonic welding of all aspects, bag mouth folding welding, side sealing, once full completed, fast speed, easy to operate, firm sealing, beautiful and decent.








This machine is suitable for non-woven fabric material. It can make following bags:




1. Flat Bag (D-cut Bag)
2. T-shirt Bag, Vest Bag (U-cut, W-cut)







3. Handle loop bag
4. Flat Bag with Bottom Folding (stand up bag)



5. Box Bag














Main Technical Parameter







Type

HBL-C600

HBL-C700

HBL-C800

Production Speed

20-120pcs/min

20-120pcs/min

20-120pcs/min

Bag Width

100-800mm

100-800mm

100-800mm

Bag Length

200-480mm

200-580mm

200-680mm

Bag-Making Thickness

20-120g

20-120g

20-120g

Power Supply

380V/220V

380V/220V

380V/220V

Total Power

12-18KW

12-18KW

12-18KW

Overall Dimension (L*W*H)

9.6m*2m*2.1m

9.6m*2m*2.1m



9.6m*2.2m*2.3m

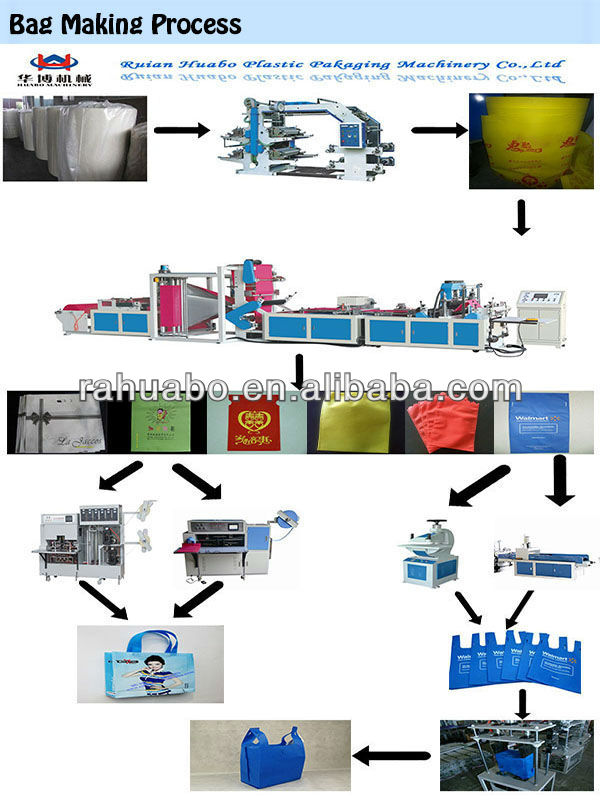

The production process:







Roll feed--Flap—Locate—Punch—Heat sealing—Fold—Heat sealing—Cutting off—Collect the finished products.







bag making process1.jpg











Main Parts of Machine:







.jpg







Workshop














Delivery







.jpg











The Certificates



















Our Company Culture







 600











The Payment Term













                             RUIAN Auto Non Woven Bag Machine NON WOVEN automatic bag making machine
