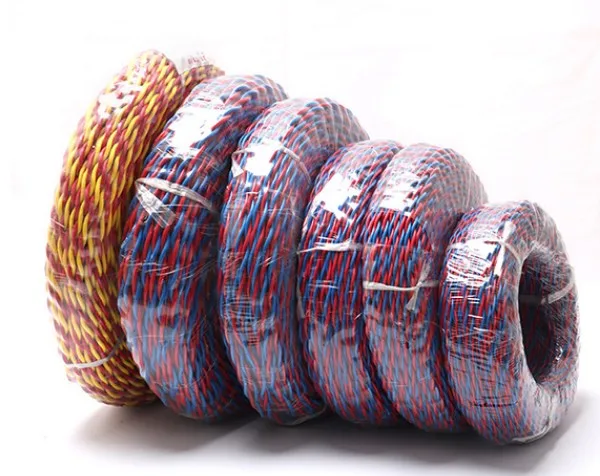

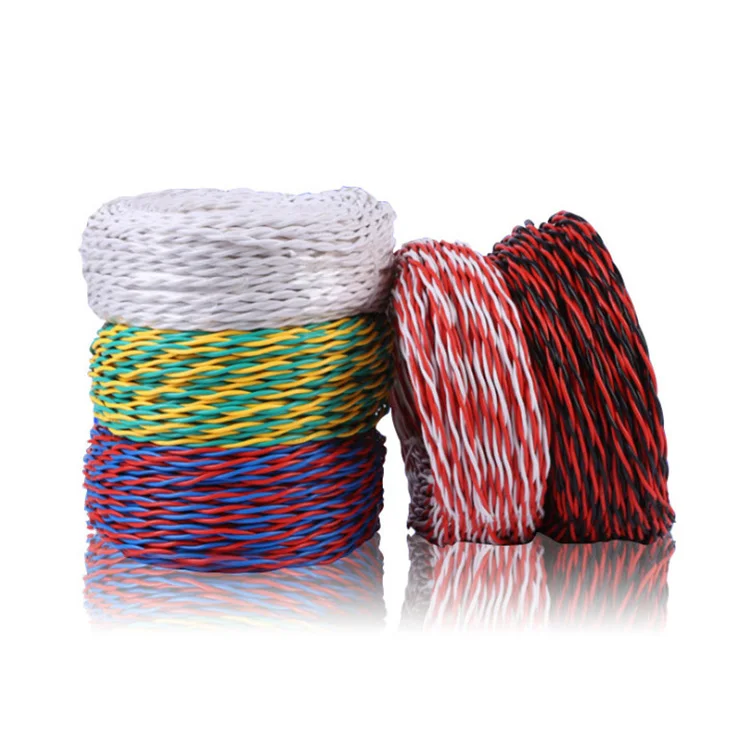

RVS PVC Insulated Flexible Twin Twisted Electric Power Cable Wire

FOB Reference Price:Get Latest Price
$0.10 - $2.50 / Meter | 100 Meter/Meters (Min. Order)
Lead Time:
Quantity(Meters) 1 - 1000 >1000
Est. Time(days) 14 Negotiable
Customization:
Customized packaging (Min. Order: 100 Meters)
Customized logo (Min. Order: 100 Meters)

More

Graphic customization (Min. Order: 100 Meters) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China
Brand Name:
JUPAI
Model Number:
RVS
Type:
Insulated
Application:
Underground
Conductor Material:
Copper
Conductor Type:
Stranded
Insulation Material:
PVC
Product name:
RVS Cable
Material:
PVC Copper
Conductor:
Copper Core
Color:
Yellow-green
Certification:
ISO9001
Rated Temperature:
15 ~+70
Rated Voltage:
300/500V 450/750V
Insulation:
PVC Insulation Cable
RVS size:
2x0.75/1/1.5/2.5/4mm2
Supply Ability
Supply Ability:
5000000 Meter/Meters per Month
Packaging & Delivery
Packaging Details
Package in plastic reel, paper reel, wooden drum or package in 100meter/roll or customized seaworthy packing.
Port
Tianjin,Qingdao
Picture Example:
package-img
Lead Time :
Quantity(Meters) 1 - 1000 >1000
Est. Time(days) 14 To be negotiated

RVS PVC Insulated Flexible Twin Twisted Electric Power Cable Wire

  RVS (29) RVS (20)

Product Features:

1.Long-term working temperature is allowed to not exceed 70ºC

2.The temperature of cable laying cannot be lower than 0ºC.

3. The conductor is stranded with multiple strands of oxygen-free copper wire, and the material is soft.

4.Insulation material is high quality PVC, with excellent electrical insulation properties

5.Packing length: 100m/roll, 200m/roll or as customers' requires.

Product structure
Conductor + insulation.The main conductor material is mostly non-oxygen copper, composed of copper wire, insulation is PVC.
Standard
JB/T8734-2012 GB/T5023-2008
Voltage
300/500V 450/750V
Regular size
2*0.75mm2/ 2*1.0mm2/ 2*1.5mm2/ 2*2.5mm2
Certification
ISO9001, CE, ROHS, REACH, CCC
Packaging
The cables will be packaged in paper/wooden reels /containers or pallet according to customer's requirement.
Delivery Port
Tianjin ,Shanghai

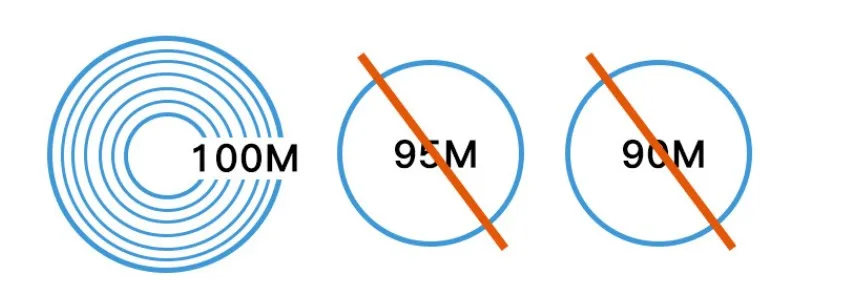

Good Quality can be seen,we use oxygen-free copper wire,high strength plastic layer,and full meters scale.

0.JPG 1.JPG

full meter.JPG

RVS cable twisted pair wire Application:

1. Can connect with Self regulating heating cable (sold in our store, we offer service of connecting cold wire with heating cables).

2. Suitable for Household lighting, Electrical equipment & Instrument extension cable, Broadcast audio connection control wire, Fire protection wire and so on…DIY extension electrical wire.

rvs app.JPG

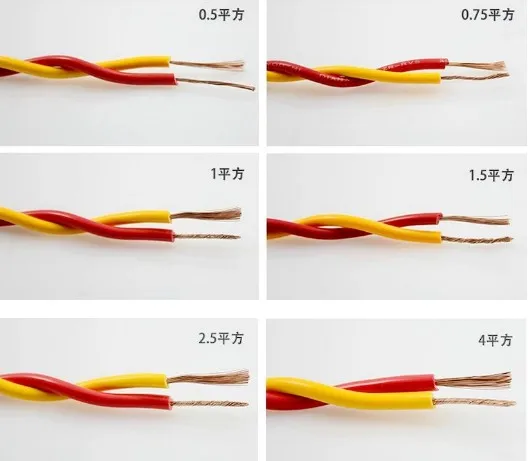

Various specifications of RVS 2x0.75mm2,RVS 2x1.5mm2,RVS 2x2.5mm2 etc are available.


electric wire Flexible RVS cable twisted pair cable packed with thick plastic wrap,to avoide any damage in shipment,so we get many good comments from our customers which purchased from us third time.


good comments.png

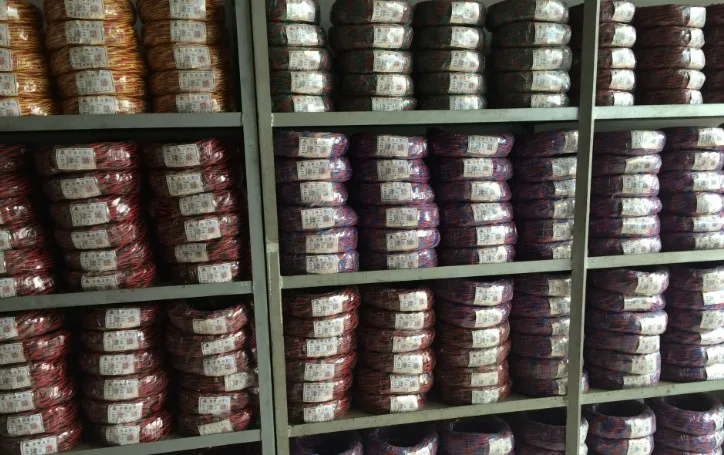

We have many electric wire Flexible RVS cable twisted pair in stock,if you want to get samples,we will ship it out in short time.

RVS SOTCK.JPG
