Raspberry pi 3 model b HDMI to MIPI connection 3.4 inch 800*800 Round lcd display

Feedback Ratings
  • 1-499 Pieces
    $48.00
  • 500-4999 Pieces
    $47.00
  • >=5000 Pieces
    $38.00
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
3 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
3.4 inch TFT Round lcd display
Model Number:
Round lcd display
Type:
LCM
Product Name:
Round lcd display
Size:
3.4 inch
Resolution:
800*800
Active Area:
87.6*87.6
Panel Size:
33.5(W)x37.0(H)x 1.2(T)
Module Size:
99.0 x 96.6 x 3.98
Dot Pitch:
109.5*109.5
Driver IC:
ILI9881C
Interface:
MIPI 3 lane
Viewing Direction:
FREE

Packaging & Delivery

Selling Units:
Single item
Single package size:
37X35X30 cm
Single gross weight:
4.0 kg
Lead Time :
Quantity(Piece) 1 - 100 >100
Est. Time(days) 3 To be negotiated
Video Description
Product Description

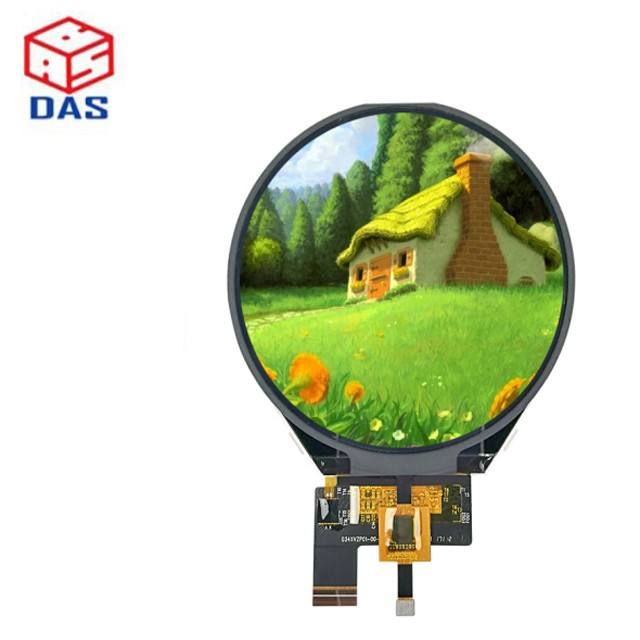

Raspberry pi 3 model b HDMI to MIPI connection 3.4 inch 800*800 Round lcd display


ITEM
SPECIFICATION
UNIT
Dot Matrix
800(RGB) x 800
Technology Type
a-Si
mm
Pixel Configuration
R.G.B. Vertical Stripe
mm
Pixel pitch(um)
109.5*109.5
%
Display Mode
SFT
mm
Surface Treatment
HC
mm
Viewing Direction
FREE
mm
Diagonal A/A Size
3.4
inch
Module (W x H x D) (mm) with CTP
99.0 x 96.6 x 3.98
Active Area(mm)
87.6*87.6
With /Without TSP
With CTP
Matching Connection Type
FPC
Wide range of operating temperature
-40℃ to 70℃
LED Numbers
8 LEDs
CTP Surface hardness
≥7H
Weight (g)
TBD
Interface
MIPI 3 lane
Color Depth
16.7M
LCD Driver IC
ILI9881C
CTP Driver IC
HX8526-E30
CTP Interface
IIC
Related Products

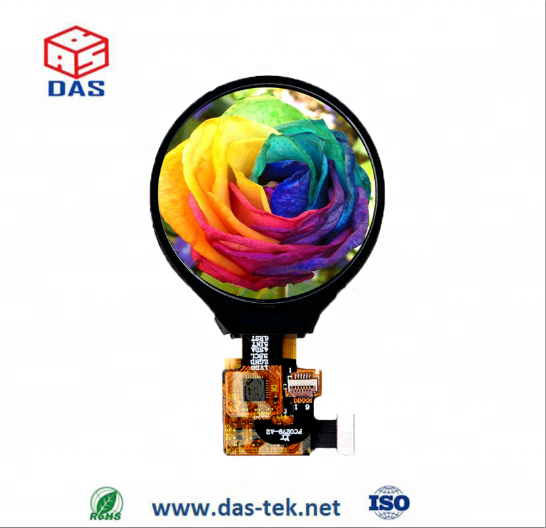

2.1 inch 320*320 round lcd display with touch panel

1.4 inch 400*400  Round AMOLED display


1.3 inch 128*128 Round OLED display

Our Company

Raspberry pi 3 model b HDMI to MIPI connection 3.4 inch 800*800 Round lcd display


DAS INDUSTRY LMITED was founded in Shanghai in 2005 by a group of experienced engineer who inspired to create a new range of innovative and high quality LCD module. With 9years experience, base on factory, positively develop new market, always keep good quality, best service and fast response, we believe in coming true to be the leader of LCD manufacturer !

DAS main products are 1.5inch to 10.4inch color TFT , to meet different customer’s request , we always keep developing new product . Our products cover a lot of fields , such as medical ,industrial , communication ,supermarket etc . From 2010 ,we developed transflective TFT and serial interface TFT , won some new customers in geological survey field ,smart furniture, elevator and so on. Most of our oversea customers are from America, Mexico, Austrulia ,Italy , Russia, Korea, Israel etc.

Hot offer! Transflective TFT display , used in outdoor ,acquire customers highly acclaimed .Welcome to visit us!

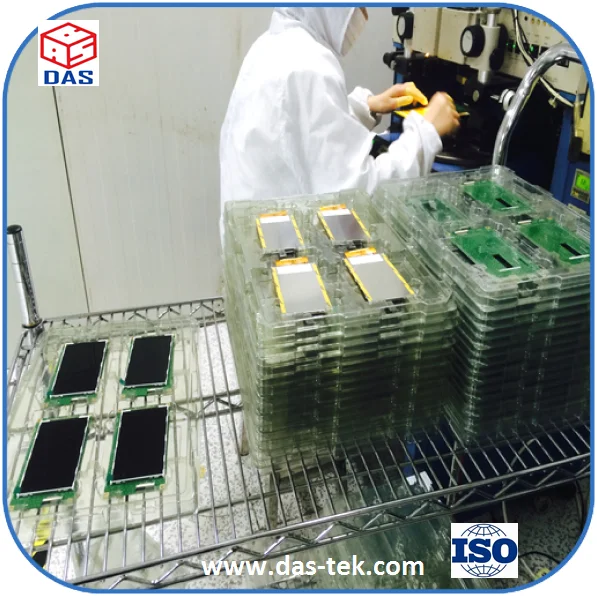

Our Factory

Product: Small&middle size TFT LCD(1.44’~10.1’),
used in mobile phone, automative, industrial
control, POS machine, etc.

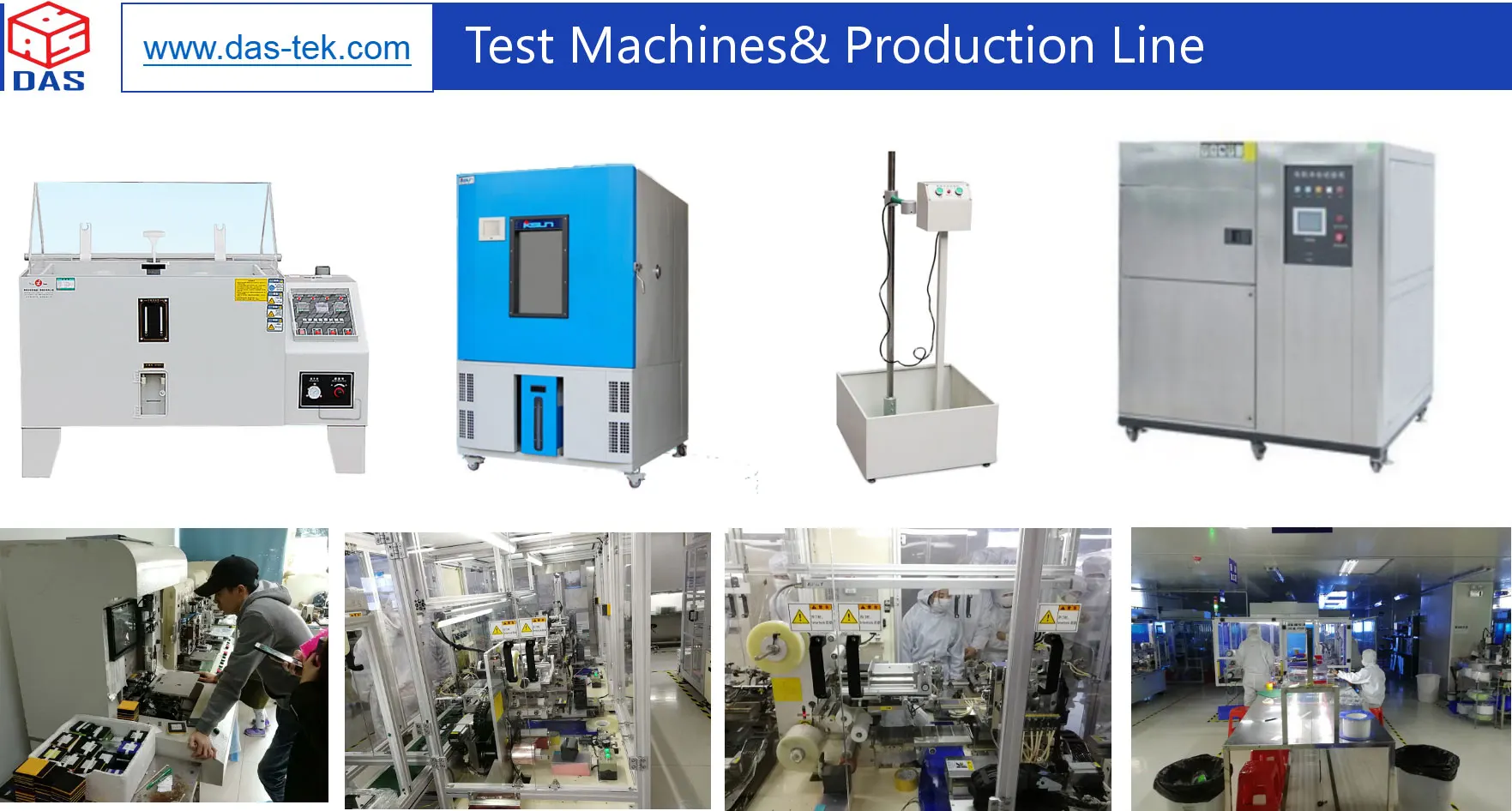

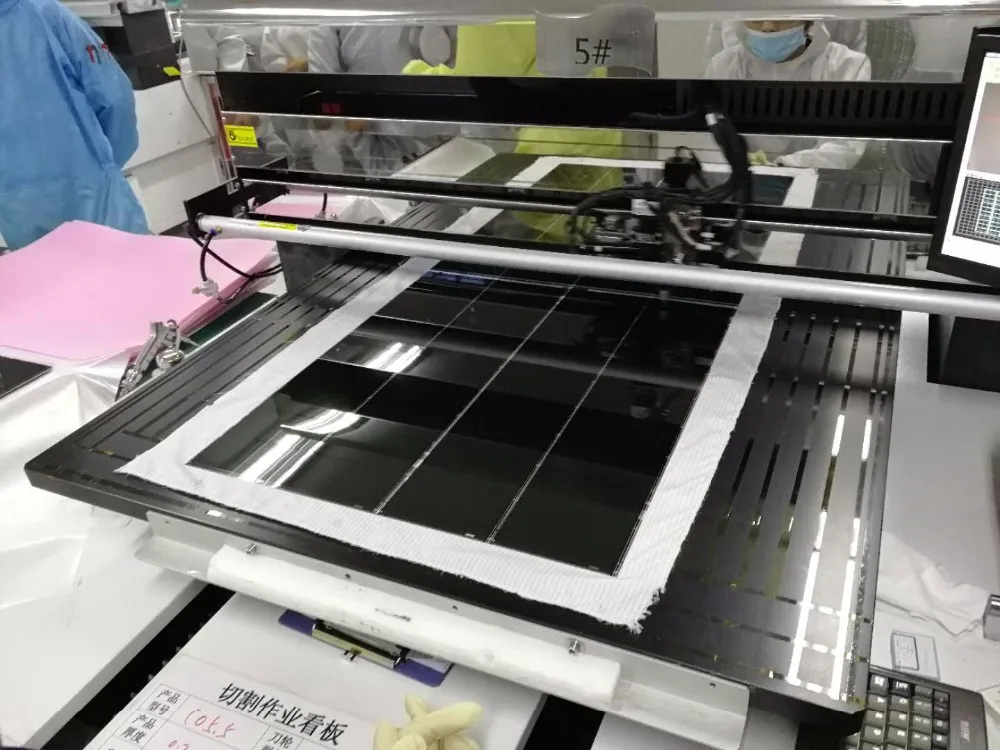

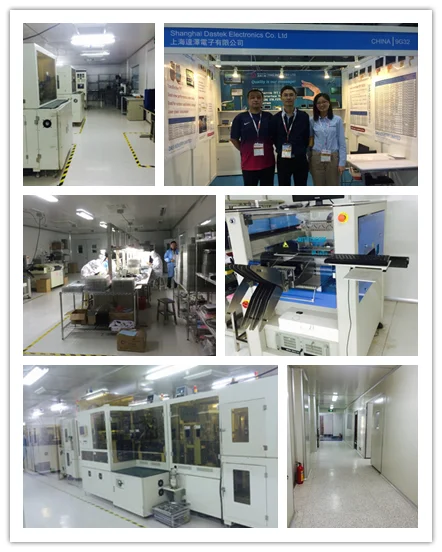

Our Factory

Brief: Factory is about 10000 ㎡, Office is about 2000 ㎡, 1000 employees.
Capacity: Small size 3KK/Month, Middle size 900K/Month.

Certifications
Packing & Delivery

Packing

Raspberry pi 3 model b HDMI to MIPI connection 3.4 inch 800*800 Round lcd display

Quality
Each item must be tested OK before shipping
MOQ
1 pcs
Discount
More quantity, larger discount
Payment
T/T, Western Union, MoneyGram, Escrow etc
Package
Anti-static bag, Bubble bag, Carton box
Delivery Time
In 1-3 working days after payment confirmed
Shipping
DHL, EMS, Fedex, UPS, TNT, HK Post Air Mail etc
Warranty
90 days warranty
FAQ

Raspberry pi 3 model b HDMI to MIPI connection 3.4 inch 800*800 Round lcd display


Contact us :
DAS INDUSTRY LIMITED
Room 301,Building South, No. 2995, Liyue Road, Minhang District, Shanghai 201114, PRC.
Tel:86-21-51082662
Fax:86-21-51083662
WhatsApp:+86 156 1867 2310


Q1:Where to get the datasheet before orafter purchase?
please send mail to"rita@ das-tek.com",we will reply you in 24hours.

Q2:How do you add the extra function,does it need for charge?
Just confirm the function with seller before your place an order,simple function is free.

Q3:Payment terms of customized service and mass order?
Customized Service:
According to product requirement of charge,100% T/T in advance. we will provide 2~3pcs free sample.
Mass Order:
30% T/T as deposit in advance, the balance will be paid before shipping.
