Reliable PID Control Programmable Quality High Temperature kiln for ceramic tiles

FOB Reference Price:Get Latest Price
$500.00 - $3,000.00 / Sets | 1 Set/Sets kiln for ceramic tiles (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Classification:
Laboratory Heating Equipments
Brand Name:
Brother - kiln for ceramic tiles
Model Number:
BR-M
Place of Origin:
Henan, China (Mainland)
Product type:
kiln for ceramic tiles
Chamber size:
can be customised
Max temperature:
1200-1800C
Working temperature:
1000-1700C
Temperature control:
51 Segments Programmable PID auto control
Heating element:
High quality heating elements
Power:
1-18kw
Voltage:
110V or 220V or 380V
Thermocouple:
K S B type
Heating rate:
Max 20C/min
Supply Ability
Supply Ability:
2000 Set/Sets per Year kiln for ceramic tiles
Packaging & Delivery
Packaging Details
Plastic and foam inside, wooden box out side , strong packing to ensure shipment safety of kiln for ceramic tiles.
Port
Qingdao / Shanghai
Lead Time :
30 days

Reliable PID Control Programmable Quality High Temperature kiln for ceramic tiles



What is the Details of our kiln for ceramic tiles ?

Chamber size

200x200x200mm (Width * Height * Depth) (8 Liter)

Max. temperature

1200 C (<2hour)

1400 C (<2hour)

1700 C (<2hour)

Working temperature

1100 C

1300 C

1600 C

Temperature controlling

PID automatic control via SCR (Silicon Controlled Rectifier) power control with phase angle fired, current limiting resistor.

51 programmable segments for precise control of heating rate, cooling rate and dwell time.

Built in PID Auto-Tune function with overheating & broken thermocouple broken protection.

Over temperature protection and alarm allows for operation without attendant.

Temperature accuracy

±1C

Temperature Uniformity

±5C over 120mm

±3C over 80mm

Heating rate

0-15C /min

Thermocouple

K type

 S type

 B type

Heating element

Heating wire

SiC heating element

MoSi2 Heating element

Furnace Chamber

2 layers of ceramic fiber insulation

3 layers of ceramic fiber insulation

3 layers of ceramic fiber insulation

1st: 1430°C ceramic fiber board

1st: 1700°C ceramic fiber board

1st : 1800°C ceramic fiber board

2nd: 1260°C ceramic fiber board

2nd:1430°C ceramic fiber board

2nd: 1600°C ceramic fiber board



3rd: 1260°C ceramic fiber board

3rd: 1260°C ceramic fiber board

Furnace structure

Double layer steel casing with dual cooling fan, surface temperature below 60C

Furnace door

Front-side open

Power cutting off when furnace door open

Working voltage

110V or 220V or 380V, 50HZ or 60HZ

Rated power

7KW

Stander chamber size (mm)

100x100x100      120x120x130      150x150x150      150x150x200

200x200x200      200x200x300     250x250x300      300x300x300

300x300x400      350x350x500     400x400x400      450x450x450

500x500x500      600x600x600     800x800x800      900x900x900



Note: the chamber size can be customized

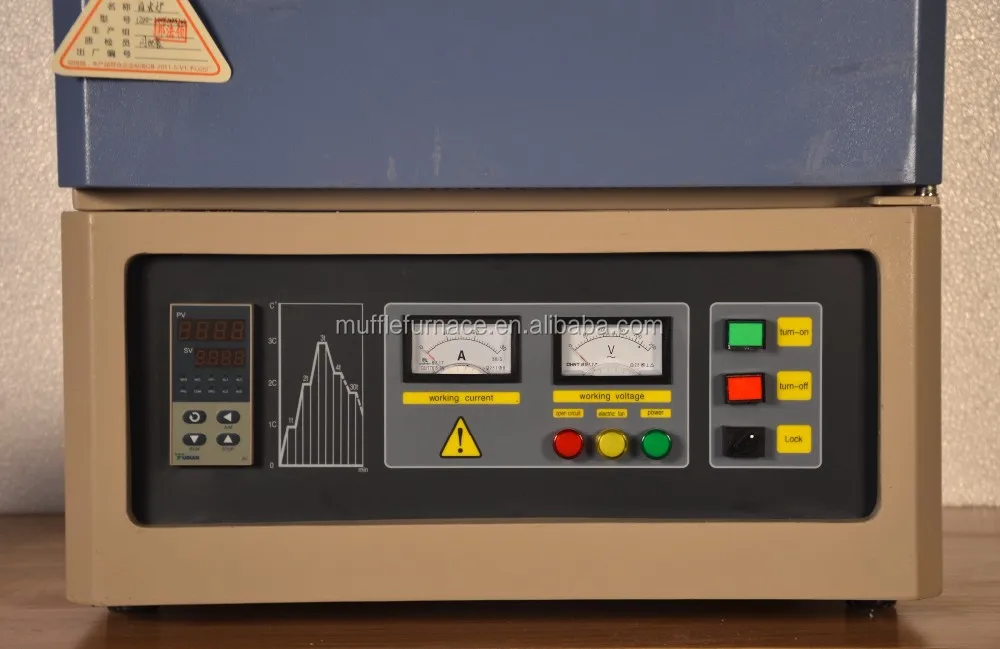

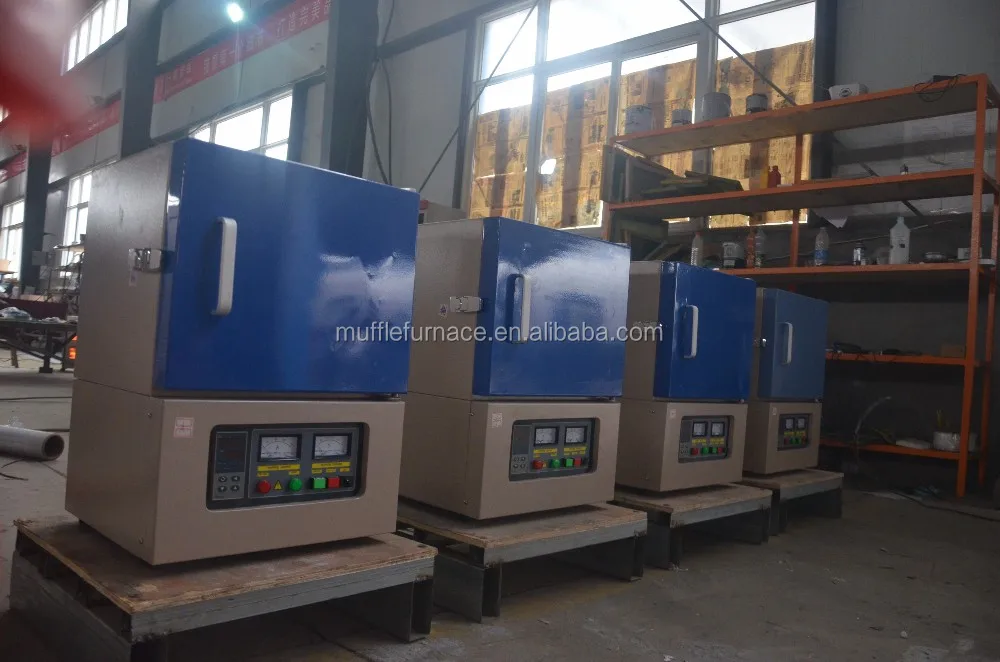

Product Picture

Product Pictures of our kiln for ceramic tiles


Product Features

PRODUCT FEATURES of our kiln for ceramic tiles

  • Excellent temperature uniformity.
  • 30 Segment Easy Use PID Programmable Temperature Controller, allow to control heating rates, dwells ( time holds) and cooling rates.
  • One Year Limited Warranty on All Electronic Parts.
  • Quality heating elements ensure the longest heating element life, best heat radiation properties and minimum distortion of heating elements at high temperature.
  • All models use Ceramic fiber board lining to ensure energy efficiency.
  • Safety feature includes a safety interlock system to shut off power when furnace door open.

Why Choose us?

Why Choose Us

Related Items


RELATED ITEMS (Click below picture to see more)

INSPECTION of Our kiln for ceramic tiles

PACKING AND SHIPPING of Our kiln for ceramic tiles

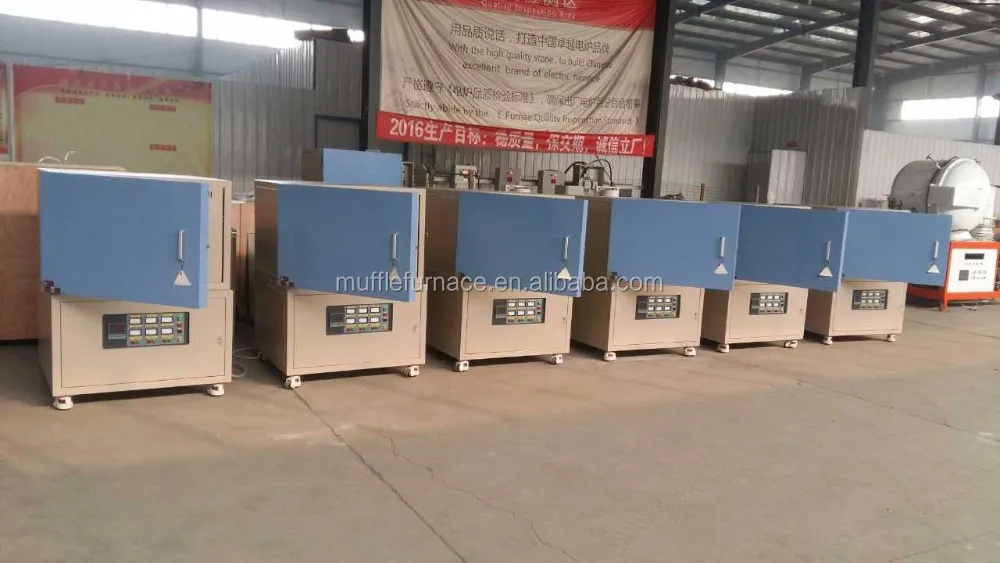

Factory Show

FACTORY SHOW





FAQ

FAQ


  • QWhat is the MOQ ?
  • A1 set for our standard furnace
  • QCan I ask for special designs?
  • ASure! And it's Free!
  • QCan I get a lower price if I order large quantities?
  • AYes, cheaper prices with more bigger size orders.
  • QCan I send the sample to you to test the furnace before I buy it ?
  • AYes, and the testing is Free!

  • QWhen you ship my order?
  • ANormally 30 days after receiving your payment or based on order qty and production schedule.
  • QHow about the quality guarantee period?
  • AOne year!
  • QHow can you guarantee the production quality ?
  • AWe have more than 10years experience in this field. We have strictly quality control system in our production process. We have 4 times inspection for each finished product before package.
