Rising Clamp PCB Screw Terminal Block (WJEK350A/381A-3.5/3.81mm)

FOB Reference Price:Get Latest Price
$0.01 - $1.00 / Pieces | 1000 Piece/Pieces Rising Clamp PCB Screw Terminal Block (WJEK350A/381A-3.5/3.81mm) (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
WANJIE
Model Number:
WJEK350A/381A
Number of Contacts:
2-24
Conductor Size:
30-16AWG
Type:
PCB
Pitch:
3.5mm, 3.81mm
Standard Color:
Green
Poles:
2P-24P
Name:
Rising Clamp PCB Screw Terminal Block (WJEK350A/381A-3.5/3.81mm)
Supply Ability
Supply Ability:
1000000 Piece/Pieces per Month Rising Clamp PCB Screw Terminal Block (WJEK350A/381A-3.5/3.81mm)
Packaging & Delivery
Packaging Details
Standard Export Package
Rising Clamp PCB Screw Terminal Block (WJEK350A/381A-3.5/3.81mm)
Port
NINGBO / SHANGHAI
Lead Time :
Shipped in 7 days after payment
Product Description

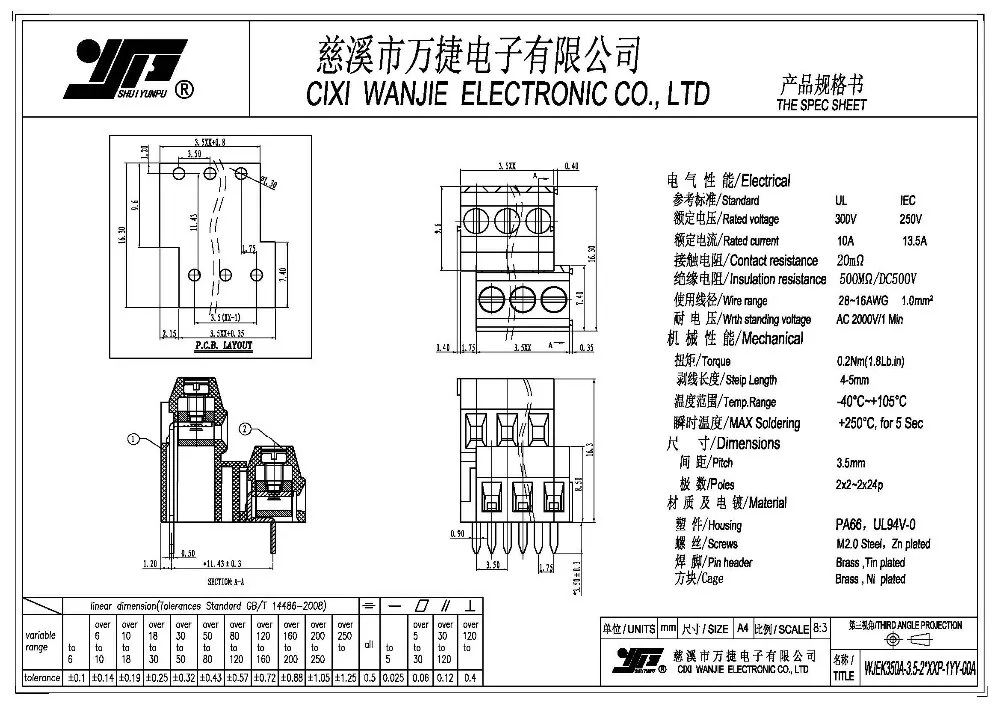

Rising Clamp PCB Screw Terminal Block (WJEK350A/381A-3.5/3.81mm)

Model:
WJEK350A/381A
Material
Screws:
M2.0 Steel Zn plated
Cage:
Brass, Ni plated
Pin header:
Brass, Sn plated
Housing:
PA66, UL94V-0
Electrical
Standard:
UL
IEC
Rated voltage:
300V
250V
Rated current:
10A
13.5A
Wire range:
30-16AWG
1.0mm²
Contact resistance:
20mΩ
Insulation resistance:
500mΩ /DC500V
Withstanding voltage:
AC 2000V/1 min
Mechanical
Temp. Range:
-40º C ~ +105º C
Max soldering:
+250º C, for 5 sec.
Torque:
2.04kgf-cm/0.2Nm/1.77Lbin
Strip length:
5-6mm

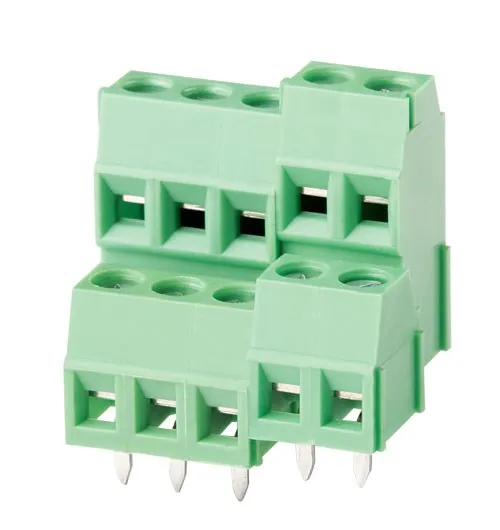

Detailed Images
Packing & Delivery

This is our outer carton, normally two type:

1. 27.5*22.5*33.5mm

2. 44*27.5*23.5mm

Why choose us

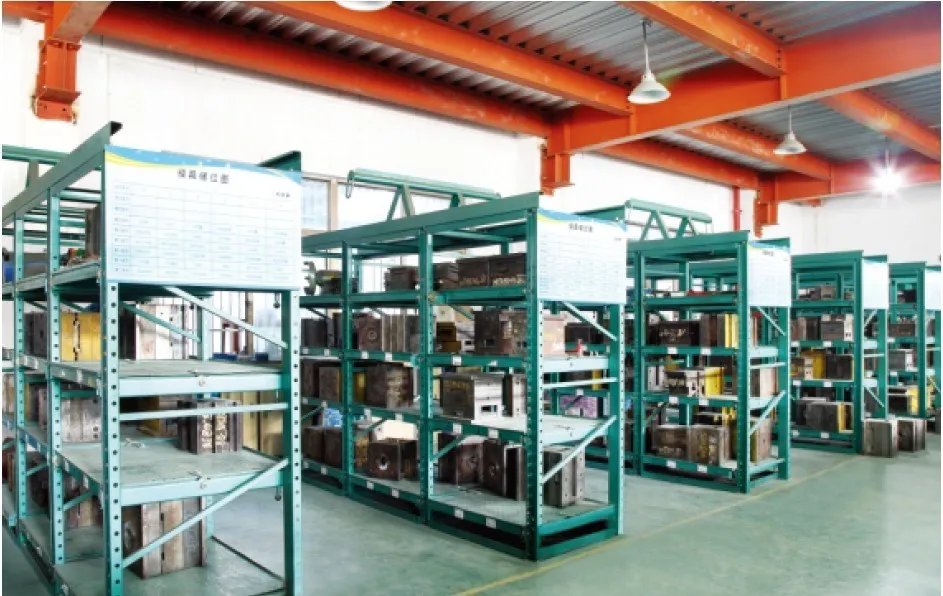

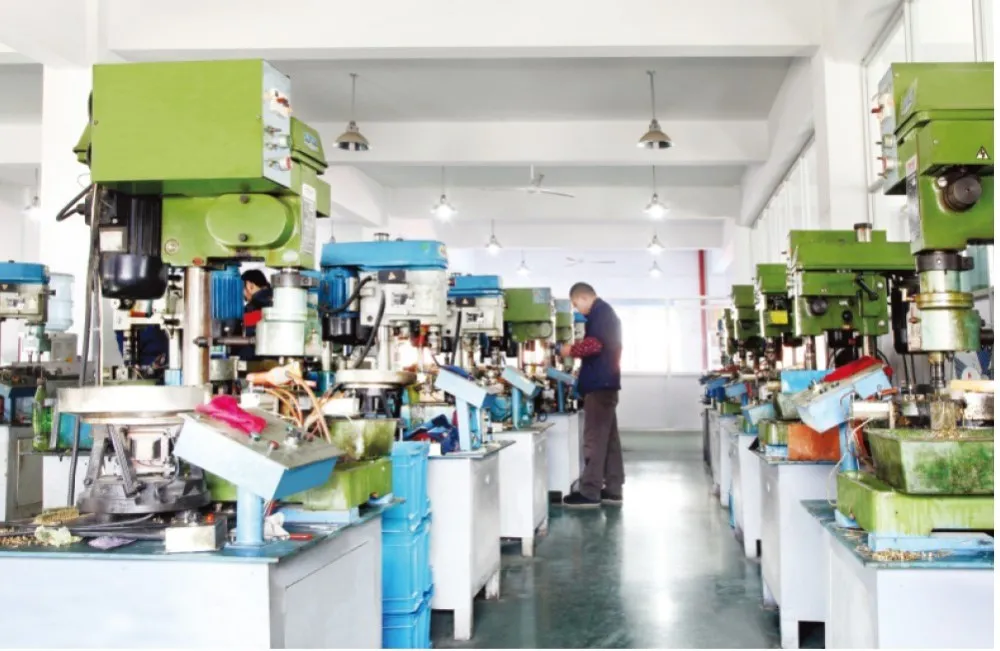

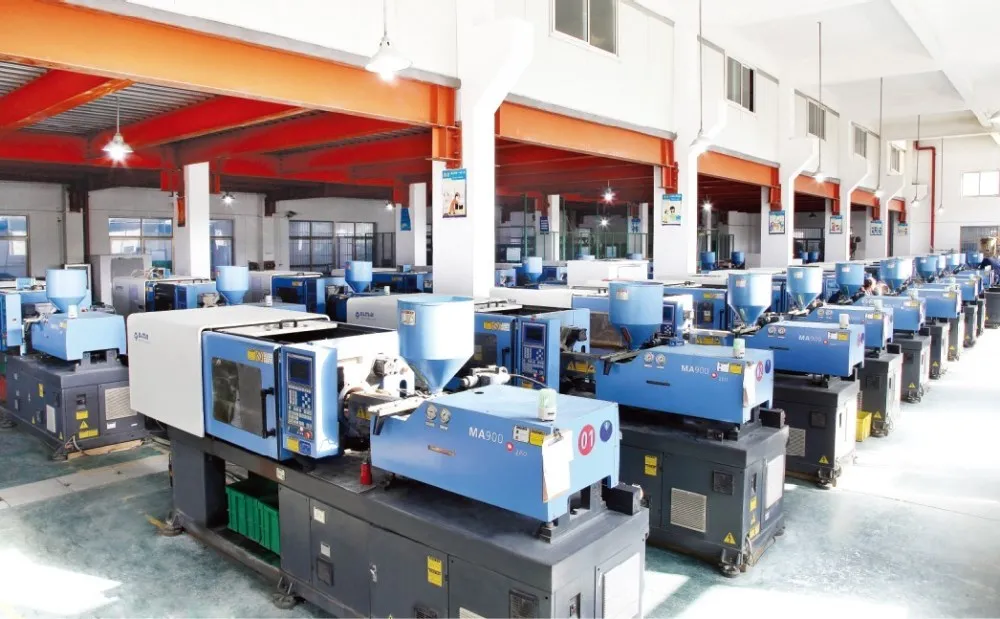

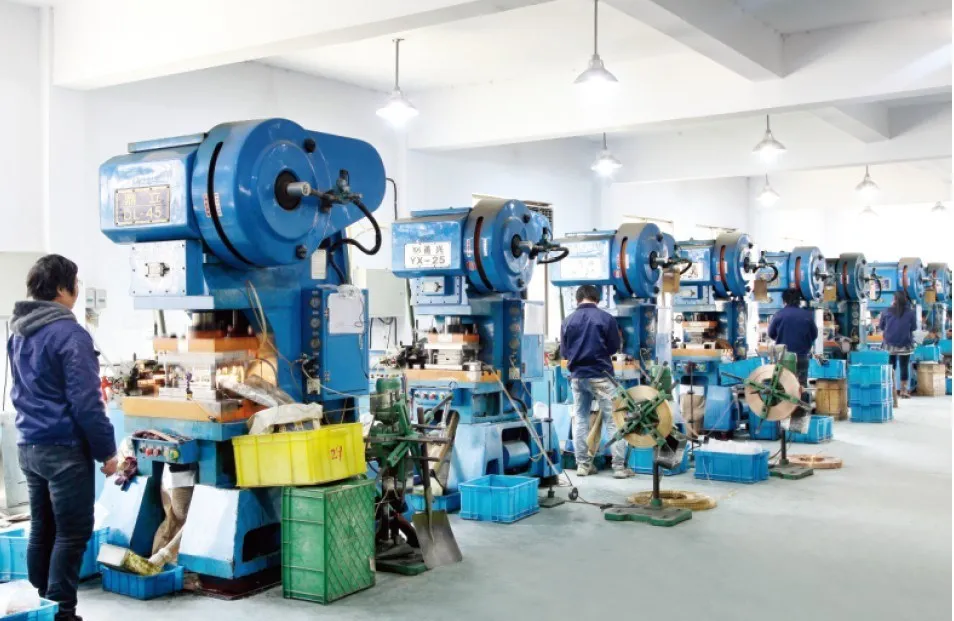

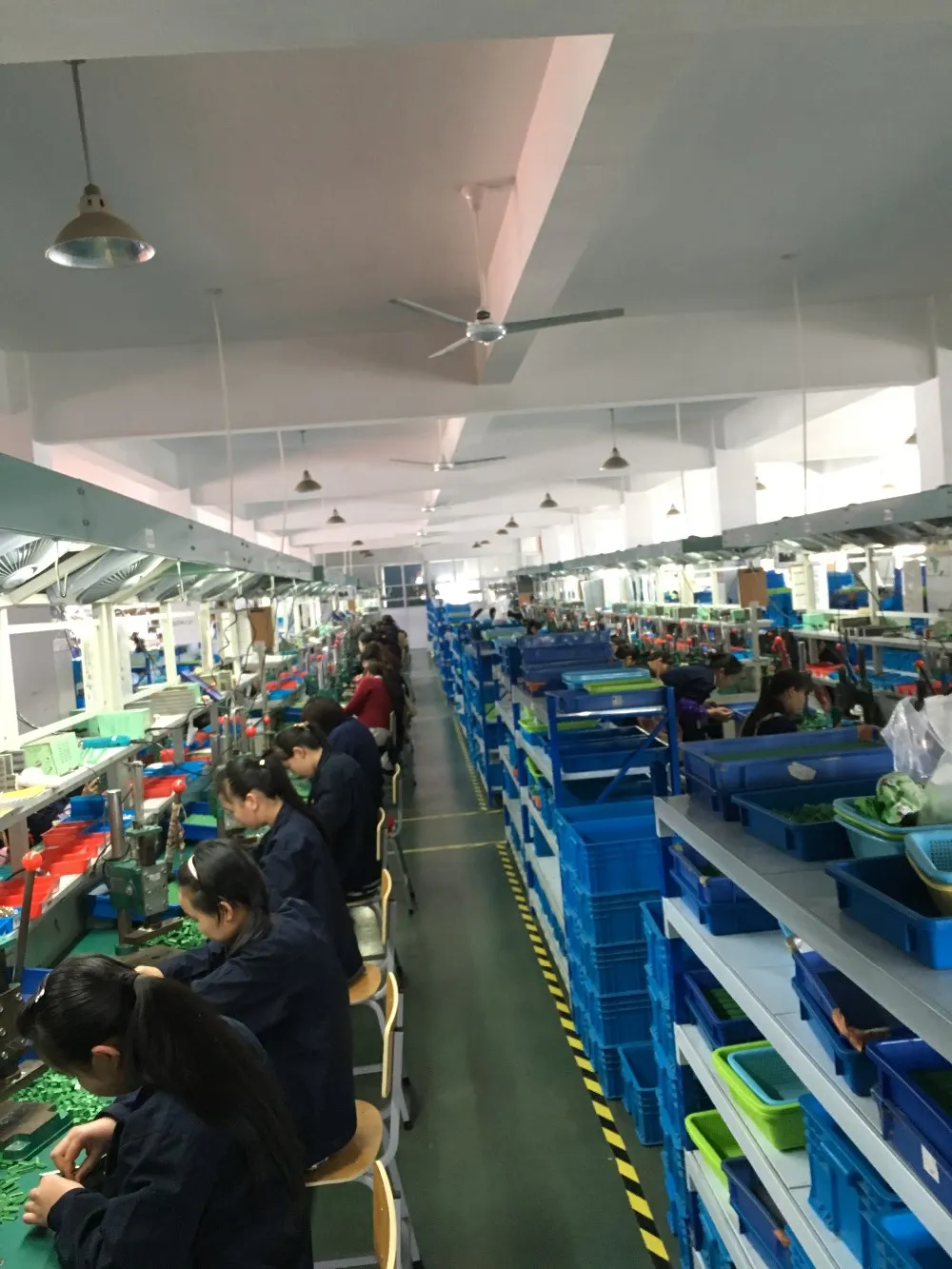

1. High quality: we have our own test laboratory, mold workshop and injection molding workshop.


2. Advanced QC system: we would ensure the quality of our products through both the manual and the machine inspection before shipment.

3. Competitive price: all the products are produced directly by us, it saves a lot secondary cost.

4. Good service, especially responsible after-sales service: if there is any quality problems caused by us, we would responsible for it.

5. Strong production capacity

6. Prompt delivery

7. OEM/ODM service available

8. Small orders acceptable

9. Free samples can be sent
