Overview
Quick Details
- Place of Origin:
-
Hebei, China
- Brand Name:
-
TSXL
- Model Number:
-
XLLS-J-II
- Max. Current:
-
5A
- Max. Voltage:
-
AC380V 5A DC24V 5A
- Product name:
-
PULL CORD SWITCH
- Certificate:
-
CE ISO
- Ambient temperature:
-
(-40℃~ 50℃)
- Relative humidity:
-
0 ~ 95%
- Atmospheric pressure:
-
80 kPa ~110kPa
- Protection level:
-
IP67
- Electrical life:
-
>100,000times
- Output mode and quantity:
-
2*SPDT
- Action force:
-
70~ 100N
- Adjustment range:
-
20°~ 30°
Supply Ability
- Supply Ability:
- 5000 Piece/Pieces per Month
Packaging & Delivery
- Packaging Details
- Carton or wooden box. It can also be customized according to customer's request.
- Port
- Tianjin/Qingdao
- Picture Example:
-
- Lead Time :
-
Quantity(Pieces) 1 - 5 >5 Est. Time(days) 3 To be negotiated
Recommend Products
Products Description

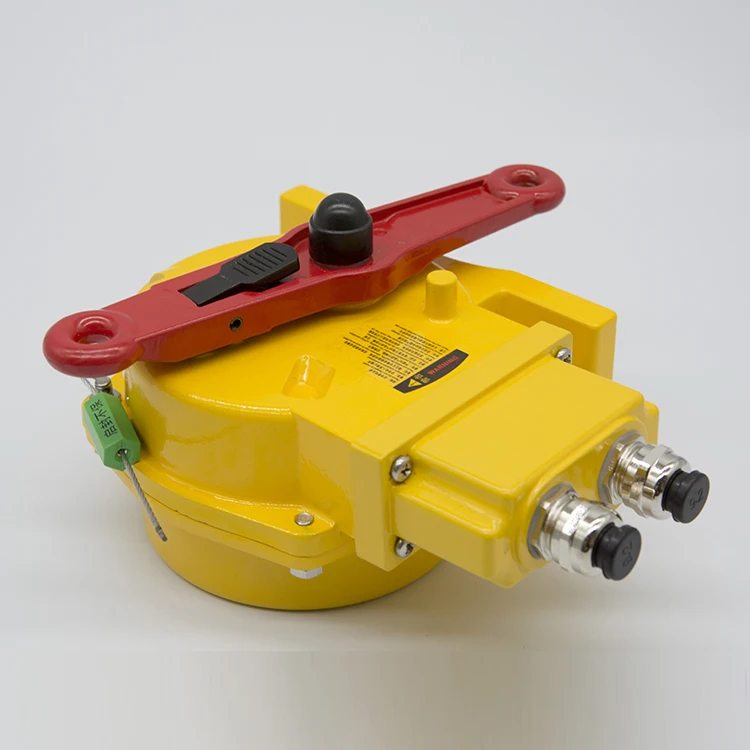

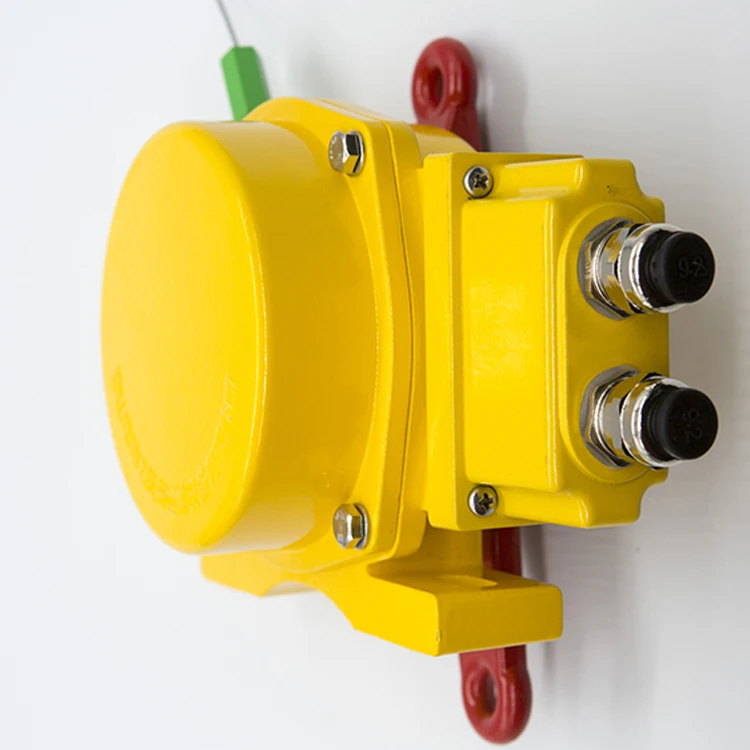

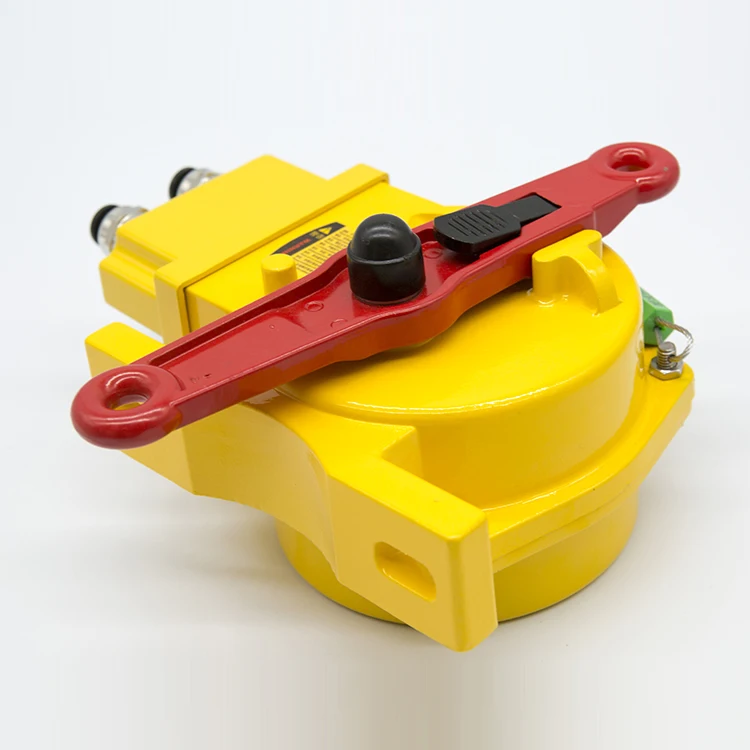

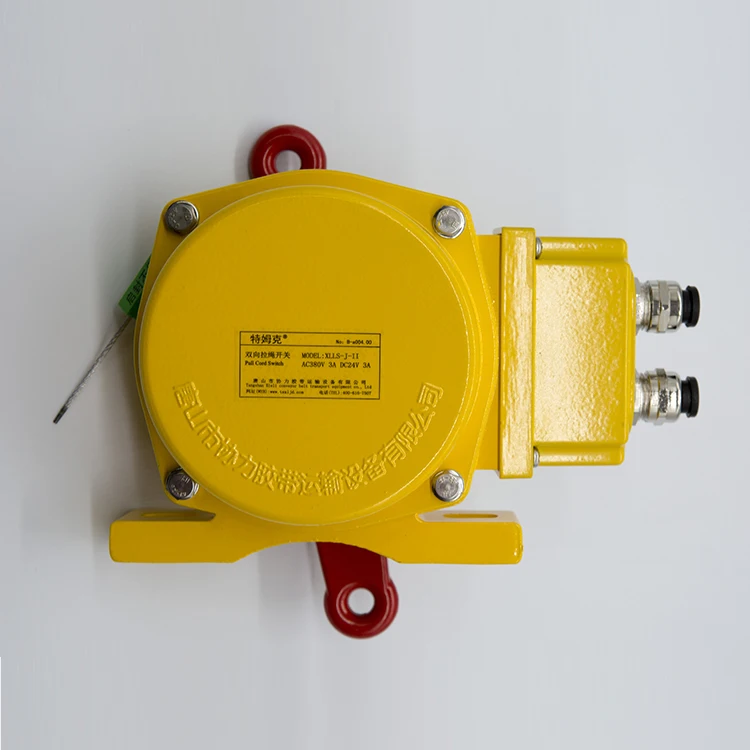

Pull cord switch is a protection switch used for emergency stop of belt conveyor. When an emergency occurs on the belt conveyor, the staff can start the pull cord switch at any position along the conveyor and stop the belt immediately to prevent the expansion of the accident. This product is easy to install, reliable performance. It is widely used in the field of belt conveyor.
Characteristic
Adopt high-strength A-alloy precise die-casting shell, with strong impact resistant capability.
High protective degree of shell, good sealing property.
Double switching output, large contact capacity, sensitive action and reliable performance.
Plastic coated steel wire rope moisture proof, acid and alkali resistant, flame retardant.
A junction box is added to facilitate direct connection of incoming terminals.
Ambient temperature | -40℃~ 50℃ |
Relative humidity | 0 ~ 95% |
Atmospheric pressure | 80 kPa ~110kPa |
Electrical life | >100,000times |
Output mode and quantity | 2×SPDT |
Contact rating | AC380V 5A DC24V 5A |
Action force | 70~ 100N |
Adjustment range | 20°~ 30° |
Limit angle | 75° |
Reset mode | Manual |
Protection level | IP67 |
