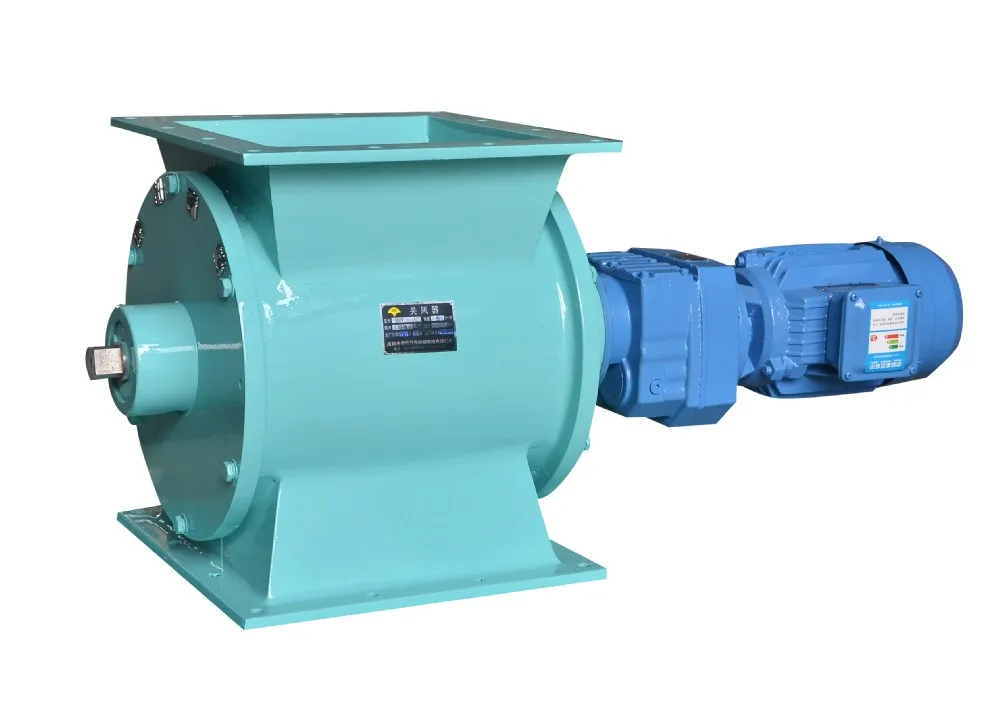

Rotary airlock feeder for four mill under silo & hopper

FOB Reference Price:Get Latest Price
$150.00 - $1,600.00 / Units | 1 Unit/Units (Min. Order)
Model Number:
TGFY series
Report Suspicious Activity
Overview
Quick Details
Brand Name:
CHEEGERS
Place of Origin:
Sichuan, China (Mainland)
Product:
Rotary Feeder
Capacity:
5L/9L/12L 1Ton-30Tons/H
Rotor speed:
28--45 RPM
Motor:
SEW and Chinese big brand motor
Body material:
Carbon steel
Vane:
6vanes
Clearance:
about 0.08mm
Delivery port:
Shanghai / Shenzhen / Guangdong
Delivery time:
25 Days After Fullpayment
Payment term:
T/T 30% in advanced
After-sales Service Provided:
No overseas service provided
Type:
Locking air and discharging materials
Supply Ability
Supply Ability:
200 Unit/Units per Month Rotary Feeder
Packaging & Delivery
Packaging Details
Rotary feeder is fixed on the pallet and is packaged by the wooden box which is made according to the size of rotary feeder.
Port
Shanghai /Shenzhen /Guangdong
Product Description

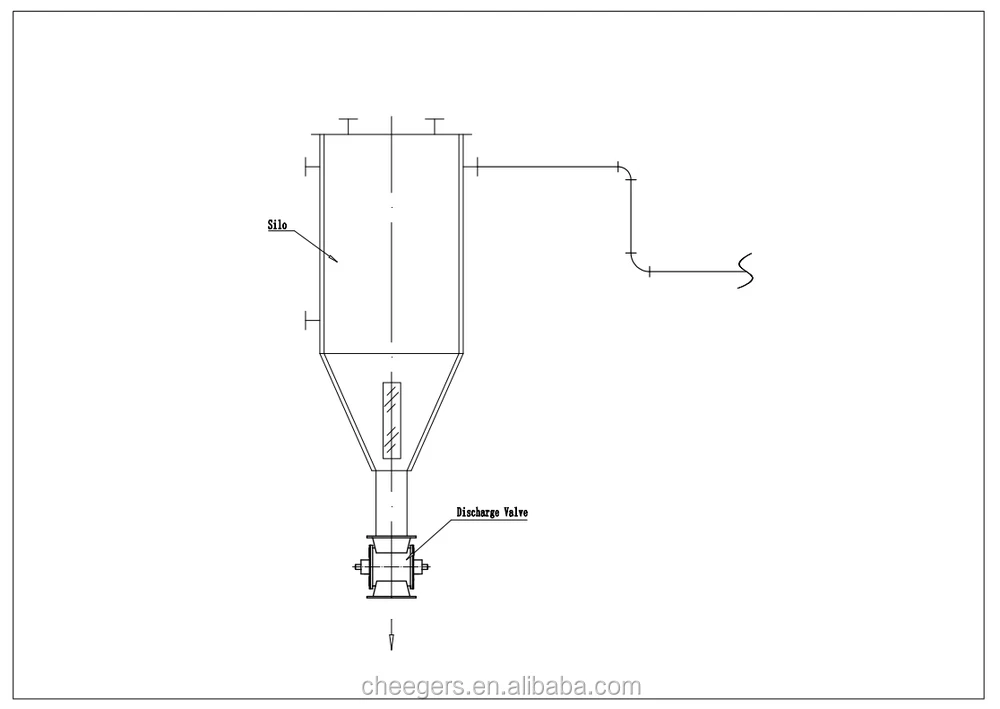

Product Application

Rotary airlock valve is a compact mechanical device for continuously discharging bulk powders or granules under gravity flow. By definition it is the simplest of machines having only one moving part (ignoring the drive); a multi-vane rotor revolving in close contact in the housing and where the housing has an inlet at the top, and an outlet at the bottom.
Despite its simplicity it offers several functional uses:

* Control product flow rate to the required rate (fixed or variable)

* Maintain a gas pressure differential between the inlet & outlet (airlock)

* Act as an explosion barrier

* Act as a Flame Barrier

* Act as a process isolator / barrier


Type
Inlet outlet size

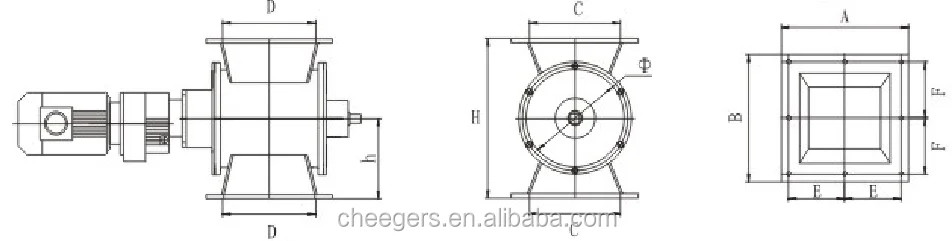

     Shape and installation dimensions
C
D
H
h
A
B
E
Power
TGFZ-5L
150
150
400
200
250
250
105
250
1.1kw
TGFZ-7L
200
200
440
220
300
300
130
250
1.1kw
TGFZ-9L
250
250
440
220
350
350
155
250
1.1kw
TGFZ-12L
300
300
440
220
400
400
180
250
1.5kw
TGFZ-20L
300
300
460
230
400
400
180
300
1.5kw
TGFZ-30L
350
350
520
260
450
450
204
350
2.2kw
Certifications
Our Company

CHEEGERS Machinery Manufacture Co., Ltd. is a professional supplier of airlock, rotary valve, and rotary feeder magnetic separator. CHEEGERS is rebuilt in 2003 from the revolution of china government factory CHIQI which built in 1958, We have been in airlock for 55 years and are specialized in producing all kinds of Rotary Airlock Valve.

At present, our products have been exported to Thailand, Canada, Indian, Morocco, Switzerland, Australia, Africa and others. We have established long-term, stable and good business relationships with many manufacturers and wholesalers around the world.
