Rotating drum sieve/Trommel screen/ Rotary trommel drum screen

FOB Reference Price:Get Latest Price
$520.00 - $9,900.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
CWGT-
Power:
3-15KW
Lead Time:
Quantity(Sets) 1 - 15 >15
Est. Time(days) 20 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Samples:
$5,000.00 /Set | 1 Set (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Food & Beverage Factory, Farms, Restaurant, Retail, Food Shop, Energy & Mining, Food & Beverage Shops
Local Service Location:
None
Showroom Location:
None
Place of Origin:
Henan, China
Brand Name:
CWJX
Dimension(L*W*H):
Customized, Customized
Warranty:
1 YEAR
After-sales Service Provided:
Online support, Video technical support
Production Capacity:
60-750 t/h
Voltage:
220V/380V/460V, 220V/380V/460V
Power(W):
3-15KW
Weight:
890kg, 890kg
Drum length:
1500-5500mm
Screen size:
<3-10mm
Dimension:
Customized
Noise:
Below 75dB
Feature:
Screening and sieving
Condition:
New
Type:
Circular
Application:
Food Processing
Certification:
ISO,BV,CE
Product Certification certification
CE Certified.
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
Packed in wooden cases
Port
Qingdao,Shanghai
Lead Time :
Quantity(Sets) 1 - 15 >15
Est. Time(days) 20 To be negotiated
Video Description
Product Description

1.CW trommel sieve provides a simple, efficient and economical solution to big-sized material sieving process.
2.Material rolling in the trommel can efficiently keep the mesh from blockage.
3.one of precise powder sieve, it is of high efficiency, and the screening accuracy exceeds 90%.
4. Small volume and light weight, easy to be installed and maintained.

Characteristic

1. Wide material adaptability: It is used for screening of various materials. No matter it is inferior coal, slime, soot or other materials, it can be screened smoothly. 2. High screening efficiency: The equipment can be equipped with comb cleaning mechanism. In the screening process, the materials entering the screening cylinder can be screened according to impurities and dirt to improve the screening efficiency of the equipment. 3. The screening composition is large and easy to enlarge: In the same size, the circular area is larger than other shapes, so the effective screening area is large, so that the material can fully contact the screening, so that the screening component per unit time is large. 4. Good working environment: The whole screening cylinder can be sealed with a sealed isolation cover to completely eliminate dust and block splashing during screening and avoid pollution to the working environment.

Operating

1, First open the cage while driving screen, opens after feeding equipment; stopping the opposite;
2, Run three days before, to cage drum sieve every day check fasteners, if loose fastening in a timely manner. Periodically thereafter (or a week and a half month) cage screen fastener for checking and processing;
3, Housings, transmission should be checked periodically lubricating and fuel and oil in a timely manner. Axis bearings, 2nd lithium base grease, under normal circumstances, every two months filling grease, amount raised should not be excessive, otherwise easily cause bearing overheating. Bearings should be cleaned check once a year.
4, The long haul deactivate (more than 30 days) to restart the motor insulation should be shaking when measuring to avoid motor burn.

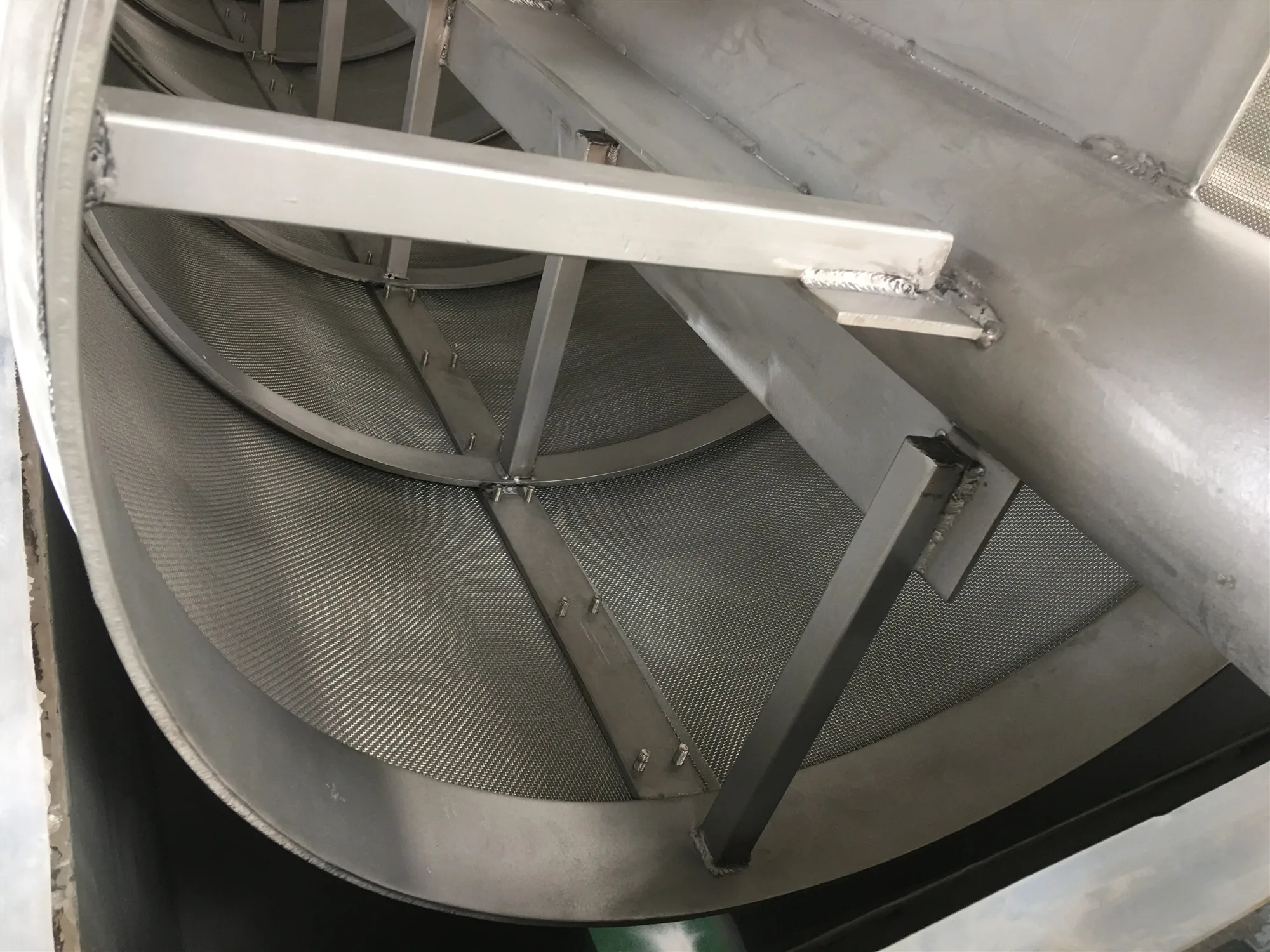

Machine Structure

Technical Parameters

Model
Power(kw)
Drum Diameter(mm)
Drum length(mm)
Screen size(mm)
Dimension(mm)
CWGT1015
3
1000
1500





<3-10
3000*1400*2145
CWGT1020
3
1000
2000
3460*1400*2145
CWGT1225
4
1200
1500
4146*1600*2680
CWGT1530
5.5
1500
3000
4460*1900*2820
CWGT1545
7
1500
4500
5960*1900*3080
CWGT1848
11
1800
4800
6500*2300*4000
CWGT2055
15
2000
5500
7500*2500*4000

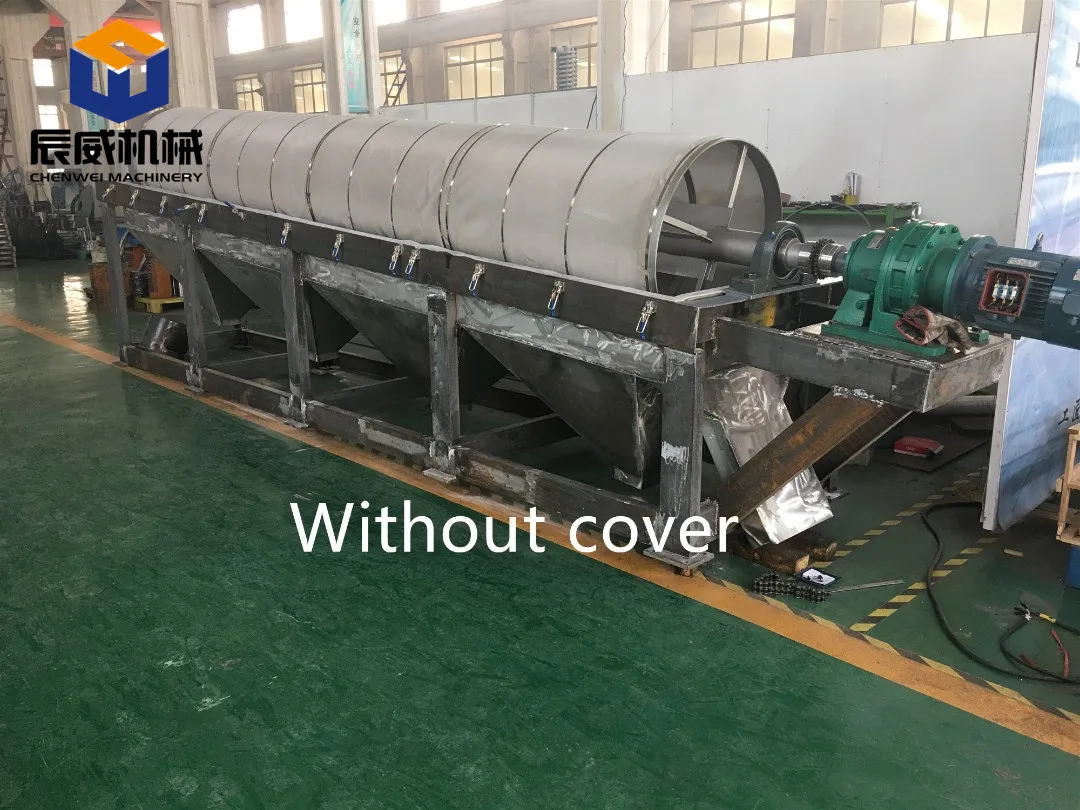

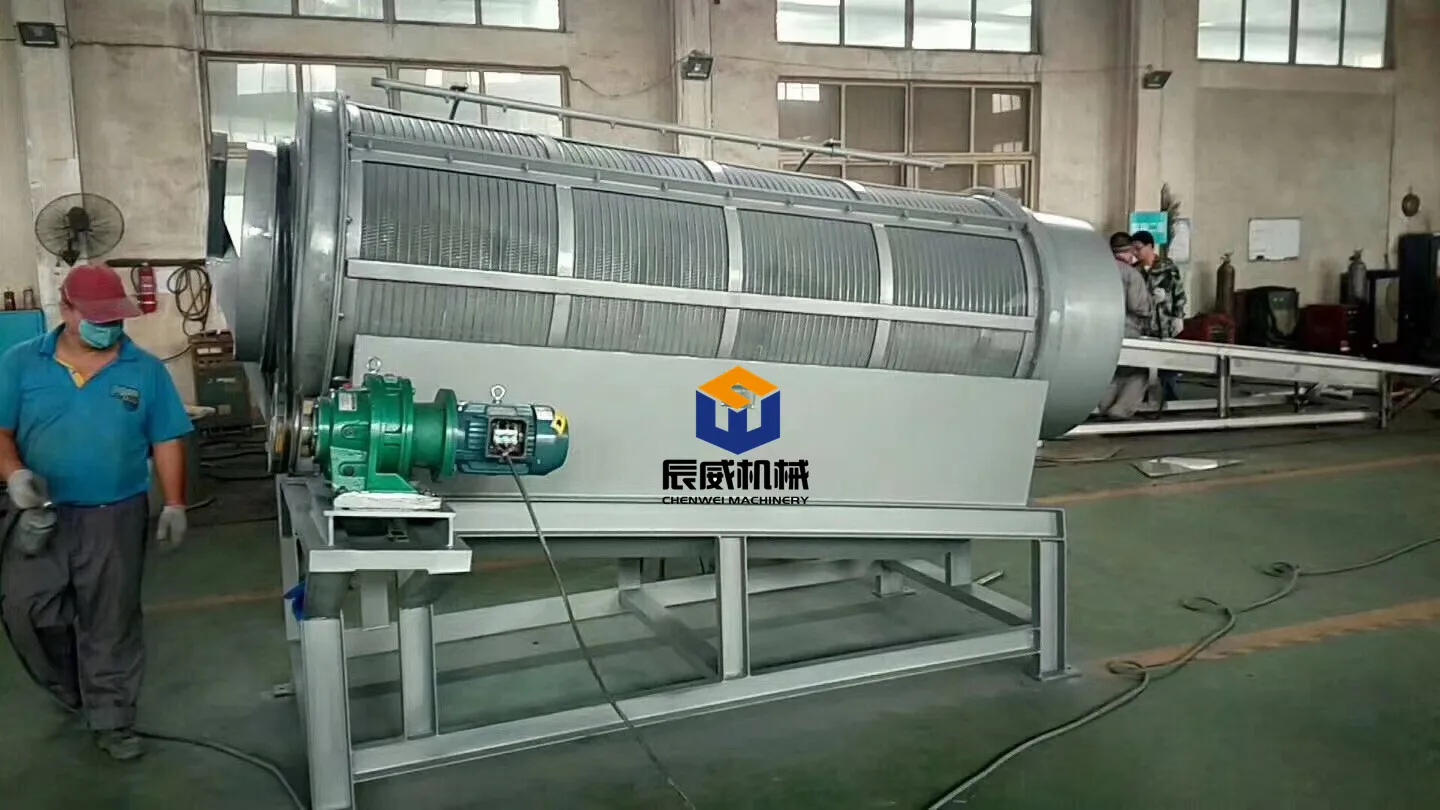

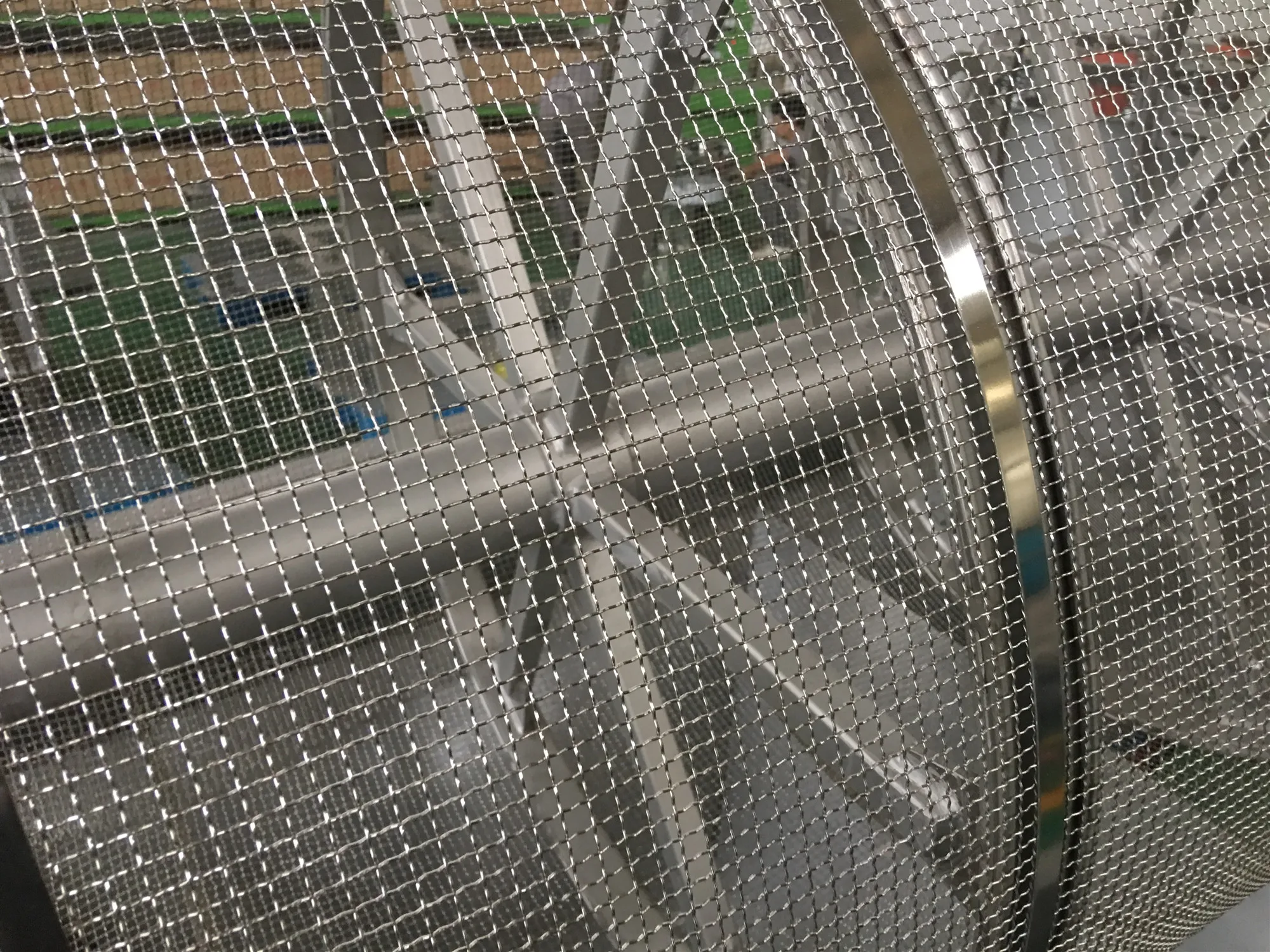

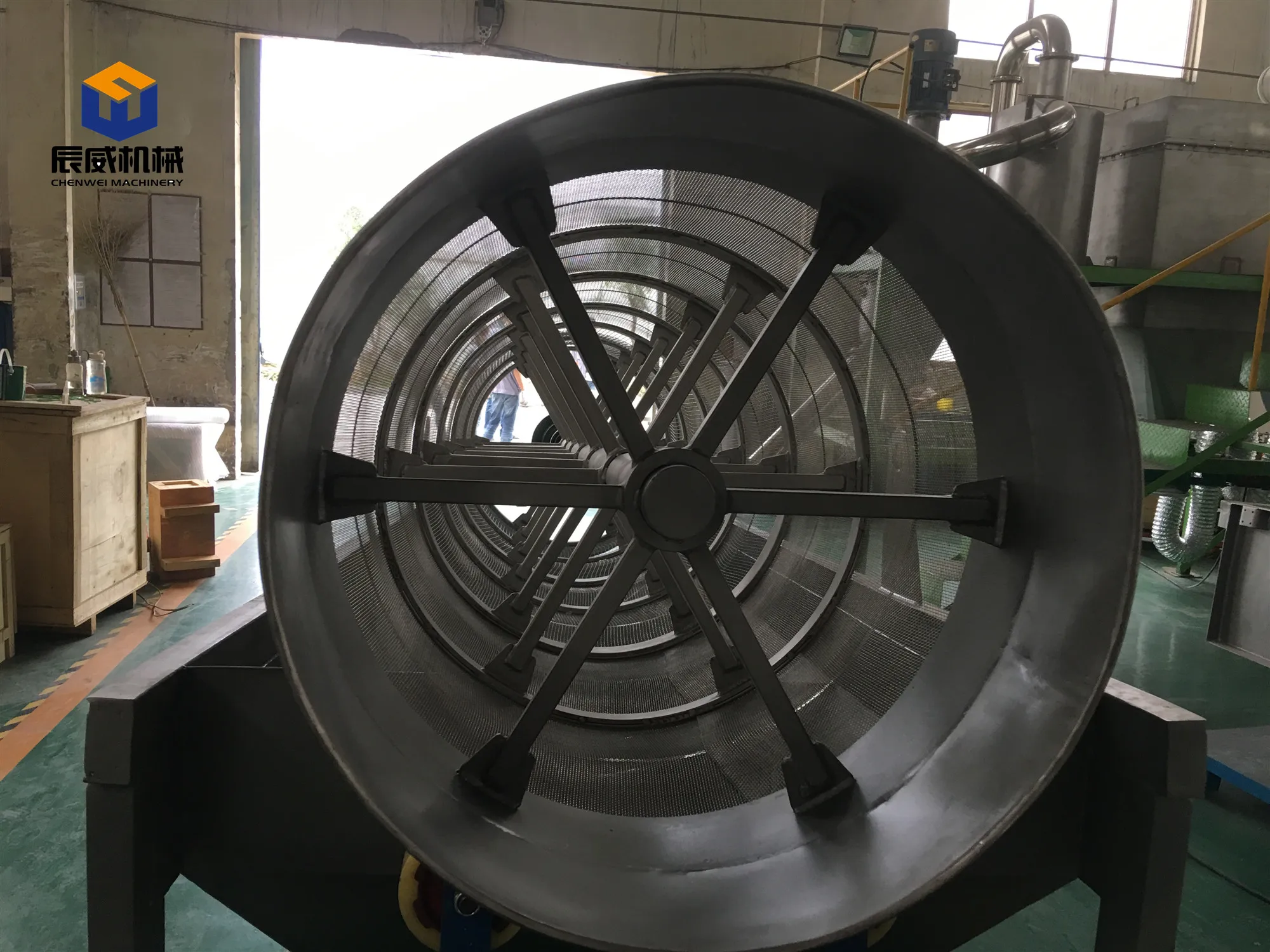

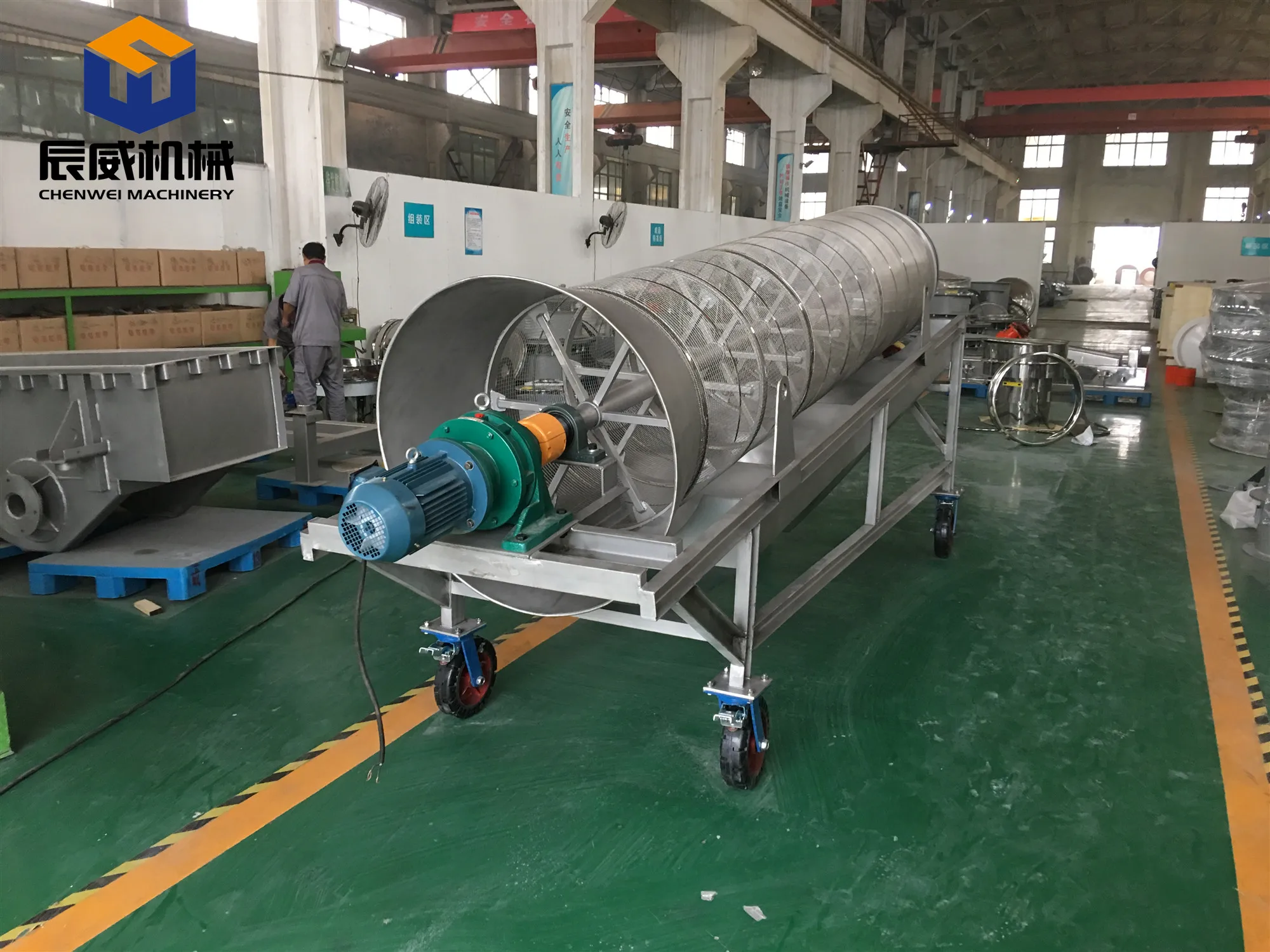

Product Display

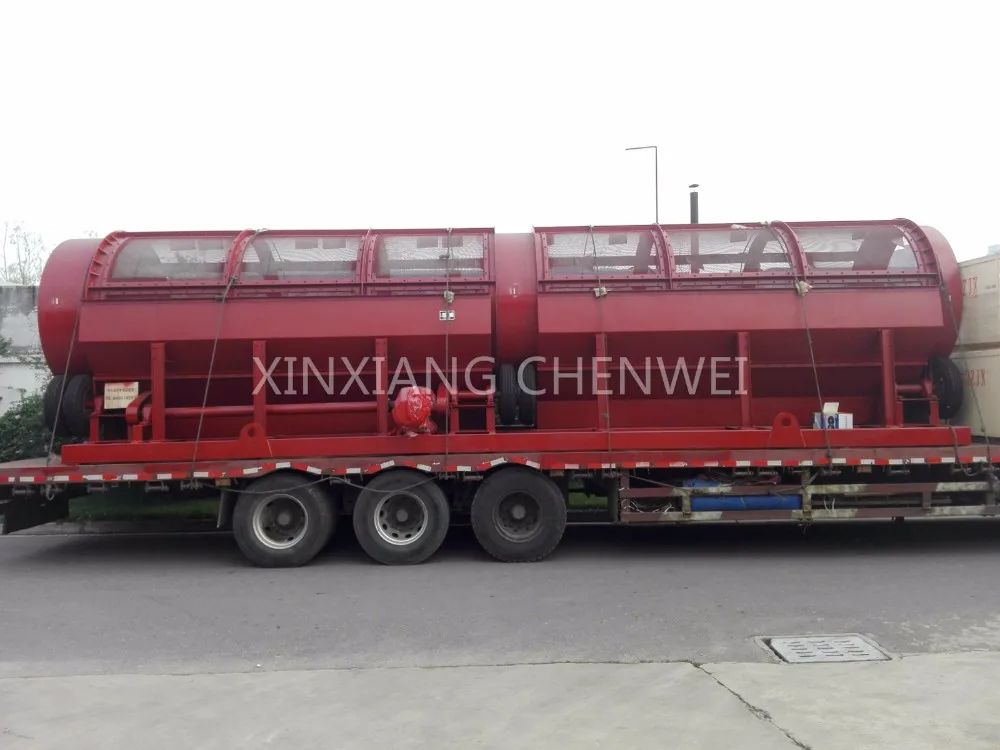

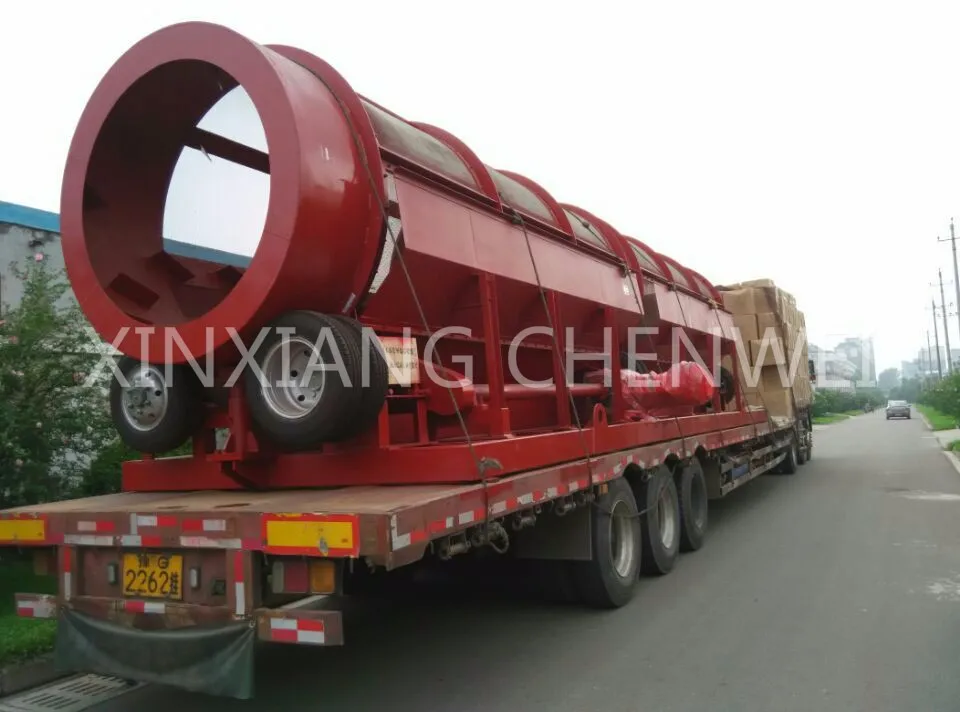

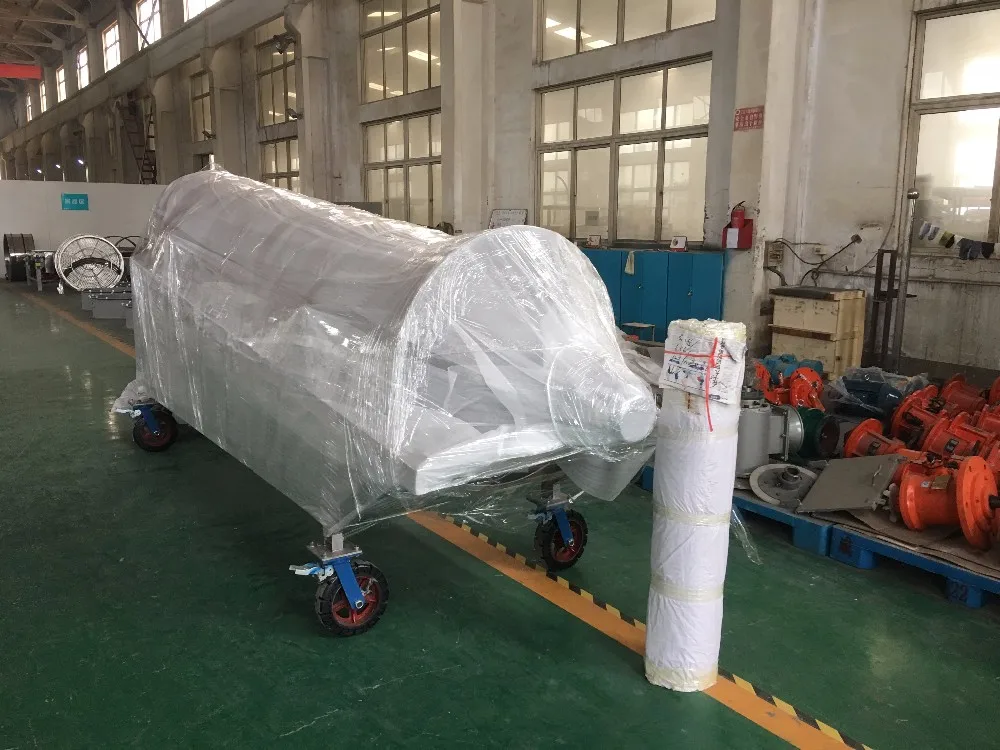

Packing & Delivery
Our Service

1.Free maintenance.

We can provide our clients with twelve months warranty for any machine purchased from us. During the warranty period, the defective parts will be replaced or repair free of charge.
2.Free period follow-up.

We can offer free online service for 24 hours. If you have any questions, we can help you solve the problem. We can provide our clients with twelve months warranty for any machine purchased from us. During the warranty period, the defective parts will be replaced or repair free of charge.
3. Free installation video.

We are a professional manufacturer and have the ability to provide clients with overall installation by video. We can provide the clients User manual and Printed copy.

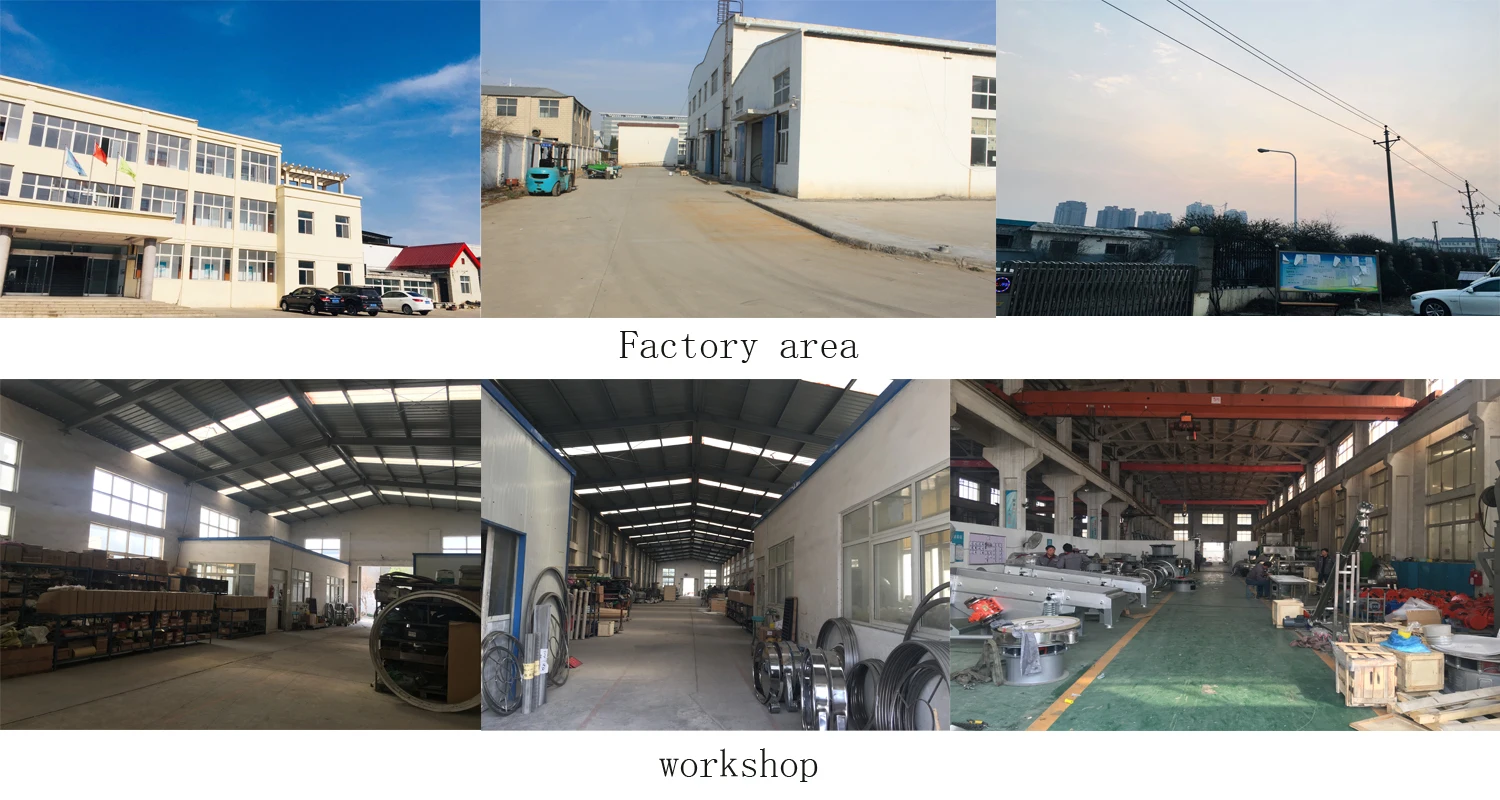

Our Company

Xinxiang Chenwei Machinery Co., Ltd. is an innovative enterprise that integrating technology R&D, processing, manufacturing and trade services. Our company is mainly devoted ourselves to the design, fabrication and installation of screening, conveying, mixing, crushing and other related products.   Our enterprise established in 1987, is located in Development Zone of Xinxiang City, Henan province. We take great advantages of convenient transportation and strategic location with three main railways and several national highways intersecting here.   We have 10 years of overseas after-sales experience, provide 24-hour online service, 365-day machine warranty, and have more than 50 patented technologies.   Chenwei has strengthened the internal management system and passed the certification of IS09001. Excellent quality and service have won us a good reputation. We are a member of the Quality Association of Development Zone.

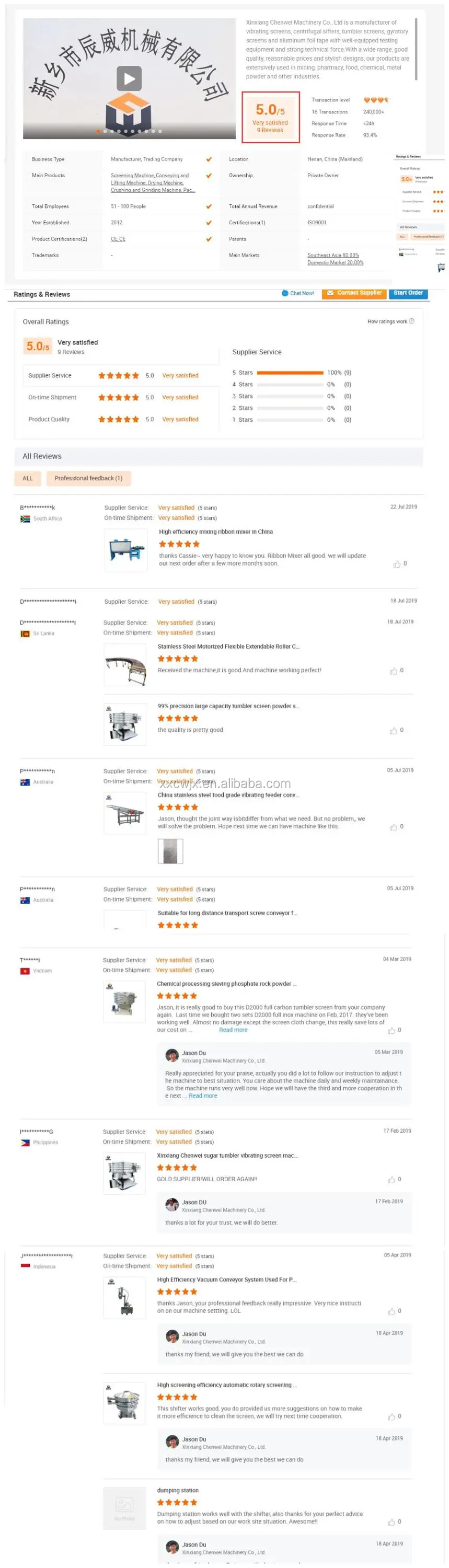

Feedback
Related Products
FAQ

Q:What factors I need to get a quotation? A: Material bulk density, mesh size(length & angle for conveying series) & ideal capacity for proper type, granularity distribution is recommended. product material requirement (carbon steel Q235A, stainless steel SUS304 or SUS316,etc.) Voltage & Frequency(Hz) is also needed for a precise quotation. Q:What is the real delivery time of your factory? A: 7 to 15 days for general series products, meanwhile, batches products & customized products would need 30 days to 60 days based on different situations.
