Rubber Lined Slurry Pump

FOB Reference Price:Get Latest Price
US $1,000-5,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
xinhai
Model Number:
XPA
Condition:
New
After-sales Service Provided:
Engineers available to service machinery overseas
delivery slurry density:
not more than 65% (by weight)
slurry temperature range:
-40℃~70℃
maximum head:
45m
liner service life:
3-6months
rubber color:
red
rubber SG:
0.95
quality certificate:
CE & ISO
SupplyAbility
SupplyAbility:
50 Set/Sets per Week
Packaging & Delivery
Packaging Details
nude in container, or wooden case
Port
Qingdao port
Lead Time :
10days

Rubber lined slurry pump



Product Description

 Introduction

The HR rubber lined, heavy duty slurry pumps are designed for the toughest pumping applications.

Product Feature

Features

The excellent hydraulic design, with extra thick sections at known points of wear and the high aspect ratio impeller ensures excellent performance with long wear life.

Product Application

 Application

Rubber slurry pump is the ideal instrument of conveying corrosive materials whose maximum density is below 65% (by weight) and whose temperature is in the range of 40°C~70°C.

Work Principle

Working principle

The pump consists of shell and impellers which are situated on the main shaft and constitute an integral part with prime mover. Prime mover drives impellers to rotate and then impellers drives fluid to rotate, which increase the kinetic energy and potential energy.

Technical Parameters

 Technical parameters

Specification

Flow rate
(m³/h)

Maximum
head
(m)

Revolving
Speed

(rpm)

Maximum
Power
(KW)

maximum
Efficiency
(%)

Impeller
diameter

(mm)

Weight
(kg)

50/50

20-60

38

800-2400

22

51

200

156

80/80

30-100

45

600-2100

45

53

256

326

100/100

60-160

50

600-1600

75

57.5

340

440

150/125

100-260

47

400-1400

110

63

372

608

200/150

160-450

47

450-1200

132

69

433

736

250/200

300-900

46

400-1200

250

78

454

1250

300/250

400-1500

45

300-900

600

73

610

1956

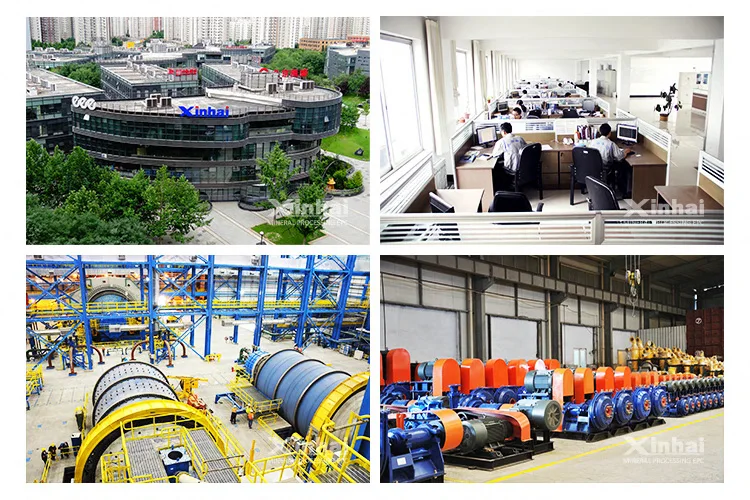

Xinhai Group

Xinhai mining was established in 1993.And was the pioneer of China beneficiation industry.Our company could provide mining machine more than 600,and have the most equipment in China.At present,Xinhai business includes Mineral Processing EPC,Wear-Resistant Rubber,LFC Machinery,and Mining Investment.

Q:Hi, are you mining machinery manufacturer?

A:Yes, we can also provide amples test, mine design, equipment manufacture, after-sale service, etc.

Q:which country have your products been exported?

A:Many country, such as India, Ethiopia and so on. And our company has agencies in Zimbabwe, Sudan and Tanzania.

Q:Can you do mineral processing test?

A:Yes, not only can do it in your country, also can back to our company
