S type weight sensor 5kg

FOB Reference Price:Get Latest Price
$15.00 - $68.96 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shaanxi, China (Mainland)
Brand Name:
HT sensor
Model Number:
TAS501
Usage:
tension compression measuring applications electronic weighing
Theory:
Resistance Sensor
Output:
Analog Sensor
Capacity:
5~5000kg
Material:
alloy steel
Defend grade:
IP66
Type:
s type load cell
Item:
tension compression sensor
Function:
force transducer
Rated output:
2.0 ± 0.004mV/V
Excitation:
9~ 12Vdc
Combined error:
± 0.02%FS
Weighing scale:
portable scale
Packaging & Delivery
Packaging Details
Inner pack: 1pcs with plastic bag
Outer pack: standard exporting carton
Port
Xi'an China
Lead Time :
3~30 days
Welcome to HT sensor

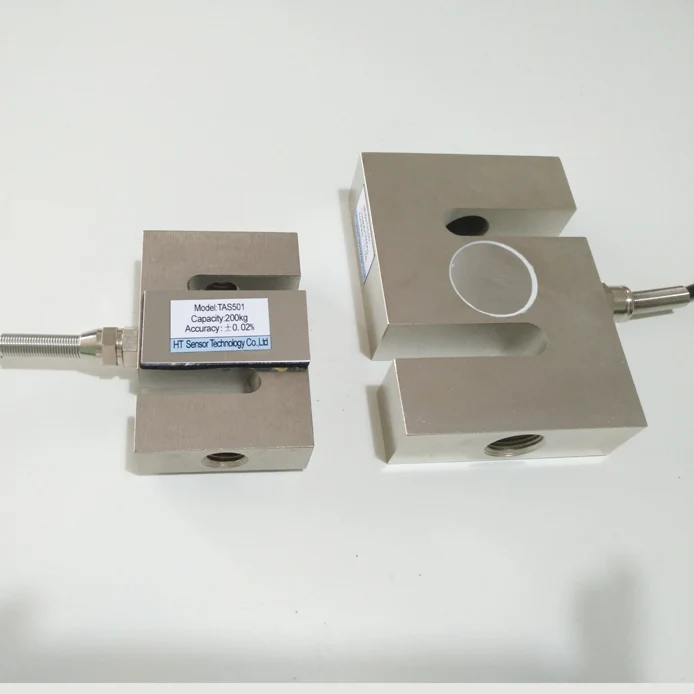

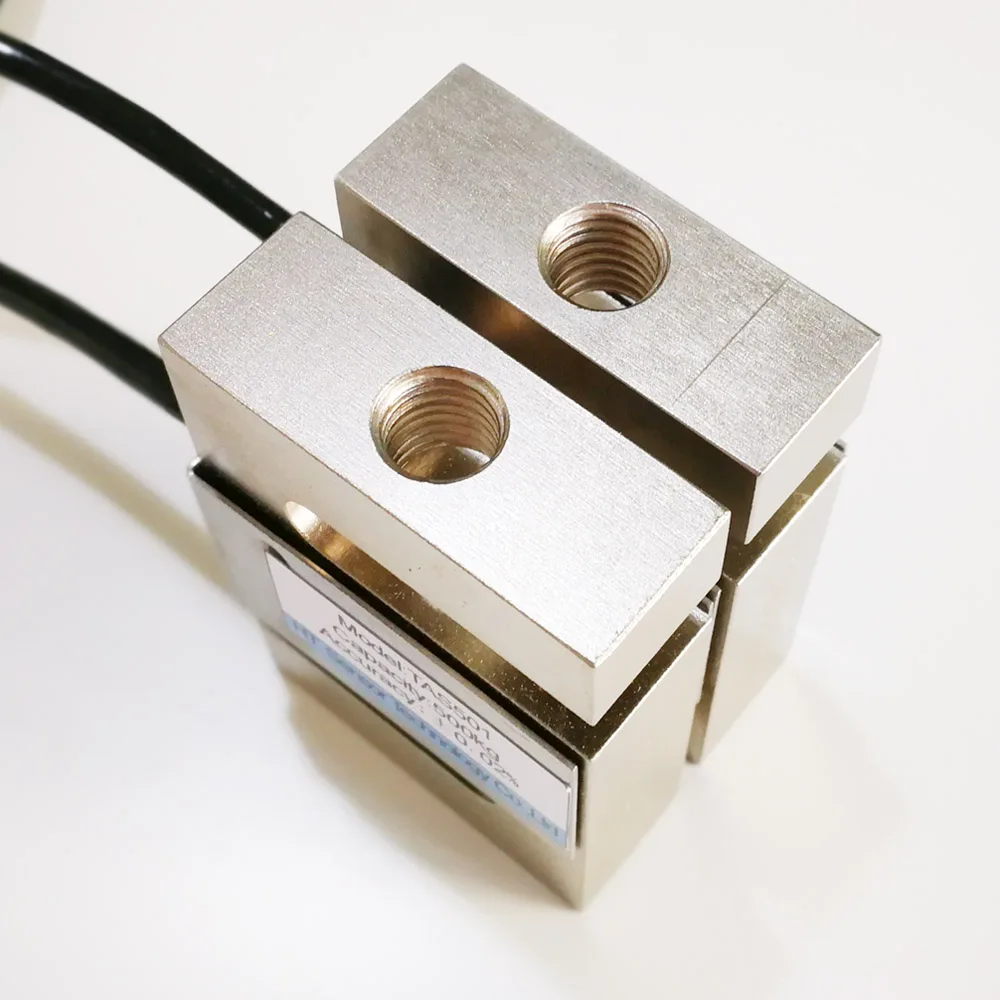

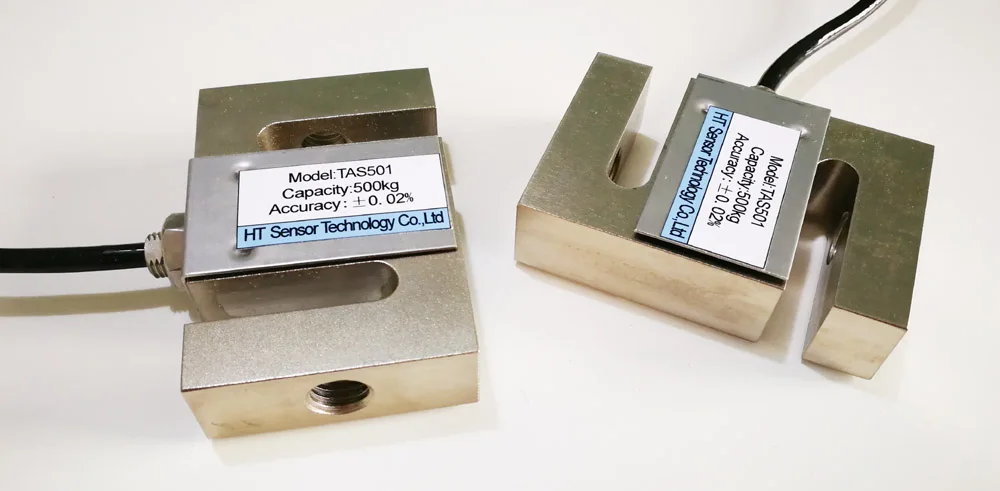

Model No. TAS501 S type load cell
◆Capacity :5~5000kg
◆Material: alloy steel
◆Type: S type
◆Defend grade: IP66

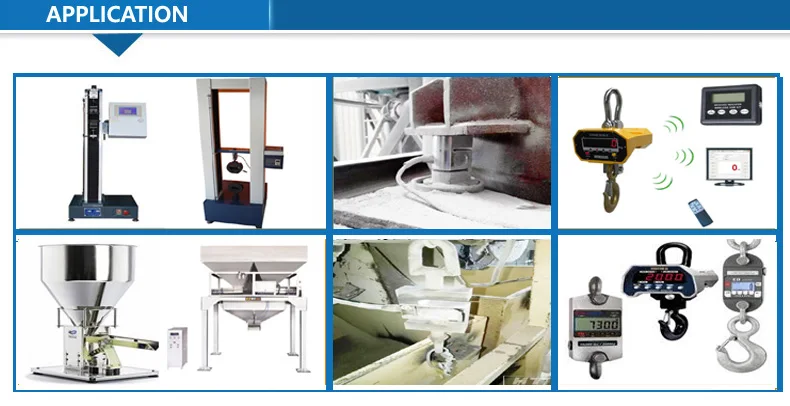

◆Application: portable scales , tension or compression measuring applications and other electronic weighing devices.
◆ S type weight sensor 5kg

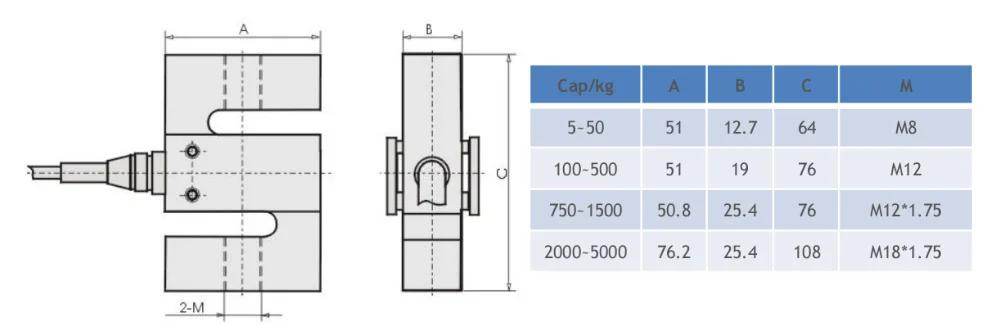

Dimensions
Specifications
capacity
kg
5,10,20,30,50,100,150,200,300,500,1T,1.5T,2T,3T,5T
safe overload
%FS
150
ultimate overload

%FS
200
rated output

mV/V
2.0 ± 0.004
excitation voltage

Vdc
9~ 12
combined error
%FS
± 0.02
zero balance

%FS
± 1.0
non-linearity

%FS
± 0.02
hysteresis

%FS
± 0.02
repeatability

%FS
± 0.02
creep
%FS/30min

± 0.024
input resistance
Ω
350±20
output resistance

Ω
350±5
insulation resistance
M Ω
≥ 5000 @ 50 Vdc
operating temperature range

-10~ +40
compensated temperature range

-20 ~ +55
temperature coefficient of SPAN

%FS/10℃

± 0.023
temperature coefficient of ZERO

%FS/10℃

± 0.017

Electrical    connection

cable
4 core shielded PVC cable, Ø 5 × 5m
excitation(+):Red   excitation(-):Black
signal(+):Green     signal(-):White
Learn more
Related Products

      TAS501A Capacity: 1~500kg

 TAL501B  Capacity: 500~10000kg

  TAS501W  Capacity: 100~1000kg

Packing & Delivery

Packing

Inner packing: 1pcs /plastic bag/ box
Outer packing : standard exporting carton
As the customer's requirments

Delivery

Normal products:  7-10 days
OEM products: 30days
DHL/UPS/TNT/FedEx/SF/EMS by Air/Sea etc
