SANY 150ton crawler crane SCC1500C for sale

$650,000.00 / Set | 1 Set (Min. Order)
Model Number:
SCC1500C
$650,000.00
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
20 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Max. Lifting Height:
81m
Feature:
Truck Crane
Condition:
New
Place of Origin:
Hunan, China
Brand Name:
Sany crawler crane
Certification:
ISO,GOST
Application:
Sany crawler crane
Rated Lifting Moment:
~
Max. Lifting Load:
150t
Span:
~
boom length:
18- 81m
After-sales Service Provided:
Engineers available to service machinery overseas
Rated Loading Capacity:
150t
Warranty:
1 year

Packaging & Delivery

Selling Units:
Single item
Single volume:
358 cm 3
Single gross weight:
65000.0 kg
Package Type:
nude package
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 20 To be negotiated

SANY 150 ton crawler crane SCC1500C for sale



Benefits & features

1. SANY SCC1500 Hoisting Machinery Hydraulic Crawler Crane Highly Secured Control System:

There are two operation modes, working and assembly for your convenience. It features with electronic level gauge, machine-leaving stop action, and emergency electrical control, with complete set of safety and monitoring device.

Load moment limiter is free of calibration, providing higher safety of the equipment, and less auxiliary operating time; slewing area limit device is optional, to improve the safety of the equipment;

2. SANY SCC1500 Hoisting Machinery Hydraulic Crawler Crane Excellent Operating Performance:

Maximum load regulation and electronic-over-hydraulic controls ensure smooth micro-movement and stable operation.

A real-time queried electronic load chart is provided, more conveniently and quickly;

3. SANY SCC1500 Hoisting Machinery Hydraulic Crawler Crane Reliable Function Assurance:

The safety margin in structural design is sufficient;

The hydraulic system is equipped with advanced distribution system which is independent of load and the key parts such as pumps, valves, motors, and reducers are adopted to ensure system stability and reliability.

The control system is fully capable to function stably in extreme weather, such as high-and-cold, high-temperature, and high plateau weather; sensor has a protection against lightning strike; the entire machine adopts the closed wiring way, with waterproof / dust-proof protective grade up to IP65;

The machine passed the verification test of the strength that is higher above two times of that in industry, having high reliability;

4. SANY SCC1500 Hoisting Machinery Hydraulic Crawler Crane Convenient Maintenance Access:

It takes no more than 10min/person to adjust, no more than 30 min/person for daily maintenance and no more than 2h/person to repair the machine.

GPS remote monitoring system is optional for easy maintenance and management.

5. SANY SCC1500 Hoisting Machinery Hydraulic Crawler Crane Powerful Lifting Capacity:

Wide-track chassis is design to ensure excellent overall and operating stability within 360°slewing range, the max. lifting capacity of boom is 55tx3.7m=203.5t•m., the length of fuly-extended boom is 52m and the rated single rope pull of main boom and auxiliary winch is 6.5t.

6. SANY SCC1500 Hoisting Machinery Hydraulic Crawler Crane High-efficient operating speed:

Outmost layer line speed of main and auxiliary lifting winches is 120m/min, and of luffing winch is up to 72m/min.

7. SANY SCC1500 Hoisting Machinery Hydraulic Crawler Crane Flexible Configuration Combination:

Free fall winch is optional for main and auxiliary lifting winches.

8. SANY SCC1500 Hoisting Machinery Hydraulic Crawler Crane Optimized Transportation Programs:

With telescopic crawler, the maximum transportation width of whole machine is 3.36m, ensuring it to be transported around freely.



Technical parameters






Maximum lifting capacity150t
Length of main boom18-81m
Boom luffing angle30-80°

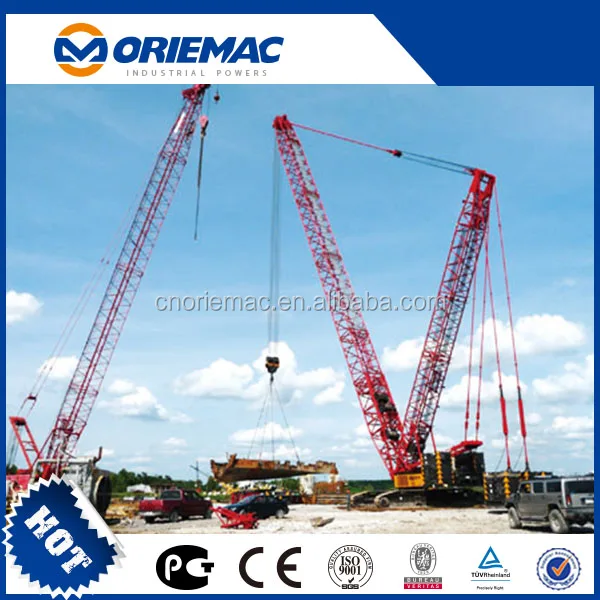

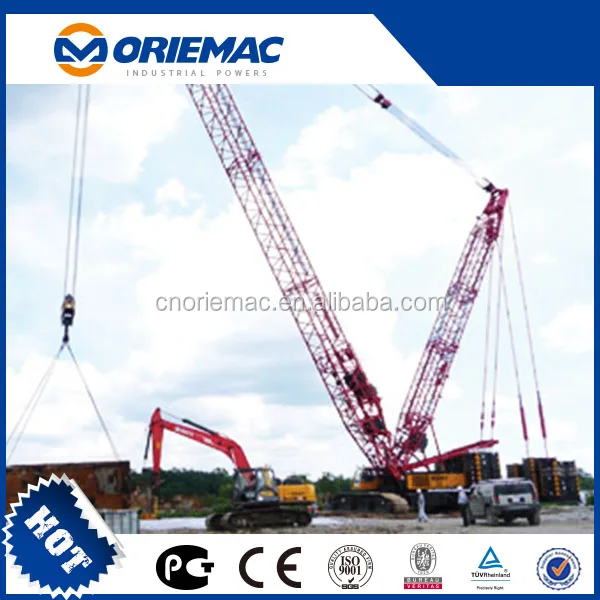

Photos
