SC LC ST FC MTRJ SMA905 simplex duplex fiber optic patch cable

FOB Reference Price:Get Latest Price
$0.58 - $1.20 / Piece | 10 Piece/Pieces (Min. Order)
Shipping:
Support Express · Sea freight · Land freight · Air freight
Lead Time:
Quantity(Pieces) 1 - 1000 1001 - 10000 10001 - 50000 >50000
Est. Time(days) 3 5 7 Negotiable
Customization:
Customized logo (Min. Order: 100 Pieces)
Customized packaging (Min. Order: 100 Pieces)

More

Graphic customization (Min. Order: 100 Pieces) Less
Samples:
$1.00 /Piece | 1 Piece (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
DYS
Model Number:
SC LC ST FC MTRJ SMA905
Type:
Fiber Optic Cable
Single-Mode Fiber:
G655,G652D,G657A1,G657A2
Multi-Mode Fiber:
OM1,OM2,OM3,OM4
No. of Fiber:
1.
Use:
FTTH
Connector type:
SC LC ST FC E2000 MTRJ DIN
Fiber Brand:
Corning, YOFC, OFS or others
fiber type:
Singlemode , Multimode
Diameter:
1.2mm,1.6mm,2.0mm,3.0mm
Insertion loss:
<0.25dB
Return loss:
≥50dB(PC/UPC) ≥60dB(APC)
Jacket material:
LSZH,PVC,OFRN,ORNP
Jacket color:
Yellow or others
Length:
Customized Lengths(1m/2m/3m...+1
Application:
FTTH FTTB FTTX Network
Product Certification certification
RoHS Certified.
Supply Ability
Supply Ability:
50000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
Each one into a PE bag with label
1000PCS into a carton box
Port
Shenzhen
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 1000 1001 - 10000 10001 - 50000 >50000
Est. Time(days) 3 5 7 To be negotiated
Video Description
Product Description

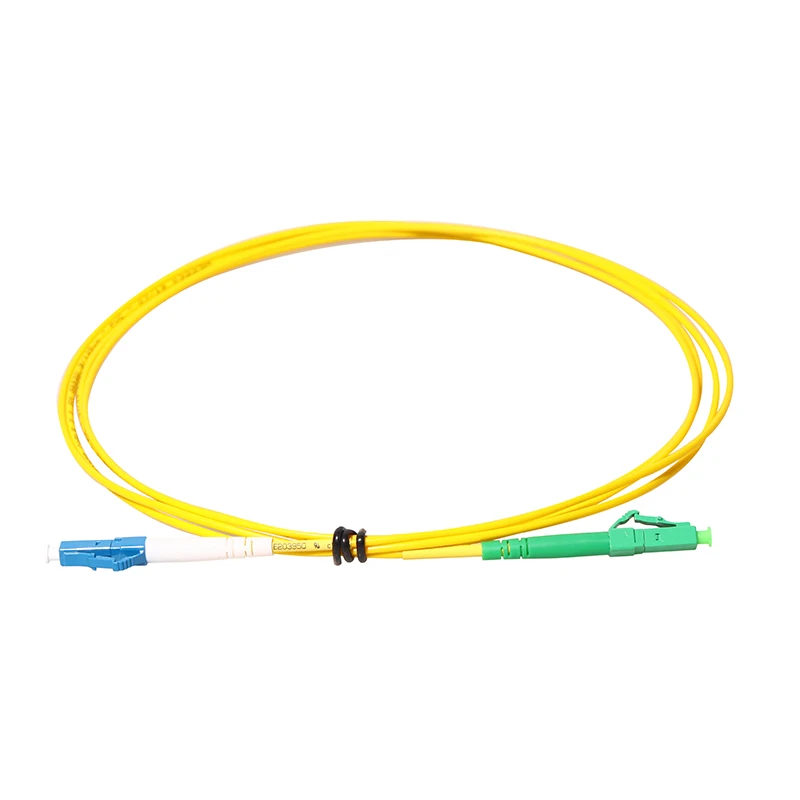

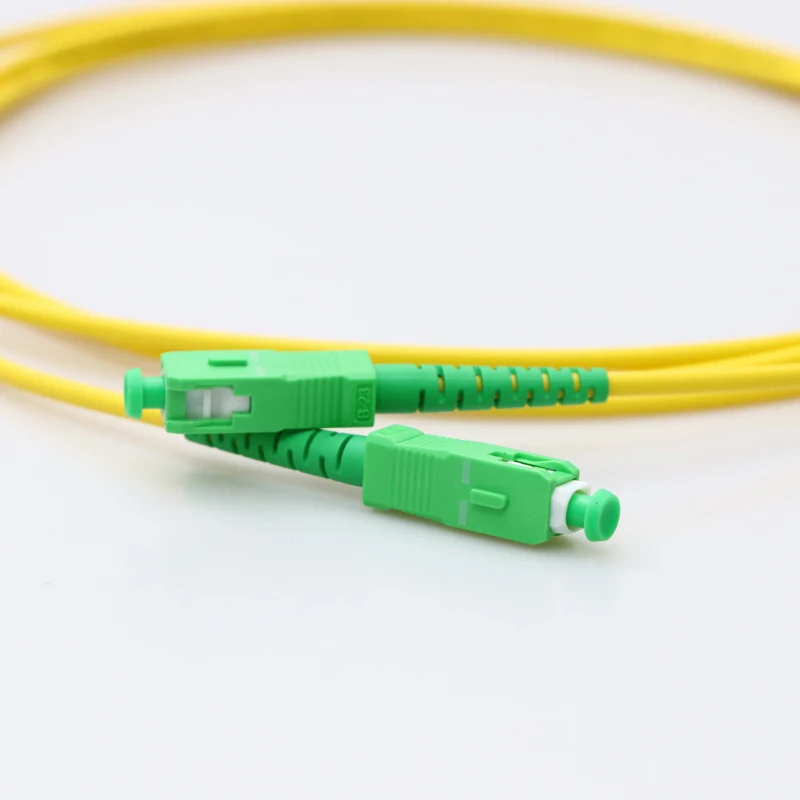

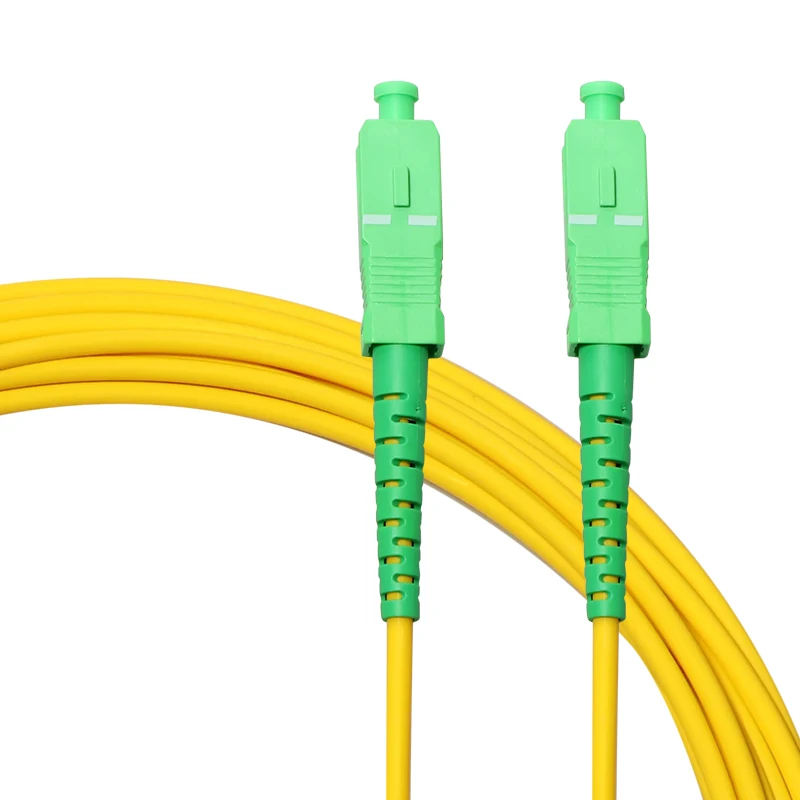

Fiber optic patch cord is available in both singlemode and multimode versions. Both singlemode and multimode versions fiber optic patch cord come with a zirconia ceramic ferrule with pre-polished PC,UPC,APC profile and convex spherical end. These end face types allow for faster polishing, and low back reflection and optical loss, while ensuring maximum repeatability

SC LC ST FC MTRJ SMA simplex duplex fiber optic patch cable

APPLICATION

1.Telecommunications
2.CATV, LAN, MAN, WAN, Test &Measurement
3.Military industry
4.Medical

Title goes here.

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Mode
Single mode
Multimode
Polish
UPC
APC
PC
Insertion Loss
≤0.30dB
≤0.20dB
≤0.20dB
Return Loss
≥50dB
≥60dB
≥30dB
Test Wavelength
1310/1550nm
Durability(500 Matings)
≤0.2dB
Operating Temperature
-40℃~+60℃
Storage Temperature
-45℃~+85℃
Fire Resistant
IEC 60794-2-30
Standards-Compliant
ROHS,IEC and GR-326
Fiber type
Single mode:
(1)9/125-G652D
(2)9/125-G655
(3)9/125-G657A,G657A2
(4)9/125-G657B3
Multimode:
(5)50/125-OM2
(6)62.5/125-OM1
(7)50/125-OM3
(8)50/125-OM4
(9)50/125-OM5
Fiber Brand
YOFC, Corning, Sumitomo, Fujikura
Connector
SC/PC, SC/APC, LC/PC, LC/APC, FC/PC, FC/APC, ST/PC, E2000/PC, E2000/APC, MU/PC, MTRJ/Female, MTRJ/Male, MPO/MTP, DIN/PC, SMA/PC, D4/PC
Cord type
Simplex ,Duplex
Cable diameter
0.9mm ,1.2mm, 1.6mm, 1.8mm, 2.0mm, 2.8mm, 3.0mmm, 4.1mm
Cable jacket
PVC, OFNR, LSZH, OFNP
length(M)
0.5m,1m,2m,5m,10m,25m,50m,100m…Customized

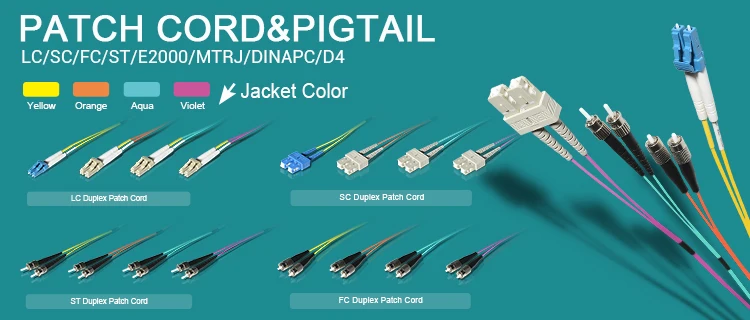

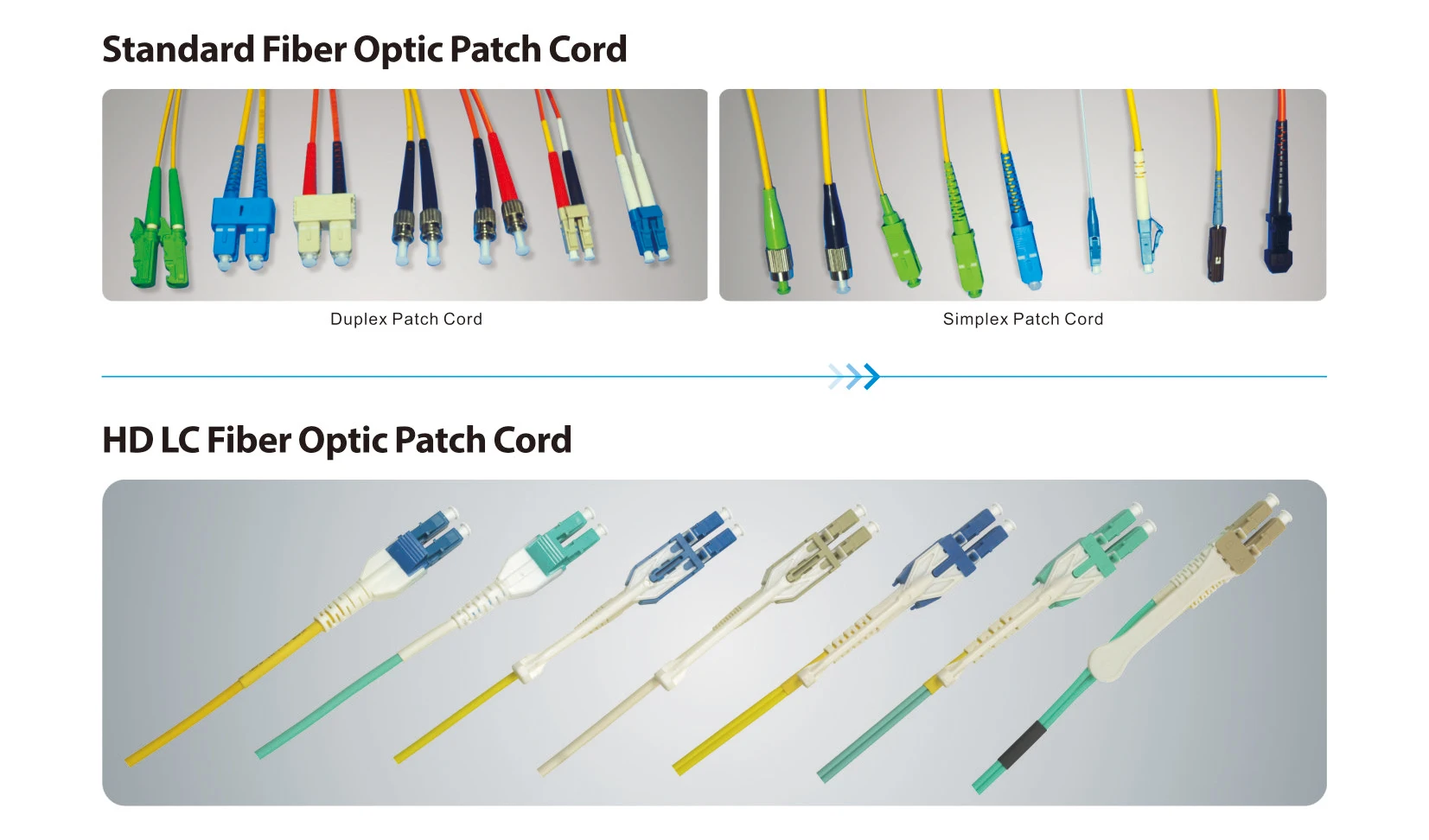

main products
Fiber Optic Cable
Patch Cord&Pigtail
MPO/MTP
FTTX Cable Assembly
PLC Splitter
Fast Connector
Our Company

Shenzhen DYS Fiber Optic Technology is a leading company in developing and manufacturing advanced fiber optic products,mainly make fiber optic indoor and outdoor cable, CPRI waterproof jumper, MPO/MTP jumper , standard fiber optic jumper and PLC Splitter. DYS win the honorary title of National High-tech enterprise by Shenzhen government in 2014.

With years of experiences in the fiber optic industry, our factory is fully equipped over 3500 square meters and more than 23 non dust production lines .About 200 well-trained staff and engineers are contributing to our proud products. We have 5 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 8 production lines for standard jumper and 8 PLC Splitter production lines.

The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on.

All of our optical products are RoHS compliant and DYS also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world, DYS fiber optic is looking forward to cooperate with you.

DYS Certifications

INNOVATIVE TECHNOLOGY

We always learn new technology by investing in production facilities, engineering process control systems, and talent development to maintain our status as a leading fiber optic connection solutions.

Our Exhibitions
Packing & Delivery

Sample

Within 1-2 working days

Wholesale orders

3-7 working days according various quantities

FAQ

1. How many staff's we have?
Answer: About 200 well-trained staff and engineers.

2. When our company be established?
Answer: We started from year 2008.

3. What's our main products?
Answer: DYS dedicates to the developing, production, marketing of the Fiber Optic Cable,
Indoor/Outdoor Patch Cord, Splitter, Adapter, Attenuator, and so on.

4. What is the area of the factory?
Over 3500 square meters
More than 18 non dust productions lines in total
4 production lines for Fiber Optic Cable
2 high standard MPO/MTP Jumper assembly lines
8 production lines for standard Jumpe
4 PLC Pplitter production lines

5. What certificate we have?
Answer: ISO 9001: 2015, RoSH, CE, High and New Tech Enterprise Certficate.
