SG-490 Double sides hot and cold roll to roll laminating machine

  • 1-2 Units
    $1,045.00
    $1,100.00
  • 3-4 Units
    $1,026.00
    $1,080.00
  • >=5 Units
    $997.50
    $1,050.00
5% OFF Discount ends in : : :
Power:
2.2KW
Model Number:
SG-490
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Customization:
Customized packaging (Min. Order: 20 Units)
Customized logo (Min. Order: 20 Units)

More

Graphic customization (Min. Order: 20 Units) Less
Contact Supplier
Samples - $1,150.00 /Unit, 1 Unit (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 Year
Packaging Type:
Bags, Cartons, Film, Foil, Pouch, Stand-up Pouch
Packaging Material:
Paper
Type:
Laminating Machine
Condition:
New
Application:
Apparel, Beverage, Commodity, Medical, Textiles
Automatic Grade:
Semi-Automatic
Driven Type:
Electric
Voltage:
110V/220V
Place of Origin:
Zhejiang, China
Brand Name:
SIGO
Dimension(L*W*H):
102*89*111cm
Weight:
130kg
Certification:
CE ISO9001
After-sales Service Provided:
Free spare parts, Online support, Video technical support
Product name:
SG-490 Double sides hot and cold roll to roll laminating machine
Laminating temperature:
60~150°C
Laminating speed:
1-9m/min
Max. Laminating width:
490mm
Laminate Thickness:
60-800gsm
Cold&Hot Laminting:
Yes
Single&Double Sides Laminating:
Yes
Heating Roller:
Big Steel Roller and Silicon Roller
Feeding paper:
Automatic with belt
Model Number:
SG-490

Packaging & Delivery

Selling Units:
Single item
Single package size:
102X89X111 cm
Single gross weight:
130.0 kg
Package Type:
SG-490 Double sides hot and cold roll to roll laminating machine 1pcs/ Wooden carton Carton Dimensions: 160*110*135cm G.W: 130KG N.W: 100KG
Picture Example:
package-img
Lead Time :
Quantity(Unit) 1 - 1 2 - 10 11 - 20 >20
Est. Time(days) 7 10 15 To be negotiated
Product Description

SG-490 Double sides hot and cold roll to roll laminating machine

This machine covers a small area, is operated conveniently, run fast. It's equipped with automatic temperature-control and speed-regulation, automatic feeding. Several rolls or redundant rolls can be slit at one time, so this machine is regarded as a slitter.
The machine adopts pre-coated film as the material. It is widely used for lamination on the surface of window packing paper boxes, various books, maps, pictures, certificates, holographic cellphone etc. After the above products are laminated, they have the features of water-resistance, clear graphic arts and strong three-dimensional sense.

Semi-automatic FM490/720 laminating machine
Model Name
SG-490
SG-720
Max. Laminate Width
490mm
720mm
Laminate Thickness
60-800gsm
Max. Laminate Speed
9m/min
Warming Up Time
10min
Suggested Laminate BOPP Film
25-250mic
Max. Temperature
150 degree
Operating Panel
LCD Screen
Auto Feed Paper with Belt
Yes
Single Laminate
Yes
Double Laminate
Yes
Cold&Hot Laminate
Yes
Cut film knife
Yes
Perforating knife
Yes
Auto rewinding paper
Yes
Reverse
Yes
Dia. of core
1",1.5",3"
The quantity of roller
4pcs
Speed control
9 gear
Power
2.2KW
2.5KW
Voltage
AC110V(60HZ)
AC210V~230V(50HZ)
Package
1pcs/Wooden Case
Carton Size
102*89*111cm
112*102*111cm
G.W.
130kgs
180kgs
N.W.
110kgs
158kgs

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

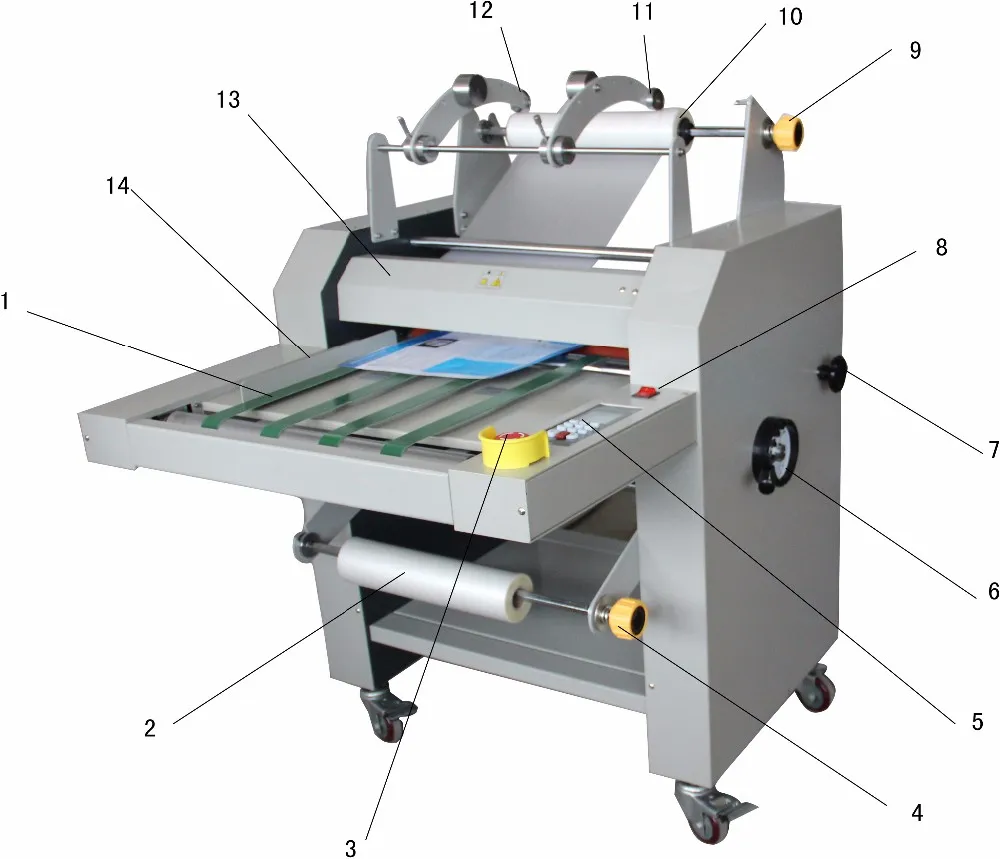

Detailed Images
1. Conveyor belt
7. Rull fim handle
2. Bottom film
8.Power switch
3.Emergency stop
9. Adjust upper film adapter
4.Adjust bottom film adapter
10.Upper film
5. Operating panel
11. Cut knife
6. Handle
12. Perforating knife

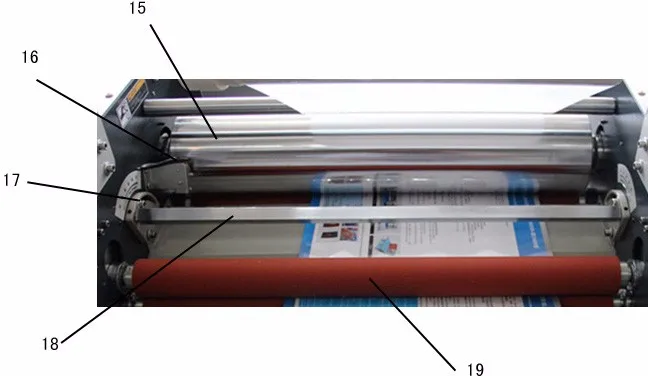

13. Safty cover
17. Anti curling bar limiting
14. Limting block
18. Anti curling bar
15.Heating upper steel roller
19. Pull film roller
16. Temperature sensor
TROUBLESHOOTING
Machine will
Not turn on
a.Power switch is in “o”
(Off) position
b. Tripped circuit breaker.
c. Blown main power fuse
a.Put the power switch to
the “l” (On) position
b. Reset the circuit breaker.
c. Replace the fuse.
There is power, but the rollers are not turning after the “RUN” button is pressed
a.Safety cover is not closed.
b.Paper guide is not installed correctly
c.Blown motor fuse.
a.Close the safety cover to active the safety switch.
b.Properly install the paper guide so that the micro switch is activated.
c.Replace the motor fuse.
The unit is not heating up
a.The machine is in “COLD” mode.
b.Set temperature is lower than the room temperature.
a.Switch to “HOT” mode.
b.Raise the temperature according to the recommended film temperature.
The paper is not automatic feeding
a.The paper feeding roller is damaged.
b.Paper board is too high
a.Change the roller
b.Lower the paper board.
Many papers are feeding at the same time
a. Paper board is too low
a. Turn the paper board up.
Curled lamination:
The main roller temperatures are too low and/or lamination speed is too fast.
Raise the roller temperatures and/or lower the lamination speed.
Packing & Delivery
Packaging
Size
 (L) *  (W) *  (D)
Weight



Packaging Details
The normal package is non-fumigation casewooden box(Size: L*W*H).
If you need shipping mark on out of carton, pls tell us before order. Otherwise we will paste "SIGO OFFICE SUPPLIES" on carton.
