SG-TCM03N-15 384*288 Thermal network camera module 15mm athermalized fixed lens Drone camera system

  • 1-9 Pieces
    $2,535.00
  • >=10 Pieces
    $2,266.00
Type:
IP Camera
Style:
Box Camera Thermal Camera
Resolution:
384x288
$
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
15 day(s) after payment received
Customization:
Customized logo (Min. Order: 10 Pieces)
Firmware (Min. Order: 10 Pieces)
Samples: $2,535.00 /Piece, 1 Piece (Min. Order): Buy Samples
Contact Supplier
Samples - $2,535.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Savgood
Model Number:
SG-TCM03N-15
Special Features:
Athermalized Thermal Lens
Sensor:
Amorphous silicon
Technology:
Network
Resolution:
384 x 288
Lens:
15mm
Image Sensor:
Uncooled Microbolometer FPA(Amorphous silicon)
Fast Auto Focus:
Yes
Pixel pitch:
17um
IVS functions:
Yes
Protocol:
Onvif, GB28181, HTTP, RTSP, RTP, TCP, UDP
Compression:
H.265/H.264/H.264H
Spectral Range:
8~14μm

Packaging & Delivery

Selling Units:
Single item
Single package size:
20X20X20 cm
Single gross weight:
2.0 kg
Package Type:
Weight: approx. 200g (Included fixed Lens) Measurement: approx. 113mm*68mm*50mm (Included fixed Lens)
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 15 To be negotiated



Product Description

SG-TCM03N-15 alibaba





Model



SG-TCM03N-15: 384x288 Thermal Network Camera Module with 15mm Fixed Lens.



Features



> 384x288 / 640x480 Resolution, high sensitivity sensor

> 17um Pixel pitch.

> 15mm athermalized Thermal Lens

> Support various IVS functions

> Modular design, better to do function extension



Specification



SG-TCM03N-15

Model

SG-TCM03N-9,13,15,19,25

SG-TCM06N-9,13,15,19,25

Sensor

Image Sensor

Uncooled Microbolometer FPA(Amorphous silicon)

Resolution

384 x 288

640 x 480

Pixel Size

17μm

Spectral Range

8~14μm

Lens

Focal Length

9mm, 13mm, 15mm, 19mm, 25mm

F Value

1.0

Video Network

Compression

H.265/H.264/H.264H

Storage Capabilities

TF card, up to 128G

Network Protocol

Onvif, GB28181, HTTP, RTSP, RTP, TCP, UDP

Smart Alarm

Motion Detection, Cover Alarm,Storage Full Alarm

Resolution

50Hz: 25fps@(384x288)

50Hz: 25fps@(640x480)

IVS Functions

Support kinds of intelligent functions: Tripwire, Cross Fence Detection, Intrusion, Loitering Detection.

Power Supply

DC 12V±15% (Recommend: 12V)

Operating Conditions

(-20°C~+60°C/20% to 80%RH)

Storage Conditions

(-40°C~+65°C/20% to 95%RH)

Dimensions(L*W*H)

Approx. 113mm*68mm*50mm (Included fixed Lens)

Weight

Approx. 200g (Included fixed Lens)

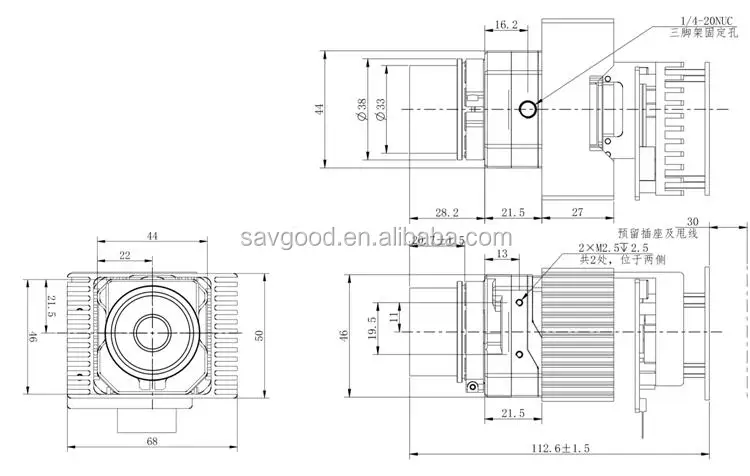

Dimension



SG-TCM03(06)N-9



Packaging & Shipping



Packaging:

packing



Shipping:

The common adopted Shipping methods including: DHL, FedEx, TNT, UPS, EMS, bulk order By Air, By Sea

We can calculate the cost based on your quantity and choose a most quick and economic way for you.
We will send you tracking number before shipping.



Application

Application

Why choose us

why choose us

Company Information

OEM 3



Savgood Technology - Zoom Camera Modules manufacturer.

Most of Long Range Zoom solutions are using Normal box camera and Motorized Lens. Which is very Expensive, Not Stable and Low Efficiency Auto Focus.

To solve the current issues of Long Range Zoom cameras solution, based on SONY's popular, high image quality and ultra starlight Exmor/Exmor R CMOS Sensor, we are focus on Ultra LONG RANGE ZOOM camera modules, and have successfully designed & developed many kinds of Zoom Camera Modules, for example, 2Mp 86x Zoom (10~860mm), 2Mp 90x Zoom (6~540mm), 2Mp/4K/8Mp 50x Zoom (6~300mm).

They can support our own fast & accurate excellent Auto Focus algorithm, Defog and IVS (Intelligent Video Surveillance) functions.
