SHINELF Multilayer PCB Circuit Boards Design Printed Printing electronic Circuit Board other PCB prototype PCBA assembly Service

FOB Reference Price:Get Latest Price
$0.10 - $10.00 / Piece | 1 Piece/Pieces (Min. Order)
Samples:
$0.10 /Piece | 1 Piece (Min. Order) | Buy Samples
Shipping:
Support Express · Sea freight · Land freight · Air freight
Lead Time:
Quantity(Pieces) 1 - 50 51 - 100 >100
Est. Time(days) 2 3 Negotiable
Customization:
Customized logo (Min. Order: 1 Pieces)
Customized packaging (Min. Order: 1 Pieces)

More

Graphic customization (Min. Order: 1 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Supplier Type:
Multilayer PCB
Model Number:
SH001
Place of Origin:
Guangdong, China
Product name:
SHINELF Multilayer PCB PCBA Manuafcturer
Product type:
OEM Rigid PCB
Usage:
PCB Manufactur And Assembly
Application:
Inverter Board,Power Bank Circuit Board,Keyboard PCB
Material:
FR4 94v0 Circuit Board
Color:
Green Blue Black Red White And Other
Function:
circuit board assembly
Layer:
4-22 layers
PCB test:
High-stringency 100% Visual Inspection
PCB Assembly Method:
Mixed SMD SMT DIP
Supply Ability
Supply Ability:
10000 Piece/Pieces per Day
Packaging & Delivery
Port
Shenzhen Port
Lead Time :
Quantity(Pieces) 1 - 50 51 - 100 >100
Est. Time(days) 2 3 To be negotiated
BENEFITS OF WORKING WITH US

Our purchasing power of more than $9,000,000 provides you with:Purchasing leverage

Your order gets highest priority during production while offering the best possible terms A wide PCB portfolio covering the full product life cycle

We can offer you: A lean process



Understanding your products and demands on your terms
High availability with commercial and technical competence and support

Our professional factory management team can provide you:Maximum factory performance

Systematically sourced factories only used for technologies they are good at
Own staff in our factories providing proactive quality assurance and on-time deliveries
Nothing affects the PCB’s total cost and reliability as much as the initial design. This is why SHINELF is equipped with professional technicians to work directly with you to understand your requirements and those of the product.

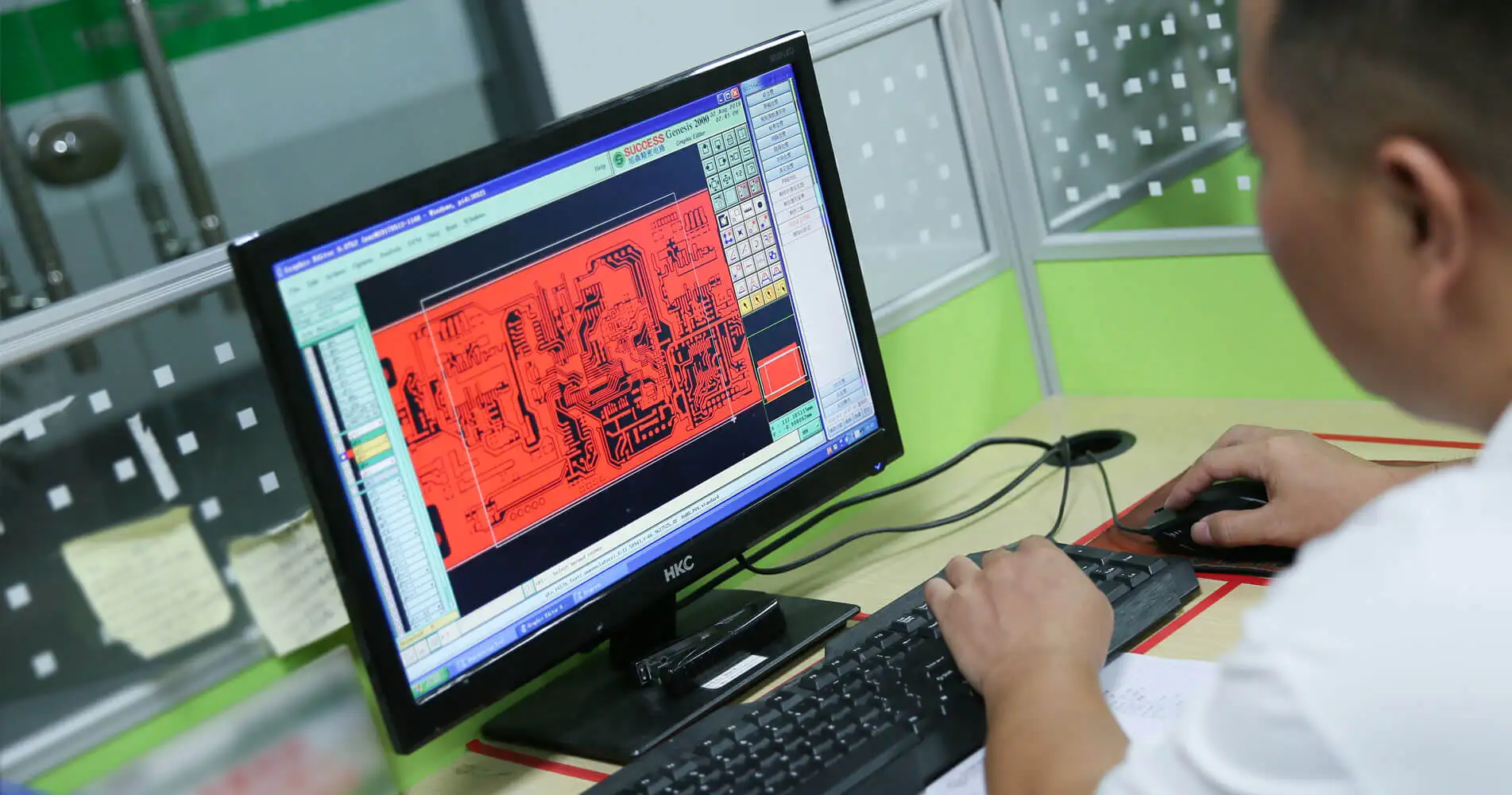

Time- and cost-saving design support
Compared with the original design, nothing will affect the cost and quality of the PCB. SHINELF hopes to understand your requirements and products. Our technicians are experienced in PCB production, especially how to produce PCB at the lowest cost without compromising design goals. We process Gerber files and customer-specific solutions every day, and can provide suggestions for value engineering and cost reduction plans to help you achieve the best design and even redesign to achieve cost-effective PCB from prototype to mass production produce.Our technicians have experience in providing recommendations for product and technology cost factors, and provide design solutions, structure, material selection, design rules, manufacturability, cost of different solutions, use of microvias, gold plating, special laminates And other quick feedback.  All our expertise is at your disposal.
Keeping Deliveries On Time
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
At present, SHINELF all use intelligent production systems to monitor various production links in real time, which greatly improves production efficiency and shortens delivery time. SHINELF PCB single and double panel proofing can achieve the fastest 24-hour shipment, and the punctuality rate has always been 98% The above is 5 times faster than traditional factories, which greatly helps customers shorten the research and development cycle.
Your PCB Requirements = Our PCB Portfolio

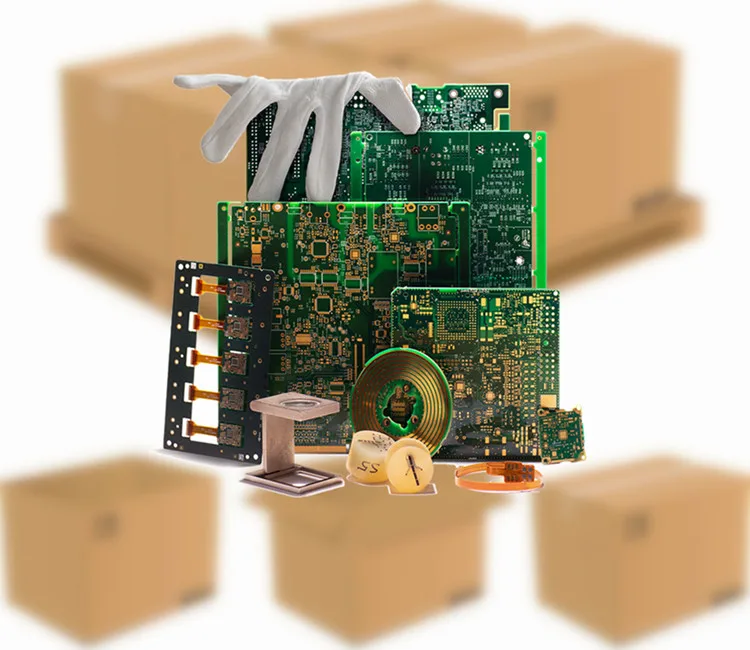

The portfolio of PCBs we produce contains a broad variety of products; from 2L PCBs to highly advanced HDI and flex boards. Even though the PCBs we produce differ a lot regarding functionality and areas of use, they all have one thing in common. The common denominator for all PCBs is that our experts oversee that the production – from design to prototyping up to volume – is working according to our processes and product specification.

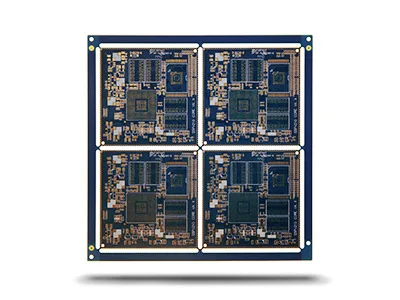

MULTILAYER

Multilayer PCBs

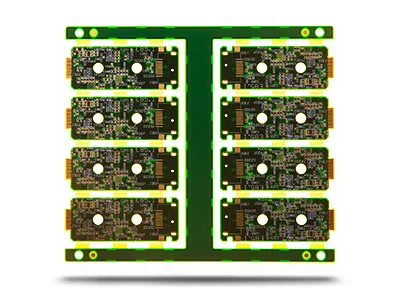

HDI

High Density Interconnect PCBs

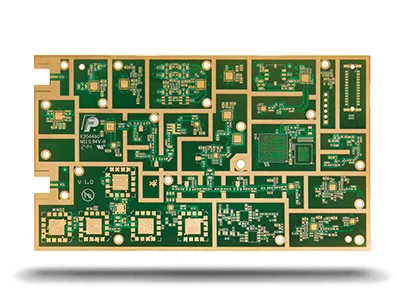

RF

Radio Frequency PCBs

FLEX

Flexible PCBs

RIGID-FLEX

Rigid-Flex PCBs

DOUBLE SIDED

When you order PCBs from SHINELF, you are buying quality that pays for itself over time. This is guaranteed through a product specification and quality control that is far more stringent than other suppliers, and ensures that the product delivers what it promises. Furthermore, thanks to SHINELF’s considerable purchasing power, the factories are willing to adapt to our requirements.
Quality pays for itself in the long run even if not apparent at first sight At first sight, PCBs differ little in appearance, irrespective of their inherent quality. It is under the surface that we focus on the differences so critical to the PCBs’ durability and functionality. Customers cannot always see the difference, but they can rest assured that SHINELF puts a great deal of effort into ensuring that in turn, their customers are also supplied with PCBs that meet the most stringent quality standards. It is vital that PCBs function reliably both during the manufacturing assembly process and, out in the field. Apart from the costs involved, faults during assembly can end up being built into the final product via the PCBs, with possible failure in the field resulting in compensation claims. Relative to that, in our opinion, the cost of a premium quality PCB is negligible. In all market sectors, particularly those producing products with critical applications, the consequences of such failures could be devastating. Such aspects must be considered when comparing PCB prices. Reliability and a guaranteed long life cycle involve an initially higher outlay, but will pay for themselves in the long run.
Multilayer PCBs – Technical specification
Feature
SHINELF Multilayer PCBs Technical specification
Number of layers
4 – 22 layers standard, 30 layers advanced, 40 layers prototype.
Technology highlights
Multiple layers of epoxy glass fiber bonded together with multiple layers of copper of varying thicknesses.
Materials
High performance FR4, halogen-free FR4, low loss and low Dk materials
Copper weights (finished)
18μm – 210μm, advanced 1050μm / 30oz
Minimum track and gap
0.075mm / 0.075mm
PCB thickness
0.40mm – 7.0mm
Maxmimum dimensions
580mm x 1080mm, advanced 610mm x 1400mm
Surface finishes available
HASL (SnPb), LF HASL (SnNiCu), OSP, ENIG, Immersion Tin, Immersion Silver, Electrolytic gold, Gold fingers
Minimum mechanical drill
0.20mm
HDI PCBs – Technical specification
Feature
SHINELF HDI PCBs  Technical specification
Number of layers
4 – 22 layers standard, 30 layers advanced
Technology highlights
Multilayer boards with a higher connection pad density than standard boards,
with finer lines/spaces, smaller via holes and capture pads allowing microvias
to only penetrate select layers and also be placed in surface pads.
HDI builds
1+N+1, 2+N+2, 3+N+3,4+N+4, any layer in R&D
Materials
FR4 standard, FR4 high performance, Halogen free FR4, Rogers
Copper weights (finished)
18μm – 70μm
Minimum track and gap
0.075mm / 0.075mm
PCB thickness
0.40mm – 3.20mm
Maxmimum dimensions
610mm x 450mm; dependant upon laser drilling machine
Surface finishes available
OSP, ENIG, Immersion tin, Immersion silver, Electrolytic gold, Gold fingers
Minimum mechanical drill
0.15mm
Minimum laser drill
0.10mm standard, 0.075mm advanced
Radio Frequency PCBs – Technical specification
Feature
SHINELF Radio Frequency PCBs  Technical specification
Number of layers
2-20 layers
Technology highlights
Controlled impedance, low loss materials, miniaturization
Materials
Low loss / low Dk, higher performance FR-4, PPO, Teflon, hydrocarbon / ceramic filled
Dielectric thickness
0.1mm – 3.0mm
Profile method
Routing, v-score
Copper weights (finished)
½ to 6 ounce
Minimum track and gaps
0.075mm / 0.075mm
Metal core thickness
0.4-2mm post bonded
Maxmimum dimensions
580mm x 1010mm
Surface finishes available
HASL (Lead-free), OSP, ENIG, Immersion tin, Immersion silver
Flexible PCBs (Flex)
Feature
SHINELF Flexible PCBs (Flex)
Number of layers
1 – 6L
Technology highlights
Mainly polyimide materials, flex PCB’s are necessary when motion of the PCB is needed, when 3-D interconnections are necessary(i.e. replacing cables and connectors) or when these are both combined due to limited available space.
Materials
Polyimide, Polyester
Profile method
Laser cutting, punching, rout
Copper weights (finished)
18μm – 70μm
Minimum track and gap
0.075mm / 0.075mm
PCB thickness
0.05mm – 0.80mm
Maxmimum dimensions
450mm x 610mm
Surface finishes available
OSP, ENIG, Immersion tin, Electrolytic gold, Gold fingers
Minimum mechanical drill
0.15mm
Rigid-Flex PCBs – Technical specification
Feature
SHINELF Rigid-Flex PCBs – Technical specification
Number of layers
4-16 layers
Technology highlights
Mixed materials including RF and high speed, standard FR-4, polyimide flex.
Adhesiveless or adhesive based polyimide flexconstructions, with cover coat
or flexible solder mask materials.
Bending performance
Based on the specific design, the bend performance can range from a basic
90 °bend to fit to a full dynamic flex with 360° rangeof motion in the flex tail
that will withstand continuous cycles throughout the product life.
Bend features
Bend radius controls the flexibility of the flex portion of the board. The thinner
the material the lower the bend radius and the more flexible the flex section
Materials
RA copper, HTE copper, FR-4, polyimide, adhesive
Copper weights (finished)
½ ounce, 1 ounce, 2 ounce, 3 ounce
Minimum track and gap
0.075mm / 0.075mm
PCB thickness
0.4mm to 3mm
PCB thickness in flex section
0.05mm to 0.8mm
Maxmimum dimensions
457mm to 610mm
Surface finishes available
ENIG, OSP Immersion tin, Immersion silver
Minimum mechanical drill
0.20mm
Double sided PCBs
Item
Processing Capacity
Process Details
Number of layers
2 layers
Ink
Sun series
White oil: Sun 2000 series, green oil: Sun 07 series
Plate type
FR-4 standard, FR-4 high performance, FR-4 halogen-free.
Dimensional accuracy
±0.15mm
CNC shape tolerance ±0.15mm, V-cut board shape
Thickness range
0.2-2.4mm
Current plate thickness: 0.4/0.6/0.8/1.0/1.2/1.6/2.0/2.4 mm
Thickness tolerance( t≥1.0mm)
± 10%
Please pay attention to this point: due to the production process (sink copper, solder mask, pad spraying will increase the thickness of the board), generally go to the right tolerance
Thickness tolerance ( t<1.0mm)
±0.1mm
Please note this point: due to production process reasons (immersion copper, solder mask, pad spraying will increase the thickness of the board) generally go straight to the tolerance
Minimum line width
4mil(0.1mm)
At present, it can be connected to 4mil line width, and the line width should be greater than 4mil as much as possible
Minimum clearance
4mil(0.1mm)
At present, it can be connected with 4mil line spacing, and the gap should be greater than 4mil as much as possible
Finished outer copper thickness
35um/70um(1 OZ/2 OZ)
Refers to the thickness of the copper foil on the outer layer of the finished circuit board, 1 OZ=35um, 2 OZ=70um
Finished inner copper thickness
35um
All inner layers are made with 1 OZ
Drilling hole diameter (machine drill)
0.25--6.3mm
0.25mm is the minimum hole diameter of the drilled hole, 6.3mm is the maximum hole diameter of the drilled hole.
Via single-sided welding ring
≥0.153mm(6mil)
If the conductive hole or plug-in hole unilateral welding ring is too small, but there is enough space there, the size of the
unilateral welding ring is not limited; if there is not enough space and there are dense traces, the smallest unilateral Welding ring shall not be less than 0.153mm
 Finished hole diameter (machine drill)
0.25--6.5mm
Due to the metal copper attached to the inner wall of the hole, the hole diameter of the finished hole is generally smaller than
the hole diameter in the document
Aperture tolerance (machine drill)

±0.075mm
The tolerance of the drill hole is ±0.075mm, for example, the hole is designed as 0.6mm, and the finished hole diameter of the physical board is 0.525-0.675mm is qualified and allowed
Finished hole diameter (machine drill)
0.25--6.5mm
Due to the metal copper attached to the inner wall of the hole, the hole diameter of the finished hole is generally smaller than
the hole diameter in the document
Aperture tolerance (machine drill)
±0.075mm
The tolerance of the drill hole is ±0.075mm, for example, the hole is designed as 0.6mm, and the finished hole diameter of the physical board is 0.525-0.675mm is qualified and allowed
Solder mask type
Photosensitive ink
Photosensitive ink is the most used type now, thermosetting oil is generally used in low-grade single-sided cardboard
Minimum character width
≥0.15mm
The minimum width of the character, if less than 0.15mm, the physical board may cause unclear characters due to design reasons
 Minimum character height
≥0.8mm
The minimum height of characters, if less than 0.8mm, the physical board may cause unclear characters due to design reasons
Character aspect ratio
1:5
The most suitable aspect ratio is more conducive to production
Route and outline spacing
≥0.3mm (12mil)
For gong board shipment, the distance between the wiring of the line layer and the outline line of the board is not less than
0.3mm; for the shipment of V-cut board, the distance between the wiring and the center line of the V-cut should not be less than 0.4mm
 Imposition: gapless imposition gap
0 gap fight
It is an imposition shipment, the gap between the middle board and the board is 0 (the document has detailed explanation)
Imposition: There are gaps
1.6mm
The gap of the gap imposition should not be less than 1.6mm, otherwise it will be more difficult when gong
Pads manufacturers copper laying method
Hatch way to lay copper
The manufacturer is using reduced copper, please pay attention to this design with pads.
Draw slot in Pads software
Use Drill Drawing layer
If there are many non-metallized slots on the board, please draw on the Drill Drawing layer
Window layer in Protel/dxp software
Solder layer
A few engineers mistakenly put it in the paste layer, and do not deal with the paste layer
Protel/dxp profile layer
Use Keepout layer or mechanical layer
Please note: Only one shape layer is allowed to exist in a file, and two shape layers are never allowed to exist at the same time.Please delete the unused shape layers, that is, you can only choose one of the Keepout layer or the mechanical layer when drawing
the shape.
Half hole process
Minimum half hole diameter 1.0mm.The number does not exceed 10
The half-hole process is a special process, the minimum hole diameter should not be less than 1.0mm
Solder mask
0.1mm
If there is a solder mask requirement, it must be noted! The price of the solder mask will rise according to the process
requirements. If the solder resist colors are green, red, and blue, the pad spacing must be ≥8mil; other color pad spacing must be ≥10mil
