SIM800 Quad Band GSM/GPRS 850/900/1800/1900MHz Module

FOB Reference Price:Get Latest Price
US $1-5 / Pieces | 10 Piece/Pieces SIM800 Quad Band GSM/GPRS 850/900/1800/1900MHz Module (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
SIMCOM
Model Number:
SIM800
Quad-band:
850/900/1800/1900MHz
Bluetooth:
compliant with 3.0+EDR
Dimensions:
24*24*3mm
Weight:
3.14g
Supply voltage:
3.4~4.4V
Function:
SMS Voice
Interface:
SPI PCM
GPRS Data:
GPRS class 12: max. 85.6 kbps
Certification:
CE ROHS FCC Approval
Application:
AT cellular command interface
Supply Ability
Supply Ability:
2000 Piece/Pieces per Day SIM800 Quad Band GSM/GPRS 850/900/1800/1900MHz Module
Packaging & Delivery
Packaging Details
SIM800 Quad Band GSM/GPRS 850/900/1800/1900MHz Module
Port
shenzhen
Lead Time :
3 days

SIM800 Quad Band GSM/GPRS 850/900/1800/1900MHz Module

Product Description

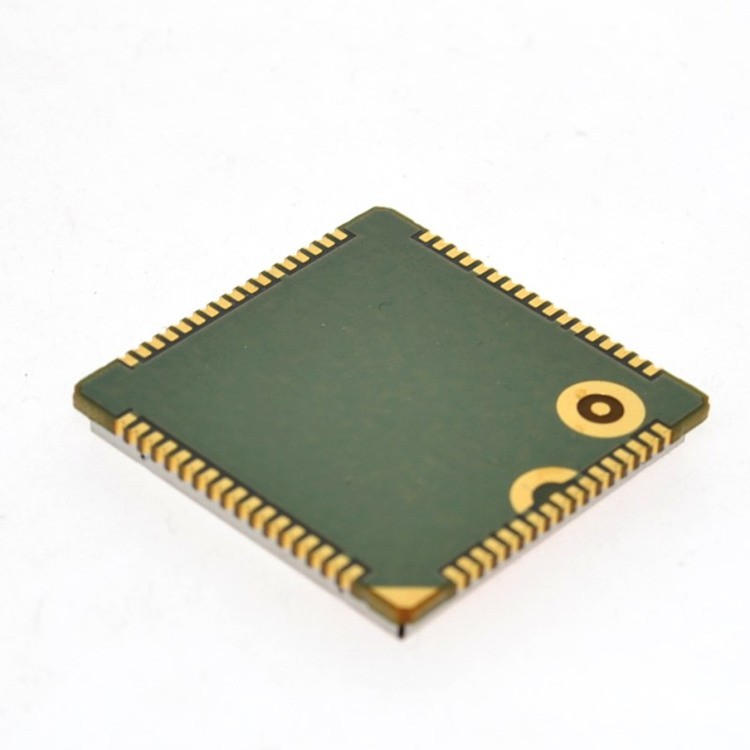

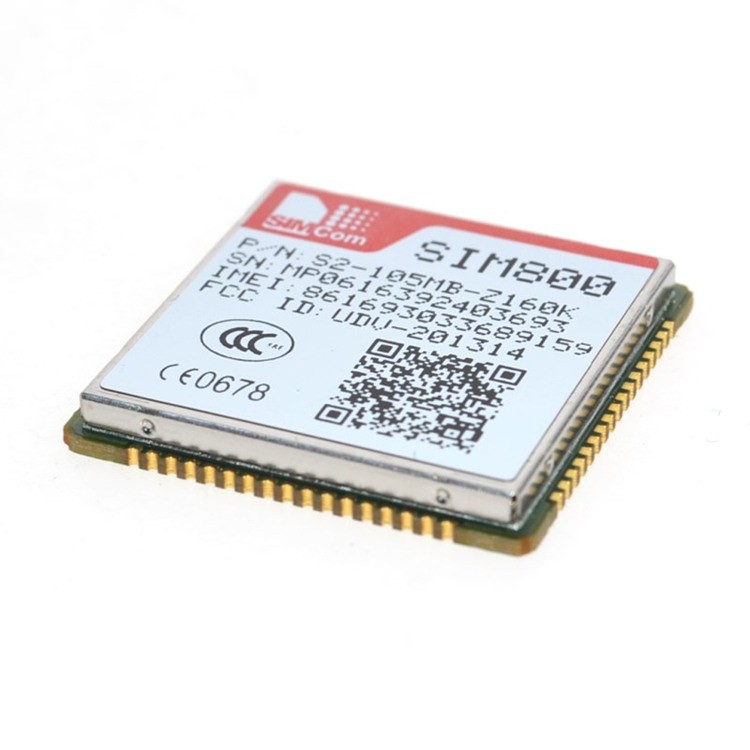

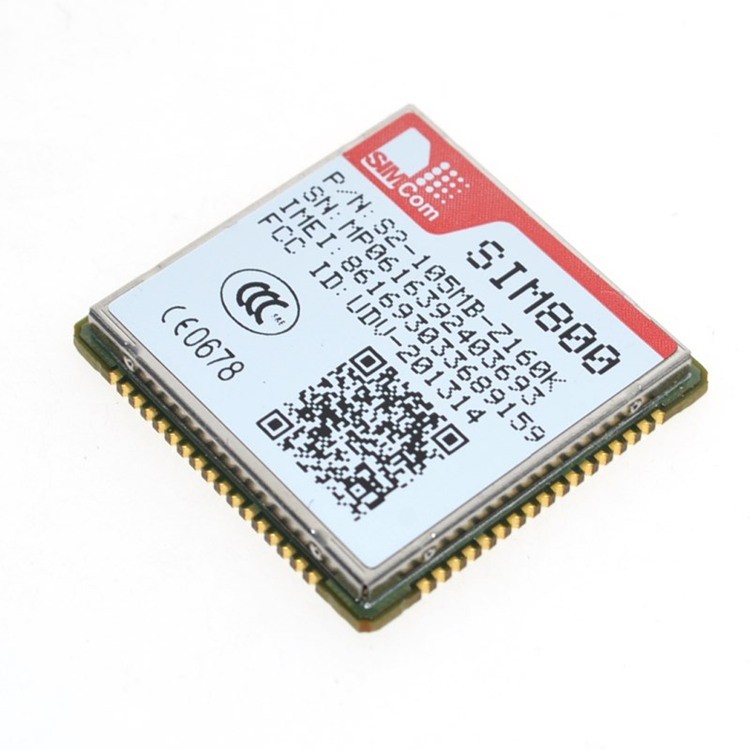

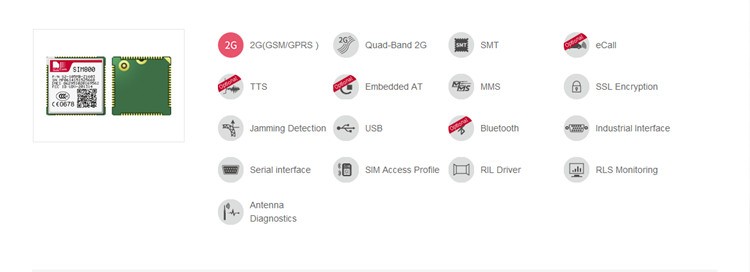

 SIM800.jpgSIM800 Quad Band GSM GPRS 850 900 1800 1900MHz Module1.jpgSIM800 Quad Band GSM GPRS 850 900 1800 1900MHz Module2.jpgSIM800 Quad Band GSM GPRS 850 900 1800 1900MHz Module4.jpg

SIM800 Introduction:

SIM800 is a complete Quad-band GSM/GPRS solution in a SMT type which can be embedded in the customer applications.




SIM800 support Quad-band 850/900/1800/1900MHz, it can transmit Voice, SMS and data information with low power consumption. With tiny size of 24*24*3mm, it can fit into slim and compact demands of customer design. Featuring Bluetooth and Embedded AT, it allows total cost savings and fast time-to-market for customer applications.
Details:
General features
• Quad-band 850/900/1800/1900MHz
• GPRS multi-slot class 12/10
• GPRS mobile station class B
• Compliant to GSM phase 2/2+
– Class 4 (2 W @ 850/900MHz)
– Class 1 (1 W @ 1800/1900MHz)
• Bluetooth: compliant with 3.0+EDR
• Dimensions: 24*24*3mm
• Weight: 3.14g
• Control via AT commands
(3GPP TS 27.007,27.005 and SIMCOM enhanced AT Commands)
• Supply voltage range 3.4 ~ 4.4V
• Low power consumption
• Operation temperature:-40℃ ~85℃

Specifications for GPRS Data
• GPRS class 12: max. 85.6 kbps (downlink/uplink)
• PBCCH support
• Coding schemes CS 1, 2, 3, 4
• PPP-stack
• CSD up to 14.4 kbps
• USSD
• Non transparent mode

Specifications for SMS via GSM/GPRS
• Point to point MO and MT
• SMS cell broadcast
• Text and PDU mode

Software features
• 0710 MUX protocol
• Embedded TCP/UDP protocol
• FTP/HTTP
• MMS
• E-MAIL
• DTMF
• Jamming Detection
• Audio Record
• TTS (optional)
• Embedded AT (optional)
Specifications for voice
• Tricodec
– Half rate (HR)
– Full rate (FR)
– Enhanced Full rate (EFR)
• AMR
– Half rate (HR)
– Full rate (FR)
• Hands-free operation
(Echo suppression)

Interfaces
• 68 SMT pads including
• Analog audio interface
• PCM interface(optional)
• SPI interface (optional)
• RTC backup
• Serial interface
• USB interface
• Interface to external SIM 3V/1.8V
• Keypad interface
• GPIO
• ADC
• GSM Antenna pad
• Bluetooth Antenna pad

Compatibility
• AT cellular command interface

Certifications
• CE
• GCF
• FCC
• TA
• CTA
• CCC
• ROHS
• REACH
• ANATEL
• A-TICK



Packaging & Shipping


  • Shipping: UPS / Fedex / DHL / TNT / EMS. Pls contact us directly which way your preferred.

           For the Countries & Regions where EMS cannot deliver, pls choose other shipping ways.
