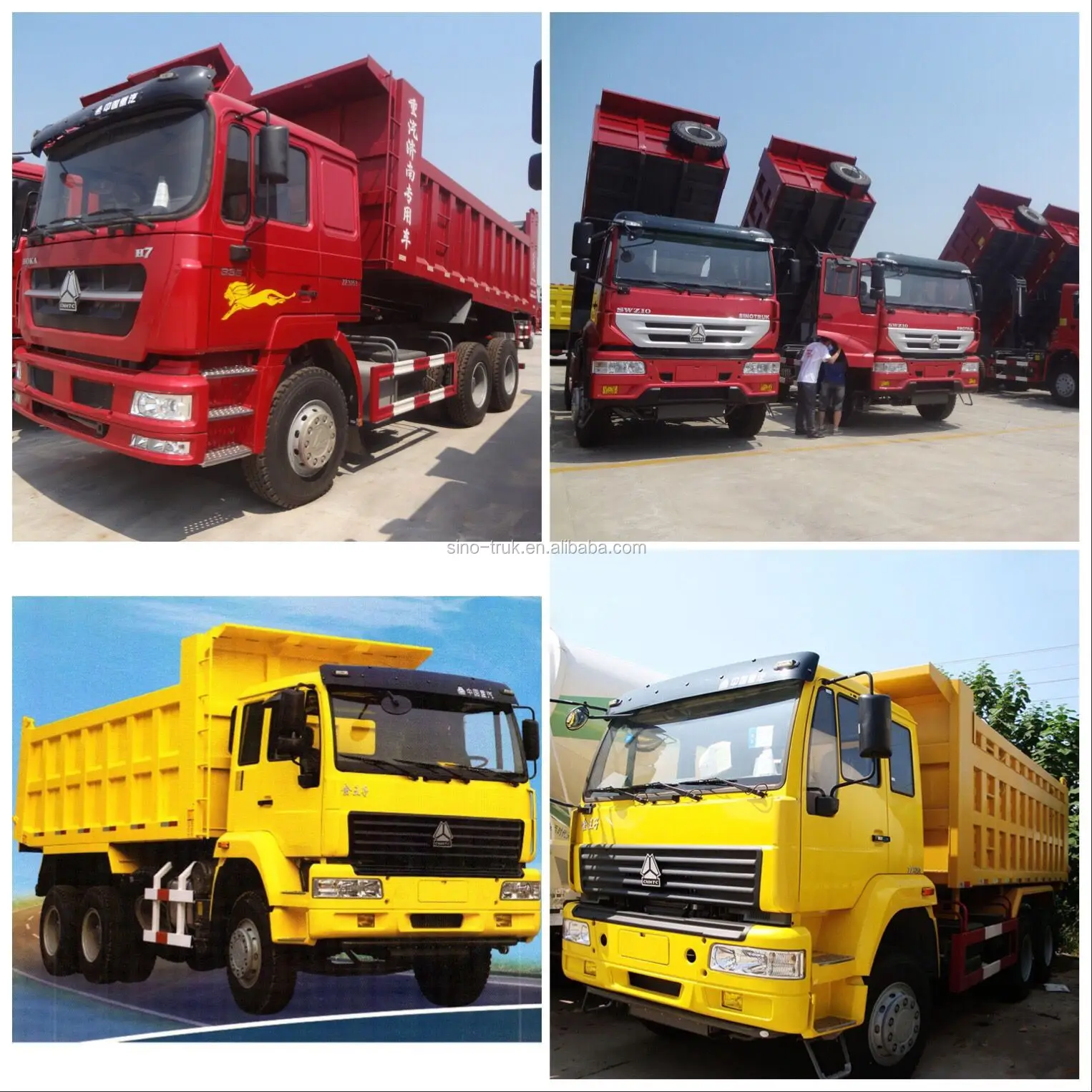

SINOTRUK SWZ 336hp lorry dump truck air valves dump truck bucket dump truck cover

FOB Reference Price:Get Latest Price
$36,900.00 - $41,200.00 / Units | 1 Unit/Units (Min. Order)
Model Number:
ZZ3251N3641A
Lead Time:
Quantity(Units) 1 - 10 >10
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Drive Wheel:
6x4
Capacity (Load):
21 - 30t
Horsepower:
351 - 450hp
Condition:
New
Transmission Type:
Manual
Emission Standard:
Euro 2
Fuel Type:
Diesel
Engine Capacity:
> 8L
Gross Vehicle Weight:
25000
Place of Origin:
Shandong, China (Mainland)
Brand Name:
SINOTRUK Golden Prince
Dimensions (L x W x H) (mm):
7900x2550x3300mm
Color:
Optinal
Tire:
11.00-20
Transmission:
HW15710
Cab:
L2000
Certification:
ISO9001 Ccc
Front axle:
HF7
Rear axle:
HC16
Wheel base:
3600+1350mm
Max. speed (km/h):
75km/h
Engine:
WD615.69
Supply Ability
Supply Ability:
1000 Unit/Units per Month
Packaging & Delivery
Packaging Details
Nude or polish with wax
Port
Qingdao Tianjin
Lead Time :
Quantity(Units) 1 - 10 >10
Est. Time(days) 30 To be negotiated
Product Description



Truck Model

ZZ3251N3641A (LHD)

Truck Brand

SINOTRUK –Golden Prince

Dimension(Lx W xH)(unloaded)(mm)

7900x2550x3300

Cargo body size (L*W*H)

5400x2300x1500    18m3

Cargo body thickness(mm)

bottom:8mm, side:6mm

Lift type of Carriage

Ventral lifting

Approaching angle/Departure angle(°)

20.5/26

Overhang(front/rear) (mm)

1320/1630

Wheel base (mm)

3600+1350

Max speed(km/h)

75

Curb weight(kg)

11930

Loading Weight(kg)

25000

Fuel tanker capacity(L)

300L with locking fuel cap

Clutch

Single-plate dry clutch Φ430mm

Engine Model

(Steyr technology, made in China)

Model

WD615.69,4- stroke direct injection diesel engine, 6 cylinders in line with water cooling , turbo-charging and inter-cooling

Horse Power, max(kw/rpm)

336HP,247KW/2200

Emission

EURO II

Fuel Type

Diesel

Transmission

Model

HW15710,10 forwards and 2 reverse

Brake system

Service brake

Dual circuit compressed air brake

Parking brake

spring energy, compressed air operating on rear wheels

Auxiliary brake

Engine exhaust brake

Steering system

Model

Standard type

Front axle

HF7 , Steering with double T-cross section beam

Loading capacity:7000KG

Rear axle

HC16, Pressed axle housing, central double reduction with differential locks between axles and wheels

Loading capacity: 16000kg

Color

Optional

Tire

11.00-20  nylon tire

10+1 spare

Electrical system

Operating voltage

24V,negative grounded

Starter

24V,7.35KW

Alternator

28V,1500W

Batteries

2*12V.165Ah

Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light.

Cab

L2000 cab, (single sleeper, with air-condition),



Packaging & Shipping

Packaging Details    All the truck will be polish with wax before shipping and will be according the truck type and destination port to choose suitable shipping way. There are three way can be choose, RORO, BULK CARGO VESSEL AND FLAT RACK CONTAINER

Port                         Tianjin,Qingdao

Lead time                Shipped in 30 days after payment



Our Services

1.Near 20 years Wholesaler experience in truck field

2.Specialization: Accurately meet your requirement, Experienced engineers serving for you

3.Good quality: Original products & OEM services, with many Certifications

4.Great variety and wide range: your “One-shop purchasing service”

5.English operation Manual

6.We will reply you for your inquiry in 24 hours

7.Important partner with SINOTRUK & SHACMAN and know the market very well

8.After sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.



Manufactory

INTERNATIONAL STANDARD MANUFACTURING



Strength casting legend, advanced production technology ensures the first-class quality level,

Professional heavy truck production lines of international standards create the most trusted card products for you.



SINOTRUK has many specialized international advanced level production line-frame, body assembly production and entire vehicle assembly, inspection and so on, and all use of advanced international, domestic leading production, testing facilities, high degree of automation, all can provide a strong support for the building of the model.



Vehicle assembly line is the longest general assembly line of heavy commercial vehicles in Asia. The whole production line is composed of pre line assembly line, trim line, engine assembly line and axle assembly line etc. SINOTRUK has the most advanced fully automatic nut tightening machine, pipe packing machine, transmission shaft packaging and assembly facilities and various liquid filling machines, electrical testing instrument and so on. Guarantee the quality of the vehicle assembly strongly.

TECHNOLOGY RESEARCH AND DEVELOPMENT ADVANTAGES



First leading advantage: SINOTRUK masters overall R & D core technology and major general component, and has self manufacturing capability

Second leading advantage: Unified technical thinking, unified planning, unified process means, unified quality standard

Third leading advantage: High-end professionals, improve product development chain, which make SINOTRUK unique advantage in domestic heavy-duty automobile product development



Contact Us

Name  : Caroline Xue

Phone: +86 13153196992

Website: www.sino-truck.cn



FAQ

Q. Can your trucks be legally used in our country ?

A: Yes, they are CCC and ISO approved, and it has valid VIN number so that it can be used legally on road

Q. How about your product quality?

A: The products have passed the ISO,CCC,SGS,BV, and CONTECNA qualification certification.All our spare parts are from the original manufacturers with original part number and and anti-fake label, the quality is 100% guaranteed.

Q. How about your company's service, especially after-sale service?

A: Jinan Sino Truck Sales Co.,Ltd. have been in this field for many years, our company is constantly improving the service quality to provide excellent service for customers according to the “client first” principle.We always do our best to solve all the problems and put our customer's interests in the first place.

Q. Is there any advantages of your price?

A: Jinan Sino Truck Sales Co.,Ld. is one of the important suppliers of Sinotruk, which provides guarantees for reasonable price and good quality. Especially,we provide a new service pattern--online assembly service, which aims to produce cars according to customers’ specific requirements.

Q. What is your lead time and voyage days?

A: Our trucks usually can be completed within 20 working days and the voyage day it may take 30 days to arrive in your ports, it depends on the distance of your country.
