SJDBGZ50 PE PP EVA PVC PA plastic single wall corrugated pipe making machine

  • 1-4 Sets
    $22,000.00
  • >=5 Sets
    $20,000.00
Model Number:
SJ-50
Output (kg/h):
60-80
$
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
15 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Samples: $1.00 /Set, 1 Set (Min. Order): Buy Samples
Contact Supplier
Samples - $1.00 /Set, 1 Set (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
PIPE
Plastic Processed:
PE, PP, PVC, ABS, xps, WPC, Polystyrene, PA, EVA, EPS, pet, PC, FRPP/PVC, HDPE, PPR, wood-plastic, ABS/PP, HDPE/PP, PE/PP, lldpe, LDPE, PP PE PVC EVA
Output (kg/h):
60 - 80
Screw Design:
Single-screw
Showroom Location:
Egypt, turkey, VIET NAM, philippines, SAUDI ARABIA, indonesia, pakistan, INDIA, Mexico, RUSSIA, spain, Thailand, Morocco, kenya, argentina, South Korea, CHILE, UAE, Colombia, algeria, Sri Lanka, Romania, BANGLADESH, south africa, KAZAKHSTAN, UKRAINE, kyrgyzstan, NIGERIA, uzbekistan, Tajikistan, malaysia, Australia
Place of Origin:
China
Brand Name:
TONGSAN
Voltage:
380V 50HZ 3Phase(Customized)
Dimension(L*W*H):
15m*2.2m*2.5m
Power (kW):
15
Weight:
1500kg
Certification:
ISO CE SGS
Warranty:
1 YEAR
After-sales Service Provided:
Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support
Key Selling Points:
22 years manufacturer high speed
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
Egypt, turkey, UNITED KINGDOM, VIET NAM, philippines, SAUDI ARABIA, indonesia, pakistan, INDIA, Mexico, RUSSIA, spain, Thailand, malaysia, Australia, Morocco, kenya, argentina, South Korea, CHILE, UAE, Colombia, algeria, Sri Lanka, Romania, BANGLADESH, south africa, KAZAKHSTAN, UKRAINE, kyrgyzstan, NIGERIA, uzbekistan, Tajikistan
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, farms, restaurant, HOME USE, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops
Name:
PE,PP, EVA,PVC plastic single wall corrugated pipe extusion line
Pipe diameter range:
4.5mm-175mm
Main machine model:
SJ-30/50/65
Production capacity:
10-100kg/h
Quantity of mould pairs:
42-72
Cooling style:
wind &water cooling
production speed:
6-12m/min
Metering way:
innducting mode
Coiling Way:
Automatically &Manually
Delivery days:
30 days
Screw Material:
38CrMoAlA
Screw diameter (mm):
50 mm
Screw L/D Ratio:
30:1
Product Certification certification
CE Certified.
Valid from 2019-02-19 until 2022-02-14

Packaging & Delivery

Selling Units:
Single item
Single package size:
60X60X60 cm
Single gross weight:
60.000 kg
Package Type:
Standard sea worthy packaging for SJDBGZ Series PE PP EVA PVC PA plastic single wall corrugated pipe making machine , mainly wooden pallet and vacuum film.
Lead Time :
Quantity(Sets) 1 - 1 2 - 3 >3
Est. Time(days) 15 45 To be negotiated
Video Description
Product Description

Plastic telescopic corrugated shrinkable pipe production line, plastic telescopic bellows shrinkable pipe equipment, folding drainage pipe production line,wash basin drainage pipe production line.

Qingdao Tongsan Plastic Machinery Co., Ltd. is located in Jiaozhou City, Qingdao, focusing on the plastic pipe extrusion
production line. The telescopic corrugated shrinkable pipe production line is one of our main products. The machine produce pipe  fast and well formed, and we can provide different models according to the pipe diameter and material.

Plastic telescopic bellows corrugated shrinkable  pipe use: lavatory sewage deodorization pipe, folding exhaust pipe, etc.
Plastic telescopic corrugated pipe production process: automatic feeding machine - extruder - head - forming machine - shrinking machine - cutting machine - stocking
Details Images

SJ65/30 single screw extruder

Adopt with Siemens motor, equip automatic loader and hopper dryer

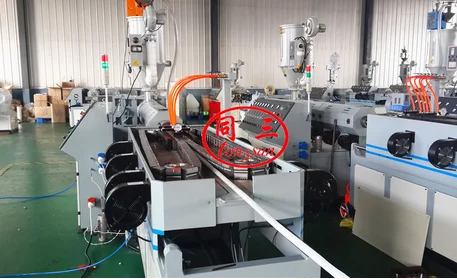

vacuum forming machine

1. water cooling under template, wind cooling on machine two sides. two types cooling method to guarantee
production speed2. vacuum forming to guarantee good product quality.

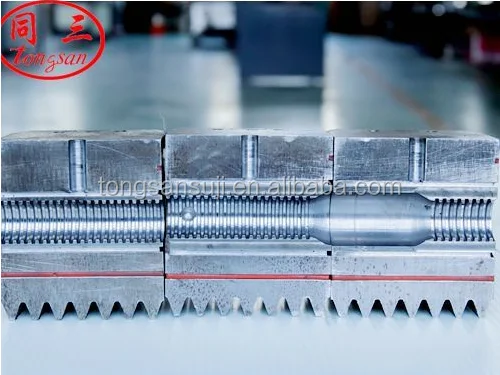

mould block:

1. make mould by our own CNC machine to control the whole line quality2. mould material: 40Cr with vacuum channel
3. mould design: according to customer request

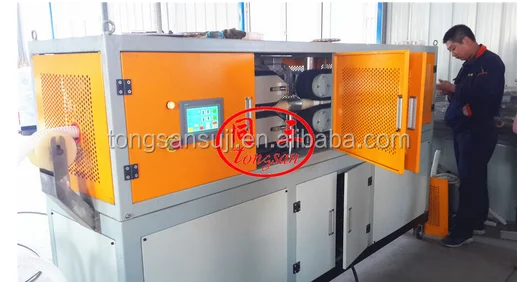

automatic shrink and cutting machineshrinking type:

U type haul off, Siemens inverter control
cutting type: automatic blade cutting, air cylinder control.
Normal speed corrugated pipe machine

4.5-110mm corrugated pipe making machine

This Plastic Single Wall Corrugated Pipe extrusion machine made by Qingdao Tongsan Plastic Machinery
Company is used to produce PP, PE, PVC, EVA, PA and other material single-wall corrugated pipes continuously.
Plastic single wall corrugated pipes have features of strong thermo-stability, corrosion resistance, abrasion resistance, high intensity, good flexibility, etc.
Single wall corrugated pipes are widely applied in many fields such as electrical thread-passing pipes, circuit of machine tool,protective pipe of lamps, water pipes in air conditioner, washing machine, bathroom, etc.
Pipe diameter range
4.5mm-12mm
9mm-32mm
12mm-50mm
50mm-110mm
Model of extruder
SJ45

SJ50

SJ65

SJ65

 Production capacity
20-30kg/h

40-50kg/h

60-70kg/h
70-90kg/h
Power of extruder
7.5kw
15kw
30kw
37kw
Power of forming machine
1.1kw
1.5kw
4kw
4kw
Pairs of modules
42pairs
50pairs
50pairs
70pairs
Cooling mode
Wind&Water cooling
Wind&Water cooling
Wind&Water cooling
Wind&Water cooling
Production speed
6-10m/min
8-12m/min
8-12m/min
2-6m/min
high speed corrugated pipe machine

High speed single wall corrugated pipe making machine

GSDBGZ high speed plastic pipe extruder machine 4.5-53mm single wall corrugated pipe production line is developed on the basis of our original single-wall corrugated pipe machine.
The molds are moved by gear on the runway. It is equipped with specially designed water cooling sealing system, and the
lubrication oil can be injected automatically.
In the forming machine, for small sizes mould, it can be set with two mould chambers which can make two different sizes of pipes only by adjusting the height of forming machine automatically.
All these features improve the production speed of single wall corrugated pipes to a great extent, which can reach 20-25m/min.
Besides, the production line is equipped with pre-stress eliminating cooling device, automatic tapping machine in production line and automatic coiling machine, and it is especially suitable for the production of car harness corrugated pipes.
Pipe diameter range
Pipe diameter range
9mm-50mm
9mm-53mm
(Pipe with joint)
Model of extruder
SJ45B
SJ65B
SJ65B
Production capacity
20-30kg/h
60-80kg/h
70-90kg/h
Power of extruder
7.5KW
30KW
37KW
Power of forming machine
1.1KW
4KW
4KW
Pairs of modules
63 pairs
72pairs
72pairs
Cooling mode
water cooling
water cooling
water cooling
Production speed
10-20m/min
20-25m/min
20-25m/min

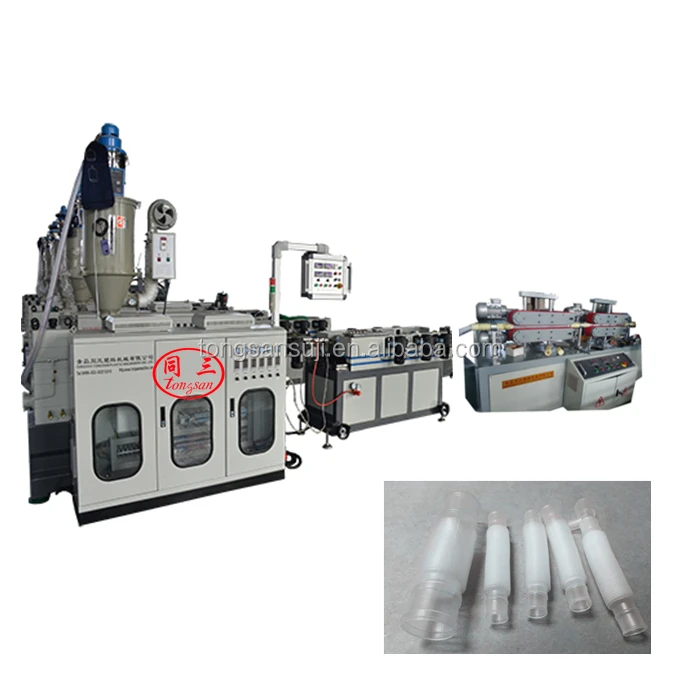

Compromise Joint pipe machine

SJDBGZ series plastic single wall corrugated pipe extrusion line can produce PE,PP, EVA, PVC, PA corrugated pipe

Mould chain adopts gear transmission, base plate adopts water cooling, mould adopts air cooling. Corrugated pipe produced by our
machine has the features of high production speed, even corrugated shape, straight pipe seam and smooth surface.

By equipped with vacuum pump and vacuum type mould, it can produce different use corrugated pipe with joint (wash basin drain
pipe, air conditioner pipe, hookah pipe etc)
