SKILT factory price Auto sticker labeling machine on front and back sides

FOB Reference Price:Get Latest Price
$13,000.00 - $16,000.00 / Sets | 1 Set/Sets (Min. Order)
Power:
1000W
Model Number:
DLM-A
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 20 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 Year
Packaging Type:
Bottles
Packaging Material:
Glass, Paper, Plastic
Type:
Labeling Machine
Condition:
New
Application:
Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
220V,380V
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
Skilt
Dimension(L*W*H):
2400(L) 1350(W) 1500(H)mm
Weight:
300kg
Certification:
ISO,CE
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas
LABELING ENGINE:
GERMAN AVERY BRAND
Drive mode:
GERMAN AVERY
competitive edge:
full set of siemens configuration
Labeling speed:
60-200pcs/min
Product name:
Auto sticker Labeling Machine
Bottle type:
Round Square Flat Pet Bottle
Function:
Ahesive Sticker front back sides Labeling
Usage:
Adhesive Labels
Advantage:
Factory price Economy Labeling Machine
Supply Ability
Supply Ability:
500 Set/Sets per Year
Packaging & Delivery
Packaging Details
Standard exporting wooden package
Port
Shanghai Port
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 20 To be negotiated
SKILT PARTNER
Product Description

1.The Scope of Application:

The model DLM-A front back Two sides double sides Labeling machine ,suit for different kinds products that need labeling on front back two sides with two labels at the same time. Also suit for round bottle that need labeling wrap around.
(P.S. our labeling machine can be designed according to your needs)

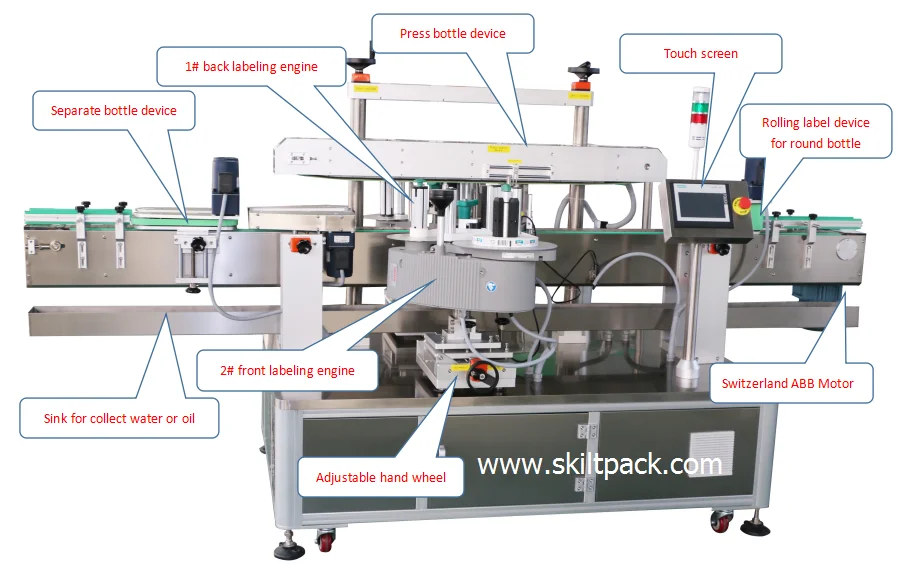

2. Device Characteristics:

Electrical cabinet,Conveying mechanism,Separate bottle device,Press bottle device,Roll label device,Brush label device,1# and 2# labeling engines,Operation system and control system

3. Device Advantages:

1) Control system: SIEMENS PLC control system, with high stable operation and extremely low failure rate.

2) Operation system: SIEMENS  touch screen,  rich with help function and fault display function.

3) Check system:Use German LEUZE check label sensor, automatic check label station, stable and convenient don't have much higher requirement for the worker.

4) Send label system:use German Avery labeling engine control system, stable with high speed.

6) Alarm function: such as label spill, label broken or other malfunction during machine working all will alarm and stop working.

7) Machine Material:The machine and spare parts all use material S304 stainless steel and anodized senior aluminum alloy,with high corrosion resistance and never rust.

8) Low voltage circuit all use the German Schneider brand.

Technical Parameter
Model
DLM-ALS104
Capacity (pcs/min)
50-230
Driving Mode
German Avery Labeling engine
Labeling accuracy
±1mm
Labeling Speed(m/min)
≤35
Label Specification
adhesive sticker, transparent or opaque
Suit bottle size
Can customized
Suit label size
Height 20-160mm Length 25-300mm
The inner diameter or label roll
76mm(min)
The outer diameter of label roll
350mm(max)
Power
1000w
Voltage
can customized, 110V/220V/380V
Machine size
2600x1350x1500mm
No
Name
Model
Unit
Brand
1
PLC control system
1763-L16BBB
1 set
SIEMENS
2
Touch-screen
TPC7062KW
1piece
SIEMENS
3
Inverter
22F-A2P5N103
1piece
Delta
4
photoelectric sensor
(check bottle)
FS-N18N
1Set
Japan KEYENCE
5
Photoelectric sensor
(check label)
GS61
2sets
German Leuze
6
Main transport motor
370W1:30
1piece
Switzerland
ABB
7
Servo motor
2004-RZ08BAIAN3
2 sets
America AB
8
Drive
2003-CSD3-08BX2
2 sets
America AB
9
Separate Bottle Motor
40W 1:30
2sets
German
JSCC

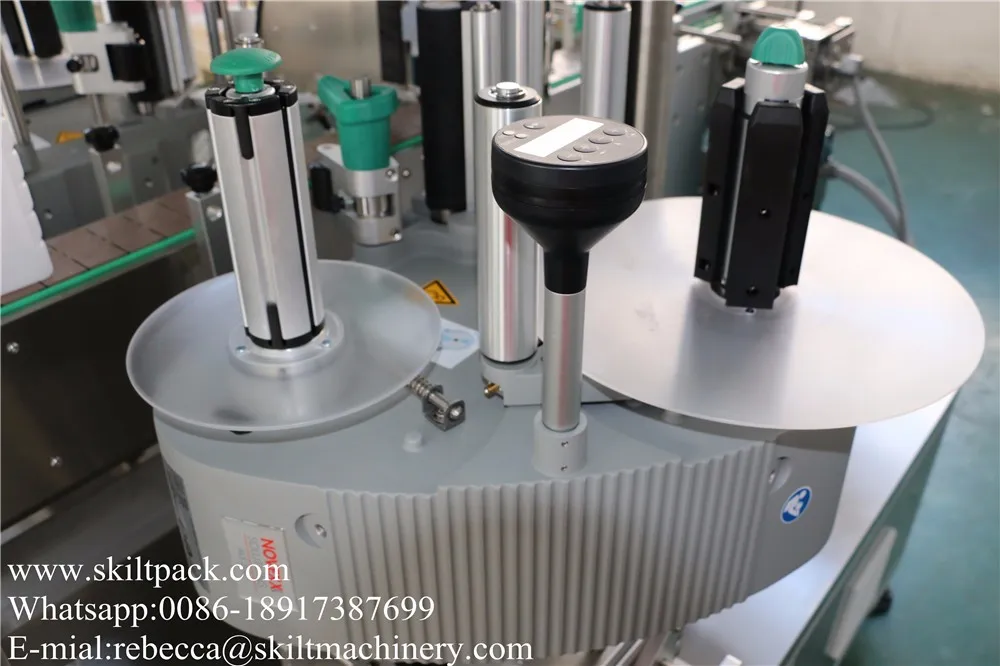

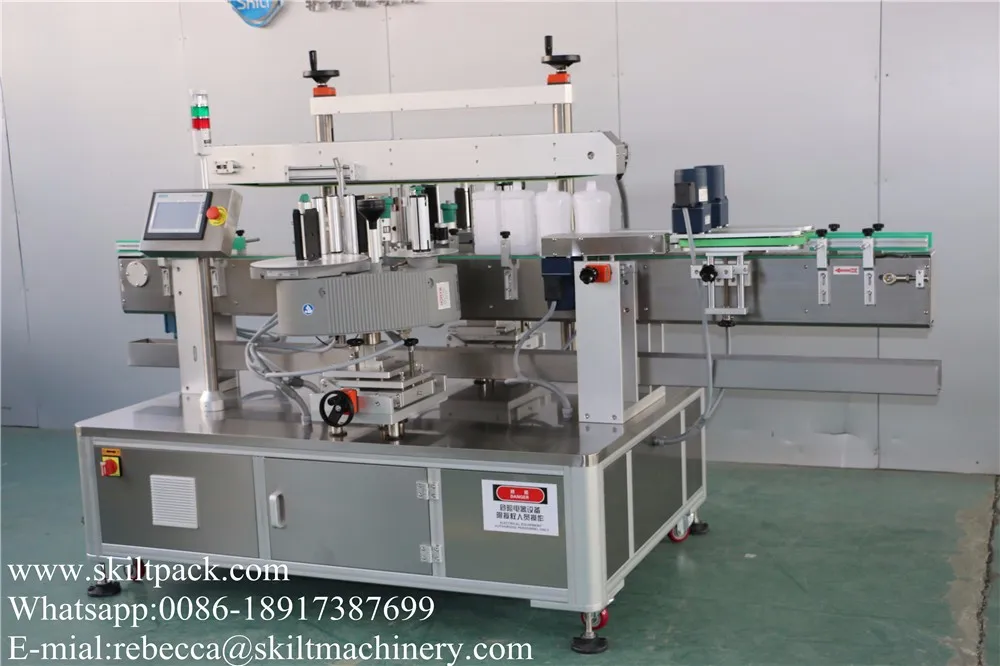

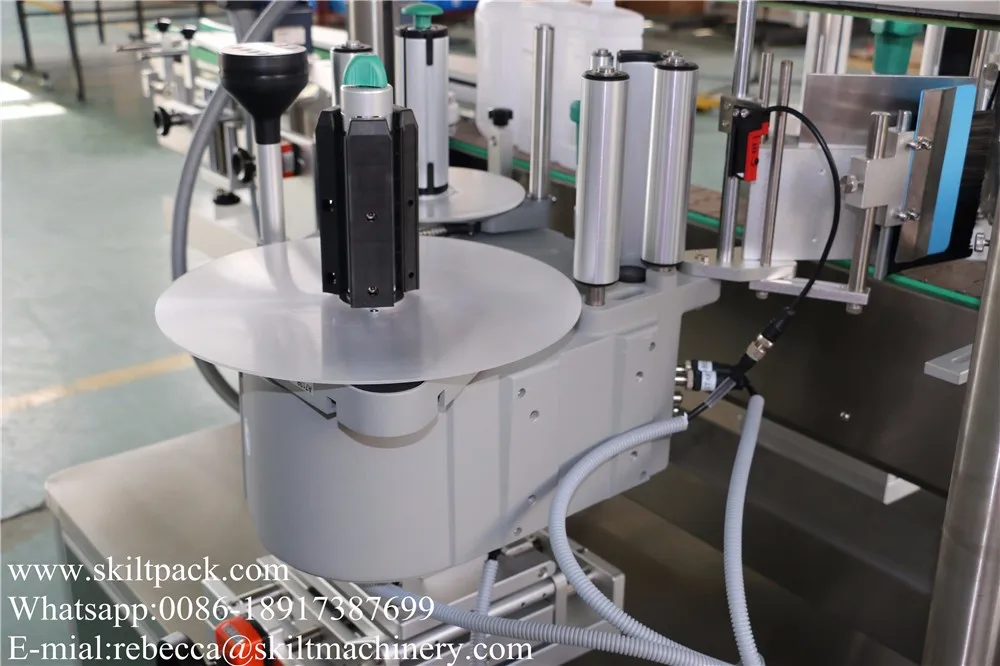

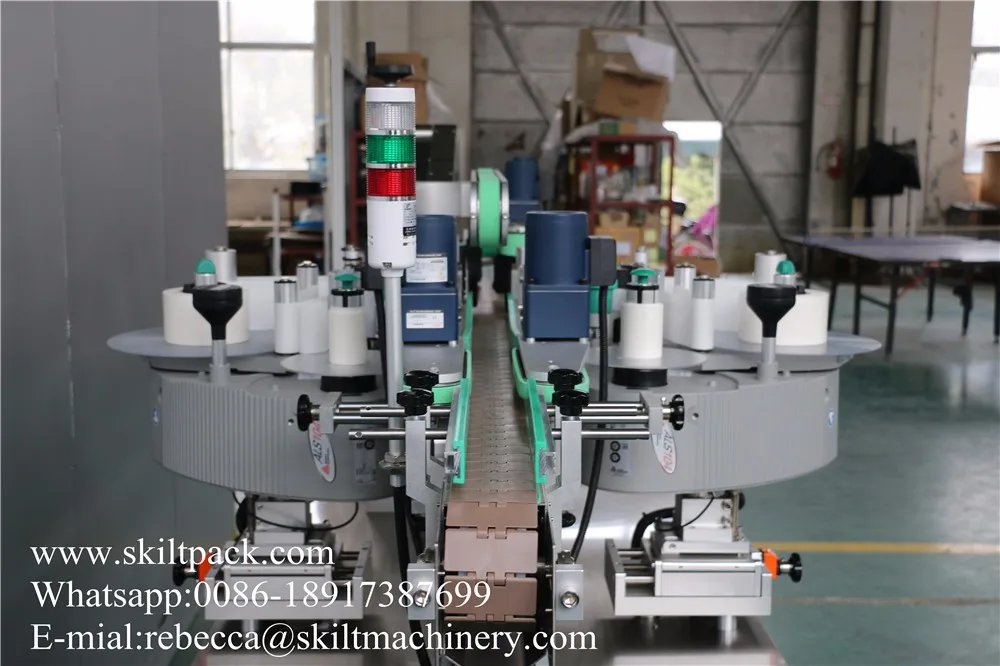

Detailed Images
Machine Processing
SKILT TEAM
SKILT NOTES

1. Q: What label material does your machine use ?
A: Self-adhesive sticker.

2. Q: The machine is automatic or semi-auto?
A: We only produce the automatic machine .

3. Q: Which kinds of machine are suit for our products labeling requirement?
A:Pls supply us your products and label size (the photo of products with label on it is rather helpful), then I will suggest you the suitable machine for reference.

4. Q: The machine can connect with the product line or not ?
A: Machine can connect with production line or put on the production line or operation alon all ok as you need .
