SMARTS POWER Constant Voltage Triac dimmable LED driver 24W 48W 60W 96W 150W 200W Constant Current dimmable LED power supply

FOB Reference Price:Get Latest Price
$6.00 - $30.00 / Pieces | 1 Piece/Pieces (Min. Order)
Lead Time:
Quantity(Pieces) 1 - 100 101 - 200 >200
Est. Time(days) 3 4 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China (Mainland)
Brand Name:
SMARTS
Model Number:
SMT-012-024VT
Output Power:
24W~200W
Output Type:
Single
Input Voltage:
100-130V/ 170-265V
Output Voltage:
12V/24V
Output Frequency:
47-63Hz
Output Current:
1-16.6A OR 300ma-2400ma
Outer case:
plastic case/Aluminium
Dimming mode:
Triac Dimmable
working mode:
Constant Voltage/Constant Current
warranty:
5 years warranty
certificate:
CE, ETL/cETL, RoHS approval
Universal AC input:
100-135V/170-265V
Built-in active PFC function:
PF>0.90 for 86% of load or higher
Protections:
Short circuit/Overload/Over voltage/ Over temp.
Application:
Indoor & outdoor LED illuminating lights
Item:
triac dimmable led driver
Product Certification Verified
CE Certified.
Valid from 2016-03-02 until 2049-12-31
ETL Certified.
Valid from 2016-09-13 until 2049-12-31
RoHS Certified.
Valid from 2013-10-23 until 2049-12-31
Supply Ability
Supply Ability:
30000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
white box + seaworthy carton packing for SMARTS POWER Constant Voltage Triac dimmable LED driver 24W 48W 60W 96W 150W 200W Constant Current dimmable LED power supply
Port
Xiamen
Lead Time :
Quantity(Pieces) 1 - 100 101 - 200 >200
Est. Time(days) 3 4 To be negotiated
Video Description

SMARTS POWER Constant Voltage Triac dimmable LED driver 24W 48W 60W 96W 150W 200W Constant Current dimmable LED power supply



Accessories

    Product Description

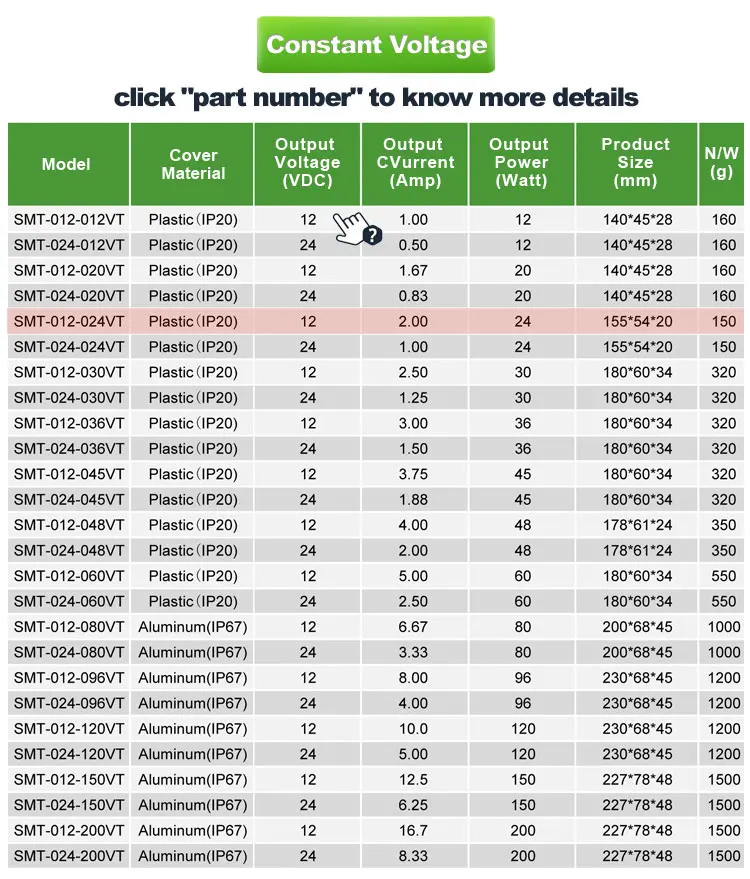

Model

SMT-012-024VT

SMT-024-024VT

output

DC Voltage

12V

24V

Voltage Tolerance

±0.5V

Rated current

2.08A

1.04A

Rated power

24W

input

Voltage Range

90~135VAC / 170~265VAC

Frequency Range

47~63HZ

Power Factor (Typ.)

PF≥0.75

Efficiency(Typ.)

>83%

84%

>84%

AC Current(Typ.)

0.32A@120VAC, 0.16A@220VAC

0.33A@120VAC, 0.13A@220VAC

Leakage current

<0.70mA/110VAC  / <0.5mA/220VAC

Protection

Short Circuit

Hiccup mode, recovers automatically after fault condition is removed

Over Current

≤1.2*I out

Over Loading

≤120%



Over

temperature

100℃±10℃ (The output voltage will turn off when the temperature is higher then100℃±10℃, after the temperature drop off ,it will recovery) automatic







Environment

Working TEMP.

-40~+60℃

Working Humidity

20~90%RH, non-condensing

Storage TEMP. Humidity

-40~+80℃,10~95%RH

TEMP .coefficient

±0.03%/℃(0~50℃)

Vibration

10~500Hz,2G 10min./1 cycle,period for 60min. each along X,Y,Z axes





Safety& EMC

Safety standards

UL8750+UL1310

Withstand voltage

I/P-O/P:1500KVAC

Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH

EMC EMISSION

FCC Part 15 B

others

Net. Weight

0.20Kg

Size

155*54*20mm(L*W*H)

packing

350*195*180mm  30PCS/CTN

Notes

1. All parameters if NOT specially mentioned are measured at 110VAC / 220VAC input , rated load and 25℃of ambient temperature.

2. To extend the driver's using life ,please reduce the loading at lower input voltage.

3. Loading should be 5-100%.



click for more information!!!
