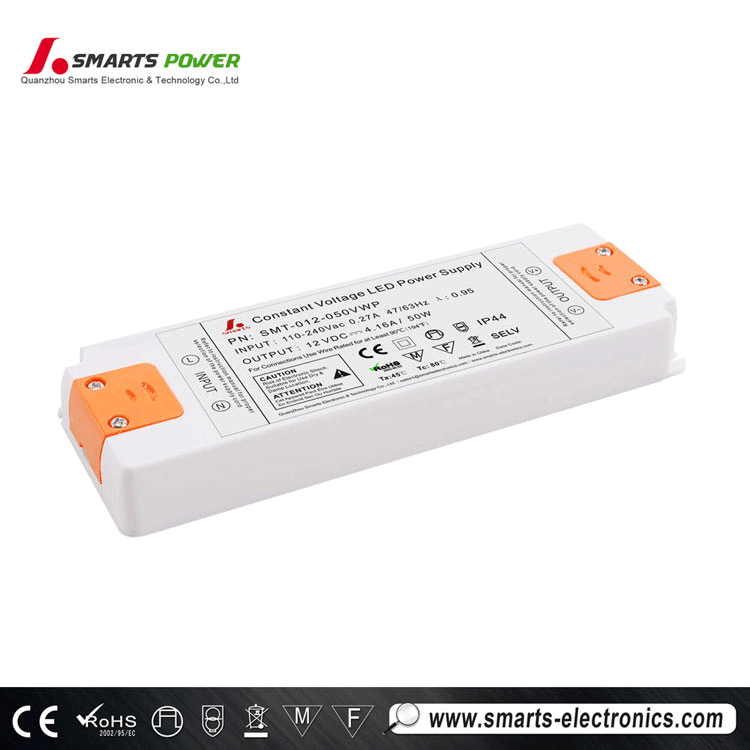

SMARTS POWER constant voltage led bulb driver 9W 20W 30w 40w 50w
- IP44 design for indoor installations
- Protections:Short circuit/Overload/Over temperature
- Cooling by free air convection
- 100% full load burn-in test
- Suitable for LED lighting
- Products through CE,RoHS Certification
- 2 years warranty / 3 years warranty with High PF>0.95
| MODEL | SMT-012-050VWP | SMT-024-050VWP | |||
| OUTPUT | DC VOLTAGE | 12V | 24V | ||
| RATED CURRENT | 4.2Amp | 2.1Amp | |||
| VOLTAGE RANGE | 0-4.2A | 0-2.1A | |||
| RATED POWER | 50Watt | 50Watt | |||
| RIPPLE&NOISE(max) | 300mV | 300mV | |||
| VOLTAGE TOLERANCE | ±5% | ±5% | |||
| LINE REGULATION | ±1% | ±1% | |||
| LOAD REGULATION | ±2% | ±2% | |||
| INPUT | VOLTAGE RANGE | 100-265VAC | 100-265VAC | ||
| FREQUENCY RANGE | 47-63Hz | 47-63Hz | |||
| POWER FACTOR(Typ.) | |||||
| EFFICIENCY(Typ.) | >83% | >83% | |||
| AC CURRENT(Typ.) | 0.57A/110VAC, 0.28A/220VAC | ||||
| PROTECTION | SHORT CIRCUIT | Protection type:recovers automatically after condition is removed | |||
| OVER CURRENT | overload protected@145-160% above peak rating | ||||
| OVER LOAD | 4.8A | 2.5A | |||
| OVER VOLTAGE | Protection type:Shut down o/p voltage,re-power on to removed | ||||

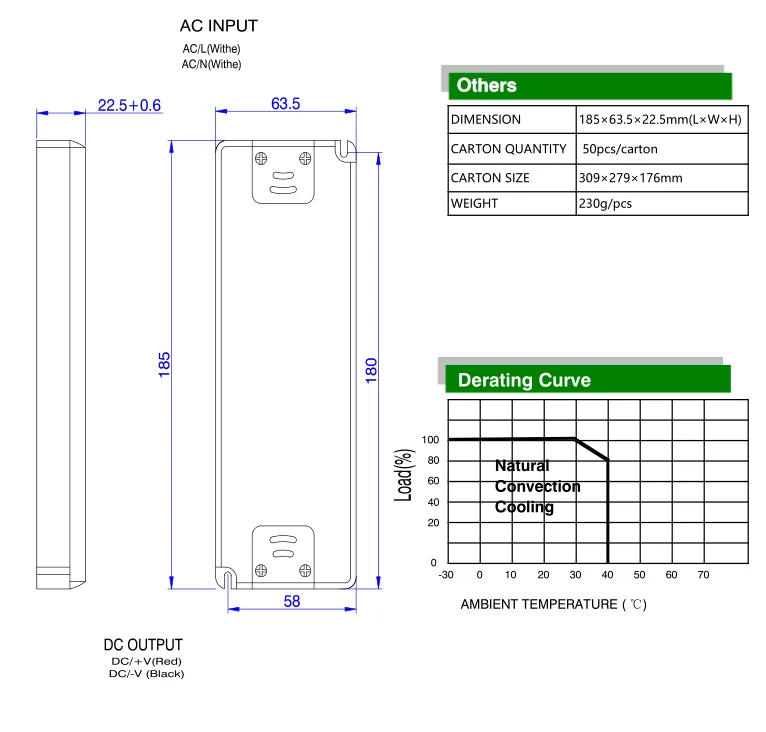

| ENVIRONMENT | WORKING TEMP. | -10~+50℃ (Refer to output load derating curve) | |||
| WORKING HUMIDITY | 20~99% RH non-condensing | ||||
| STORAGE TEMP.,HUMIDITY | -40~+80℃,10~99%RH | ||||
| SAFETY&EMC | SAFETY STANDARDS | EN61347-1;EN61347-2-13; UL /CE /ROHS approval | |||
| WITHSTAND VOLTAGE | I/P-O/P:2KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||||
| EMC Test Standards | EN55015;EN61000-3-2;EN61000-3-3; | ||||
| EN61547;EN61000-4-2,3,4,5,6,8,11; | |||||
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel
capacitor.
3.Tolerance:includes set up tolerance,line regulation and load regulation.

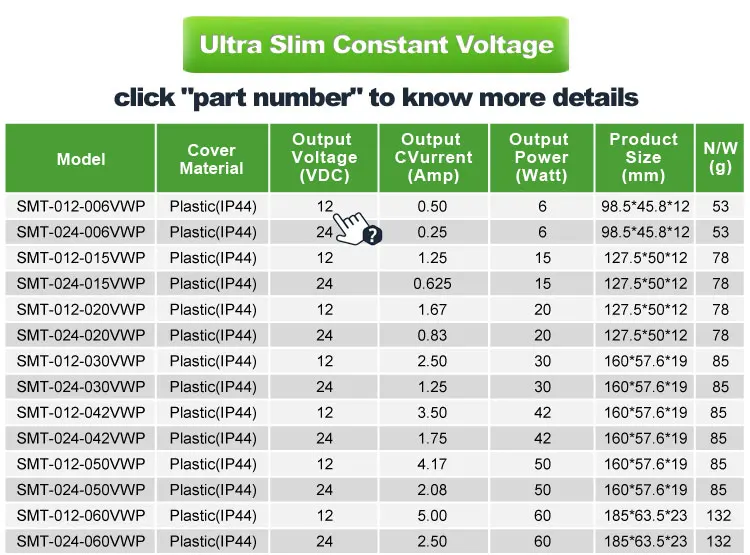

| Different series Constant Voltage LED Drivers for your choice~ | |
|
High PF
Size for 6w: 98.5*45.8*11.9mm Size for 15w/ 20w: 127.5*50*12mm Size for 30w/ 42w: 160*57.6*18.4mm Size for 50w/ 60w: 185*63.5*22.5mm
|
|
Aluminum Case/ IP67 100-265VAC 3 years warranty 12v & 24v 6w - 250w high PF>0.95 & high effeciency>87% for 96w to 300w |
| (Junction Box is built with LED Driver)
Aluminum Case/ IP20 100-277VAC 7 years warranty 12v & 24v 6w - 250w high PF>0.95 & high effeciency>87% |
View details | (Can be paired with Junction Box)
IP20 and IP67 for indoor and outdoor using 100-277VAC 7 years warranty 12v & 24v 6w - 250w high PF>0.95 & high effeciency>87% |
More information, feel free to contact with Miss. Jessica: -- Skype: sales5smt -- hatsapp/Phone/Wechat: +86 13635216739 -- Mail: sales5@ smartselectronic.com.cn (pls delete the space after @) | |
 | |
|
Smarts Electronics, the led driver manufacturer located in Quanzhou,has 6 years trade experience in Alibaba.
We have 7 kinds of led drivers or led power supply:
1.Constant Voltage LED Driver;
2.Constant Current LED Driver;
3.Triac CC&CV Dimmable LED Driver
4.0-10v CC&CV Dimmable LED Driver
5.DALI CC&CV Dimmable LED Driver
All of our drivers are got UL/cUL ETL/cETL CE ROHS listed .OEM Welcome.
Our led drivers are widely used for:
1.Indoor LED illuminating lights
2.LED Neon, LED urban Decoration
3.LED Lighting Advertising,LED Display
4.Safety Protection Apparatus
5.Telecommunications, Networks
6.Vehicle Lights, Controller Panels
Our Market:
Our major markets are in EU & North America,it takes about 85% markets share. view transaction history
factory & equipments view:
certifications:
ETL/cETL,UL/CUL,FCC,DOE, CE,ROHS approval.
What Service we can supply?
- All inquiries will be replied within 24 hours
- Professional manufacturer,welcom to visit our website
- OEM/ODM avaliable:
A.Print logo on our product;
B. Customized specification; - After Sales-Service:
A. All products will have 100% burn-in test and strictly quality test before shipping;
B. Fast Delivery: 3-7days for samples, 15-20 days for bulk production; - High efficiency,long life span,reasonable&competetative price,fast lead time;
- We have our engineer team, if you have any question about your LED applications, let us know freely.
Q1. Can I have a sample order for LED Driver?
A: Yes, we welcome sample order to test and check quality. Sample/ Trial order are acceptable.
Q2. What about the lead time?
A: Sample needs 7 days, mass production time needs about 10-12 days. Depends on order quantities.
Q3. Do you have any MOQ limit for LED Driver order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for LED Driver?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on LED Driver product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-7 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.02%.
Secondly, during the guarantee period, we will send new LED Driver with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
