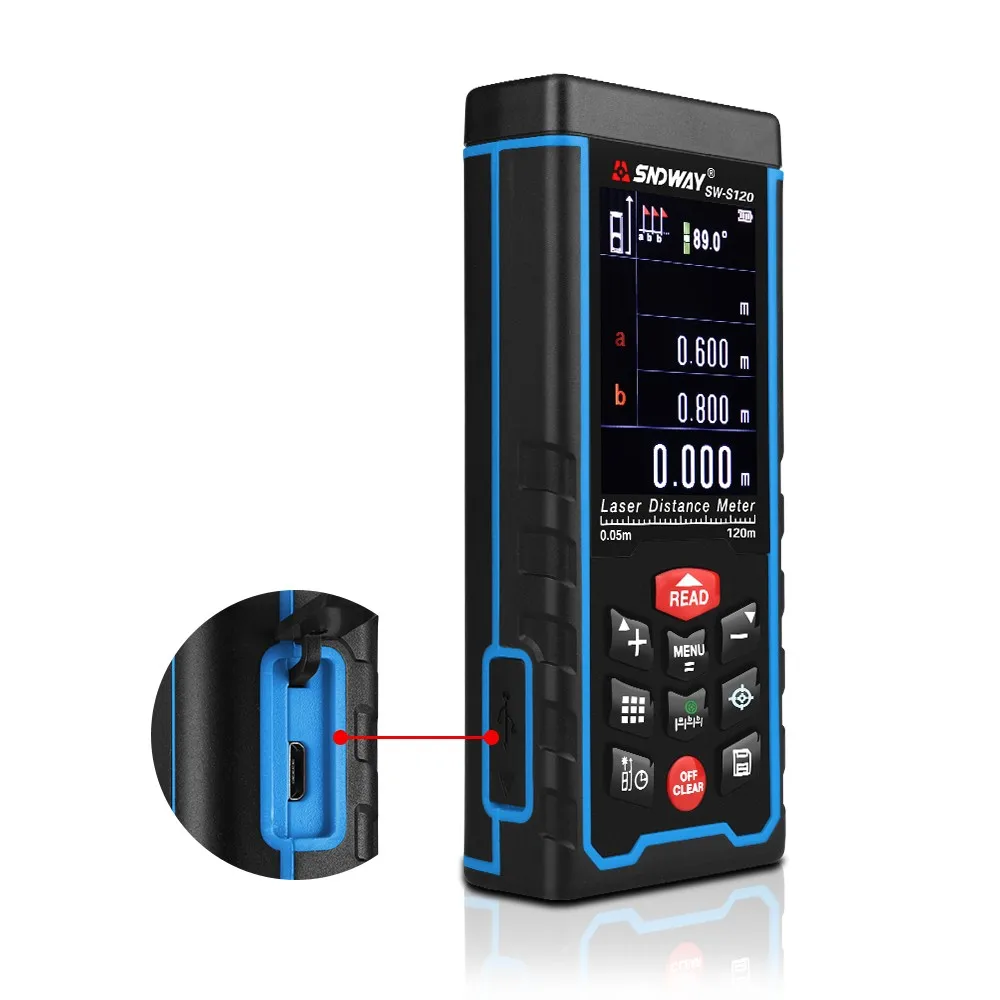

SNDWA Color Screen 120M Laser Distance meter 400ft Handheld Range Finder tape Measuring Device with Camera

FOB Reference Price:Get Latest Price
  • 1 - 49 Sets
    $104.50
  • 50 - 499 Sets
    $102.50
  • >=500 Sets
    $98.20
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
SNDWAY/OEM
Model Number:
SW-S120
Size:
125*54*27mm
Measurement Accuracy:
±2mm
Measurement Range:
nge: 0.05 to 120M ((0.16 to 400t))
Measure::
distance, area,Volume, Pythagorean, Angle
Power Type::
Rechargeable battery for choice
Measurement unit options:
mm/in/ft
USB port:
you can transfer the data to your pc via USB cable
Angle of Tilt::
±90°
data storage:
100 units
Customize Calibration::
Yes: -9mm to +9mm
Laser class::
Class II, <1mW
Certification::
CE FCC ROHS FDA
With Camera:
yes
Supply Ability
Supply Ability:
100000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Package: Gift box
Package Size: 17.5*13*6.5cm
Package Weight: 0.35kgs
Inner carton: 15pcs/Ctn
Outer Carton: 30pcs/Ctn
Carton Size: 43*40*35cm
G.W.: 10.00kg
Port
Shenzhen
Lead Time :
3-5 days
Related Products

                       SW-T40

              Laser Distance Meter 40m

                        SW-T60

                 Laser Distance Meter 60m

                        SW-T100

                  Laser distance Meter 100m

                   SW-600A

Outdoor Laser rangefinder 600m

                     SW-1000A

Outdoor Laser Rangefinder 1000m

                       SW-1500A

Outdoor Laser Rangefinder 1500m

Product Description

Our Laser distance meter is specially designed to measure the distance precisely. It comes with the function of measuring AREA, VOLUME, ADDITION, SUBTRACTION easily. It can also store 99 data. The laser distance meter is hand-held and easy to operate. You can measure the distance in Metric / Imperial.

Hightlights:


1.Large and clear LCD display with backlight for easier reading.
2.Switchable units among meter (m), inch (in) and feet (ft).
3.Quick measurement of distance, area, volume, indirect measurement by Pythagorean theorem.
I4.ncludes single and continuous measurement, addition and subtraction of measurement.
5.Can display maximum/minimum value during continuous measurement.
6.Delay measurement and dip angle measurement.
7.Self-calibration function with -9mm to +9mm range.
8.Automatic/manual power off function. Staking-out function, USB online and data transmission function.
9.Set up front/medium/rear benchmark, beep tips & data clear function.
10.100 groups of data records storage and battery level indication.
11.Subsidiary measurement via double sensing hole and 0.3 MP camera under strong sunlight condition.
12.Multi-direction electronic level bubble with angle indication for precise measurement.


1. Working range:
0.05 to 120m  Meters (0.16 to 400 feet)
2. Accuracy:
2mm(0.079inch)
3. Selectable unit:
m, ft, in
4. Smallest unit displayed:
1mm
5. Laser:
class,  <1mW
6. Laser wavelength:
635nm
7. Angle of Tilt:
±90°
8. Record:
100pcs
9. Self-calibration:
-9mm to +9mm
10. Auto backlight off:
5s~60s
11. Auto laser off:
20~120s
12. Auto switch off:
100~300s
13. Storage temperature range:
-20~+60 degree
14. Working temperature range:
0~+40 degree
15. Storage Humidity:
RH85%
16. Dust & Splash proof:
IP54
17. USB port / Camera
 yes
18 Power supply:

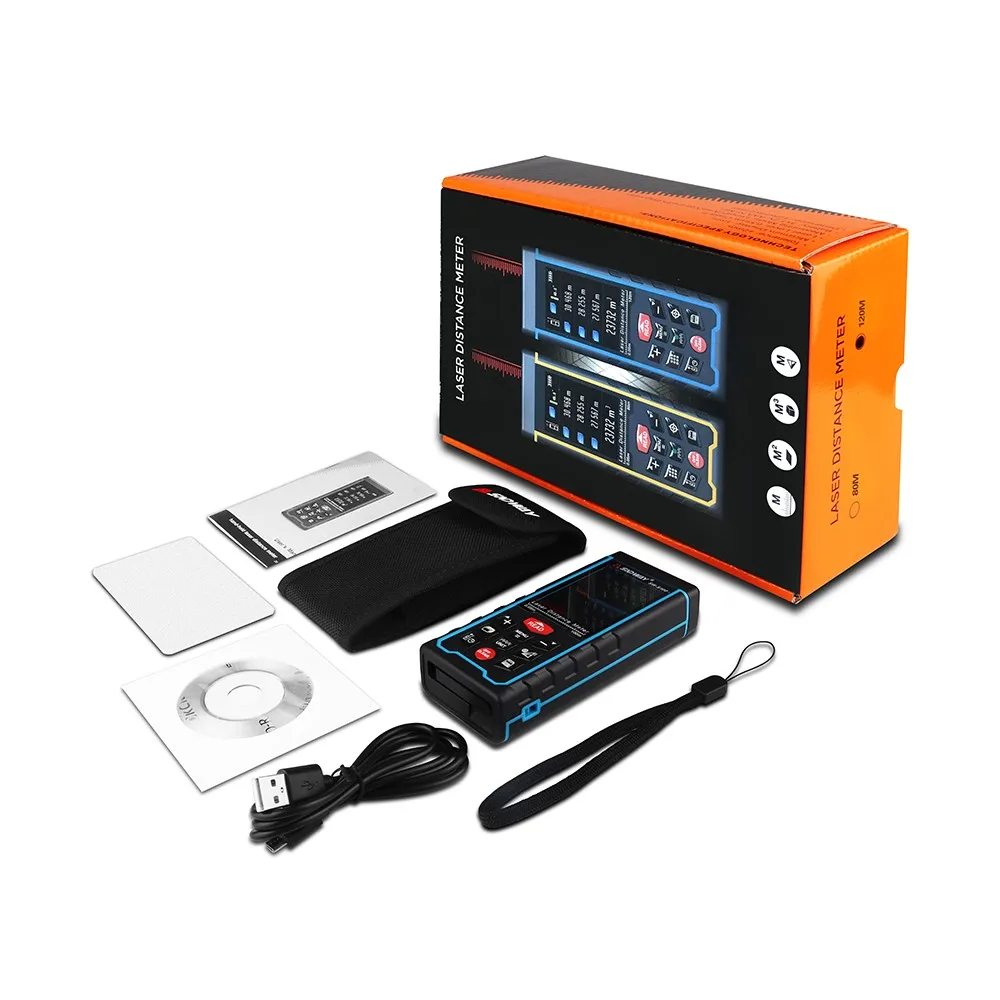

 1 * 120M Laser Distance Meter
 1 * Portable pouch
 1 * Hanging rope
 1 * User manual
 1*  USB connector
 1*  Disc
 1*  Reflecter

                                                                  Measurement modes 1

                                                     PIC-01: Single distance measurement / PIC-02: Continuous measurement

                                                                  Measurement modes 2

                                                   PIC-03: Area measurement / PIC-04: Volume measurement

                                                                           Pythagoras

                                            P01: Measure the length of A and B, the device will calculate the length of X
                                            P02: Measure the length of A and B, the device will calculate the length of X
                                            P03: Measure the length of A, B and C, the device will calculate the length of X
                                            P04: Measure the length of A, B and C, the device will calculate the length of X

Company Profile

We are a professional manufacture and sale of instrument. Our instrument has more than 10 years of instrument development and production experience.

We have a large number of personnel of research and development of cutting-edge technology in the industry. We create a platform for technical exchange with domestic universities.

Our independent R & D team develop our products from key components to finished products.Leading core technology, strong R & D capability and innovative team spirit brings us strong competitiveness.

Our products including laser distance meter, infrared thermometer, vibration meter, thickness gauge, sound level meter, anemometer, temperature hygrometer, range finder, gas detector, metal detector, voltage insulation meter, earth resistance tester, leakage current tester and other products have a good reputation and market share in the industry.

we can  provide ODM/OEM and Processing services, OEM services are applicable to all models

Customer Service

Sincere, professional and efficient service for every customer

if any urgent issue, you can call us at any time,

 24 hours Customs service phone: 86-755-27597356

Factory Workshop 1st

Take quality as the root of our company and keep pursuing excellence, Guided by the policy of “concerted effort, pursuit of excellence, meet users’ needs”, we have set up a complete quality management system and standard quality inspection system and formed an industrial chain that integrates design, manufacturing, installation and service. We are fully aware that quality is the lifeline for Smart Instrument to survive. Only by continuous pursuit of excellence and constant improvement can we supply excellent products to the public.

Factory Workshop 2st

 Based on solid business foundations and adhering to the pioneering spirit, Our mart Instrument overcomes all obstacles to dedicate itself to the development, manufacturing, sale and service of the national electronic instrument industry and never changes its determination. We firmly believe that only profession and devotion can lead to superior quality and leading technologies, and only serving users wholeheartedly can satisfy them in the real sense.

150M Long Testing Workshop

150m Long Testing Workshop, 100% all inspectoin, we do each products is accurate!  With the faith “Quality, Innovation and Service”, we will become one of the most popular Laser Distance Meter in the world!

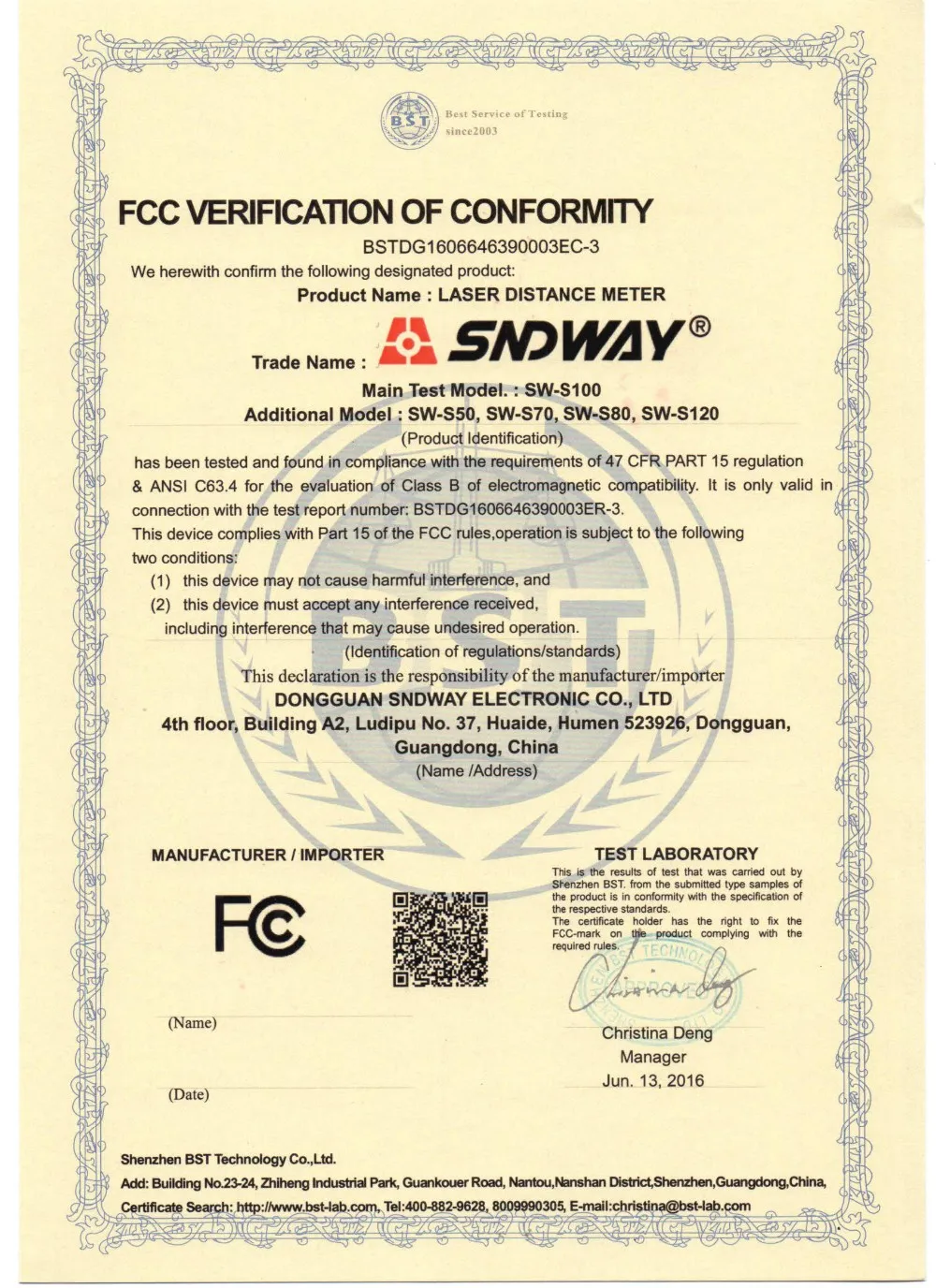

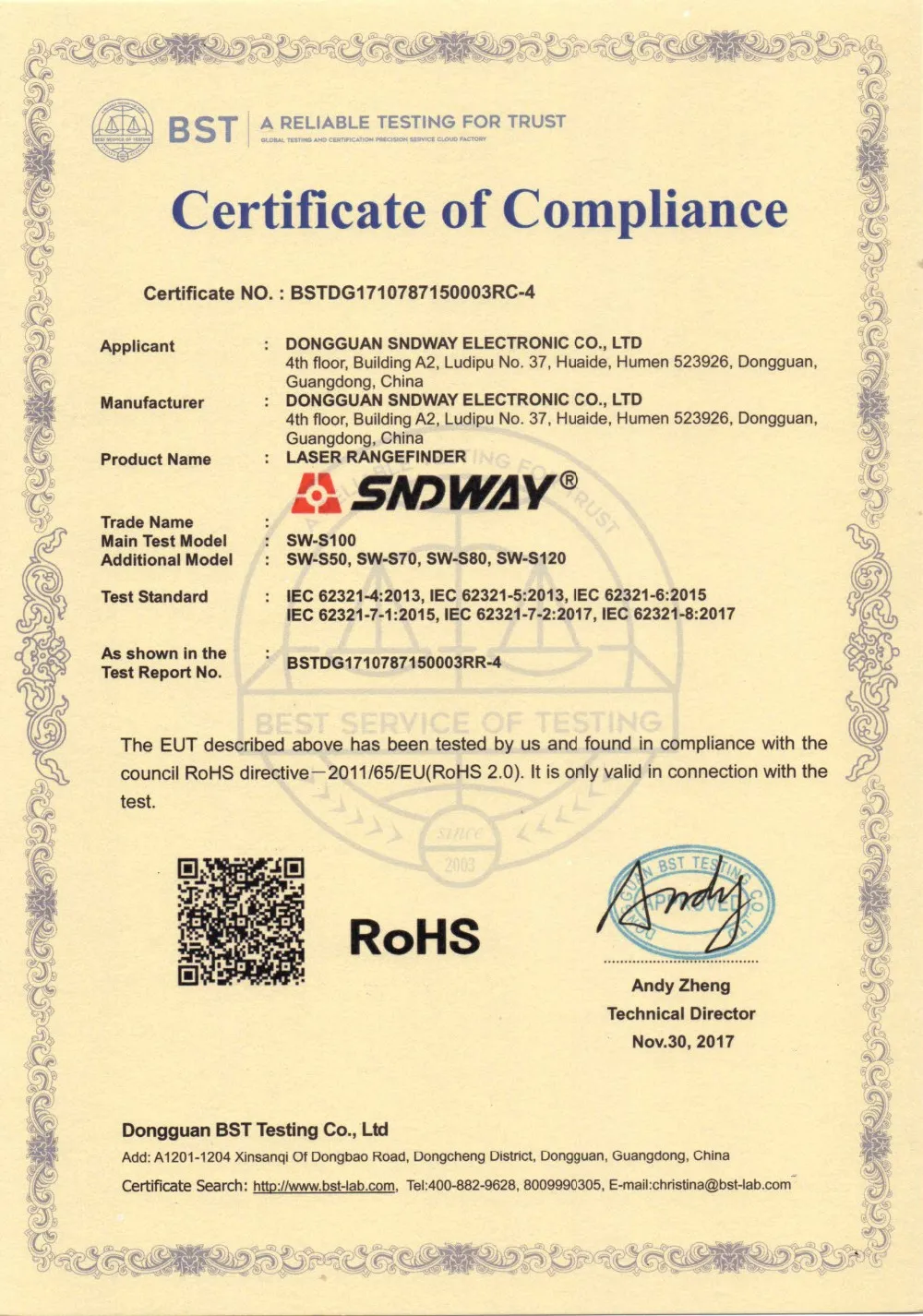

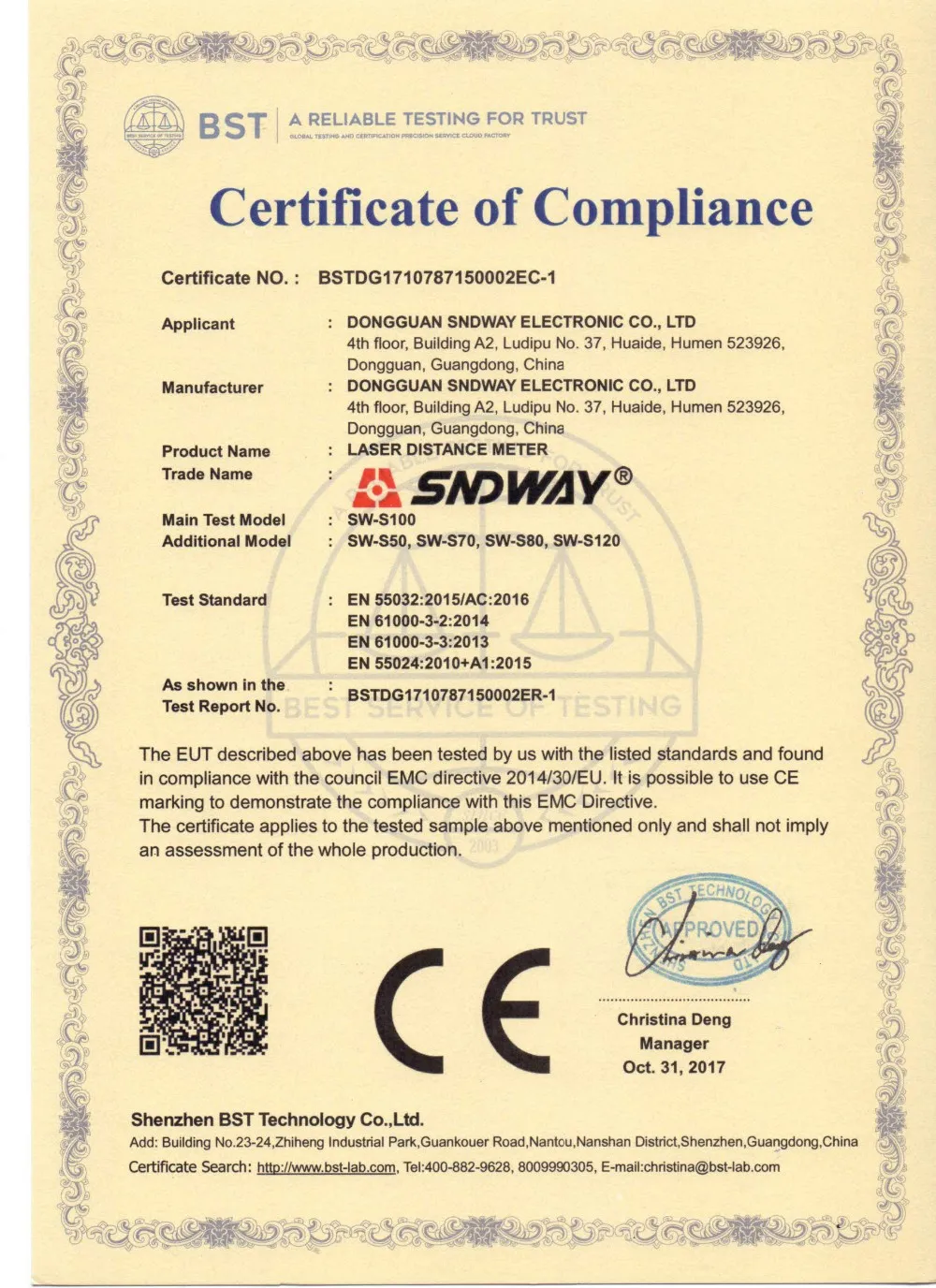

Certifications
