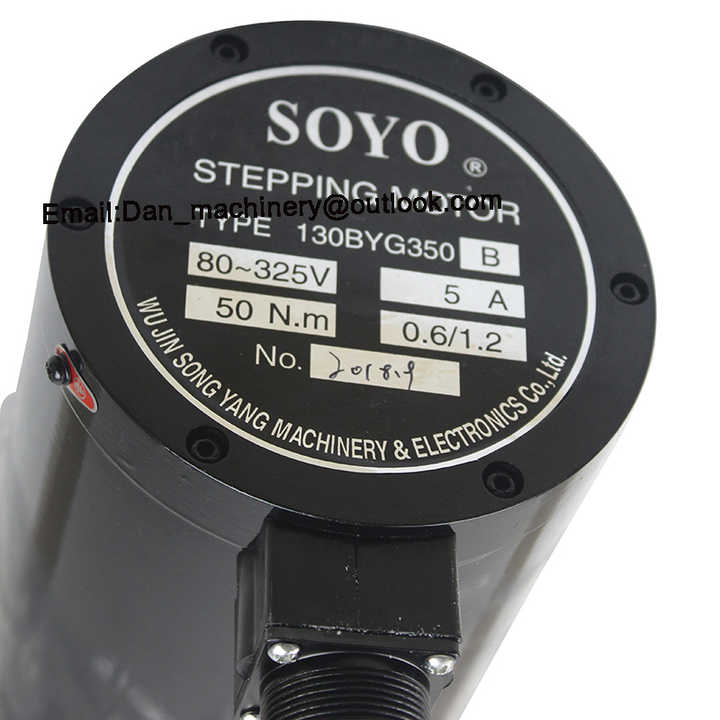

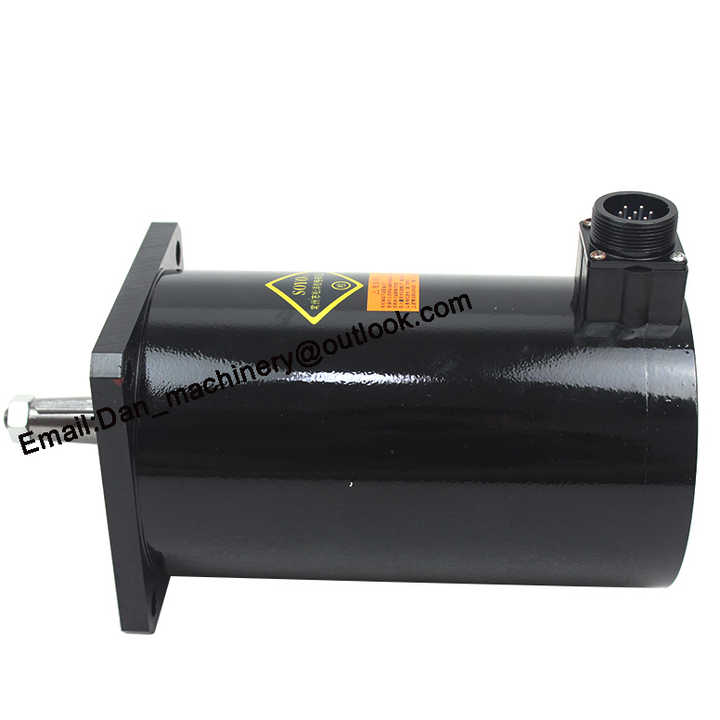

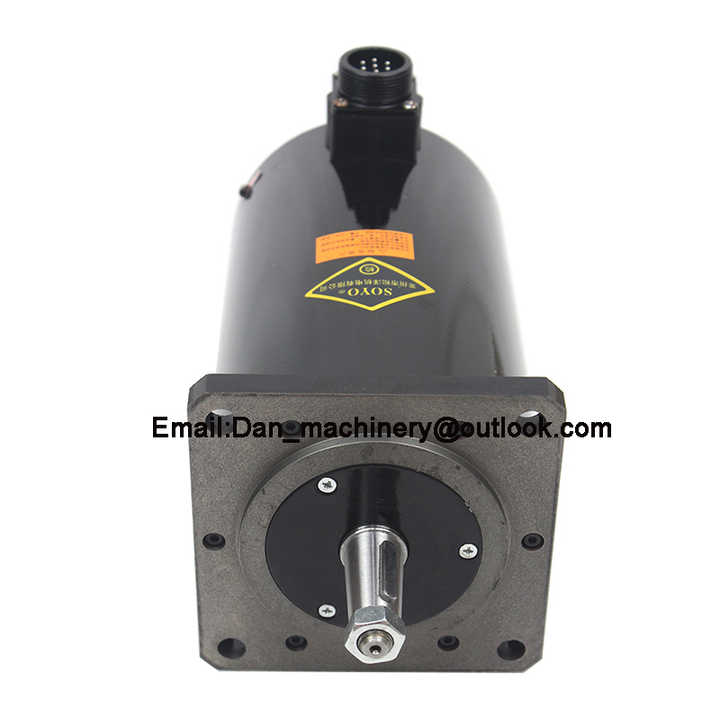

SOYO Stepping Motor Type 130BYG350B 50N.M Stepper Motor Bag Making Machines

  • 1-4 Pieces
    $286.00
  • >=5 Pieces
    $283.00
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
8 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Brand Name:
SOYO
Model Number:
130BYG350B
Step Angle(degrees):
50N.M
Holding Torque:
50N.M
Phase:
3
Type:
Hybrid
Current / Phase:
5A
Certification:
CCC
Step Angle:
0.6/1.2 degree
Resistance:
1.7Ohm
Noload Frequency:
20000HZ
Operating Voltage:
80~325

Packaging & Delivery

Selling Units:
Single item
Single package size:
40X30X25 cm
Single gross weight:
25.0 kg
Package Type:
Carton box
Lead Time :
Quantity(Piece) 1 - 10 >10
Est. Time(days) 8 To be negotiated

SOYO Stepping Motor Type 130BYG350B 50N.M  Stepper Motor Bag Making



Main features:

1. The general precision of the stepper motor step Angle of 3-5%, and do not accumulate.
2. Allow the highest temperature of stepper motor appearance.
Stepper motor temperature will make the first motor demagnetization of magnetic materials, which can lead to torque decline and even out of step, so the motor appearance allows the highest temperature should depend on different points of demagnetization magnetic material; Demagnetization of magnetic materials, in general, some are above 130 degrees Celsius, some even as high as 200 degrees Celsius above, so the stepper motor appearance in 80-90 degrees Celsius temperature completely normal.
3. The stepper motor torque vary with the increase of rotational speed will be reduced.
When stepping motor rotation, the motor of each phase winding inductance will form a reverse electromotive force; The higher the frequency, the greater the back emf. Under the function of it, the motor with frequency (or speed) and the phase current decreases, which leads to torque decline.
4. Can work properly when stepping motor at low speed, but above a certain speed won't be able to start, accompanied by squeaking noise.
Stepper motor has a technical parameters: no-load start frequency, the stepper motor under no-load condition can normal boot pulse frequency, if the pulse frequency is higher than the value, the motor does not start properly, may be lost or blocked. In the load cases, start frequency should be lower. If you want to make the motor to achieve high-speed rotation, the pulse frequency should be to accelerate the process, namely the start frequency is low, and then in a certain high frequency acceleration to want (motor speed from low speed to high speed).
Stepper motor with its remarkable characteristics, in the era of digital manufacture plays a significant purpose. With the development of digital technology and stepper motor itself, improve technology, stepping motor will be applied in more fields

Product Description

Step Angle

0.6/1.2 degree

Insulation Resistancce

500V DC 100MΩ Min

Dielectric Strength

1000V AC 50Hz 2mA 1Minute

Ambient Temperature

-20 - 40 centigrade

Temperature Rise

80K Max

Insulation Class

B



Main Technical Parameters



Model

Operating Voltage

Rated Current

Resistance

Inductance

Holding Torque

Noload Frequency

Starting Frequency

Weight

Length



VDC

A

Ω

mH

N.m

Hz

Hz

kg

mm

130BYG350A

80~325

5

1.3

13.1

37

20000

2500

17.8

226

130BYG350B

80~325

5

1.7

17

50

18000

2500

22.5

282





   Widely used in packing machine, printing machine, plastic bag machine, pharmaceutical, washing, the injection molding machine, woodworking, and other machinery and equipment.



ATTENTION: when installing the motor, must ensure that the motor shaft and load shaft concentric,never hit it, so as not to damage the motor.
