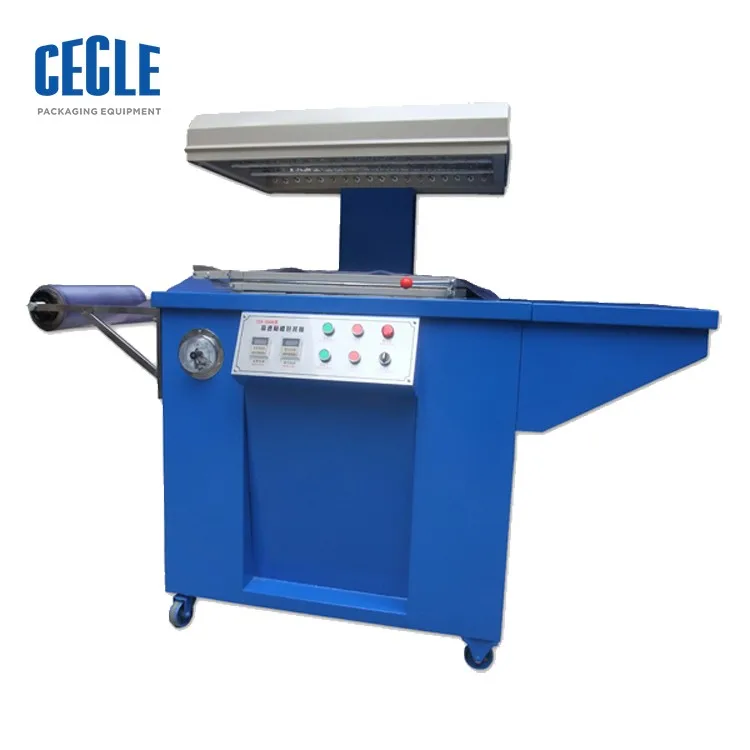

SP-2008 semi auto hardwares skin packing machine with film

FOB Reference Price:Get Latest Price
$1,000.00 - $3,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
SP-2008
Report Suspicious Activity
Overview
Quick Details
After-sales Service Provided:
Engineers available to service machinery overseas
Application:
Machinery & Hardware
Packaging Material:
Plastic
Type:
Other, Other
Condition:
New
Packaging Type:
film
Automatic Grade:
Semi-Automatic
Driven Type:
Electric
Voltage:
220v
Power:
5kw
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
T&D
Weight:
230kg
Dimension(L*W*H):
990m*780mm*1410mm
Certification:
ISO-9001
Supply Ability
Supply Ability:
50 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden case size:1440*1030*830mm
Port
Ningbo
Video Description
Product Description

Features

1.Add air-reserve tank to increase the power of pump(different with SP-2008)
2.Heating by Halogen lamp or nickel-chrome wire
3.Halogen lamp heating (low heat rate but stable performance)
4.Nickel-chrome wires heating(high heat rate but fragile)
5.Manual feeding the products to the worktable
6.Automatic heating the film and packing the products
7.Easy to use by using digital time relay to control the operation

Functions

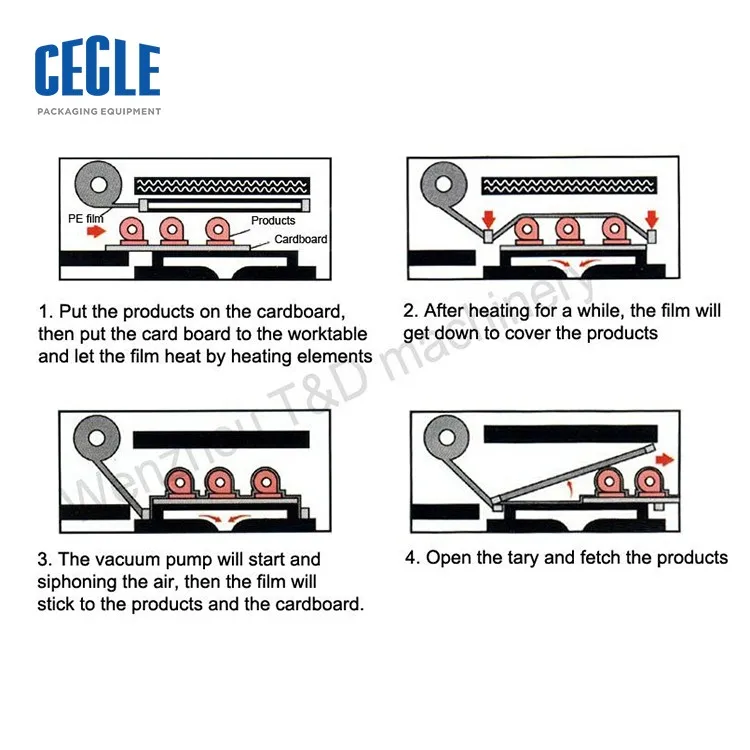

Pack the products by film and cardboard without molds

Films

1.PE film is soft and high performance after packing, used for high quality packaging.
2.PE film is no pollution after burning
3.PVC film is harder and but cheaper
4.PVC film will produce chlorine(poisonous gas) after burning
5.We provide the PE and PVC film
6.PE film thickness( 0.10mm, 0.15mm, 0.20mm, 0.25mm, 0.30mm)
7.PVC film thickness(0.06mm, 0.08mm, 0.10mm, 0.12mm, 0.15mm)

Cardboards

1.If the air permeability of cardboard is too poor, the machine can't pump the air between film and cardboard, it need make some holes on the cardboard
2.If the air permeability of cardboard is good, it needn't make holes on the cardboard
3.We suggest don't laminate the cardboard for the better air permeability
4.We can provide the cardboard according to the customers' detail design, it's better to send us the CorelDraw or adobe illustrator files.

Parameters:

Model
SP-2008
Voltage
220V 380V/ 50~60Hz
Packaging Size
540mm*390mm
Vacuum Pump Power
20m3/hour
Packaging Speed
2~3times/min
Machine Power
5KW
Machine Weight
160KG
Dimension
990mm*780mm*1410mm
Name
Skin packaging film
Material
PVC
Width
450mm
Thickness
0.12mm
Length
500m/roll
Weight
37kg/roll
Price
3 USD/kg

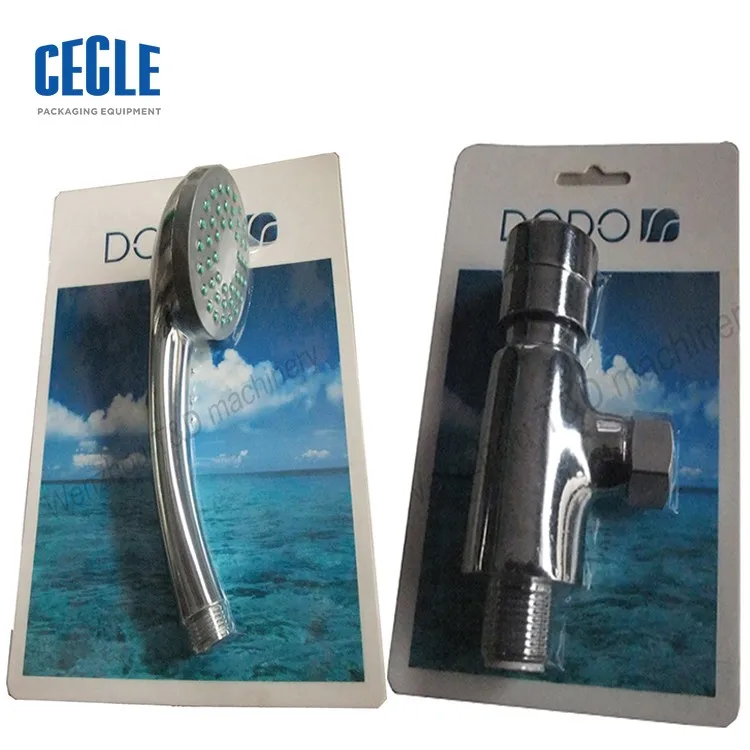

Samples:

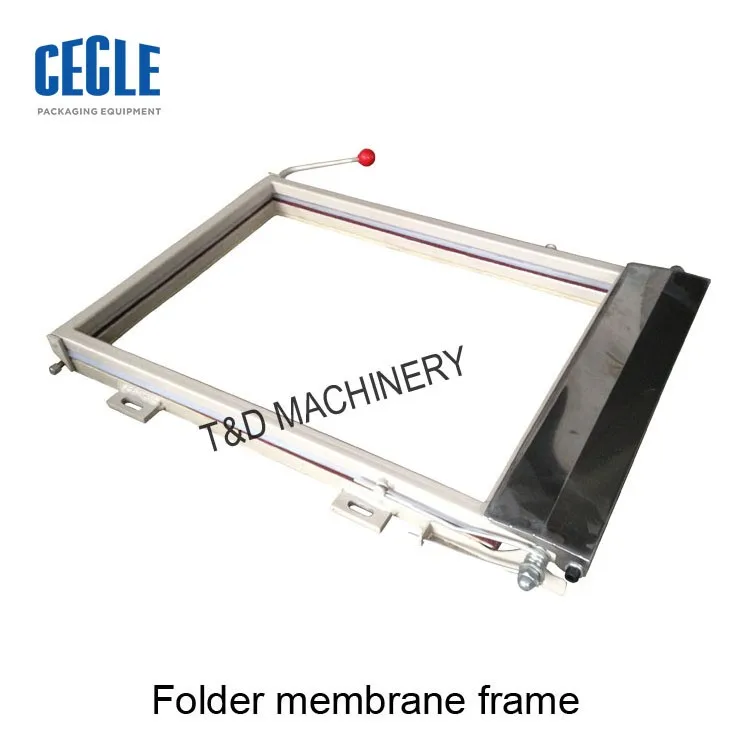

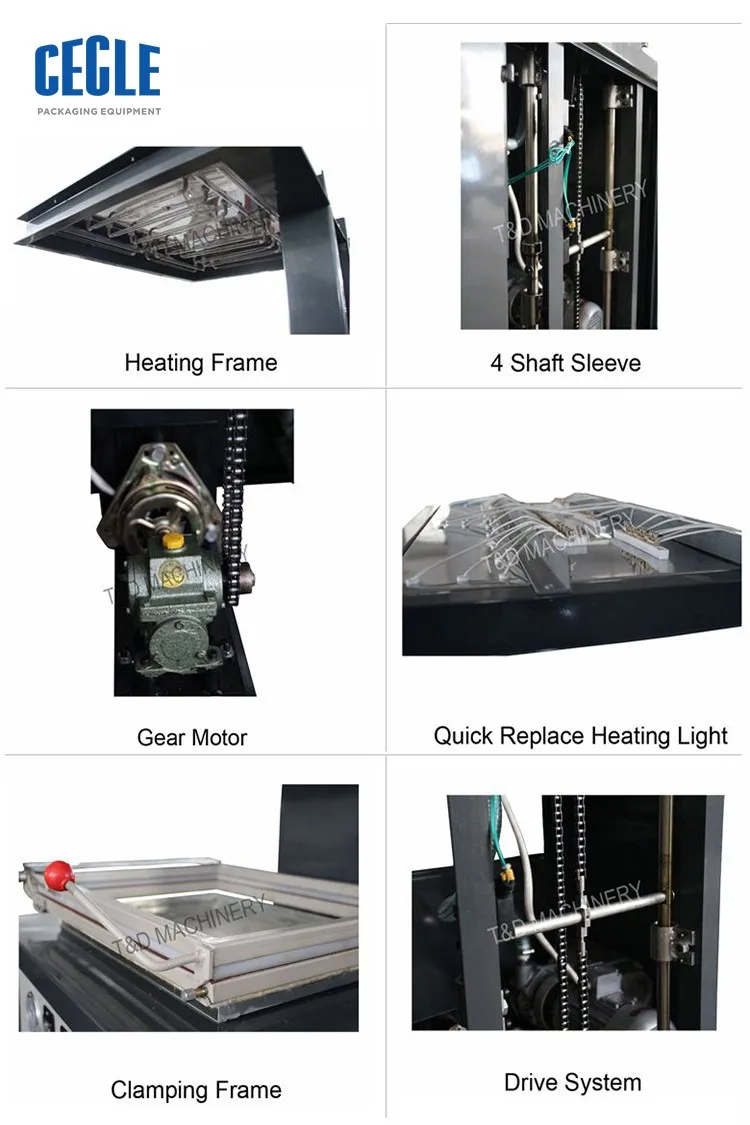

Detailed Images
Our company

Q: Are you a factory or a trading company?
A: We are factory manufacturing packaging machines and we provide perfect OEM and after-sale service.

Q: Can you send me the video to show how the machine works?
A: Certainly, we have made video of every machine and uploaded them to Youtube.

Q: How can I know your machine works well?
A: Before delivery, we shall test the machine working condition for you.

Q: How can I know your machine is designed for my product?
A: You can send us samples of your product and we test it on machine.

Q: How can I pay my order?
A: We accept T/T, Western Union paying methods. For those orders less than 500USD, we accept PayPal to pay.

Q: Do you have a CE certificate?
A: For every model of machine, it has a CE certificate.

Your Satisfaction is Our Honor!
