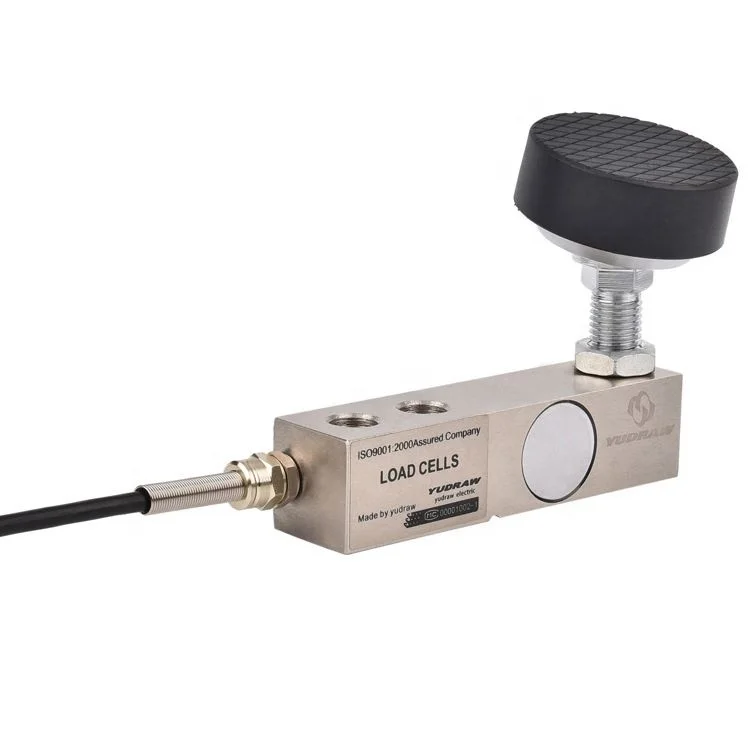

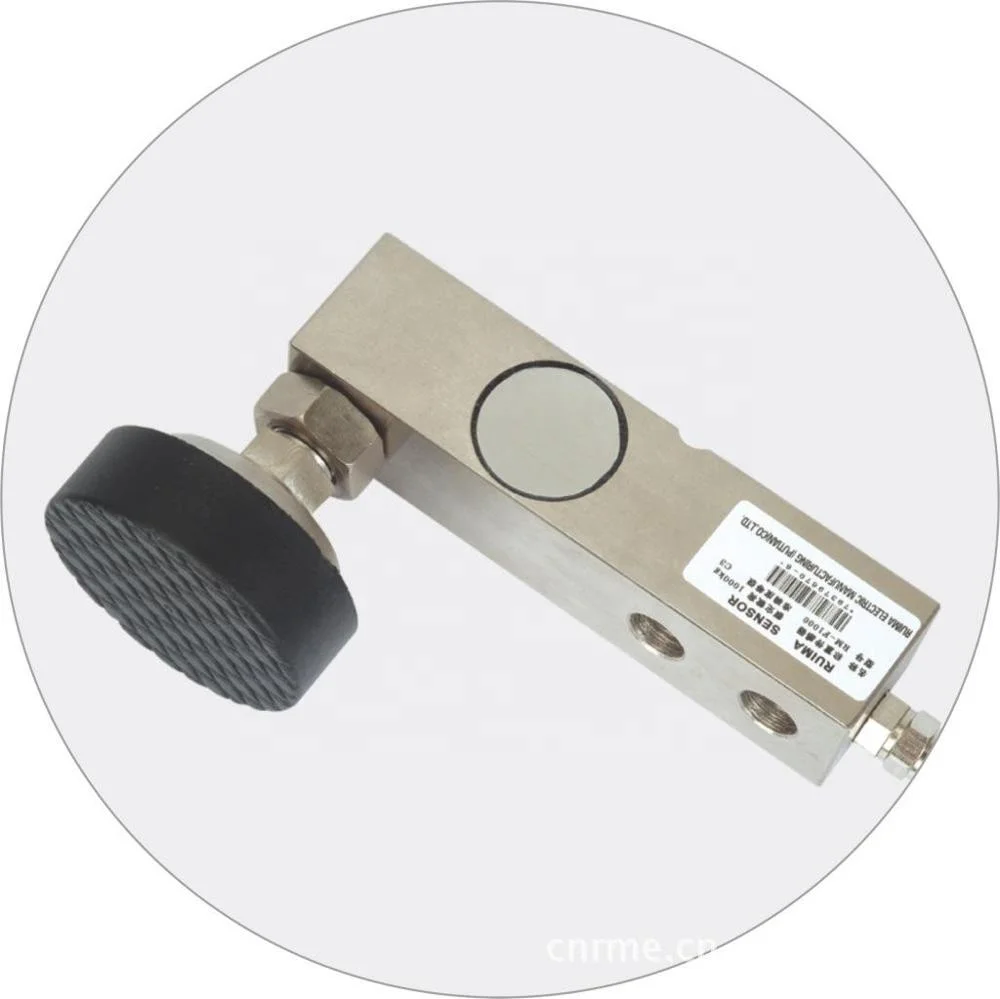

SQB1-5t shear beam load cell using for floor platform scales

FOB Reference Price:Get Latest Price
$20.00 - $30.00 / Sets | 1 Set/Sets (Min. Order)
Lead Time:
Quantity(Sets) 1 - 100 >100
Est. Time(days) 30 Negotiable
Customization:
Customized packaging (Min. Order: 500 Sets)
Customized logo (Min. Order: 500 Sets)

More

Graphic customization (Min. Order: 500 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China (Mainland)
Brand Name:
WANGGONG
Model Number:
SQB1T
Usage:
Pressure Sensor, pressure sensor
Theory:
Resistance Sensor
Output:
Analog Sensor
Accuracy:
OIML III
Capacity::
1t to 5t
Application:
platform scale floor scales livestock scale etc
Materials:
Alloy steel or stainless steel
Input resistance::
385±5Ω (Ohms)
Certificate:
OIML C3 Certificate
Output resistance::
351±2Ω (Ohms)
IP class::
IP68
Rated output::
2.0±0.1%mV/V
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
Nude packing standard seaworthy packing
Port
Xiamen Port
Lead Time :
Quantity(Sets) 1 - 100 >100
Est. Time(days) 30 To be negotiated

SQB1-5t shear beam load cell using for floor platform scales

Shear Beam Load Cell Technical data :

em/ParameterC3Unit
Rated load (Emax)25-500kg
Maximum numbers of load cell verification Intervals3000d
Minimum numbers of load cell verification Intervals0.01% of rated load
Rated output2.0±0.1%mV/V
Combined error0.015±% of rated output
Temperature effect on sensitivity0.0012±% of rated output/°C
Temperature effect on zero balance0.0008±% of rated output/°C
Zero balance1.0 ±% of rated output/
Input resistance385±5Ω (Ohms)
Output resistance351±2Ω (Ohms)
Insulation resistance≥5000MΩ(Mega-Ohms)
Safe overload150% of rated capability
Ultimate overload300% of rated capability
Operating temperature range-20~+70 / -20~+160C/F
Recommend excitation 8~12V(DC or AC)
Maximum excitation18V(DC or AC)
Material of elastomerAlloy steel,stainless steel
Protection classIP67/IP68
