SS100/100 lift elevator/construction material elevator/cheap price of freight elevator

FOB Reference Price:Get Latest Price
$1,000.00 - $90,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Beijing, China
Brand Name:
JIUHONG
Model Number:
SS100
Usage:
material elevator
Drive Type:
AC
Elevator Type:
Passenger Elevators
Basic Installation Height:
30m
Attachment Installation Height:
70m
Rated Lifting Capacity:
1000/2000
Motor Power:
Double cage and single cage
Steel Rope Length(Typical):
150m
certification:
CE,Gost,CCC,
Type:
Elevators
Supply Ability
Supply Ability:
50 Set/Sets per Month
Packaging & Delivery
Packaging Details
according to your requiry.
Port
Tianjin
Lead Time :
Delivery after 3-5 days when receive the deposit

Specifications

Cage Type: Double CAGE and single
Motor Power: 7.5 kw and 2*7.5 kw
Lifting Speed: 23.5
Load capacity:1000kg and 2*1000kg

SS100/100 lift elevator/construction material elevator/cheap price of freight elevator

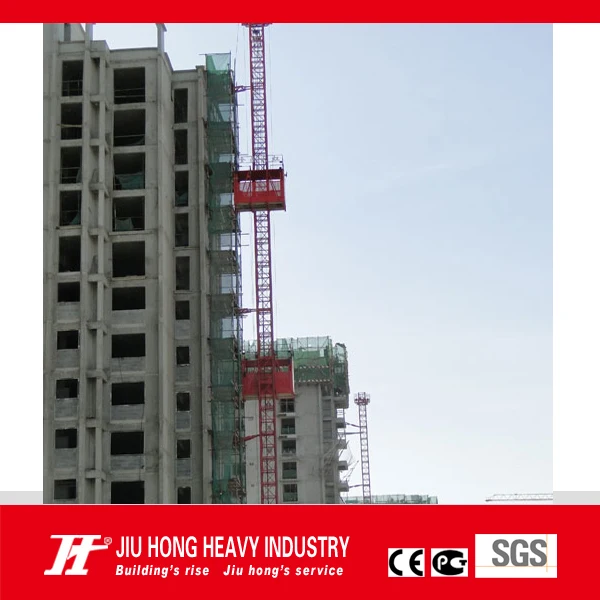

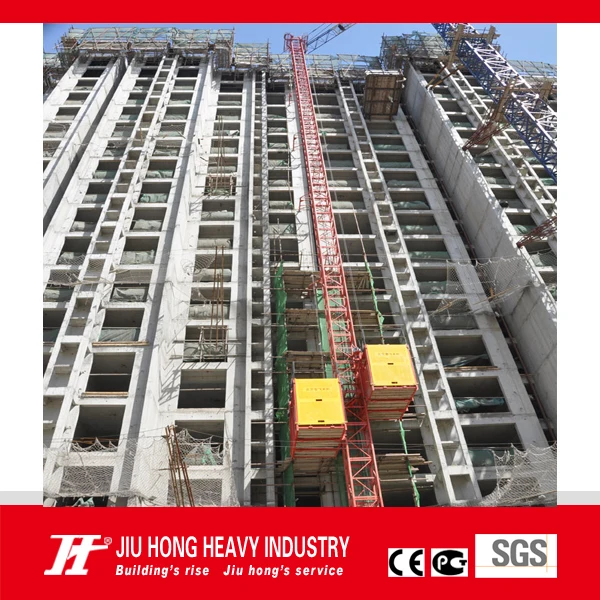

Construction material elevator SS100/100 is a vertical handling machine dedicated for materials widely applied in building construction,

industrial and mining, multi-storey workshop, warehouse, station, wharf, etc.

It is convenient, efficient, and secure.

SS100/100 is set up with safety multiple protection measures like Floor-selecting and Leveling Device,

Elevating Limiter, Rope Protection Device, Parking Safety Device, Bumper, Upper and Lower Height Restrictor,

Anti Rope-breaking Equipment, among which, the brake performance

and brake slide distance of the Rope Protector are above  national  standards.

It is safe, reliable, and harmless to rail-track.

 There are two accesses for Floor Selecting and Leveling:

1. Manual Control, which is direct control by the operator.

 2. Computer Automatic Positioning System (Optional for order), which can easily realize floor-selecting

and leveling without manual stop or point car leveling, reducing the difficulty of manipulation, convenient and precise.

 SS100/100 adopts Wall-attaching Device instead of Wind Rope, along with self-erection

and dismantling unit (Derrick), easy for handling and transportation.

 SS100/100 has 2 types: Single-caged and Double-caged, optional for users.

The standard sections of Double-caged are 4 pieces of ø76 * 4 seamless steel pipes,

which can also be taken as guide rail, while those the Single-caged are 2 ø51 * 4 pipes.

Parameter of  material elevator
SS100/100 Material Hoist
Technical Parameter of SS100/100 Material Hoist
Item Unit Parameter
Basic Installation Height m 30
Attachment Installation Height m 70
Rated Lifting Capacity Kg 1000/1000
Lifting Speed m/min 23.5
Cage Dimension (L*W*H) m 2.8*1.5*1.9
Sectional Dimension Of Bracket m 0.85*0.85
Motor Power kw Single-cage 7.5       Double-cage 15
Steel Rope Model   6*37+1-12-170-Right
Steel Rope Length(Typical) m 150
Total Weight Single-cage (at 30m) kg4060
Double-cage (at 30m) kg 485

SS100/100 Material Hoist

Technical Parameter of SS100/100 Material Hoist

Item

Unit

Parameter

Basic Installation Height

m

30

Attachment Installation Height

m

70

Rated Lifting Capacity

Kg

1000

Lifting Speed

m/min

23.5

Cage Dimension (L*W*H)

m

2.8*1.5*1.9

Sectional Dimension Of Bracket

m

0.85*0.85

Motor Power

Kw

Single-cage 7.5

Steel Rope Model



6*37+1-12-170-Right

Steel Rope Length(Typical)

m

150

Total Weight

Single-cage (at 30m)

Kg

4060



We can make 30m,50m,60m,70m,72m to 90m.



Main parts as below:

A:  Cage with wheelhouse

Electric system of high quality

Wonderful power motor



mast section with good material

Certification of CE,GOST,CCC and so on
