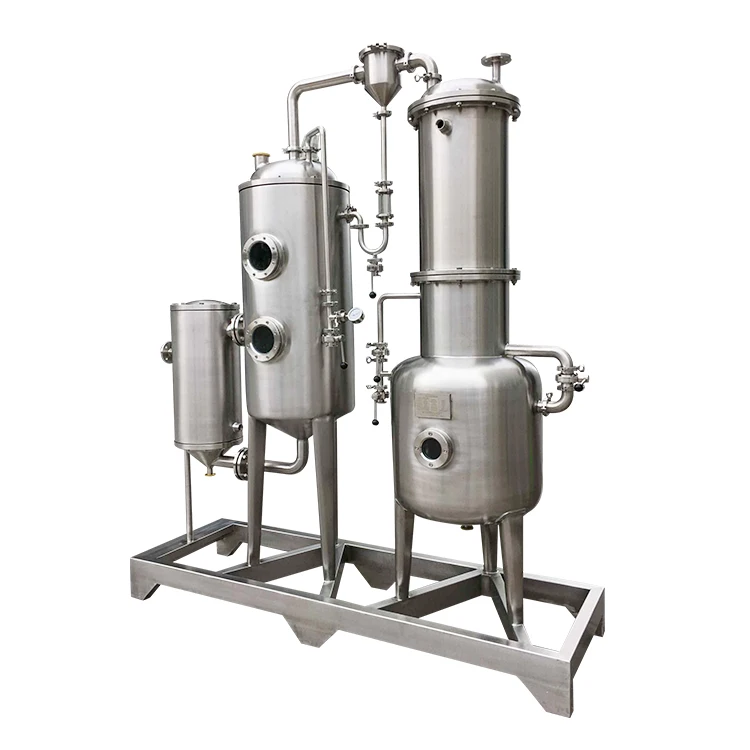

SUS304 single effect electric circulation evaporator

FOB Reference Price:Get Latest Price
$10,000.00 - $20,000.00 / Sets | 1 Set/Sets (Min. Order)
Application:
Food Processing Pharmaceutical Processing
Model Number:
JM-ZFQ
Lead Time:
Quantity(Sets) 1 - 1 2 - 2 3 - 3 >3
Est. Time(days) 25 30 35 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Power Source:
Fuel Oil, Electric
Process:
Other
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
JIMEI
Voltage:
380v,220V
Power(W):
50kw
Dimension(L*W*H):
7080*900*3500mm
Weight:
2T
Certification:
CE ISO
Warranty:
1 Year
After-sales Service Provided:
Online support
Name:
circulation evaporator
item name:
single-effect
type:
Auto Evaporator
Dimension:
Based on actual volume
voltage:
380-440V/customized
Material:
SUS304/316L
process:
Thermal
Application Industries:
Pharmaceutical,food juice etc
Capacity:
depends on the requirement
Supply Ability
Supply Ability:
100 Set/Sets per Month circulation evaporator
Packaging & Delivery
Packaging Details
Wooden case for china professional single-effect forced external circulating evaporator
Port
Ningbo or Shanghai port
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 2 - 2 3 - 3 >3
Est. Time(days) 25 30 35 To be negotiated

SUS304 single effect electric circulation evaporator



Application:

It's applicable for dairy products, pharmacy, glucose, starch,chemical industry,  xylose, citric acid, ammonium sulfate, biological engineering, environmental engineering and waste liquid recovery and treatement. etc.

Equipment structure:

It consists of (first-effect, second-effect, third-effect)separators and evaporators and preheaters,condenser and vaccum pump, feeding pump,circulation pump, discharge pump, condensed water pump and system pipe fittings, etc. Equiped wit CIP spraying cleaning ball, vacuum gauge, thermometer,pressure gauge,and so on.

Equipment characteristics:

1. Material: SUS304 or SUS316L;
2.Full closed process, fast and low temperature evaporation;
3.Inside pipes are mirror polishing seamless sanitary pipes, so material is not easy to paste on the pipe all, it's easy for cleaning;

4.Low steam consumption: 1kg steam can evaporte 3.5kg water;

5.Low evaporation temperature:part of secondary steam can be inhaled into single-effect heater through spray type hot pressure pump, this would make full use of the heat and the evaporation temperature is low.

6.Large concentration ratio: adopt falling film evaporation, which make the material liquid with larger viscosity be easy to flow and evaporate, hard to scale,  short cocentration time, the concentration ratio can reach to 1:5.

7.This equipment  can realize automatic production, intellectual system management, which is in conformity with GMP standard.

8.Can be desinged into different technological process according to the different characteristics of the materials , also can according to different users' requirements equip with automaticl control system.



SPECIFICATION

LJN500

LJN1000

LJN1500

LJN2000

LJN3000

LJN5000

LJN6000

LJN8000

Evaporating capacity(kg/h)

500

1000

1500

2000

3000

5000

6000

8000

Steam pressure(Mpa)

0.1~0.25

Steam cost(kg/h)

185

370

555

740

1110

1850

2220

2960

Recycling water cost(t/h)

  5

10

13

15

18

25

30

40

Weight(kg)

2060

2480

3280

4200

4860

5770

6430

7600

Dimension(mm)

7080*

900*

3500

7680*

1000*

4000

8380*

1100*

4600

8890*

1200*

4600

9500*

1300*

4900

10200*

1400*

5300

10800*

1500*

5800

11500*

1600*

5800





Vacuum degree(MPA)

Evaporation temperature(c)

First effect

-0.047~-0.052

80-85

Second effect

-0.069~-0.072

70-75

Third effect

-0.075~-0.081

45-52



Product display






Company Information





My customers



Exhibition





Certifications



Packaging & Shipping



FAQ

Q:are you a trading company or manufacturer?

A:We are a manufacturer which has almost 30 years of experence in this industry and be able to offer you the best.


Q:What is the voltage phase for this machine?

A:220v 50hz single phase 380v 50hz three phase

110v 60hz single phase also can made as the clients' need



Q:What is the delivery time

A:About 40 days upon the receipt of deposit



Q:How long is the guarantee?

A:We promise guarantee as one year for non-human damage factor.



Q:How should i do if meet some trouble while using

A:Dunl worry about that .our professional solution and video will send to you immediately



Q:What about payment term ?

A:T/T in advance. 30%deposit 70% balance before shipment



Q:What is the MQQ?

A:1 Set



Q:Can you do OEM&ODM ?

A:Yes



Q:Where is your nearest port?

A:Ningbo port



Q:Where is your factory located ? how can i visit there?

A:Our factory is located in wenzhou city ,china ,you can fly to wenzhou yongqing airport directly
