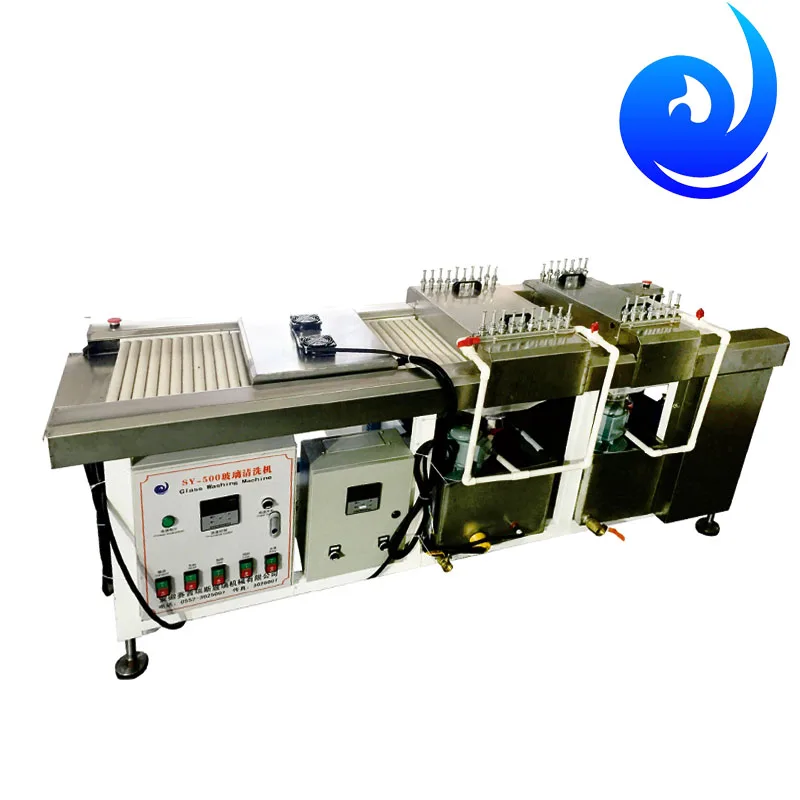

SY-500 Horizontal Glass Washing Cleaning Machine for Small Size Glass

FOB Reference Price:Get Latest Price
$3,000.00 - $3,200.00 / Sets | 1 Set/Sets glass washing machine (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Machine Type:
Glass Washing and Drying Machine
Production Capacity:
1/1 (piece/min)
Power(W):
6KW
Certification:
Main components CE
Condition:
New
Place of Origin:
Anhui, China
Brand Name:
Ruilong
Model Number:
SY-500
Voltage:
380V
Dimension(L*W*H):
2000*1200*1000mm
Weight:
600kgs
Motor:
Japan Yaskawa
Screw Rails:
HIWIN
Max. washing size:
450mm*450mm
Min. washing size:
30mm*30mm
Min. washing glass thickness:
Customized
Water pump:
250w,380v
OEM &ODM:
Yes
Fans quantity:
four
Washing method:
circulating water
Name:
glass washing machine
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
1 Year
Supply Ability
Supply Ability:
1000 Set/Sets per Year OEM, ODM
Packaging & Delivery
Packaging Details
Pallet, wood box or customized packaging
glass washing machine
Port
Shanghai
Lead Time :
Within 30- 50 days

Details
Name One part horizontal glass washing cleaning machine for small size glass
Model SY-500
Type Fulll automatic
Max. glass size 450mm*450mm





Product Description





We could supply one section cleaning, two-section cleaning or multi-section cleaning.

Structure Introduction

GB square tube frame;the shell is 1mm spray iron panel

Cleaning / drying/ water absorbing sponge parts are stainless steel shell

Delivery/cleaning /absorbent sponge roller uses high temperature, acid materials, long life

Transmission parts are controlled by speed motor; cleaning speed adjustable.

Temperature Controller can adjust blowing temperature.

The device uses compact roller driven design, large processing area; circulating water to wash the glass at once.



Basic parameters:

Size range: 30*30-490mm; thickness: 0.5-2.0mm

Air Knife: 2.2kw high pressure air, 380v; electric rods power of 6 kW; four fan total 800W

Transmission CVT: 0.37kw, 380v (stepless)

Pumps: 250w, 380v

Brush motor: 0.37kw, 380v

Weight : 600KG (about weight)

Dimensions : 2000 × 1200 × 1000 (mm


Packaging & Shipping







Company Information



At first, Anhui Ruilong glass machinery Co., Ltd. named Anhui Sadavax glass Machinery Co., Ltd. the products are mainly sold to domestic glass processing factories and foreign trade companies. Increased with the development of glass processing industry, Ruilong add production lines and expanded workshops began to do foreign business directly, in this way customer's can save purchasing cost. Ruilong's products is going high-end route, have been uphold the quality and technology first.



FAQ

Q: Do you supply overseas engineers service glass washing machine?
A: Yes, Ruilong with rich experience in overseas engineers, but customers need to pay the current ticket.

Q: What’s the warranty for glass washing machine?
A: One year, If you need to increase the warranty, need extra cost.

Q: Do you provide accessories for glass washing machine ?
A: Yes, we will provide some additional loss of accessories.
