Safety Battery Thermal abuse Test Chamber

FOB Reference Price:Get Latest Price
$5,500.00 - $11,500.00 / Set | 1 Set/Sets (Min. Order)
Usage:
Auto Testing Machine Universal Testing Machine Thermal Abuse Test Machine
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
DGBELL
Model Number:
BE-8103
Power:
4.0 KW
Power supply:
AC220V 50HZ
Controlling accuracy:
±0.1℃
Temperature range:
Normal temperature-150℃ adjustable control
Temperature deviation:
±2.0℃(no lload)
Heating rate:
RT~150℃(linear 5℃/min)
Working chamber size:
W600 X D500 X H600 mm
External chamber size:
W940 X D780 X H1620 mm
Bottom:
with universal wheel
Inner chamber material:
SUS 304 mirror stainless steel
External chamber material:
SECC steel plate, fine powder paint treatment(thickness 1.5mm)
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard Export Plywood Case
Port
Shenzhen/Hongkong

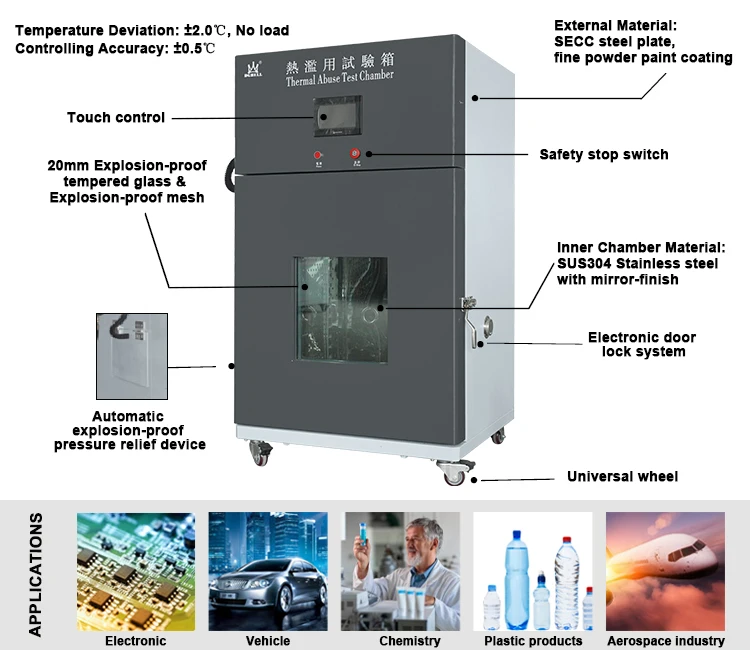

Safety Battery Thermal abuse Test Chamber

Product Description


Related Standard Test Requirements:

1. IEC62133-2012

2. UL1642

3. GB31241-2014



Features:

1.External with SECC steel plate, powder paint treatment; Inner with SUS stainless steel .

2.High temperature resistant long axis motor.

3.Turbo-fan .

4.Silicon packing.

5.Over-temperature protection, over loading auto power cut off system.

6.Cycling system: forced flat air cycling .

7.Heating system :PID+S.S.R.

8.Temperature controller :PID micro computer control, automatic constant temperature, quick temperature compensation function

9.Time function: when temperature reach the setting temperature, alarm for cut off power.

10.Glass observation windows optional, customize according to customer requirements.



If you have interest, pls feel free to let us know, we promise your inquiry will receive our prompt reply.



Performance parameter:

Model

BE-8103

Structure

All-in-one structure, the door uses explosion-proof lock + explosion-proof chain

Temperature Range

Normal temperature to 150°C (Adjustable)

Controlling Accuracy

±0.5℃

Temperature Deviation

±2.0℃, No load

Heating Rate

RT~150°C (Linear 5°C/min)

Control Display

PLC touch type (7 inch) + remote control

Working Cabinet Dimension

W600XD500XH600 mm

External Dimension

W940XD780XH1620 mm

Inner Chamber Material

SUS304 Stainless steel with mirror-finish

External Chamber Material

SECC steel plate, fine powder paint coating (thickness 1.5mm)

Bottom

With universal wheel

Observation Window

390 X 360mm (20mm thick explosion-proof glass, explosion-proof mesh)

Insulation Material

Imported high-density glass wool, good heat insulation, to ensure maximum temperature insulation, tight sealing materials for high temperature resistant silicone, withstanding high temperatures over 300 degrees for a long time

Terminal Hole

Diameter 50mm Terminal hole on the left and right sides

Power Supply

220V / 50HZ / 4.0KW

USB Interface

With USB interface, the test data can be exported

Auxiliary Function

Explosion-proof pressure relief device, smoke exhaust device, explosion-proof lighting device, electronic door lock system, safety stop switch





Company Information



GuangDong Bell Experiment Equipment Co., Ltd is located in Dong Cheng District, Dong Guan City Guangdong Province, with register capital of RMB16.8 million. The factory covers an areas of 20,000 square meters with a building area of over 12,000 square meters. We are a high-tech enterprise specialized in manufacturing Battery Safety Test Equipment, Environmental Test Equipment and Mechanical Test Equipment, with more than 10 years’ experience of R&D.



Bell boost a team that consists of more than 120 employees and 60 of them with college educated background and 15 of them with senior engineer qualification. Enable us to provide excellent equipment and service to satisfy various customers, especially the customized non-standard equipment. Our experienced and well trained engineer team provides installation and after-sales service, making Bell to be the leading manufacturer of test equipment in China.



Packaging & Shipping



Packing:

1.    Fully packed with PE film;

2.    Wooden box;

3.    Machine is fastened to the corners of the containers;

4.    If export to European countries, the wooden box will be fumigated;

5.    Customized package is available.








Certifications



FAQ:



1. Are a manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

-Yes, we are manufacturer of Battery Safety Battery Thermal abuse Test Chamber. Every machine from our factory has a 12 months product warranty.If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.



2. What’s the delivery term?

-If there is no stock, normally, the delivery time is 15-25 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.



3.  Do you accept customization service? Can I have my logo on the machine?

-Yes, of course. We can not only offer standard machines, but also customized

machines according to your requirements. And we can also put your logo on the machine



4.  what about the products' quality?

-Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency.



5.what about the packing of equipment?

-We use Standard Export Plywood Case to Protect it from rust during the long time shipping with the plastic film and protect its corners with the foam.
