Sailflo FL-40 17l/min 40 psi 12v dc mini water pump/high pressure water pump for car wash

Feedback Ratings
  • 1-9 Pieces
    $38.00
  • 10-49 Pieces
    $37.50
  • 50-99 Pieces
    $37.00
  • >=100 Pieces
    $5.50
Horsepower:
110.4W
Maximum Flow Rate:
17LPM
Maximum Head:
2.76M
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Customization:
Customized logo (Min. Order: 200 Pieces)
Customized packaging (Min. Order: 1000 Pieces)
Contact Supplier
Samples - $37.50 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China (Mainland)
Brand Name:
Sailflo
Model Number:
FL-40
Structure:
Diaphragm Pump
Usage:
Water
Application:
Marine,boat,garden,RV
Power:
Electric
Fuel:
Electric
Pressure:
High Pressure
Standard or Nonstandard:
Standard
Theory:
Electromagnetic Pump
Characteristic:
High Flow
Duty cycle:
Working intermittent
Valve made:
EPDM or VITON
Liquid temperature:
0-60 ℃
Certificate:
Rohs/CE/ISO9001:2000/TUV
Pump design:
4 chamber diahpragm
Max flow:
17LPM
Max pressure:
40psi

Packaging & Delivery

Selling Units:
Single item
Single package size:
25X12.5X cm
Single gross weight:
2.9 kg
Package Type:
with strong seaworthy carton,inner with poly foam
Lead Time :
Quantity(Piece) 1 - 50 51 - 100 >100
Est. Time(days) 7 10 To be negotiated

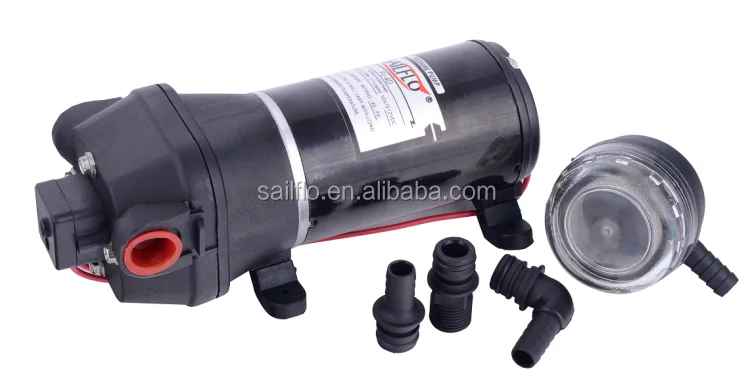

Sailflo FL-40 17l/min 40 psi 12v dc mini water pump/high pressure water pump for car wash

Specifications:

Perfect for caravans, boats, motorbikes, trucks and camping. Use it with fresh or salt water with your deck wash or to run your toilet or shower. These pumps automatically turn themselves on and off when you turn the tap on and off. Comes with filter and fittings. hese pump are for intermittent use only.

A great pump for those country folk, with a small family, on tank water who only need to boost the pressure from a tank next to the house.

We have tested these pumps and found they will operate to a 2 metre suction lift and 5 metre head with no problems.

Type:4 Chamber Diaphragm
Port Size: 3/4''(19mm) BSPT Female thread
Liquid: 140°F [60 °C] Max
Self-priming: 6 feet [about 2M]
Max pressure 40psi(2.76bar);can be adjust to 60psi.
Run Dry: Yes
Motor:
Permanent Magnet, Intermittent
Duty Protection: Thermal Overload, Automatic Restart
Volts: 12/24 VDC and 115/220 VAC motors standard

Features:

  • Lightweight and made from non corroding materials
  • Self priming
  • Run dry Protection
  • Easy to install
  • No maintenance
  • Simple to operate
  • Low power consumption
  • 12 months warranty
  • Automatically turns on and off
  • Comes with filter and fittings

 Technical Data:

TECHNICAL DATA OF DC VOLTAGE
ModelVoltFlow(L/Min)Pressure(PSI)Amp Draw(A)
FL-301210172.2
FL-312410171.5
FL-351212.5357
FL-342412.5354
FL-401217409.2
FL-442417405.6
FL-6012176015A
TECHNICAL DATA OF AC VOLTAGE
ModelVoltFLow(L/Min)Pressure(PSI)Amp Draw(A)
FL-3311512.5350.5
FL-3222012.5350.4
FL-4111517400.5
FL-4322017400.8
Inlets size:1/2''hose barb,3/4'' thread
Outlets size:1/2''hose barb, 3/4''thread
dimension/pc DC model33.5x12.5x10.5cm
N.W/G.W   DC model2.6KGS/2.7KGS
Carton dimension(10pcs DC Series):63x29x22.5cm
dimension/pc  AC model:37x12.5x10.5cm
N.W/G.W AC model3.2/3.3kgs
Carton dimension(10pcs AC Series):64x39x22cm


DC Model:


 AC MODEL:



1. Q: Are you a manufacturer or trading company?

    A: : We are a manufacturer that specialized in diaphragm water pump and bilge pumps, our products have abtained the SGS-CE and RoHS certificate.

2. Q:What's your products MOQ?

    A: Different model has different MOQ, pls check with salesman.

3. Q: How can I get some samples?

   A: Usually we can’t offer free sample, pls pay the sample and express fee, the      sample costing can be             deducted in your first large order.



4 Q:  What's your delivery time?

    A:  1.The samples can be sent to you within 3-5days.

         2.The batch order can be shipped to you within 5-15days after order confirmation

5 : Q:What's your warranty & after service policy?

     A: 12 Months for all products, and some products warranty is 24months. Usually offer 1% spare parts                     free to you

6  Q: How many qty so I can get your OEM service with myself brand name?

    A:  Different Models have different MOQ requirement, pls consult our salesman.



7  Q: What's the payment can you accept?

     A:Usually we accept T/T ,Western Union, PayPal and Alipay, also RMB transfer in China mainland.
