Sand and Gravel Screw Conveyor Systems

FOB Reference Price:Get Latest Price
$1,000.00 - $100,000.00 / Sets | 1 Set/Sets According to the client's requirement (Min. Order)
Model Number:
LS200
Lead Time:
Quantity(Sets) 1 - 30 >30
Est. Time(days) 30 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Screw Conveyor
Material:
Carbon steel, Carbon steel, Stainless steel etc.
Material Feature:
Heat Resistant
Structure:
Conveyor System
Load Capacity:
14 m3/h
Place of Origin:
Henan, China (Mainland)
Brand Name:
Tianlong
Voltage:
380V
Power(W):
2.2KW~30KW
Dimension(L*W*H):
Customized Size
Name:
Screw Conveyor
Model:
LS200
Screw Diameter:
200mm
Screw Pitch:
200mm
Length:
According to the client's requirement
Inclination Angle:
0°~ 60°
Design:
Customize according to the client's requirement
Accessory:
Stand, hopper, mobile wheel
Application:
Powder, granular, small block material
After-sales Service Provided:
No overseas service provided
Supply Ability
Supply Ability:
30 Set/Sets per Month According to the client's requirement
Packaging & Delivery
Packaging Details
Fumigated wooden case or according to the client's requirment
Port
Qingdao, Shanghai etc.
Lead Time :
Quantity(Sets) 1 - 30 >30
Est. Time(days) 30 To be negotiated

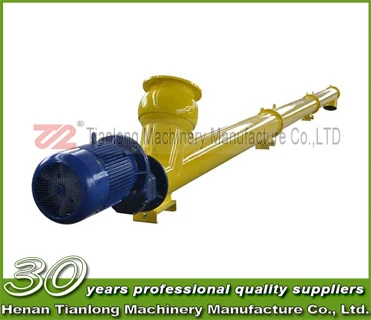

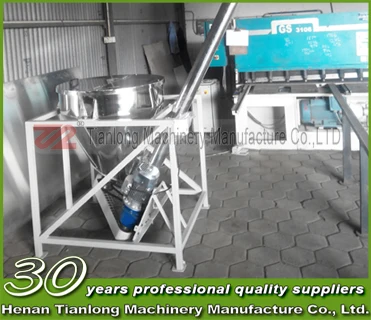

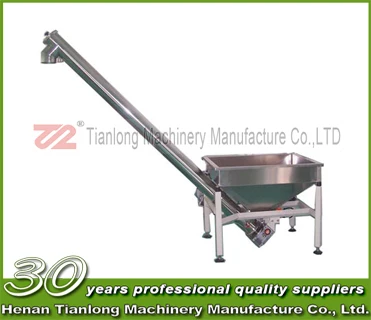

Product Show
Structure

It consist of drive unit, screw conveyor main body, inlet and outlet.

The screw conveyor main body include head joint, middle joint and rear joint.

Technical Parameters
Model
LS100
LS160
LS200
LS250
LS315
LS400
LS500
Screw Diameter
100mm
160mm
200mm
250mm
315mm
400mm
500mm
Screw
 Pitch
100mm
160mm
200mm
250mm
315mm
355mm
400mm
Rotate Speed
(r/min)
140
112
100
90
80
71
63
Throughput
(0.33m³/h)
2.2
8
14
24
34
64
100
Rotate Speed
(r/min)
112
90
80
71
63
56
50
Throughput
(0.33m³/h)
1.7
7
12
20
26
52
80
Rotate Speed
(r/min)
90
71
63
56
50
45
40
Throughput
(0.33m³/h)
1.4
6
10
16
21
41
64
Rotate Speed
(r/min)
71
50
50
45
40
36
32
Throughput
(0.33m³/h)
1.1
4
7
13
16
34
52
Produce Process

                 Pipe Cutting

           Flange Measuring

        Screw Blade Making

          Screw Blade Welding

          Hanging Bearing

                 Installing

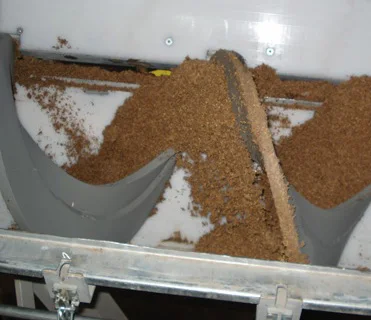

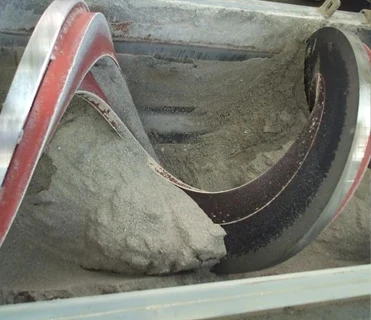

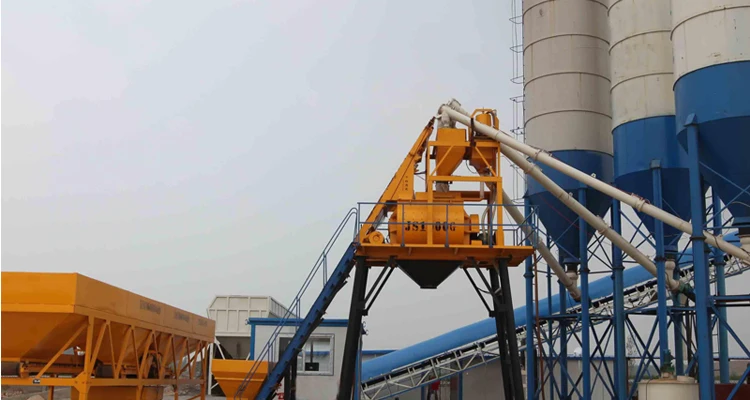

Application cases

LS screw conveyor is a continuous conveying equipment which used to transport the powder, granule and bulk material. such as cement, coal, grain, chemical fertilizer, ash, sand, coke, etc. It is widely used in building material, metallurgy, chemical industry, electric power, coal, machinery, light industry, grain and the food industry.

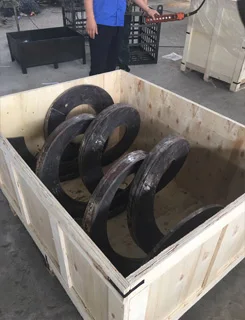

Packaging & Shipping

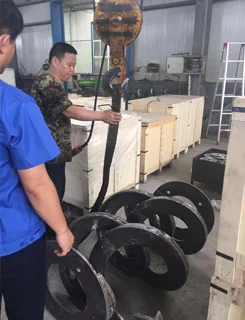

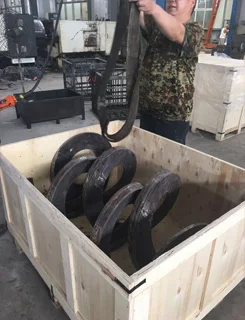

Packing: Plastic bag + wooden case, or according to the client's requirment.
Shipping: by sea, by air, by international express such as DHL, UPS, FedEx, EMS etc.

Our Company

     Henan Tianlong Machinery Manufacture Co.,Ltd. was founded in the year 2003, But in fact, we have more than 30 years experience in producing and manufacturing products. We have a strict process flow. We are equipped with professional technical personnel and sophisticated testing instruments, Alibaba's 9th year member. Standard & non-standard & custom design acceptable. Since the 1990s, we began to export Europe, America, Germany and other countries and regions. Win a good reputation at home and abroad.
    Adhering to the "moderate, pargmatic, intergrity, efficient" business philosophy, we welcome customers all of the world together for a better tomorrow.

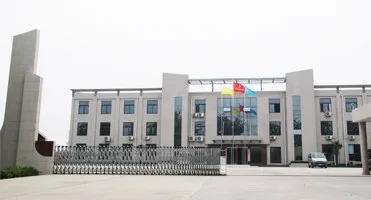

OFFICE BUILDING

OFFICE

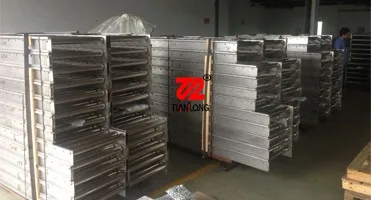

.WAREHOUSE
