Scrap Metal Medium Frequency Smelting Crucible Copper Iron Steel Aluminium Induction Metal Electric Melting Industrial Furnace

  • >=1 Sets
    $4,900.00
Model Number:
GW-1
Lead Time:
Quantity(Sets) 1 - 2 >2
Est. Time(days) 20 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)
Samples:
$3,900.00 /Set | 1 Set (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Henan, China
Type:
Induction Furnace
Usage:
Melting Furnace, melting furnace
Video outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
Hot Product 2019
Warranty of core components:
1 YEAR
Brand Name:
HONGTENG
Voltage:
220V/380V
Dimension(L*W*H):
Depands
Certification:
ISO9001:2008 CE, ISO9001:2000/CE
Weight (T):
0.5 T
Power (kW):
600
After Warranty Service:
Video technical support, Online support
Key Selling Points:
High productivity
Local Service Location:
VIET NAM
Applicable Industries:
Building Material Shops, Manufacturing Plant, Construction works , Energy & Mining
Showroom Location:
VIET NAM, indonesia, RUSSIA
After-sales Service Provided:
Engineers available to service machinery overseas
Name:
induction melting furnace
Power:
850KW
voltage:
380v 50HZ
cooling way:
water cooling
Weight:
2~20T
Power(W):
600KW
Function:
Melting Metal Scrap
Core Components:
Furnace
Warranty:
1 Year
Supply Ability
Supply Ability:
1000 Set/Sets per Year melting furnace
Packaging & Delivery
Packaging Details
Standard export wooden box
Bronze, copper, brass casting export induction melting furnace
Port
shanghai,tianjin,qingdao
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 2 >2
Est. Time(days) 20 To be negotiated
We are factory, we can produce 50Kg-20T capacity melting furnace.
Melting furnace can be used to melt metal : iron, steel , brass , copper, bronze, aluminum, zinc
Product Description
1. Electric type melting furnace. Can be used to melt steel scrap,copper,aluminum,lead,etc 2. Melting speed fast,Easy operation and maintance. 3. Auto tilting type 4. The furnace body is easy to turn and dump, and the metal composition is uniform; 5. Small footprint, effective governance of higher harmonics; 6. The steel shell body has good stability, which helps to extend the service life of the lining; 7. Low noise, good working environment;
Technological Process
The furnace mainly used for melting and refining all kinds of scrap metal, like scrap auto parts, scrap steel bars, scrap screws, iron leftover materials etc.

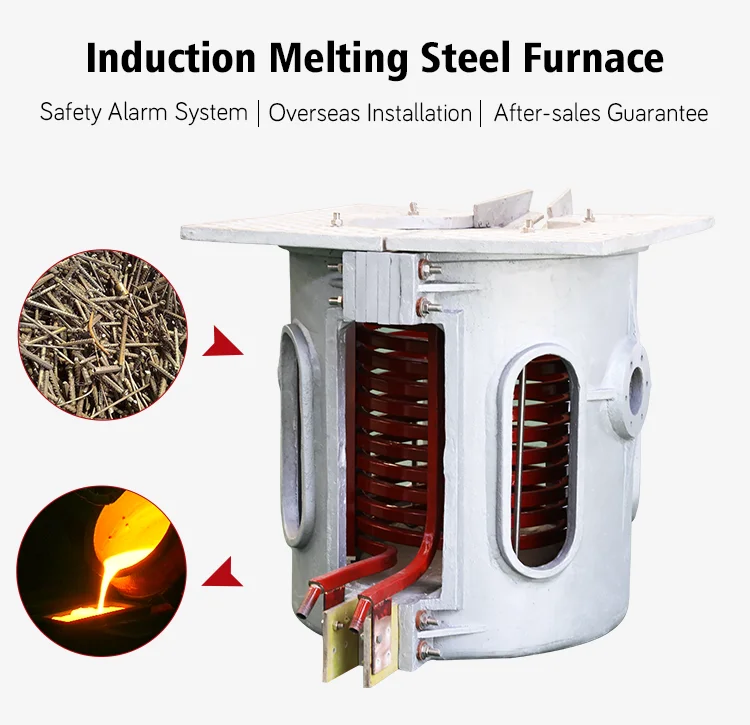

Product Parts Display
The furnace body is made by thick aluminum alloy shell to reduce the magnetic leakage and ensure furnace body strength.The thick
T2 standard copper tube is taken use for induction coil.
The main control board is microcomputer control, one - key zero - pressure start. The separate insolation design of water pressure
meter can make the user convenient and intuitive to monitor the water pressure
The double-layer mica insulation technology is used for the insulation treatment of the capacitor. Even if water is sprayed on the
capacitor accidentally, the insulation strength of the cabinet can be ensured.
Furnace Tilting Reducer is used to control the rotary of the furnace body.
The tilting reducer is equipped with three-stage turbine speed. With good self-locking and stable rotary performance.
Technical Parameter of induction melting furnace
Model
MF power
Input  voltage
MF Voltage
MF frequency
            100KG
80kw
         3ph,380V
750V
2500HZ
250KG
             150kw
3ph,380V
750V
2500HZ
350KG
250kw
3ph,380V
750V
               2000HZ
500KG
350kw
3ph,380V
1500V
1500HZ
750KG
400kw
3ph,380V
1500V
1500HZ
1T
800kw
      3ph,380/660V
2400V
1000HZ
1.5T
1000kw
3ph,660V
2500V
1000HZ
2T
1500kw
3ph,660V
2500V
800HZ
