Sections/Tubes/Pipes Sheet Metal Shot Blasting Machine/Sandblasting Equipment

  • 1 - 4 Sets
    $25,000.00
  • >=5 Sets
    $20,000.00
Feature:
shot blast wheels for high performance and reduced maintenance;
Industry Used:
steel plates, profiles, beams and pipes
Model Number:
QGRB
Shipping:
Support Sea freight
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Machine Type:
Abrator
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
QINGGONG
Video outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
New Product 2020
Weight (KG):
9000 KG
Fuel:
Electric
Certification:
ce, GS, UL
Use:
Deflashing, Degreasing, Descaling / Stripping
Cleaning Process:
steel shot
Cleaning Type:
shot blast cleaning
Material:
steel plates, profiles, beams and pipes
Power:
Customizd
Dimension(L*W*H):
Customised
Warranty:
1 Year
After-sales Service Provided:
Field installation, commissioning and training, Engineers available to service machinery overseas
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Key Selling Points:
High effiency blast wheel
Local Service Location:
Canada, Turkey, Viet Nam, Philippines, Brazil, Peru, Indonesia, Mexico, Russia, Spain, Thailand, Malaysia, Australia, South Korea, Chile, UAE, Colombia, Romania
Showroom Location:
Canada, Turkey, Viet Nam, Philippines, Brazil, Peru, Indonesia, Mexico, Russia, Spain, Thailand, South Korea, Chile, UAE, Colombia, Romania, Malaysia, Australia
Applicable Industries:
Foundry, Construction, Machinery etc.
Blast wheel:
shot blast wheels for high performance and reduced maintenance;
Blast Wheel Layout:
3-D Dynamic Simulation Design
Blast chamber:
Rolled Mn13 Steel Guard Plate
Main shaft bearings:
NSK, SFK
Dust Collector:
Advanced Cartridge Filter
Dimension:
Customised
Contactor:
Schneider
Thickness of blasting room:
50mm
Structure of blasting room:
Building Block design
Core Components:
blasting chamber
Warranty of core components:
10 years
Supply Ability
Supply Ability:
1000 Set/Sets per Year
Packaging & Delivery
Packaging Details
1.Standard export packaging.
2.in container
Port
QINGDAO
Sections/Tubes/Pipes Sheet Metal Shot Blasting Machine/Sandblasting Equipment

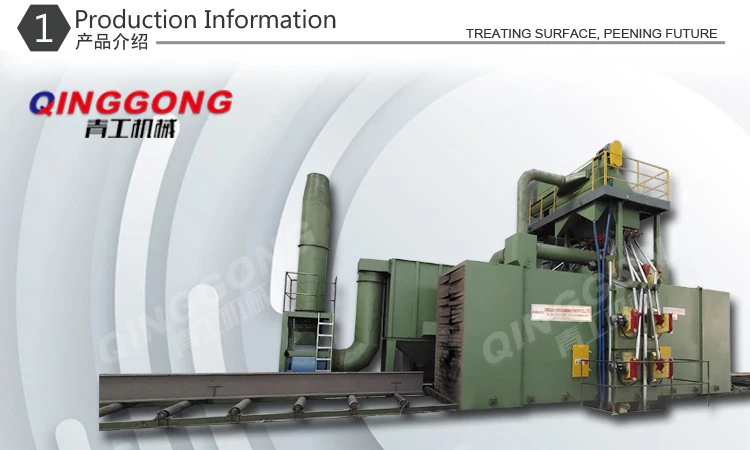

Product Description
☆Transportation system: Roller conveyor system, width: 500-4500mm, load capacity: 300-10000kg. ☆Workpiece: Steel plate, pipes, steel structure, h beams, steel tube, profiles, steel angles and channels, etc. For various industries: aerospace, automotive, foundry, forging, stamping, ship-building, steel construction, plastic process, chain, etc. ☆Blast turbine: Power of motor : 7.5-30kw Number of turbine: 4-16 ☆Intelligent abrasive dosing system: Service time max 20% longer, energy saved max 30%. ☆Dust collector: Settling chamber +cartridge-type dust collector Cartridge filter service time: 5 years ☆Function: Remove rust, scale, sand, burrs, etc. Finished rust removal grade: SA2.5-3.0. Relieve internal stress, increase adhesion of coating. ☆Delivery time: 3 -8 weeks
Specification
Type
unit
 QGRB600
QGRB1000
QGRB1500
QGRB2000
QGRB2500
QGRB3000
Effective blasting width
mm
600
1000
1500
2000
2500
3000
Dimension of entrance(W×H)
mm
800×300
1200×300
1700×300
2200×300
2700×300
3200×300
Work speed to achieve cleaning of Sa2.5 ISO8501
m/min
0.5~3
0.5~3
0.5~3
0.5~3
0.5~3
0.5~3
Number of wheels×power
kW
4×7.5/11
4×11/15
4×11/15
6×11/15
8×11/15
8×11/15
Wheel optional
kW
4×15
6×15/18.5
6×15/18.5
Abrasive initial filling capacity
kg
2000
4000
4000
4500
6000
6000
Processed length of the workpiece
mm
1200~12000
1200~6000
1200~12000
3000~12000
2400~12000
3000~18000
Foundation pit required

No
No
No
Yes
Yes
Yes
Company Profie
With 45 years experience of innovating and producing, QINGGONG machinery is a professional manufacturer of wheel blast/air blast machines.
Qinggong machinery have a R&D team with 30 years experience, 50 workers and a factory covering an area of 30,000 ㎡.
Untill 2019, Qinggong machinery have produced 5000+ sets of various kinds of wheel blast, air blast machines for customers from more than 50 different countries and some major factories in China, like LongGong, SANY, TISCO, etc.
TREATING SURFACE, PEENING FUTURE. has been the spirit of Qinggong machinery for decades. With our determined and responsible attitude, we have the confidence of providing the better surface treatment solutions for your industry.
FAQ
Q:How to choose balst machine type? A:Please tell the information of your work-piece and productivity, experienced engineer will suggest. Q:How to choose abrasive? A:Various kinds abrasive with different size: steel shot, cut wire shot, stainless steel shot, etc. Choose according to workpiece. Q:Quality warranty? A:1 year for whole machine, 10 years for blasting chamber Q:Is foundation pit essential? A:Up to machine size and workshop Q:How many workers to operate the machine? A:1-2, up to the machine. Q:Install assistance? A:1-1 install assistance & operation training on site by experienced engineer. Q:After sale service? A:Full stock for spare parts, regular after sale service.
