Self-cleaning double sealing rotary duct evaporative air coolers

FOB Reference Price:Get Latest Price
$700.00 - $2,000.00 / Set | 1 Set/Sets order unlimited (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Air Handling Unit
Place of Origin:
Beijing, China
Brand Name:
Holtop
Model Number:
HRT 500-5000
Operating Voltage:
380/400 VAC
Mounting:
Floor Standing
Certification:
UR
Heat & energy recovery type:
total heat & sensible heat
Materials:
aluminum & 3A molecular sieve
Structure:
rotor, casing, motor etc
Certificate:
CE for all avaiable specifications
Other Certificate:
EUROVENT certificate
Enthalpy effeciency:
65-80%
Temperature effeciency:
70-85%
Fin thickness:
0.12mm
Wave height:
2mm
Clients:
York, McQuay, Trane, Carrier, Sinko in China
After-sales Service Provided:
Overseas service center available
Supply Ability
Supply Ability:
200 Set/Sets per Month optional
Packaging & Delivery
Packaging Details
wooden case, Polyethylene foams
Port
Tianjin,China ETC
Lead Time :
30days



Product Description



Special wheel construction

 Alternating layers of flat and corrugated aluminum foil form the alveolate shape of wheel.

Flat surface ensures minimum leakage.
Interior spokes are used to mechanically bond the rotor’s laminations to reinforce the wheel







Features and specifications of  Self-cleaning double sealing  rotary duct evaporative air coolers Holtop total heat type heat/energy recovery wheels(rotary heat exchangers) can be widely installed into the air handling units and ducts for heat/energy recovery and air ventilation.



Laminar Flow Channels



Double Sealing System



Purge Sector







Specifications and dimensions

Model        Rotor diameter(mm)Wheel length(mm)Wheel width(mm)Wheel height(mm)Vot./HzPower(Kw)Kg
HRT-500500600340600380v/50Hz0.0942
HRT-600600700340700380v/50Hz0.0959
HRT-700700800340800380v/50Hz 0.0971
HRT-800800900340900 380v/50Hz 0.0982
HRT-90090010303401030 380v/50Hz 0.09102
HRT-1000100011303401130 380v/50Hz 0.09130
HRT-1100113012303401230 380v/50Hz 0.09151
HRT-1200123013303401330 380v/50Hz0.18169
HRT-1300133014303401430 380v/50Hz0.18190
HRT-1400143015303401530 380v/50Hz0.18205
HRT-1500153016303401630 380v/50Hz0.18220
HRT-1600163017303401730 380v/50Hz0.18239
HRT-1700173018303401830 380v/50Hz0.25266
HRT-1800183019303401930 380v/50Hz0.25293
HRT-1900193020303402030 380v/50Hz0.25320
HRT-2000203021303402130 380v/50Hz0.25370



Model         Rotor diameter(mm)Wheel lengt(mm)Wheel width(mm)Wheel height(mm)Vot./HzPower(Kw)Weight(Kg)

HRT-2200

2230

2400

340

2400

 380v/50Hz

0.37

420

HRT-2400243026003402600 380v/50Hz0.37500
HRT-2600263028003402800 380v/50Hz0.37570
HRT-2800283030003403000 380v/50Hz0.37860
HRT-3000303032003403200 380v/50Hz0.55950
HRT-3200323034003403400 380v/50Hz0.551039
HRT-3400343036003403600 380v/50Hz0.551110
HRT-3600363038003403800 380v/50Hz0.551220
HRT-3800383040003404000 380v/50Hz0.551360
HRT-4000403042003404200 380v/50Hz0.751500
HRT-4200423044003404400 380v/50Hz0.751645
HRT-4400443046003404600 380v/50Hz0.751750
HRT-4600463048003404800 380v/50Hz1.11830
HRT-4800483050003405000 380v/50Hz1.11980
HRT-5000503052003405200 380v/50Hz1.1

2100



Applications of wheels

FAQ

1. How to select the suitable models?

Please send us the airflow, temperature and R.H. Of the outdoor air and return air, and the cooling and heating capacity you need, or you may send us the equipment specifications of the whole project, we can help you to design the unit and recommend the suitable models for you.



2. What’s the functional sections of the AHU?

Mixing section, Filtration section, Heat recovery section, Cooling or heating coils section, Humidifying section, Fan section, Muffler section, etc..



3. Where were the AHU exported?

Australia, Algeria, Albania, Mongolia, Taiwan, etc..



4. Why choose Holtop as business partner?

Holtop is the leading manufacturer in China specializing in the production of air to air heat recovery equipments for more than 10 years.



Holtop can supply a full range of products, up to 20 series and 200 specifications. The product range mainly covers heat and energy recovery ventilators, rotary heat exchangers, plate and rotary heat exchangers and air handling units.



Holtop has 400 employees and covers an area of more than 30,000 square meters. Annual production ability of heat recovery equipment reaches 100,000 sets. Holtop supplies OEM products for Midea, LG, Hitachi, McQuay, York, Trane and Carrier. As an honor, Holtop was the qualified supplier for Beijing Olympics 2008 and Shanghai World Exposition 2010.



Holtop has established business relationships with major countries in Asia, Europe and North America, and earned a worldwide reputation for providing reliable products, knowledgeable application expertise and responsive support and services.



5. How about the product quality?



Holtop assures high quality products with professional R&D team, first-class production facilities and advanced management system.



Holtop owns numeral control machines, national approved labs, and has successfully passed the certifications of ISO9001, ISO14001, OHSAS18001, CE and EUROVENT.



All our products are tested 100% before ex-factory to ensure high quality.



Relative products
Company Information

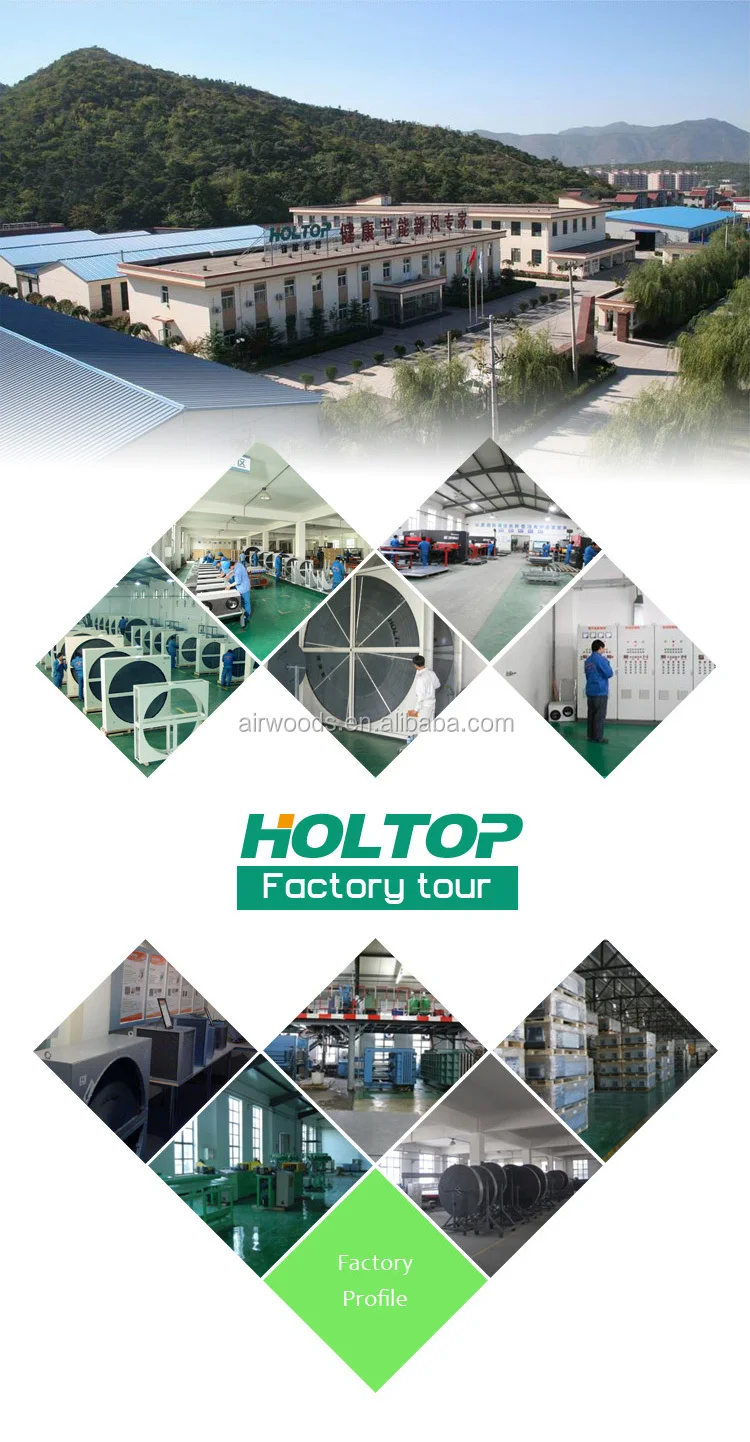

Holtop Factory

Holtop is one of the best manufacturer in ERV/HRV, heat exchanger and AHU area in China, founded in 2002, areas covered more than 30,000 square meters, turnover of 2012 is 42 million dollars, we have enthalpy testing lab. for products test. As a leader in energy/heat recovery equipments, we cooperate with more than 30 famous companies who located in Europe, the Middle east, Korea, Southeast Asia, Taiwan, etc. supplied equipment to Beijing Olympic and Shanghai Expo 2010, works together with domestic and international brands like Midea, Haier, Hitachi, etc.

Holtop partner

Holtop cooperate with world famous brand or offer OEM service including Hitachi, LG, McQuay, TRANE, Systemair, Aldes, York, Haier, Gree, MHI Group, Midea, Carrier, Dunham-Bush, etc.

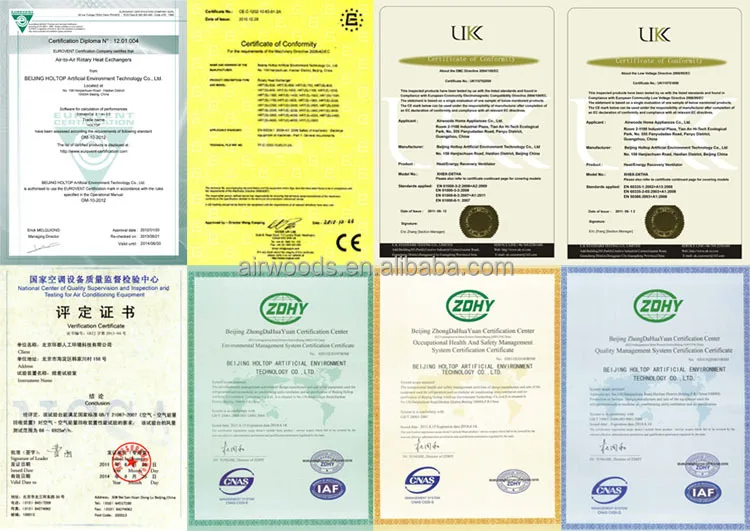

Holtop certificate

Holtop products stand for TOP quality in heat recovery ventilation filed in China, certificated by CE, Eurovent, ISO and other different approved tests like anti-flaming test, anti-mold test, energy saving product test. Etc.
