Selling Semi Automatic Oval Plastic Glass Bottles Cup Tube Positioning Serigrafia Silk Screen Printing Machine

  • >=1 Sets
    $7,900.00
Model Number:
PA-400ES
Gross Power:
50W
Samples:
$7,900.00 /Set | 1 Set (Min. Order) | Buy Samples
Lead Time:
Quantity(Sets) 1 - 1 2 - 5 6 - 10 >10
Est. Time(days) 7 10 15 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Plate Type:
Screen Printer
Applicable Industries:
Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Retail, Printing Shops, screen printing machine shop
After Warranty Service:
Video technical support, Online support
Local Service Location:
none
Showroom Location:
none
Condition:
New
Place of Origin:
Guangdong, China
Brand Name:
LC
Usage:
Bill Printer, Card Printer, Cloths Printer, Label Printer, Paper Printer, Tube Printer, bottle,bag,cup
Automatic Grade:
Semi-automatic
Color & Page:
Single color
Voltage:
220V

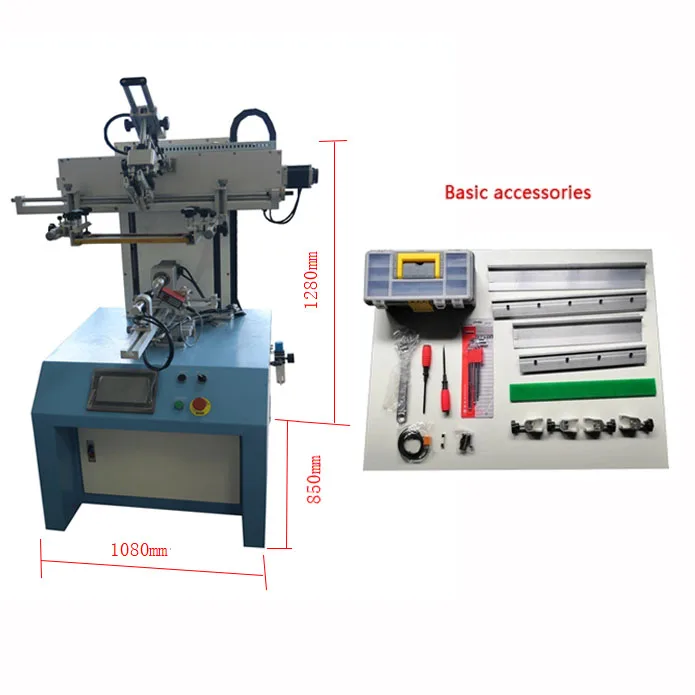

Dimensions(L*W*H):
1080mm*850mm*1280mm
Weight:
145kg
Certification:
CE
Key Selling Points:
High-accuracy
Marketing Type:
Ordinary Product
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Warranty of core components:
1 Year
Core Components:
Bearing, Motor, Engine, Gearbox
After-sales Service Provided:
Engineers available to service machinery overseas
Model number:
LC-PA-400ES
Product appearance:
Round /oblate
(Round)Max. Printing diameter:
120mm
(Round)Max printing arc length:
370mm
(oblate)Max printing diameter:
500mm
Printing Speed::
2000 PC/H
Air pressure::
0.5Mpa
system:
servo system semi-automatic
Product name:
Plastic bottles cup optical positioning Screen Printer
Warranty:
One Year
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
the machine will be packaged in wooden case to ensure safety.
Port
ShenZhen port of China
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 2 - 5 6 - 10 >10
Est. Time(days) 7 10 15 To be negotiated
Video Description
Semi-Automatic Screen Printing Machine For Bottles , Cups , Mugs
Products Description
Model number
LC-PA-400ES
Product appearance
Round
(Round)Max Printing diameter
Φ120mm
(Round)Max printing arc length
370mm
Printing Speed
2000 PC/H
gross weight
330kg

Specifications

LC-PA-400ES screen printer add servo system for color registration. The machine should be PLC contorl, left and right by servo system, the frame move by electric, roating by servo system, do not need gear,with color sensor too.

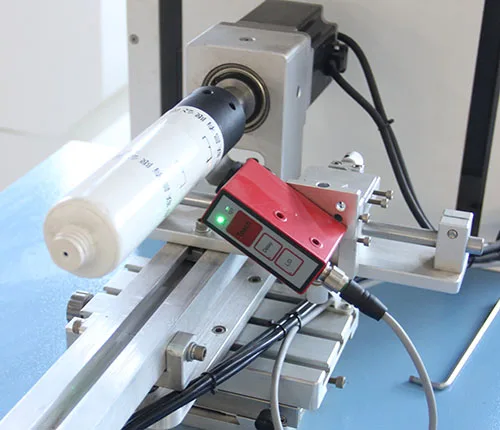

LC-PA-400ES adopted 2sets Japan Fuji servo, German Leuze color sensor and Japan Hitachi PLC system. One servo is for Screen movement, another servo is for Fixture rotation. And the German Leuze color sensor is used to recognized the print position. It make sure to accurate position of products and no need to adjustment .
Details Images

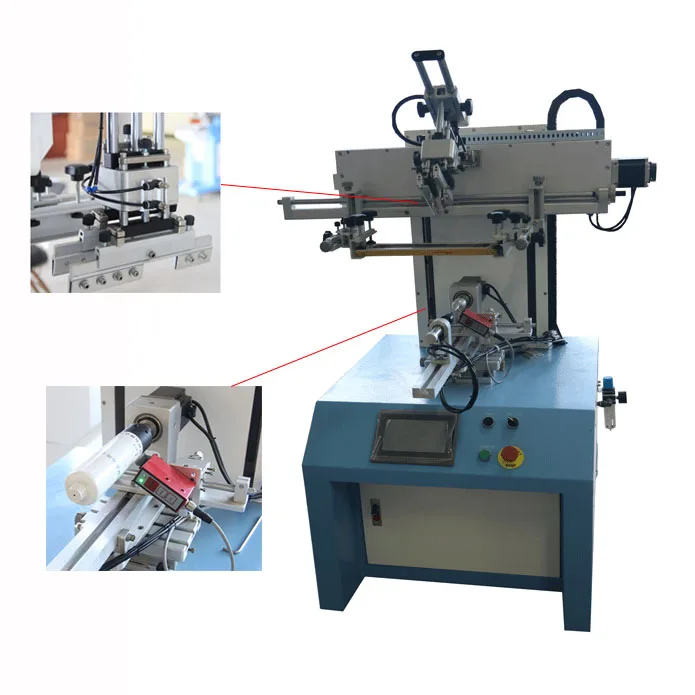

servo system
servo system for color registration,High precision

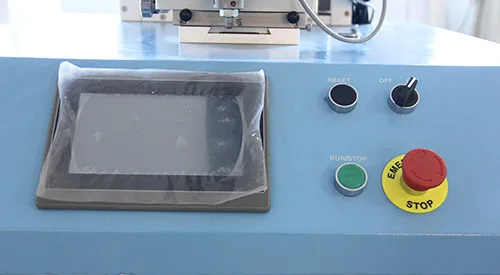

Microcomputer control screen
Console,Operating machine systems, switches

Application For Semi-automatic Screen Printing Machine For Bottles , Cups , Mugs

It suitable for precise printing substrates in Cylindrical, forms whic h with smooth curve surface and made of various materialssuch as metal, plastic, ceramic, glass, wood etc.Printing objects such as lipstick, cosmetic bottles, scour bottles, drinkbottles, pots, oil-filter shell etc.

Main Features For Semi-automatic Screen Printing Machine For Bottles , Cups , Mugs

1. Round printing function (taper section)
2. Automaticoil scrabbing, oil return and lifting table
3. Adujustability of routs and speeds
4. Self-poise scraper to balance printing pressure
5. Adjustable table (fluctuation & round) and netting easel (fluctuation & both sides)
6. High precision and easy & quick adjustability

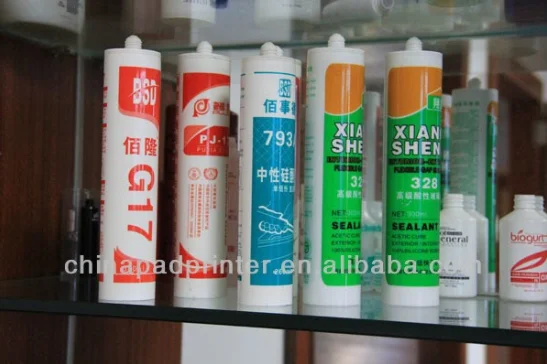

Printing samples

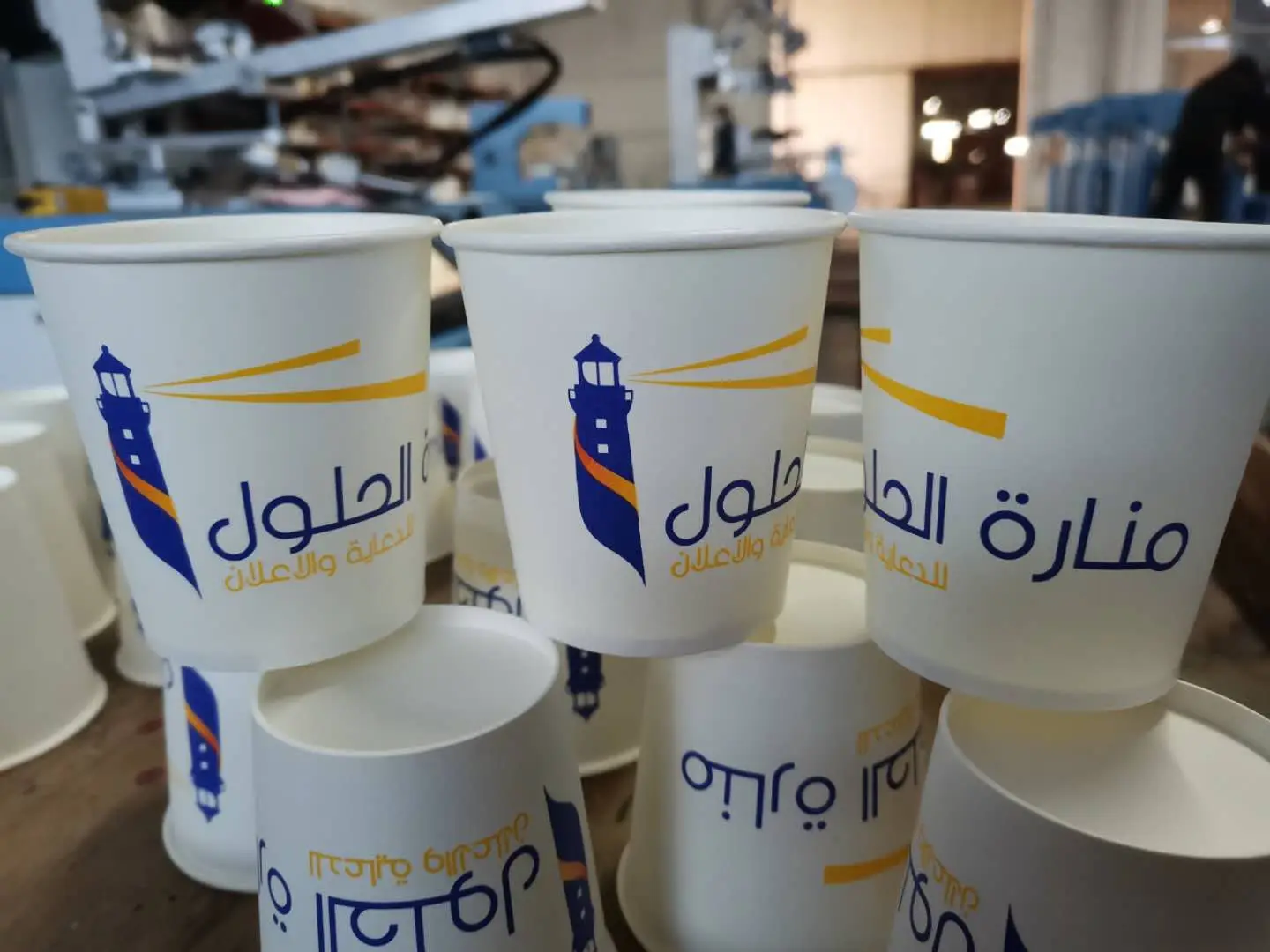

Paper cup
Plastic bottles

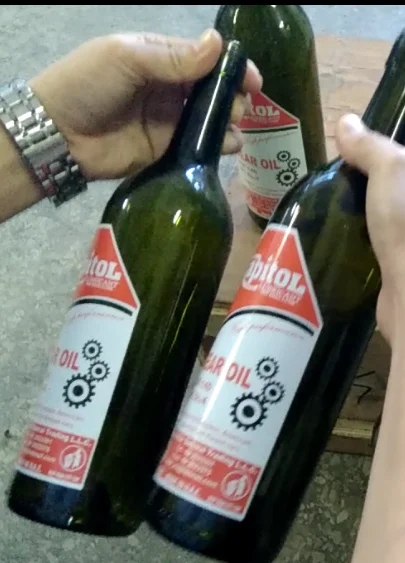

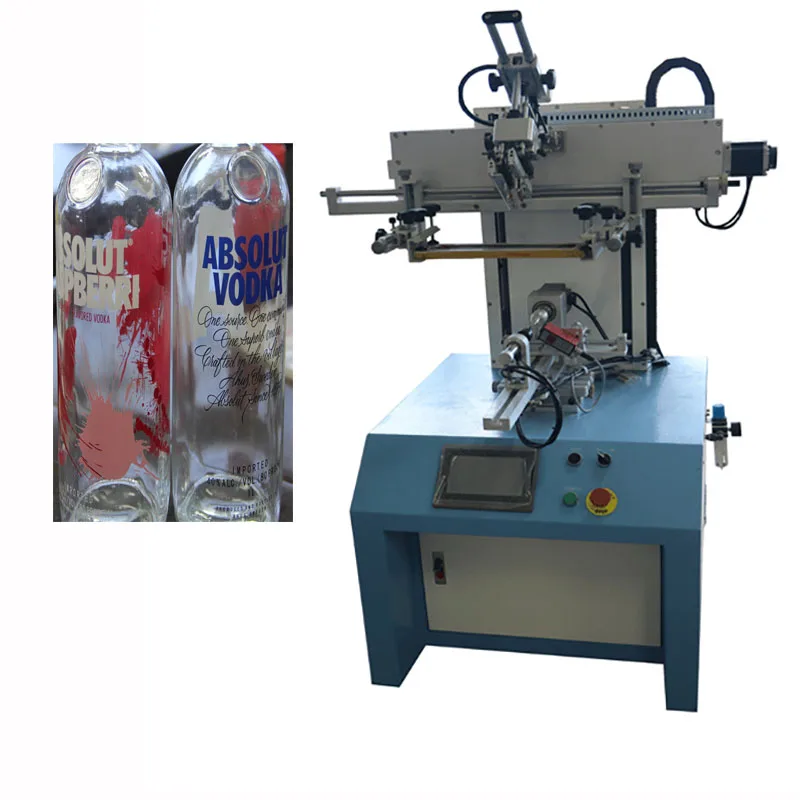

Glass bottles
Plastic bottles
More samples of muliti color screen printing machine , please contact with us

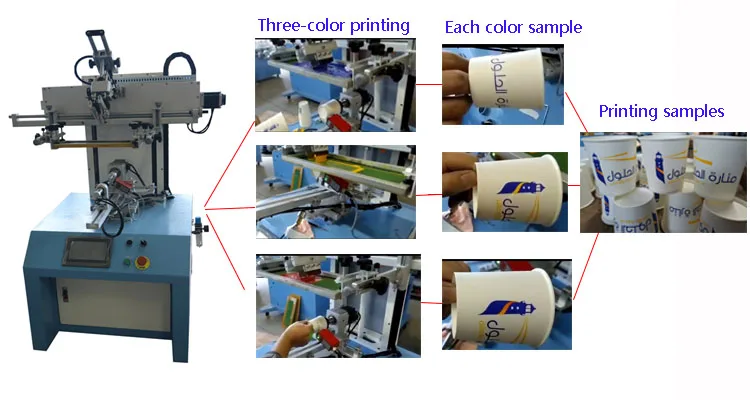

Printing process of multicolor paper cup

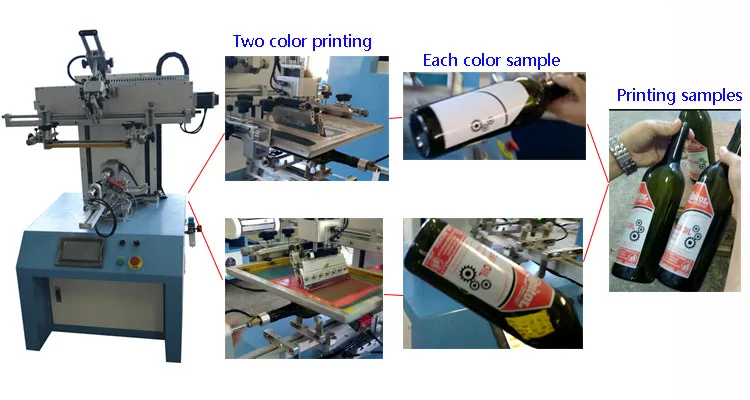

Printing process of 2 color wine bottle

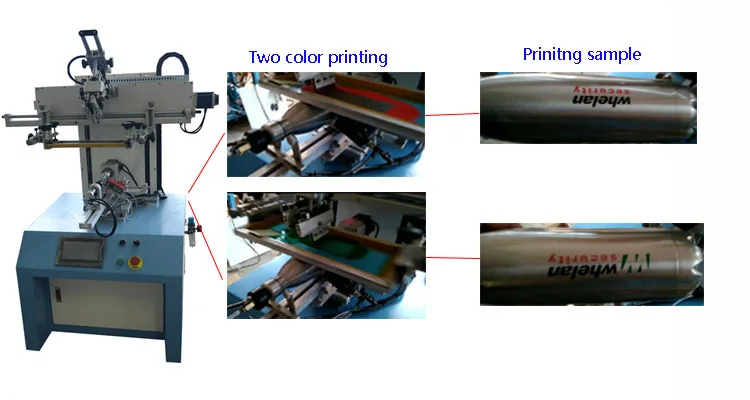

Printing process of Thermos
More pictures and video of the machine , please contant with us.It can print various materials bottles, cups, tubes, etc.
