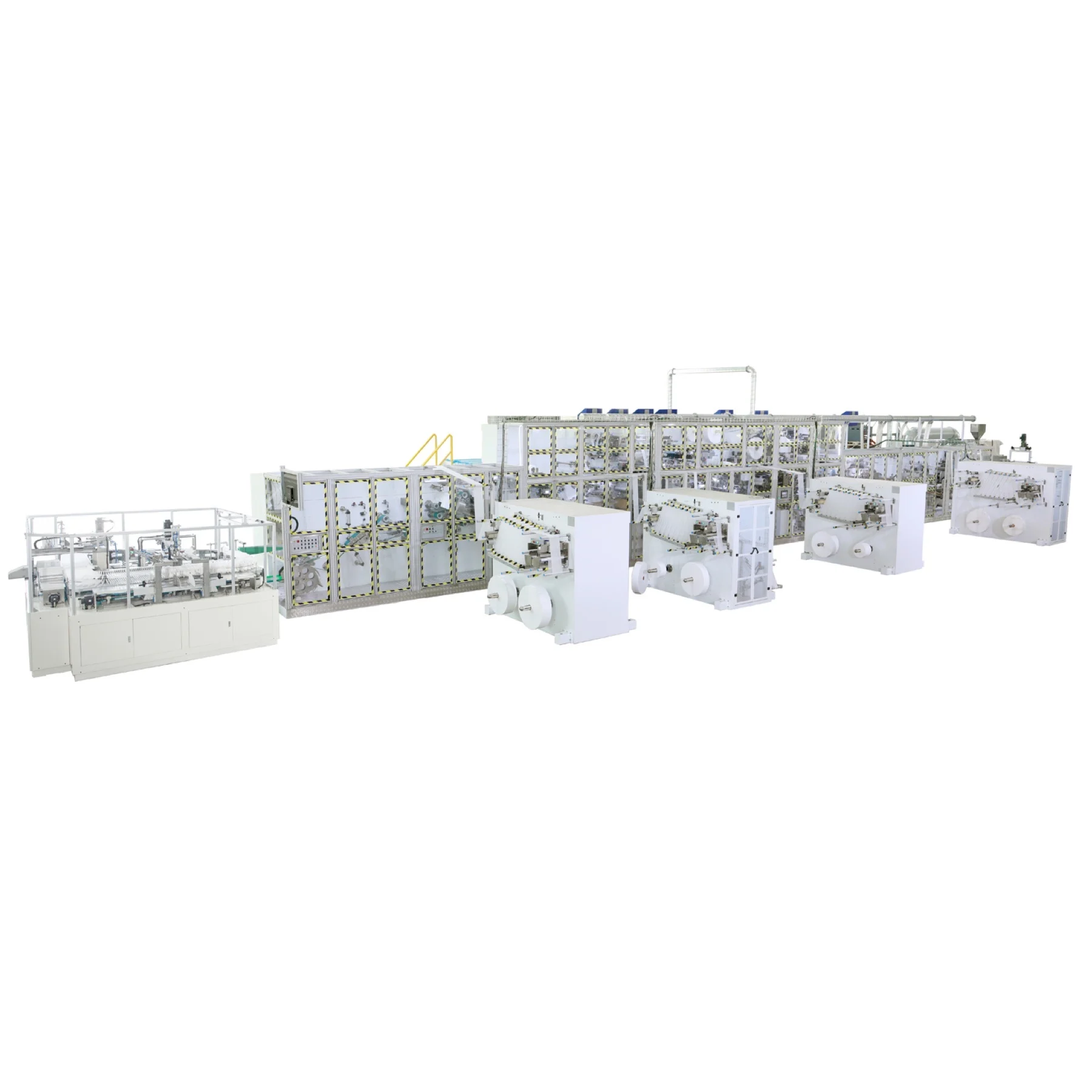

Semi Servo automatic T shape Baby diaper making china production machine

  • >=1 Sets
    $550,000.00
Model Number:
WJ-NK500T
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 120 Negotiable
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Manufacturing Plant
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
none
Showroom Location:
none
Condition:
New
Product Type:
Diaper Machine
Processing Type:
Pulp Molding Machine
Place of Origin:
Fujian, China
Brand Name:
Weijia
Voltage:
380V
Power:
250KW
Dimension(L*W*H):
22m *2.2m *3.5m
Weight:
40T
Certification:
ce
Warranty:
1 Year
After-sales Service Provided:
Free spare parts, Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Online support
Production Capacity:
400pcs/min
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Marketing Type:
New Product 2020
Warranty of core components:
More than 5 years
Core Components:
PLC, Gear, Motor, Pump, Bearing
Product name:
Baby diaper making china production machine automatic
Electrical Supply:
380V ±5%, 50Hz Three-phase four-wire + ground wire
Power Installed:
About 180KW (Not included hot melt glue machine)
Supply Pressure:
0.6-0.8Mpa
Product Weight Deviation:
±5%
Passing Rate:
≥98%

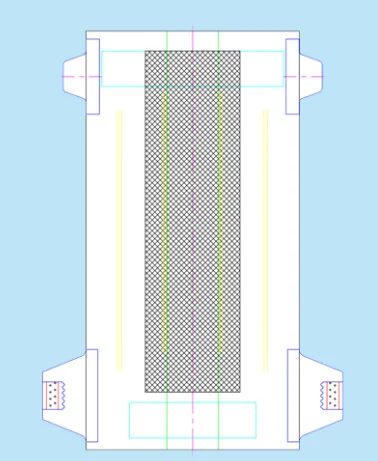

Diaper Size:
NB/S/M/L/XL
Supply Ability
Supply Ability:
40 Set/Sets per Month
Packaging & Delivery
Packaging Details
1.Rust Preventing Oil
2.Warpping Film
3.Seaworthy Wooden Box
4.Weatherproof Rucksack
5.Protect your Machine on the shipment!
Port
XIAMEN
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 120 To be negotiated
Products Description
Production Name
semi servo baby diaper Machine
Electrical Supply
380V ±5%, 50Hz Three-phase four-wire + ground wire
Material
45# Steel
Machine System(For new machine)
Customized
Option A: Mitsubishi
Option B: Simons
Designed Production speed
500pcs/min
Stable Production Speed
400pcs/min
Glue machine
Customized
Option A: Chinese glue machine(Cost-effective)
Option B: Nordson machine
Web guide
Customized
Option A: Chinese web guide
Option B: BST web guide(or other brands)
Working space
35m*9m*5m(L*W*H)
Electric wire
3×120mm2+1×50mm2+1×25mm2
Certificate
CE
Other Service
We also provide the raw material supply. Nowadays we do raw material trading, have long terms cooperation with the reliable
suppliers with good quality and very reasonable price. From September,will start to produce the raw material by ourselves. Now
project is in processing.

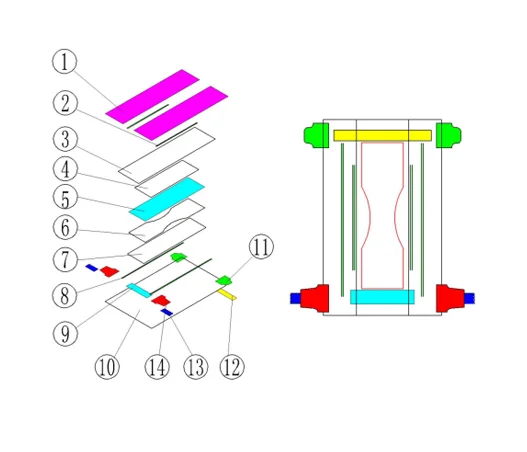

Basic Assembling Unit:
1. Teeth-like type high-speed crusher can take untreated pulp (with insulative system,electric lifting pulp shelf), semi-treated pulp and treated pulp. It adopts servo motor (one set) to control wood pulp supplying amount.
2. Double-screw type of SAP adding unit.The SAP supplying amount is adjusted by servo motor( one set).
3. Cotton core is molded inweb wheel, one set mold, width can be adjusted.
4. Cotton core absorb and transfer wheel.
5. Cotton core smooth-embossing unit, air-cylinder press.
6. Cotton core net square embossing unit,air-cylinder press.
7. Cotton coreis wrapped. The lower ply of tissue paper wrap the upper ply of tissue paper and cotton core inside.
8. Cotton core cut off unit.
9. Non-woven fabric cutting and folding unit.
10. Elastic rubber adhesive embossing unit, air-cylinder press, embossing width can be adjusted
11. Three piece materials sewing and embossing unit, air-cylinder press, embossing width can be adjusted.
12. Guide-flow N.W. fabric (Blue protrusion/ADL)supplying and cutting unit, driving eccentric wheel assisted adhesion.
13. Elastic rubber band/Lycra unwinding by frequency converter ( two sets),among them, 3-4 pieces of elastic bands are equipped in two sides of cotton core, while 1-2 pieces of elastic bands are equipped in two sides of protection-leakage. The tension of elastic rubber bands is step-less adjusted.
14. Elastic waist band supplying and cutting and stretching unit.
15. With frontal tapesupplying and cutting unit, driving eccentric wheel assisted adhesion. (It can spray glue on the production line directly.)
16. Three rollers pulling and compaction unitⅠ.
17. With left and right waist tape adding and cutting unit, Split knife shelf, cut width can be adjusted, driving eccentric wheel assisted adhesion.
18. With left and right waist tape folding and pressing unit.
19. Products are with arc-cutter,springs press.
20. Three rollers pulling and compaction unitⅡ.
21. Products vertically folded unit.
22. Products cut into shape.
23. Products are horizontally tri-folded or two folded.
24. Two sets auto-reject unit.
25. Products are vertically outputted in one-line, autocounting. ( or equip with stacker, two exits)
26. Aluminum with Tempered Safety guard glass.
27. The main machine adopts frequency-converter(one set)
28. The driving system is double main shafts + universal shafts +Circle-arc tooth timing belts + closed-type gear box.
29. Knife holder is drivenby universal shafts.
30. There are electrical differential units on every position of phase demanded.
31. There are 6-7 pieces of urgent-stop buttons on back turning doors.
32. Waste-collect box.
33. Pneumatic system and dust-collect system.
34. 34. Other equipments: 1)thereare lighting lamps on the parts of spraying glue and fixing lamps on the back driving parts.
2) There is counting unit.
* With safety door;
